Countryside Road

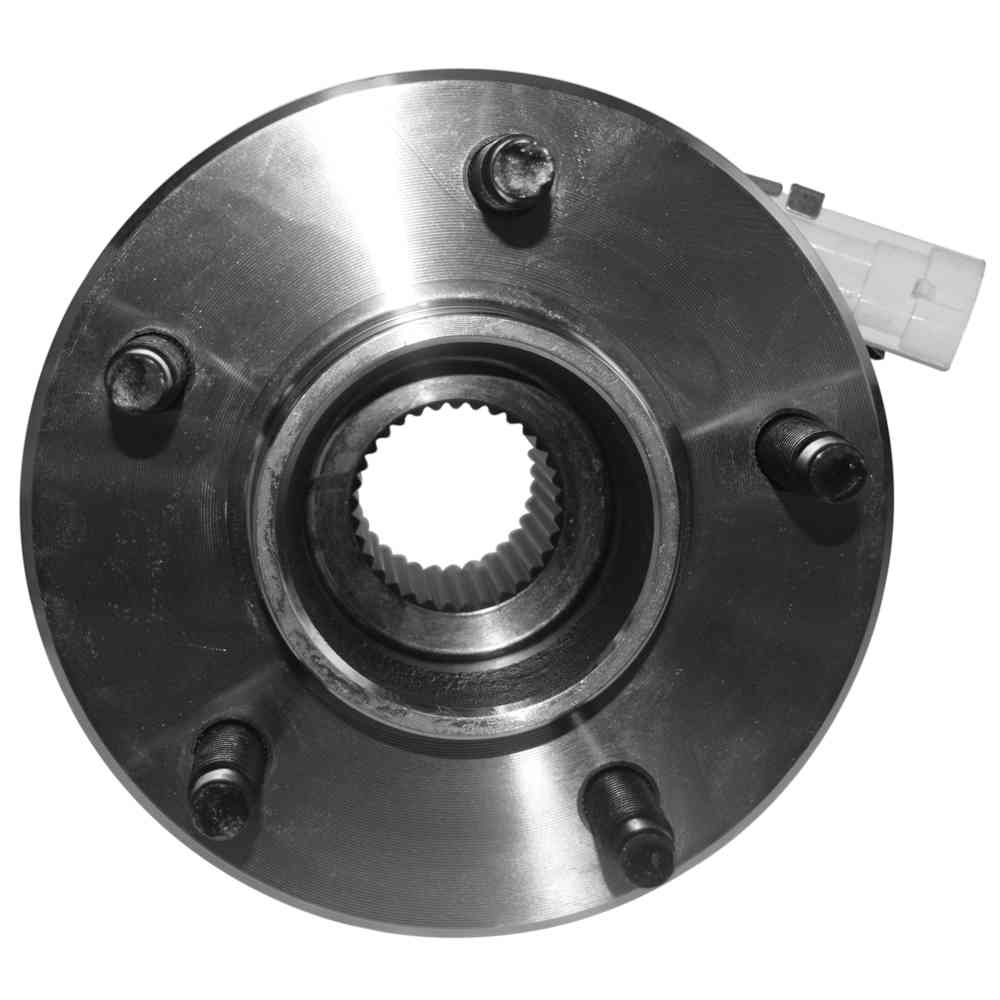

Chevrolet, Pontiac, Saturn Wheel Bearing and Hub Assembly - Front

Part Number:

104189HD

Product Type:

Hub Assemblies are engineered with Silent Ride Technology (SRT) to ensure a comfortable and quiet ride. Strict engineering tolerances in conjunction with the highest quality bearing components are integral to this superior design.

SPECIFICATIONS

Anti Lock Braking System

Yes

Bearing Generation

Gen 3

Bolt Circle Diameter

115

Bolts Included

No

California Proposition 65

Yes

Flange Bolt Hole Quantity

3

Flange Diameter

150

Flange Offset

42

Anti Lock Braking System Type

Cable

Bearing Type

Ball

Bolt Thread Pitch

M12×1.5

Brake Pilot Diameter

70.6

Driven Type

Driven

Flange Bolts Included

No

Flange Included

Yes

Hub Pilot Diameter

91.2

FEATURES & BENEFITS

● Designed with raw steel material that meets or exceeds standards to produce a long-lasting service life.
● All hub assemblies go through a vacuum vulcanization process to enhance the structural integrity of the seal and rubber components.
● Ball bearings are spaced precisely to the appropriate clearance for smooth rotation and abrasion resistance.
● High quality rubber optimizes the seals performance and durability against high-temperatures and weathering.
● To ensure a smooth surface, free from defects, all bearing housings are manufactured with polyamides for added impact toughness and age resistance.

APPLICATIONS

Year Range
Make
Model
Sub Model
Position
2006-2006
Chevrolet
Equinox
LT, LS
Front
2006-2006
Pontiac
Torrent
Front
2006-2007
Saturn
Vue
Base
Front
2005-2005
Chevrolet
Equinox
Front
2004-2007
Saturn
Vue
Base
Front
2004-2006
Saturn
Vue
Front
2002-2003
Saturn
Vue
Front
