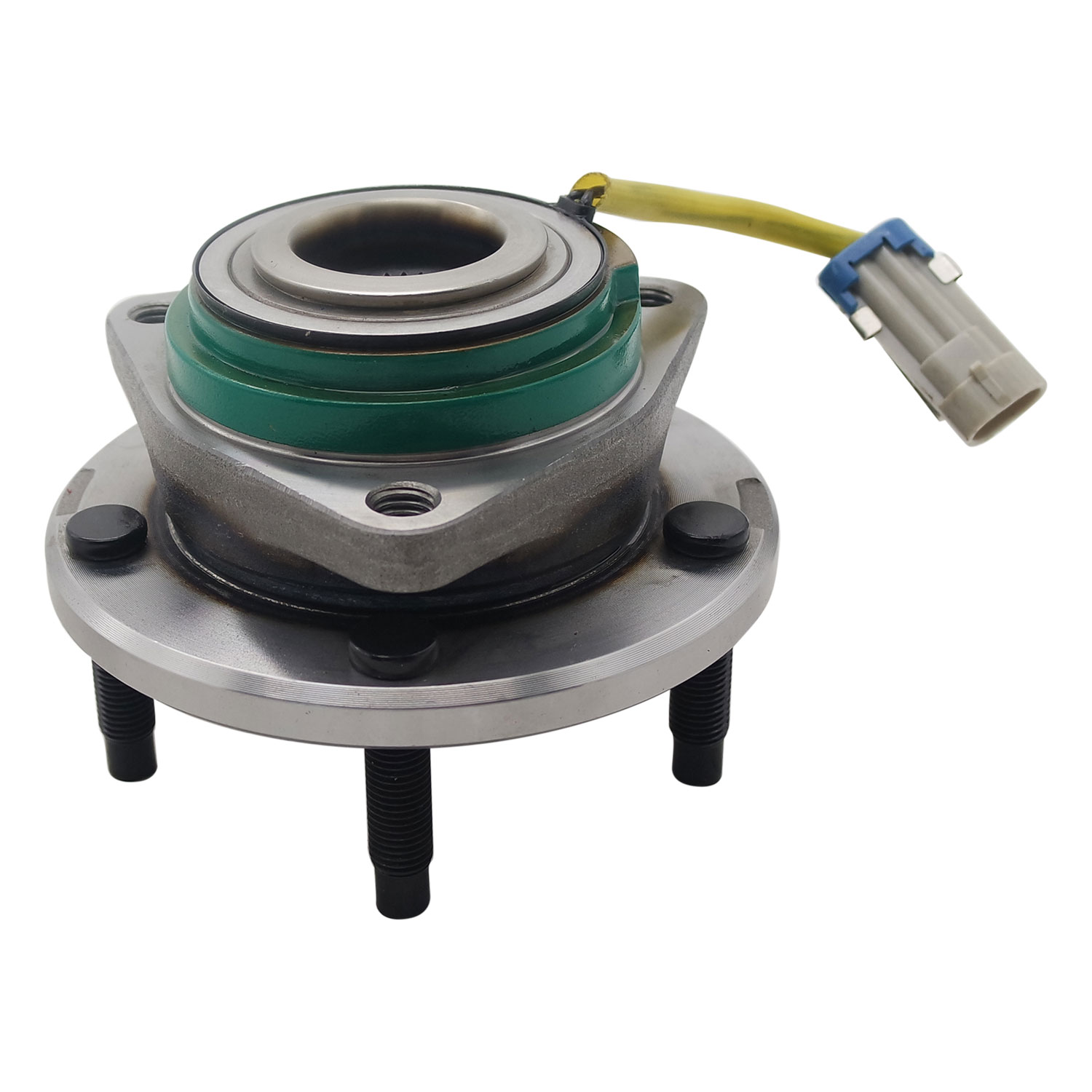

09-13 Chevrolet Corvette Wheel Bearing and Hub Assembly
SPECIFICATIONS
Anti Lock Braking System
Yes
Bearing Generation
Gen 3
Bolt Circle Diameter
120.65
Bolts Included
No
California Proposition 65
Yes
Flange Bolt Hole Quantity
3
Flange Diameter
145.5
Flange Offset
42
Anti Lock Braking System Type
Cable
Bearing Type
Ball
Bolt Thread Pitch
M12×1.5
Brake Pilot Diameter
70.63
Driven Type
Driven
Flange Bolts Included
No
Flange Included
Yes
Hub Pilot Diameter
89.7
FEATURES & BENEFITS
● Designed with raw steel material that meets or exceeds standards to produce a long-lasting service life.
● All hub assemblies go through a vacuum vulcanization process to enhance the structural integrity of the seal and rubber components.
● Ball bearings are spaced precisely to the appropriate clearance for smooth rotation and abrasion resistance.
● High quality rubber optimizes the seals performance and durability against high-temperatures and weathering.
● To ensure a smooth surface, free from defects, all bearing housings are manufactured with polyamides for added impact toughness and age resistance.
APPLICATIONS
Year Range | Make | Model | Sub Model | Position |
---|---|---|---|---|
2012-2013 | Chevrolet | Corvette | Base, Grand Sport | Rear |
2011-2011 | Chevrolet | Corvette | Grand Sport, Base, Z06, Z06 Carbon | Front, Rear |
2010-2011 | Chevrolet | Corvette | Grand Sport | Rear |
2009-2011 | Chevrolet | Corvette | Base, Z06, ZR1 | Rear, Front |
