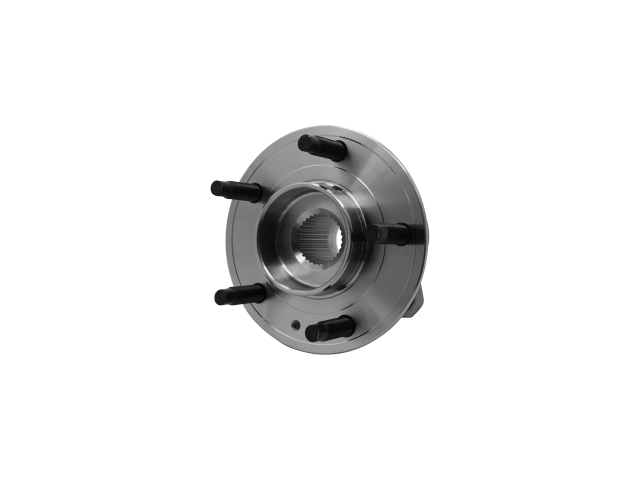

18-19 Cadillac ATS (AWD) Wheel Bearing and Hub Assembly
SPECIFICATIONS
ABS Tone Ring Tooth Quantity
48
Anti Lock Braking System Type
Encoder
Bearing Type
Ball
Bolt Thread Pitch
M12×1.75
Brake Pilot Diameter
70.6
Driven Type
Driven
Flange Bolts Included
No
Flange Included
Yes
Anti Lock Braking System
Yes
Bearing Generation
Gen 3
Bolt Circle Diameter
115
Bolts Included
No
California Proposition 65
Yes
Flange Bolt Hole Quantity
3
Flange Diameter
146
Flange Offset
42
FEATURES & BENEFITS
● Designed with raw steel material that meets or exceeds standards to produce a long-lasting service life.
● All Wheel Bearing and Hub assemblies go through a vacuum vulcanization process to enhance structrual integrity of the seal and rubber components.
● Ball bearings are spaced precisely to the appropriate clearance for smooth rotation and abrasion resistance.
● High quality rubber optimizes the seals performance and durability against high-temperatures and weathering.
● To ensure a smooth surface, free from defects, all bearing housings are manufactured with polyamides for added impact toughness and age resistance.
APPLICATIONS
Year Range | Make | Model | Sub Model | Position |
|---|---|---|---|---|
2018-2019 | Cadillac | ATS | Base, Luxury, Premium Luxury, Premium Performance | Rear, Front |
