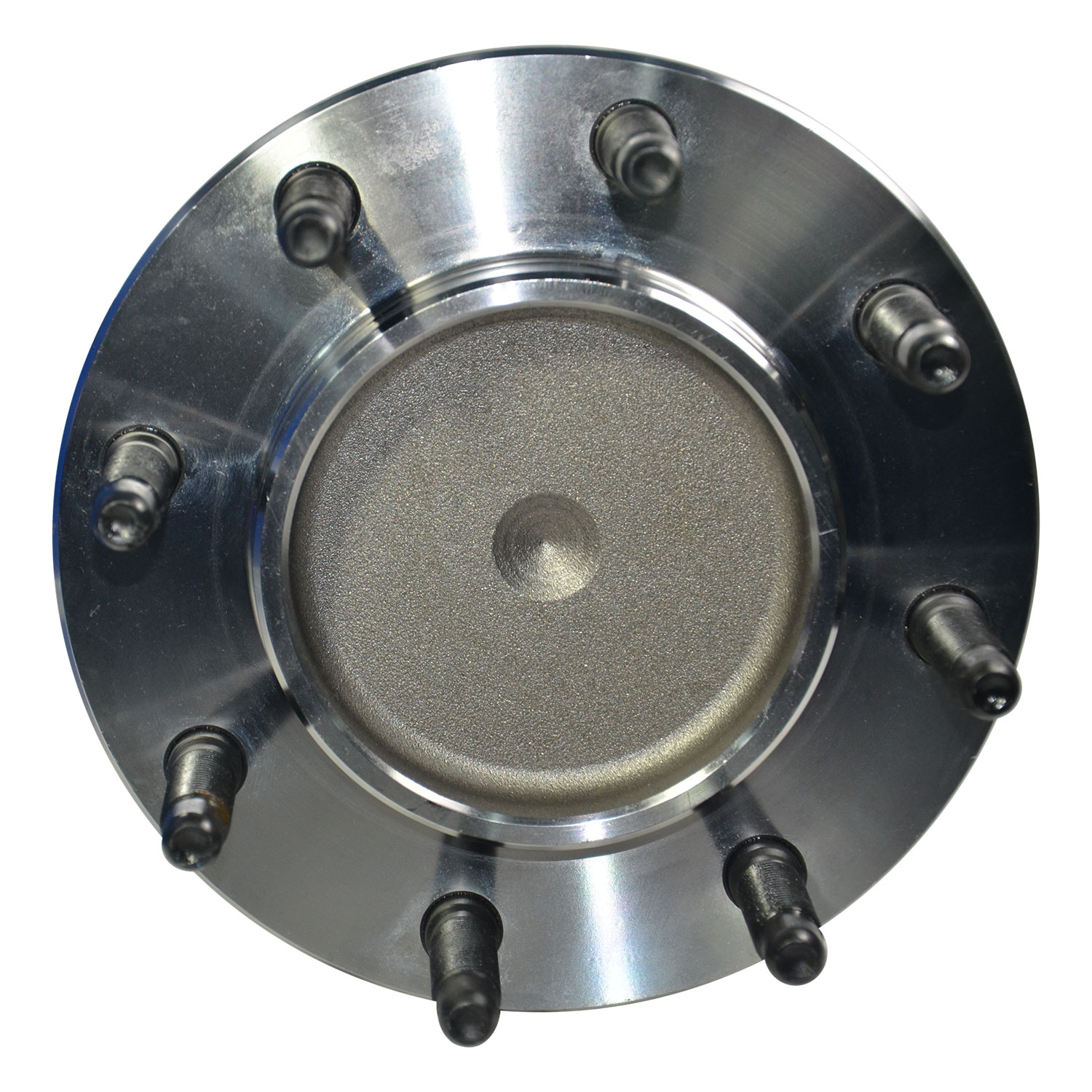

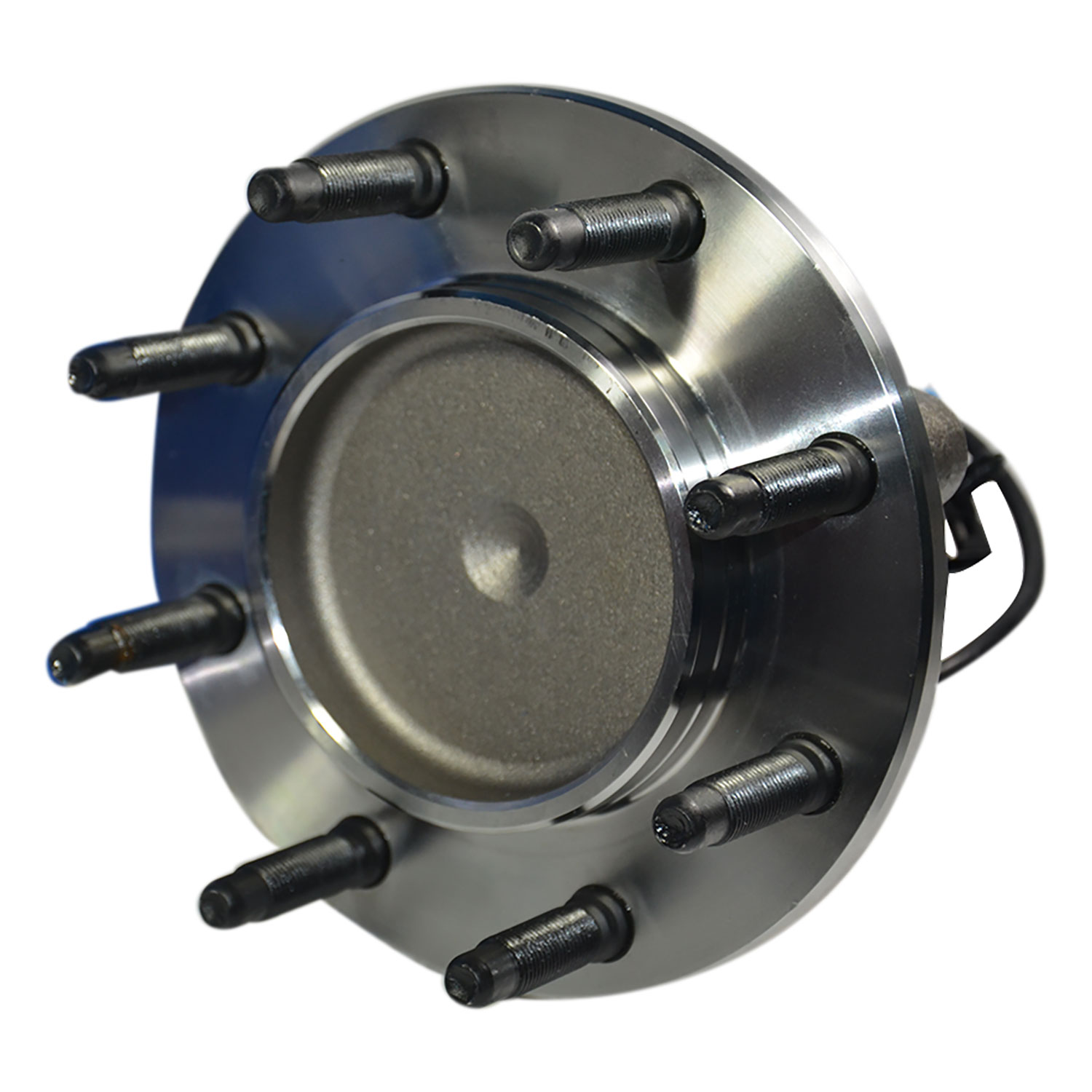

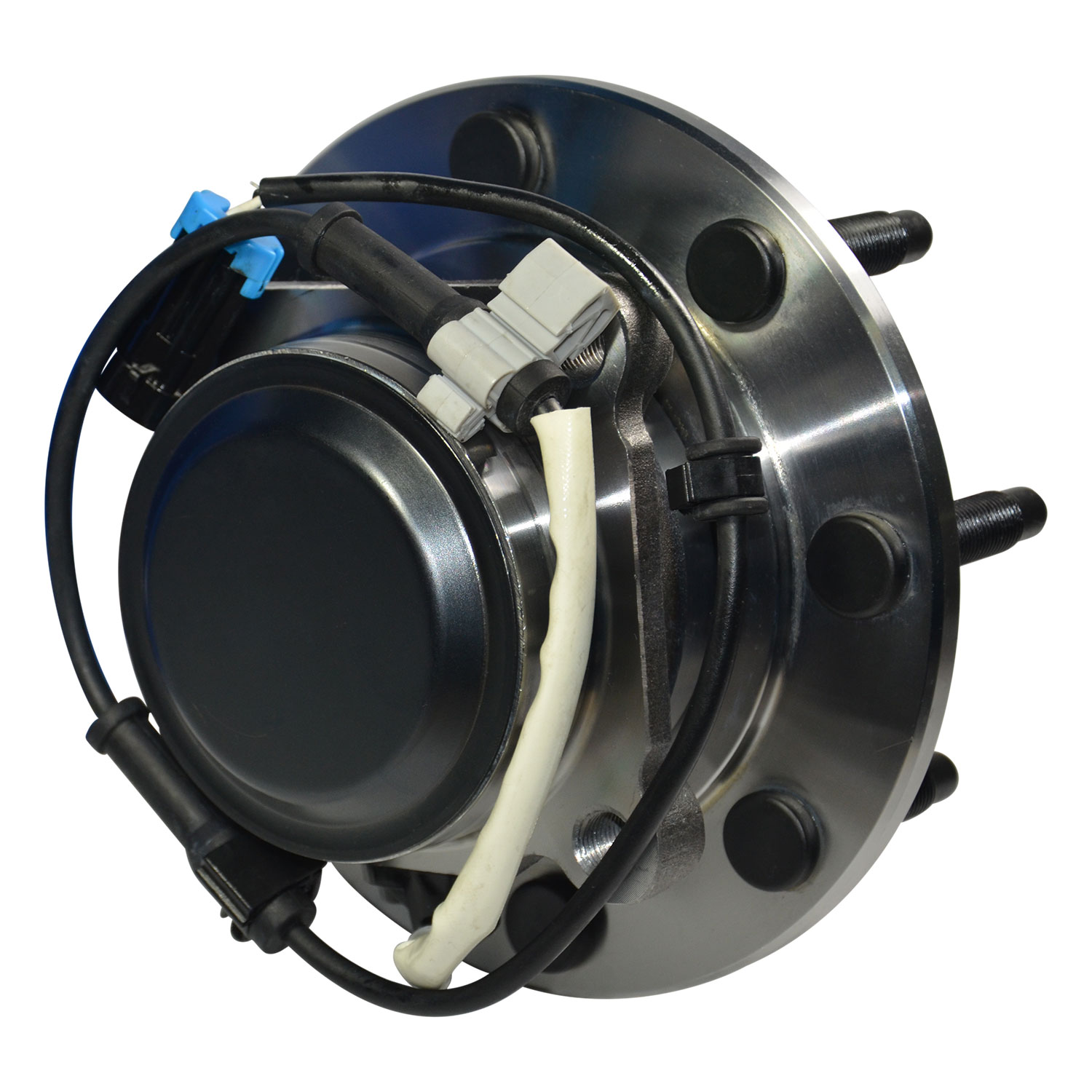

Chevrolet, GMC (RWD) Wheel Bearing and Hub Assembly - Front
SPECIFICATIONS
Anti Lock Braking System
Yes
Bearing Generation
Gen 3(solid)
Bolt Circle Diameter
165
Bolts Included
No
California Proposition 65
Yes
Flange Bolt Hole Quantity
4
Flange Diameter
198.8
Flange Offset
57.8

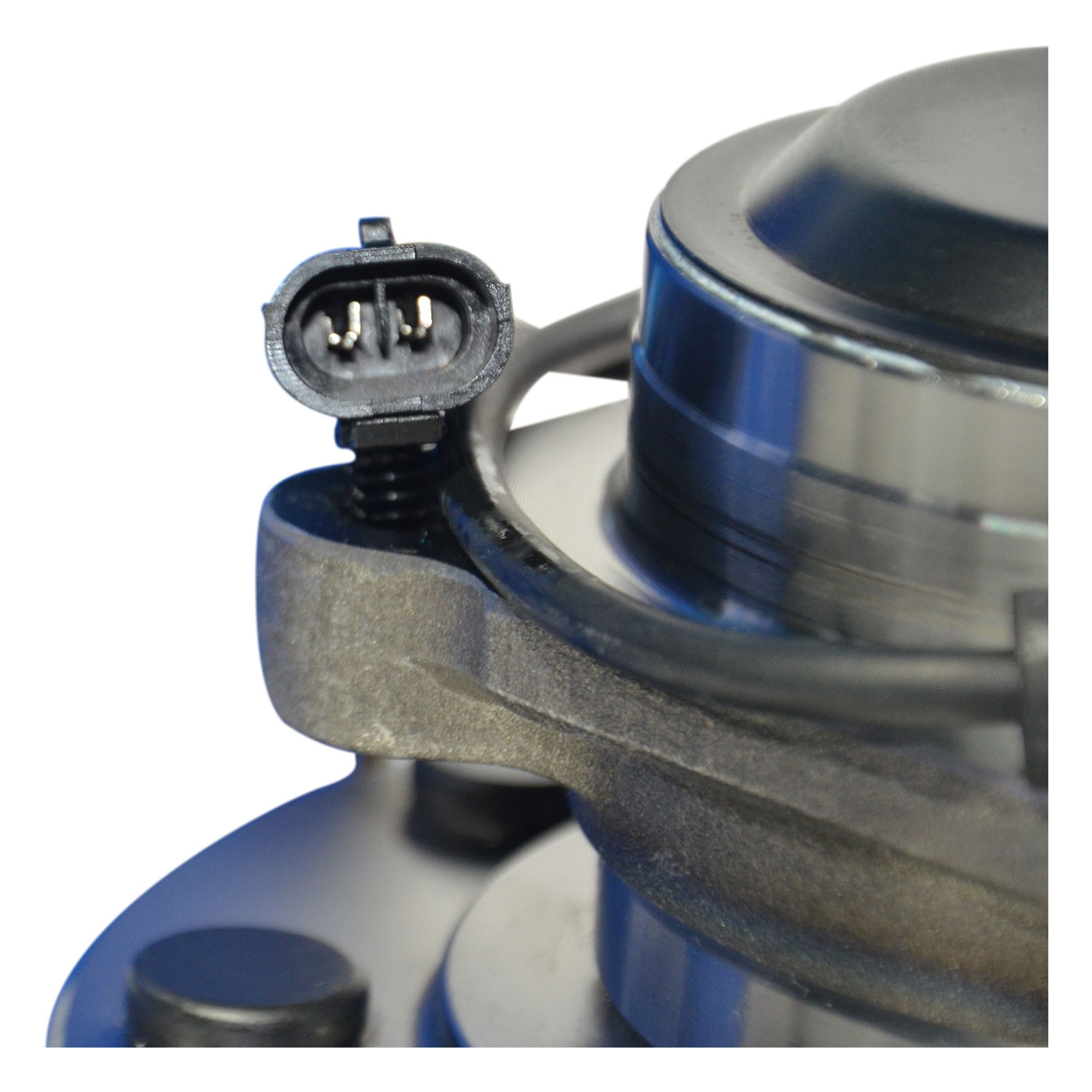

Anti Lock Braking System Type
Cable
Bearing Type
Taper
Bolt Thread Pitch
M14×1.5
Brake Pilot Diameter
117.8
Driven Type
Non-driven
Flange Bolts Included
No
Flange Included
Yes
Hub Pilot Diameter
105.8
FEATURES & BENEFITS
● Designed with raw steel material that meets or exceeds standards to produce a long-lasting service life.
● All hub assemblies go through a vacuum vulcanization process to enhance the structural integrity of the seal and rubber components.
● Ball bearings are spaced precisely to the appropriate clearance for smooth rotation and abrasion resistance.
● High quality rubber optimizes the seals performance and durability against high-temperatures and weathering.
● To ensure a smooth surface, free from defects, all bearing housings are manufactured with polyamides for added impact toughness and age resistance.
APPLICATIONS
Year Range | Make | Model | Sub Model | Position |
|---|---|---|---|---|
2007-2007 | Chevrolet | Silverado 3500 Classic | Front | |
2007-2007 | GMC | Sierra 3500 Classic | Front | |
2001-2006 | Chevrolet | Silverado 3500 | Front | |
2001-2006 | GMC | Sierra 3500 | Front |
