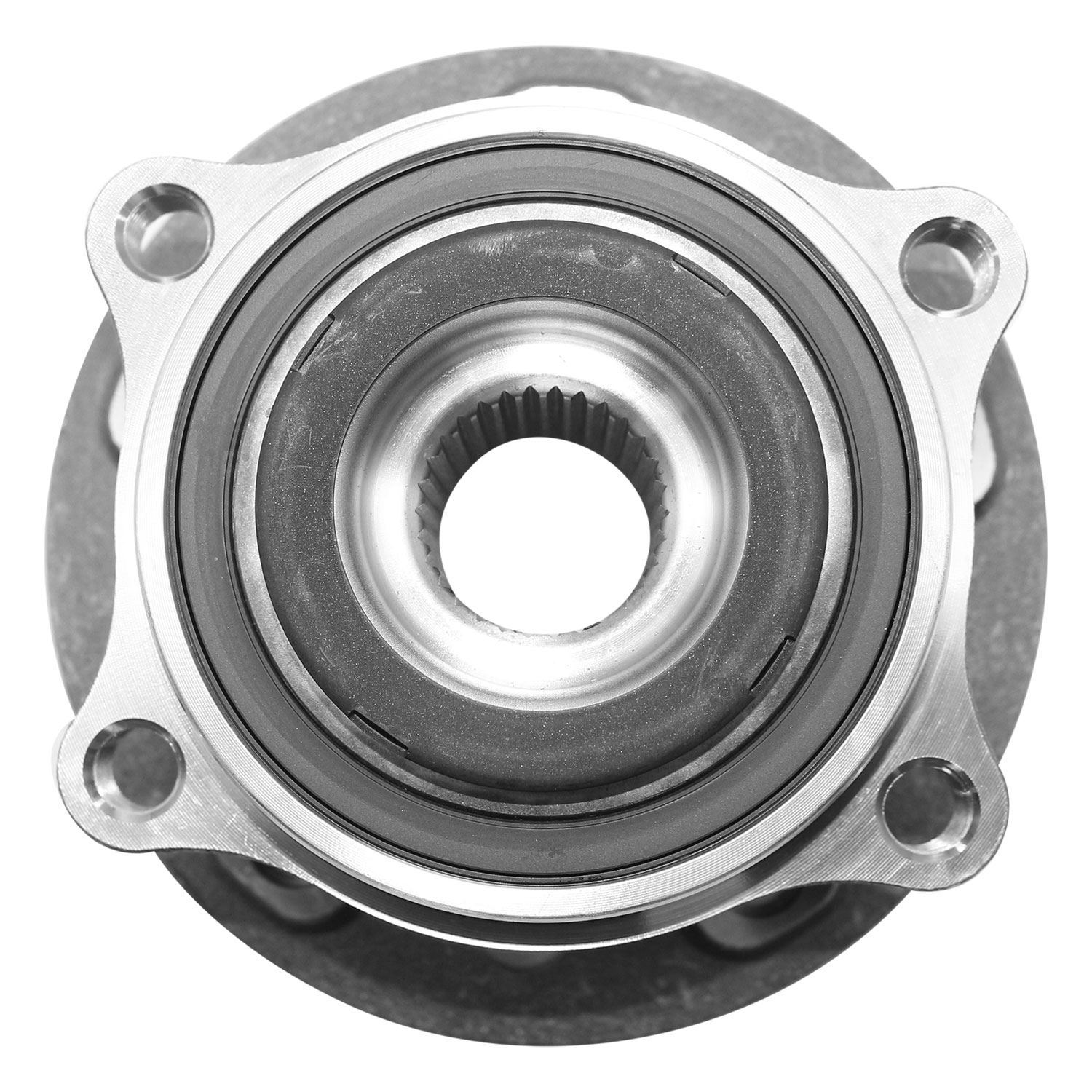

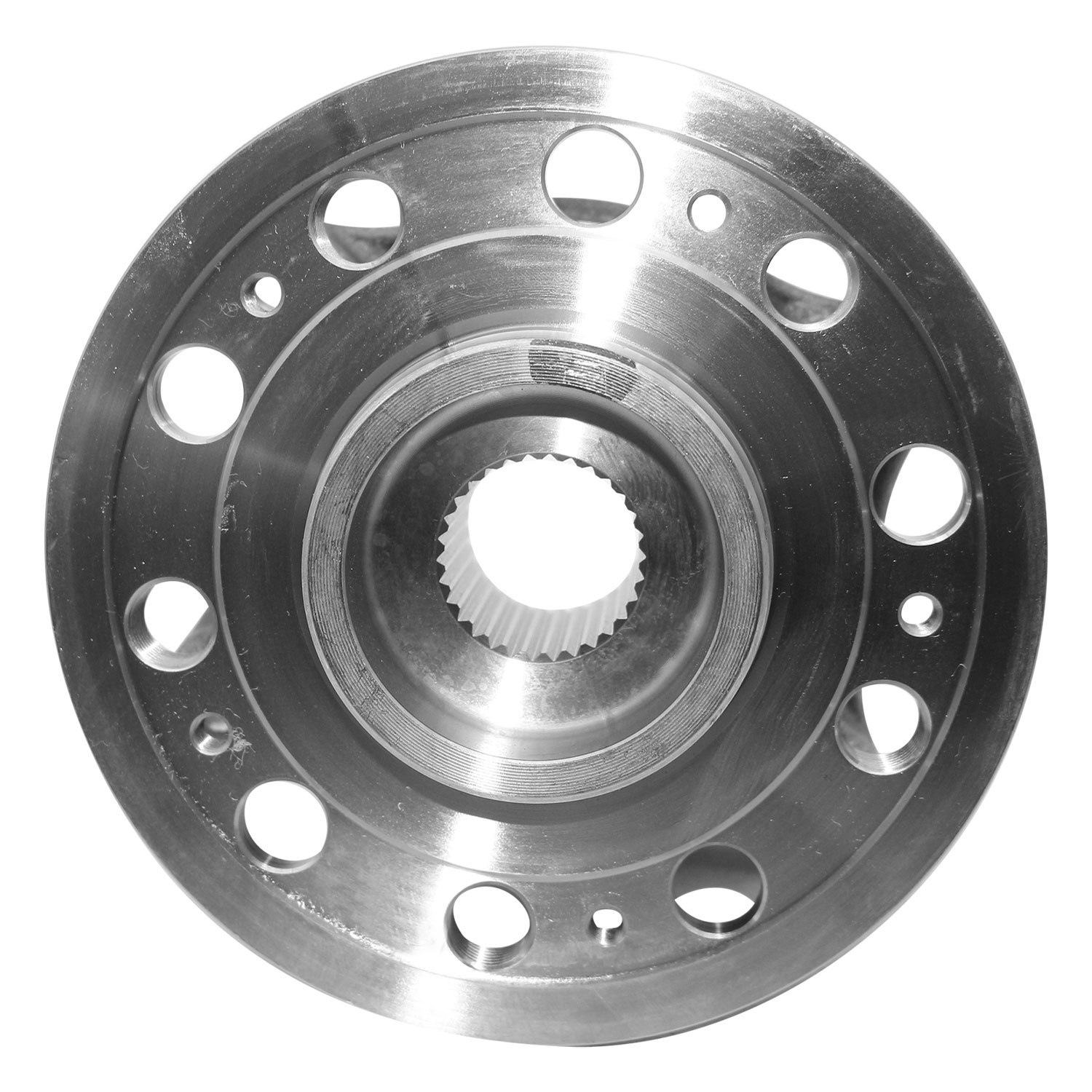

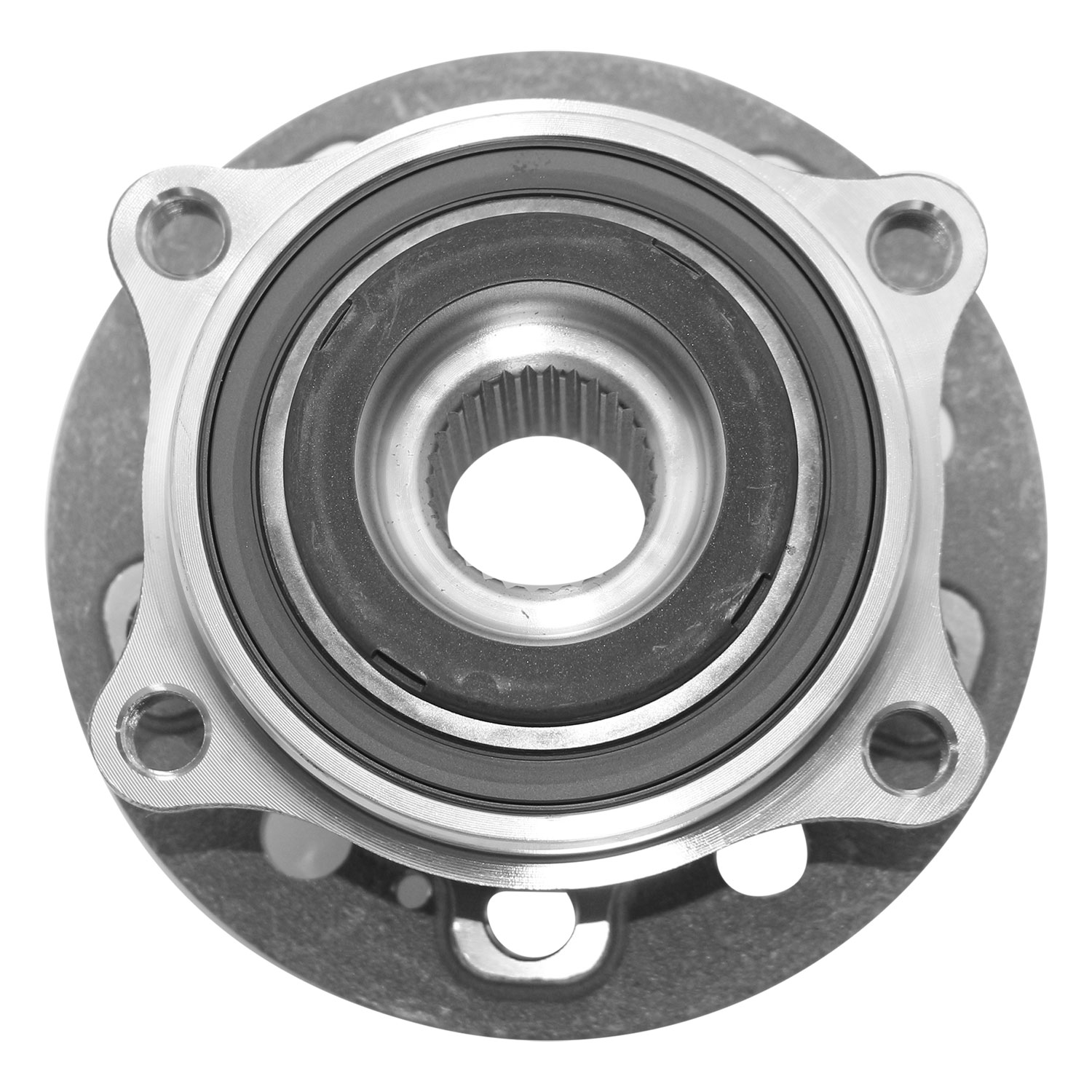

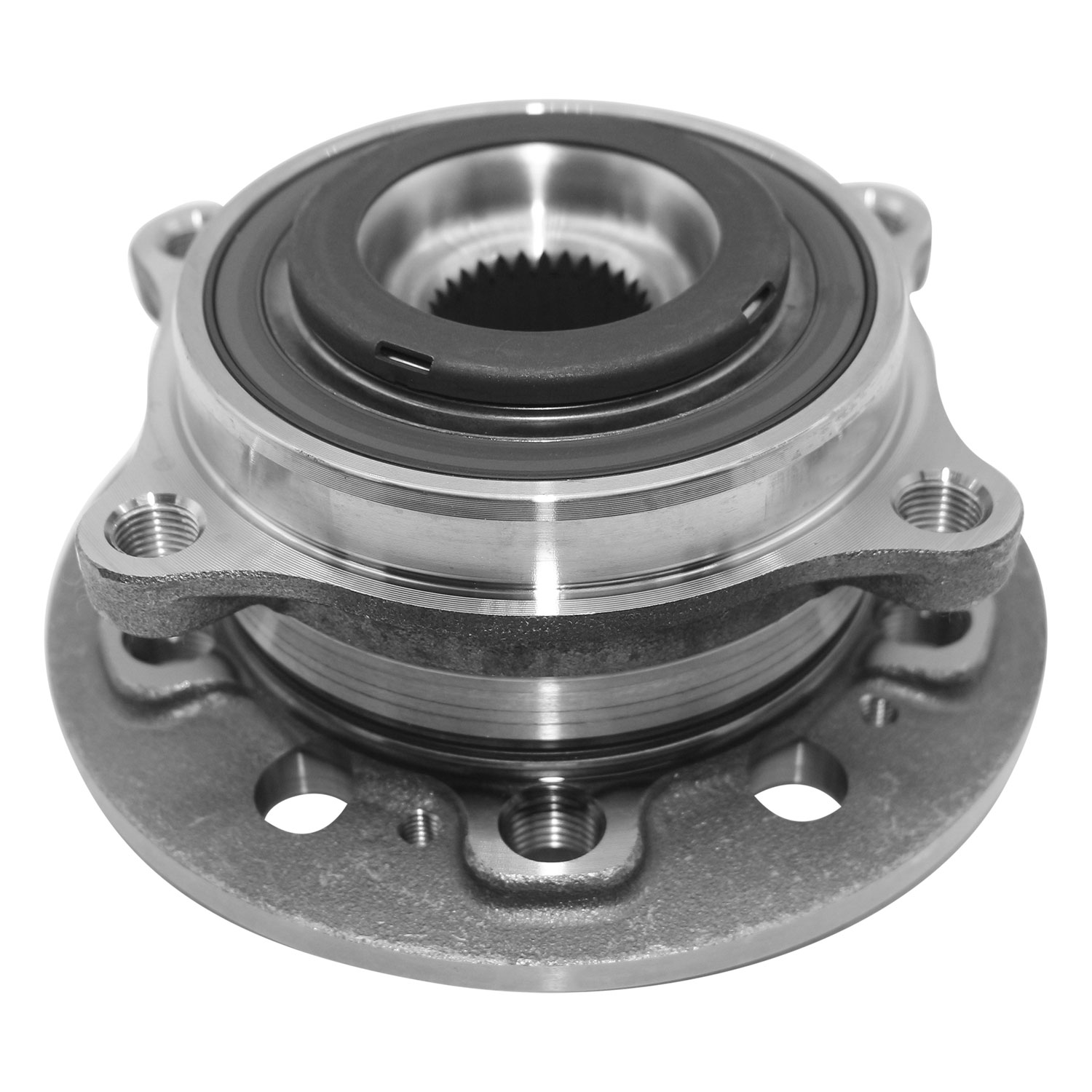

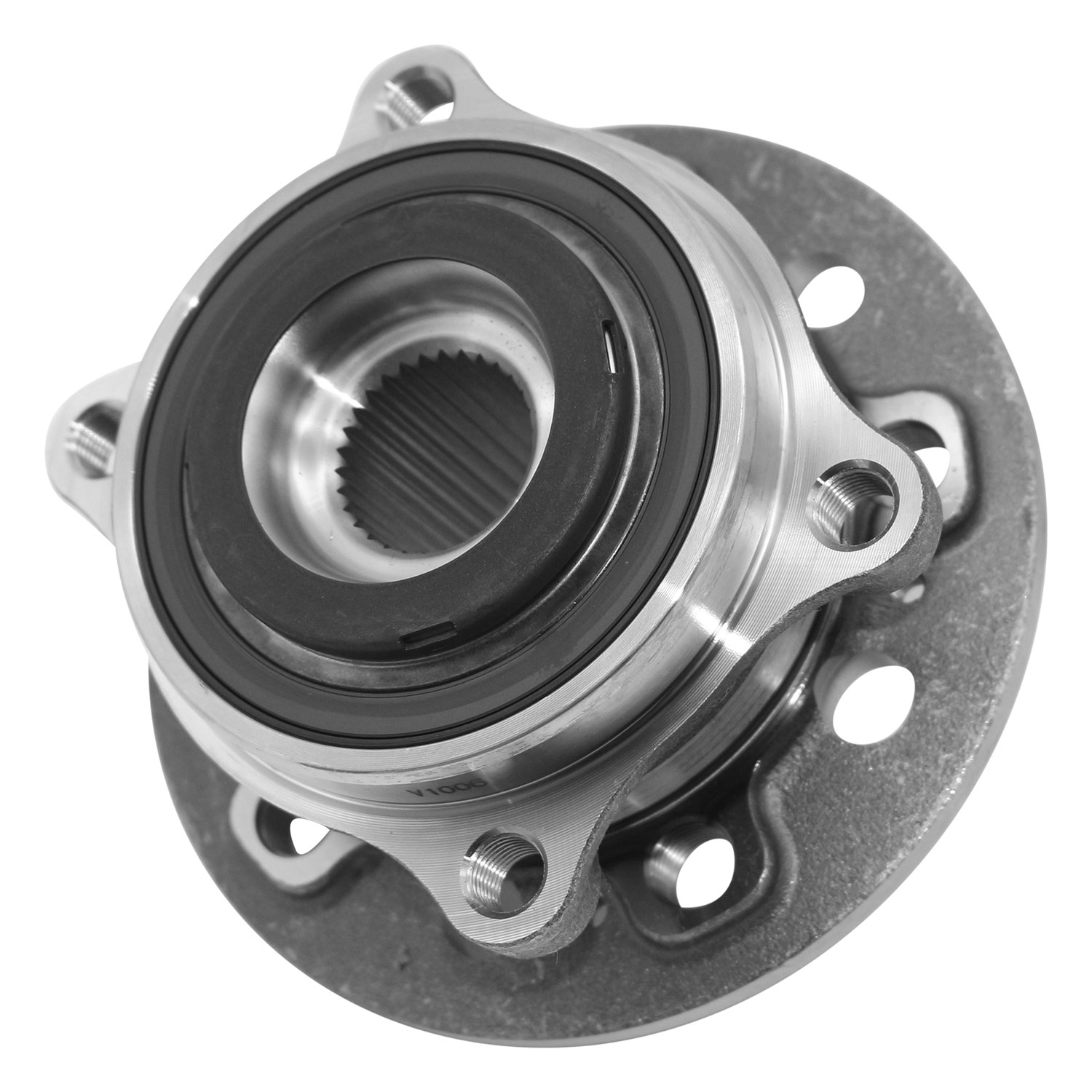

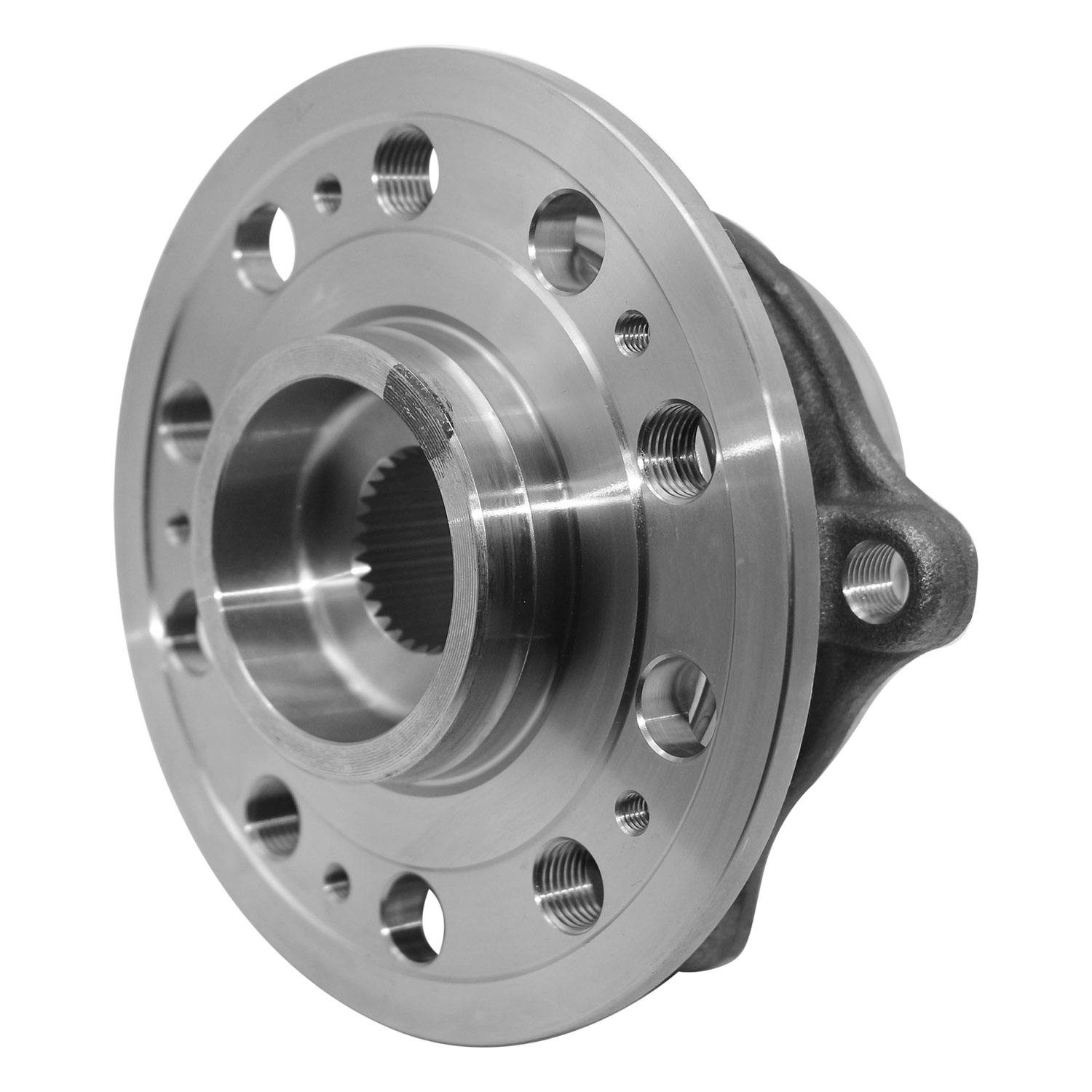

Genesis (2.5, 3.5 - AWD) Wheel Bearing and Hub Assembly
SPECIFICATIONS
ABS Tone Ring Tooth Quantity
46
Anti Lock Braking System Type
Encoder
Bearing Type
Ball
Bolt Thread Pitch
M12×1.25
Brake Pilot Diameter
69
Driven Type
Driven
Flange Bolts Included
No
Flange Included
Yes
Anti Lock Braking System
Yes
Bearing Generation
Gen 3
Bolt Circle Diameter
114.3
Bolts Included
No
California Proposition 65
Yes
Flange Bolt Hole Quantity
4
Flange Diameter
151
Flange Offset
47.5
FEATURES & BENEFITS
● Designed with raw steel material that meets or exceeds standards to produce a long-lasting service life.
● All Wheel Bearing and Hub assemblies go through a vacuum vulcanization process to enhance structrual integrity of the seal and rubber components.
● Ball bearings are spaced precisely to the appropriate clearance for smooth rotation and abrasion resistance.
● High quality rubber optimizes the seals performance and durability against high-temperatures and weathering.
● To ensure a smooth surface, free from defects, all bearing housings are manufactured with polyamides for added impact toughness and age resistance.
APPLICATIONS
Year Range | Make | Model | Sub Model | Position |
|---|---|---|---|---|
2025-2025 | Genesis | Electrified G80 | Base | Front |
2024-2025 | Genesis | GV80 | Front | |
2024-2024 | Genesis | Electrified G80 | Front | |
2023-2024 | Genesis | G80 | Sport Prestige | Front |
2023-2025 | Genesis | G90 | Front, Rear | |
2023-2023 | Genesis | GV80 | Advanced, Advanced+, Base, Prestige | Front |
2023-2023 | Genesis | Electrified G80 | Base | Front |
2023-2025 | Genesis | Electrified GV70 | Rear | |
2022-2024 | Genesis | G80 | Advanced, Sport, Sport Prestige | Rear, Front |
2022-2023 | Genesis | G80 | Base | Rear, Front |
2022-2022 | Genesis | G80 | Prestige, Sport Prestige | Rear, Front |
2021-2021 | Genesis | G80 | Rear, Front | |
2021-2022 | Genesis | GV80 | Advanced, Base, Prestige | Front |
