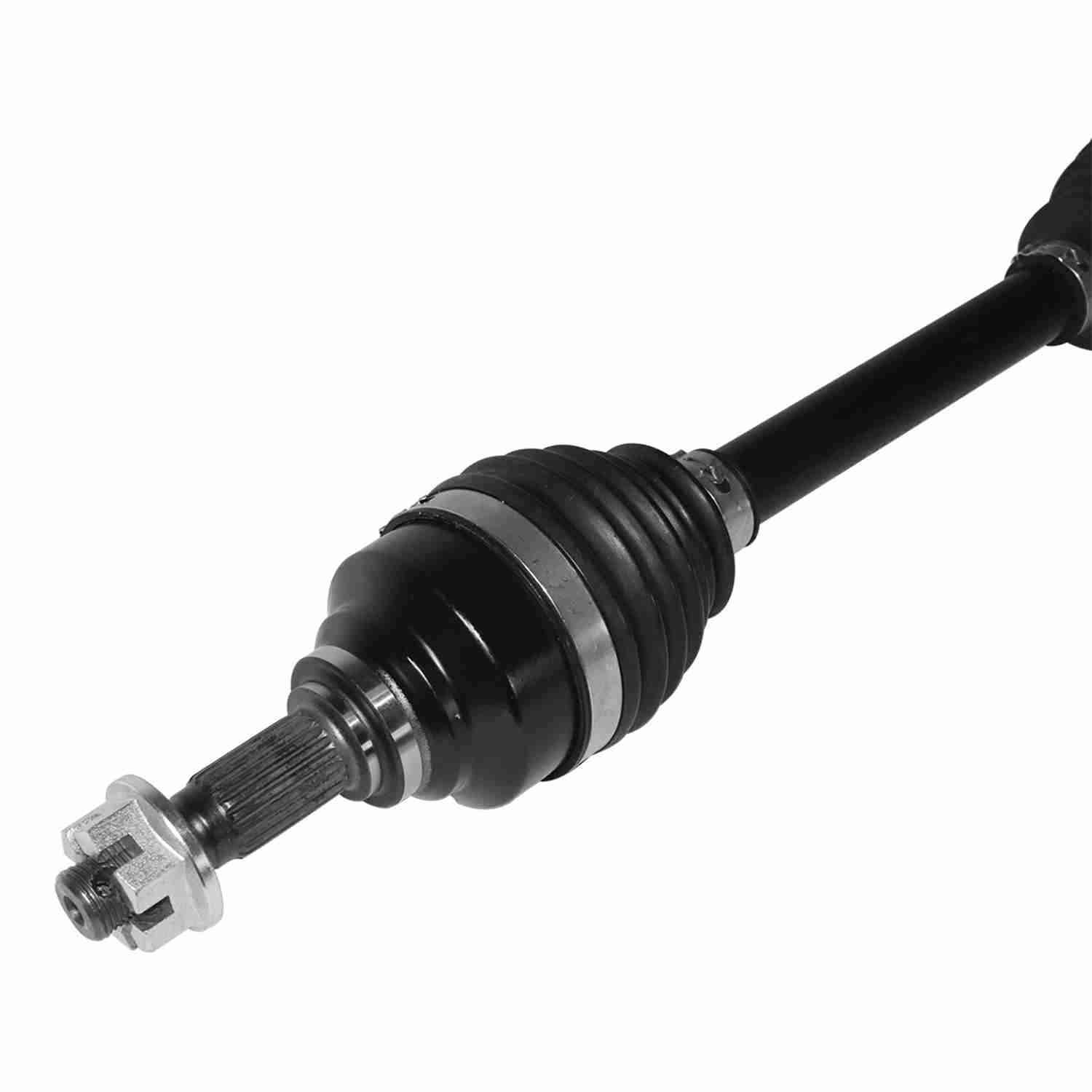

Arctic Cat CV Axle Assembly - Front

Part Number:

4101013

Product Type:

CV Axle Assembly

GSP's ATV/UTV CV Axles are built to take a beating! Cad Designed and engineered to exceed manufactures specifications. This is a heavy duty product.

SPECIFICATIONS

Axle Nut Included

Yes

Axle Nut Socket Size

30

Axle Nut Type

Castle Nut

California Proposition 65

Yes

Dynamic Damper Attached

No

Inboard Joint Type

DOJ

Outboard Joint Type

BJ

Prop 65 Yes/No

Yes

Axle Nut Length

0.71

Axle Nut Thread Size

M18X1.5-6H

Boot Material

TPE

Compressed Length

19.72

Extended Length

21.14

Inboard Spline Quantity

21

Outboard Spline Quantity

21

Shaft Diameter

23

FEATURES & BENEFITS

● High performance Moly grease for optimal performance
● Premium grade neoprene & TPEE boots
● Heavy Duty Center Shafts use industry leading alloy material
● Oversized CV joints dramatically improved strength for high articulation angles
● Precision engineered cage and housing for reduced friction and a smooth range of motion

APPLICATIONS

Year Range
Make
Model
Sub Model
Position
2004-2004
Arctic Cat
400 4x4 MRP
Front
2004-2004
Arctic Cat
400 4x4 Auto MRP
Front
2004-2004
Arctic Cat
300 4x4 MRP
Front
2003-2004
Arctic Cat
400 4x4 ACT
Front
2003-2004
Arctic Cat
400 4x4 Auto ACT
Front
2003-2004
Arctic Cat
400 4x4 Auto
Front
2002-2002
Arctic Cat
500 4x4 Auto TBX
Front
2002-2004
Arctic Cat
300 4x4
Front
2002-2004
Arctic Cat
400 4x4
Front
2002-2002
Arctic Cat
375 Auto 4x4
Front
2002-2002
Arctic Cat
500 4x4 Auto
Front
2002-2002
Arctic Cat
500 4x4
Front
2002-2004
Arctic Cat
250 4x4
Front
