Countryside Road

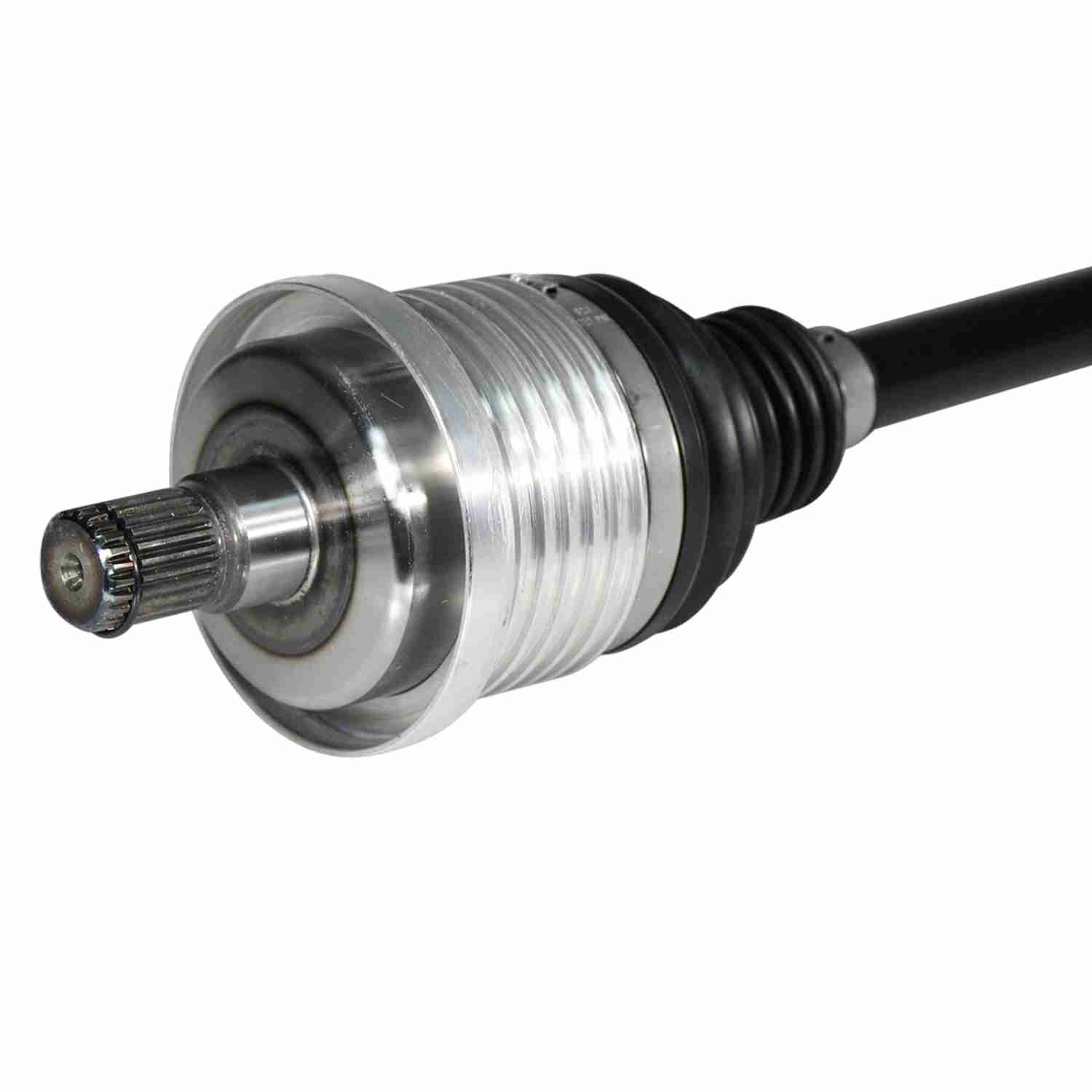

Can-Am CV Axle Assembly - Rear

Part Number:

4102011

Product Type:

CV Axle Assembly

GSP's ATV/UTV CV Axles are built to take a beating! Cad Designed and engineered to exceed manufactures specifications. This is a heavy duty product.

SPECIFICATIONS

Axle Nut Included

Yes

Axle Nut Socket Size

27

Axle Nut Type

Castle Nut

California Proposition 65

Yes

Dynamic Damper Attached

No

Inboard Joint Type

BJ

Outboard Joint Type

BJ

Prop 65 Yes/No

Yes

Axle Nut Length

0.83

Axle Nut Thread Size

M18X1.5-6H

Boot Material

TPE

Compressed Length

27.13

Extended Length

29.37

Inboard Spline Quantity

24

Outboard Spline Quantity

26

Shaft Diameter

24.5

FEATURES & BENEFITS

● High performance Moly grease for optimal performance
● Premium grade neoprene & TPEE boots
● Heavy Duty Center Shafts use industry leading alloy material
● Oversized CV joints dramatically improved strength for high articulation angles
● Precision engineered cage and housing for reduced friction and a smooth range of motion

APPLICATIONS

Year Range
Make
Model
Sub Model
Position
2015-2016
Can-Am
Maverick 1000R X xc DPS
Rear
2014-2014
Can-Am
Maverick X xc DPS 1000R
Rear

VIDEO
