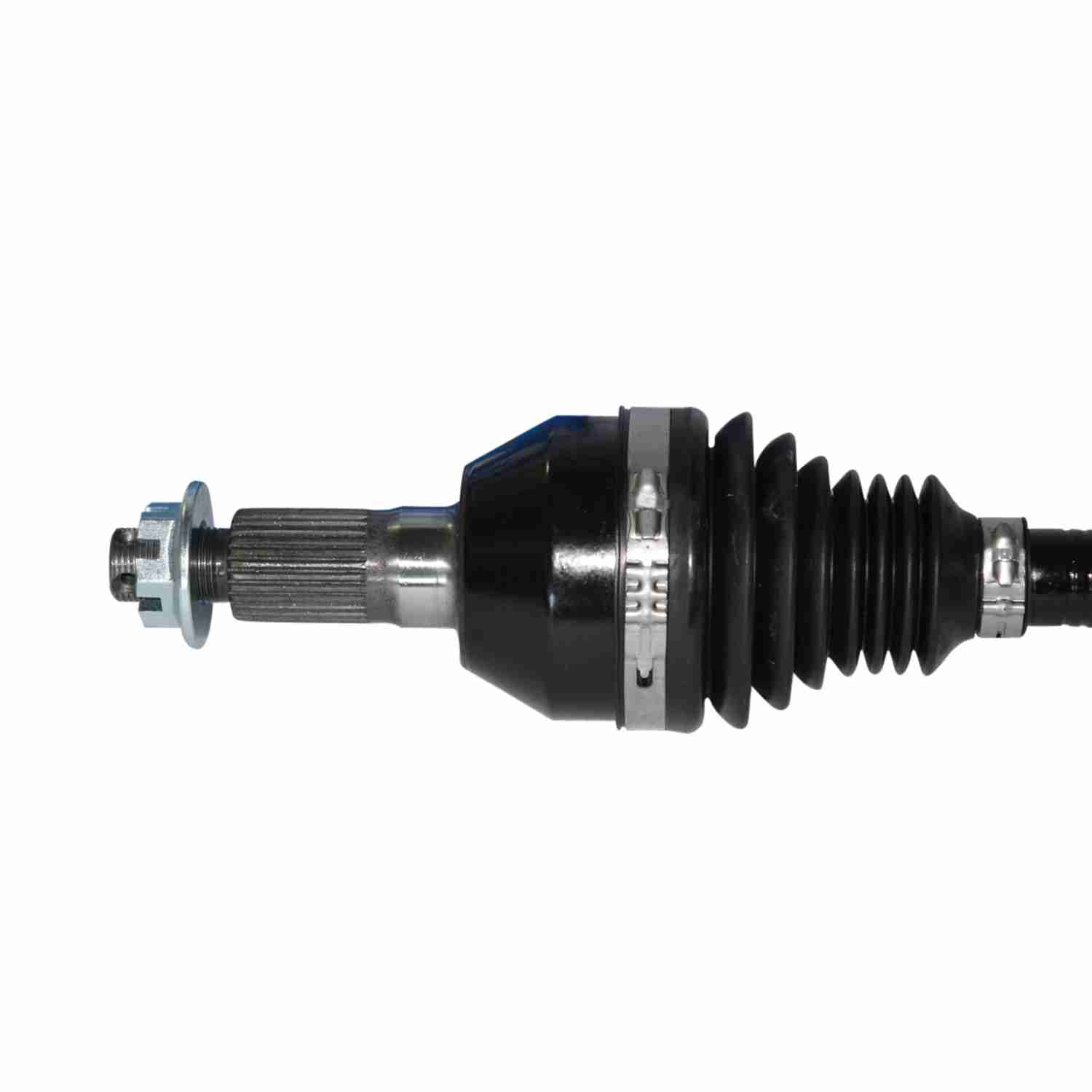

CV Axle Assembly
SPECIFICATIONS
Axle Nut Included
Yes
Axle Nut Socket Size
29
Axle Nut Type
Castle Nut
California Proposition 65
Yes
Dynamic Damper Attached
No
Inboard Joint Type
BJ
Outboard Joint Type
BJ
Prop 65 Yes/No
Yes
Axle Nut Length
0.59
Axle Nut Thread Size
M20X1.5-6H
Boot Material
TPE
Compressed Length
33.27
Extended Length
34.25
Inboard Spline Quantity
24
Outboard Spline Quantity
29
Shaft Diameter
24.5
FEATURES & BENEFITS
● High performance Moly grease for optimal performance
● Premium grade neoprene & TPEE boots
● Heavy Duty Center Shafts use industry leading alloy material
● Oversized CV joints dramatically improved strength for high articulation angles
● Precision engineered cage and housing for reduced friction and a smooth range of motion
APPLICATIONS
Year Range | Make | Model | Sub Model | Position |
|---|---|---|---|---|
2021-2021 | Can-Am | Maverick X3 X ds Turbo RR | Front Left, Front Right | |
2021-2022 | Can-Am | Maverick X3 X rs Turbo RR | Front Left, Front Right | |
2020-2020 | Can-Am | Maverick X3 DS Turbo R | Front Left, Front Right | |
2020-2020 | Can-Am | Maverick X3 Max DS Turbo R | Front Left, Front Right | |
2020-2020 | Can-Am | Maverick X3 Max RS Turbo R | Front Left, Front Right | |
2020-2021 | Can-Am | Maverick X3 Max X ds Turbo RR | Front Left, Front Right | |
2020-2023 | Can-Am | Maverick X3 Max X mr Turbo RR | Front Left, Front Right | |
2020-2023 | Can-Am | Maverick X3 Max X rs Turbo RR | Front Left, Front Right | |
2020-2022 | Can-Am | Maverick X3 X mr Turbo RR | Front Left, Front Right | |
2020-2022 | Can-Am | Maverick X3 X rc Turbo RR | Front Left, Front Right | |
2019-2019 | Can-Am | Maverick X3 X rc Turbo R | Front Left, Front Right | |
2018-2019 | Can-Am | Maverick X3 X mr Turbo | Front Left, Front Right | |
2018-2019 | Can-Am | Maverick X3 X mr Turbo R | Front Left, Front Right | |
2018-2021 | Can-Am | Maverick X3 X rc Turbo | Front Left, Front Right |
