Countryside Road

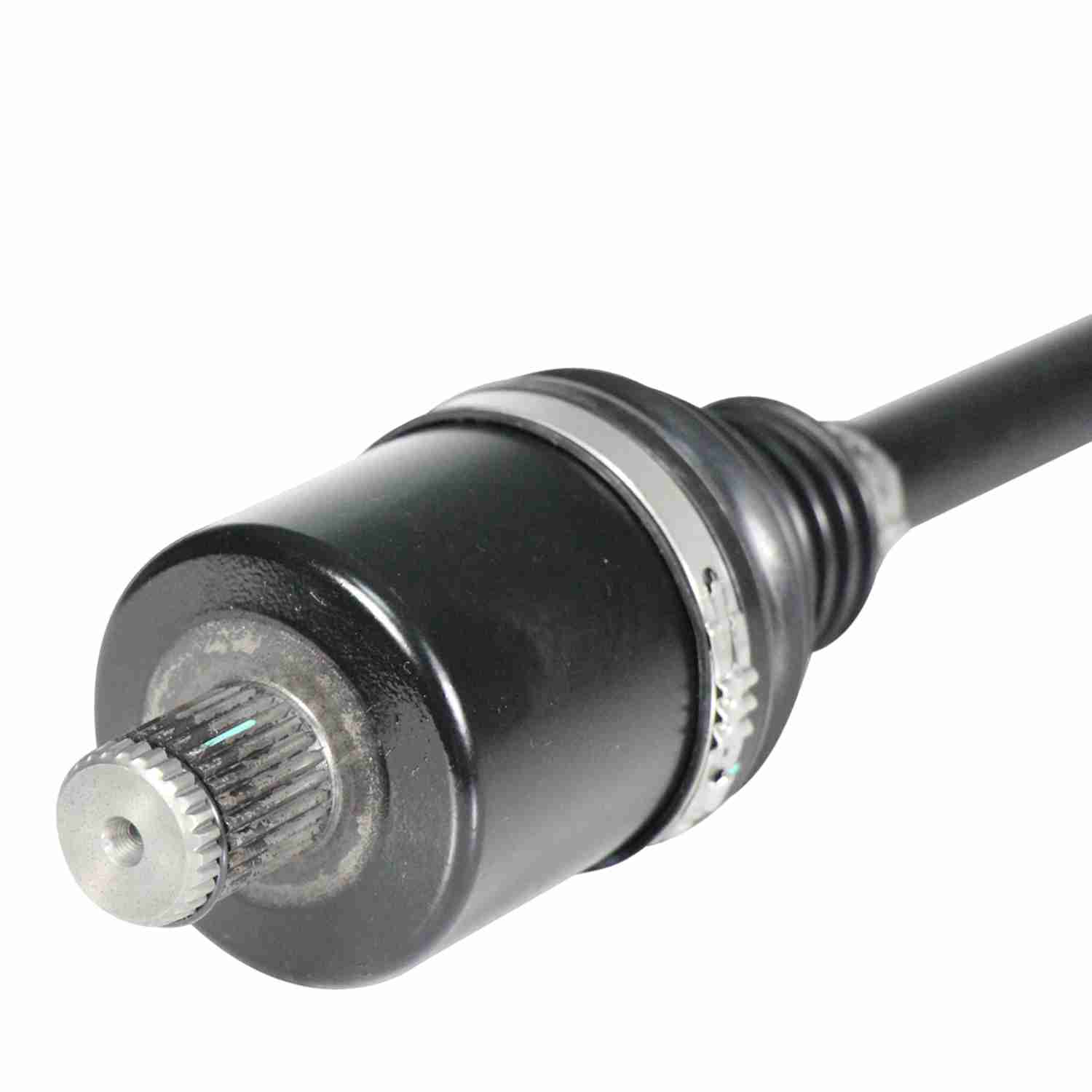

Polaris CV Axle Assembly - Rear

Part Number:

4107065

Product Type:

CV Axle Assembly

GSP's ATV/UTV CV Axles are built to take a beating! Cad Designed and engineered to exceed manufactures specifications. This is a heavy duty product.

SPECIFICATIONS

Axle Nut Included

Yes

Axle Nut Socket Size

27

Axle Nut Type

Castle Nut

California Proposition 65

Yes

Dynamic Damper Attached

No

Inboard Joint Type

DOJ

Outboard Joint Type

BJ

Prop 65 Yes/No

Yes

Axle Nut Length

0.83

Axle Nut Thread Size

M18X1.5-6H

Boot Material

TPE

Compressed Length

21.26

Extended Length

23.15

Inboard Spline Quantity

28

Outboard Spline Quantity

26

Shaft Diameter

24.5

FEATURES & BENEFITS

● High performance Moly grease for optimal performance
● Premium grade neoprene & TPEE boots
● Heavy Duty Center Shafts use industry leading alloy material
● Oversized CV joints dramatically improved strength for high articulation angles
● Precision engineered cage and housing for reduced friction and a smooth range of motion

APPLICATIONS

Year Range
Make
Model
Sub Model
Position
2017-2020
Polaris
RZR 900
Rear
2016-2016
Polaris
RZR 900 EPS XC Edition
Rear
2015-2015
Polaris
RZR 900 XC Edition
Rear
2015-2017
Polaris
RZR 4 900 EPS
Rear
2015-2016
Polaris
RZR 900 EPS Trail
Rear
2014-2014
Polaris
RZR 900 EPS LE
Rear
2014-2014
Polaris
RZR 900
Rear
2013-2013
Polaris
Ranger RZR XP 900 EPS LE
Rear
2013-2013
Polaris
Ranger RZR XP 900 HO Jagged X Edition
Rear
2013-2013
Polaris
Ranger RZR XP 900 EPS Walker Evans LE
Rear
2011-2013
Polaris
Ranger RZR XP 900 LE
Rear
