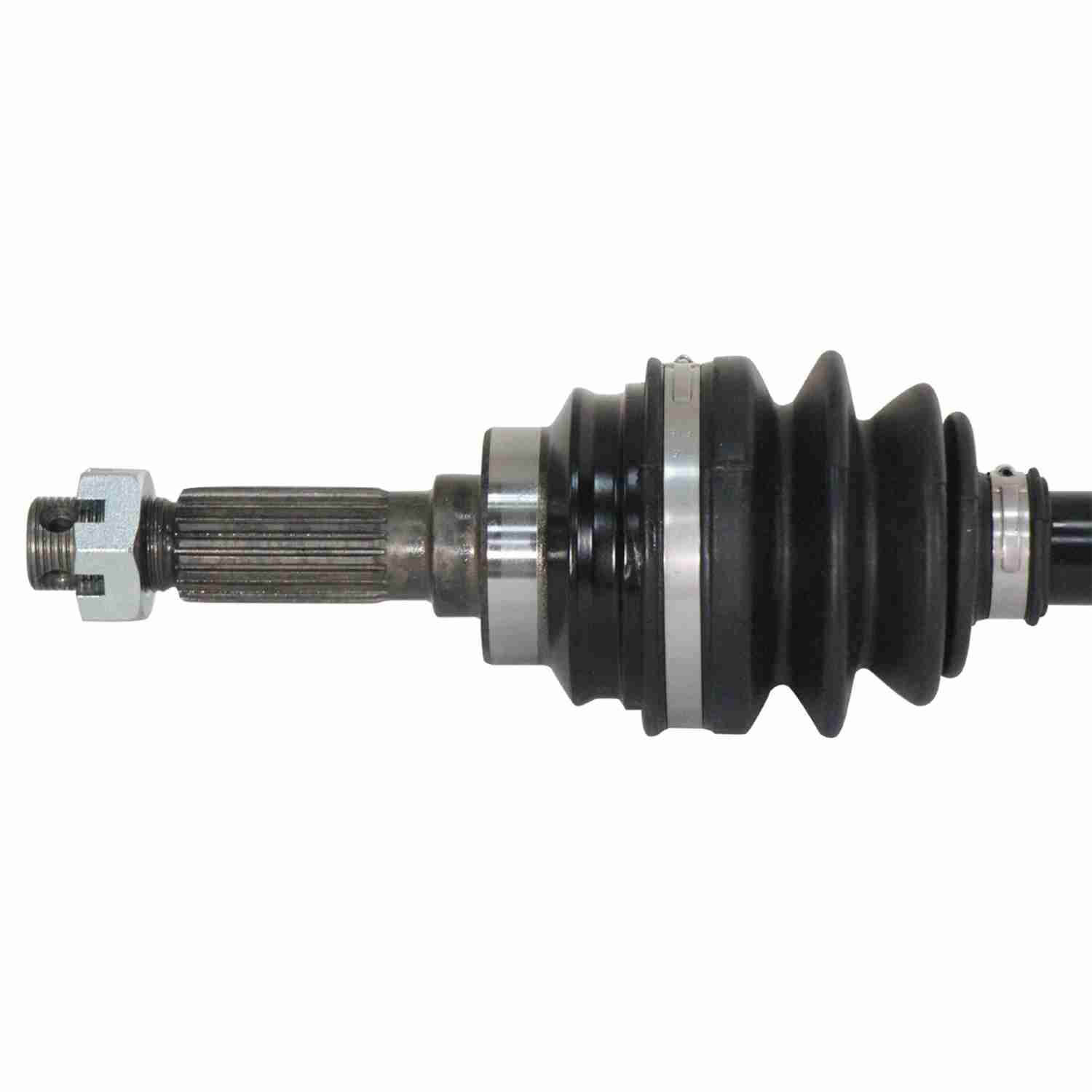

Suzuki CV Axle Assembly - Rear
GSP's OE+ line is designed to provide you with an affordable yet high-quality OEM replacement axle that will exceed your expectations.
With GSPXTV OE+ CV Axles, you can trust that you're getting a top-notch product that matches the quality of an original equipment (OE) replacement. We understand the importance of having a reliable and durable axle for your vehicle, which is why our OE+ line is built to last. Not only do our OE+ CV Axles offer exceptional quality, but they also provide outstanding value. We believe that everyone should have access to reliable and affordable replacement parts, without sacrificing on performance.
"
SPECIFICATIONS
Axle Nut Included
Yes
Axle Nut Socket Size
30
Axle Nut Type
Castle Nut
California Proposition 65
Yes
Dynamic Damper Attached
No
Inboard Joint Type
DOJ
Outboard Joint Type
BJ
Placement
Rear
Axle Nut Length
0.51
Axle Nut Thread Size
M20X1.5-6H
Boot Material
CR
Compressed Length
20.89
Extended Length
22.32
Inboard Spline Quantity
39
Outboard Spline Quantity
22
Prop 65 Yes/No
Yes
FEATURES & BENEFITS
● High performance Moly grease for optimal performance
● Premium grade neoprene & TPEE boots
● Heavy Duty Center Shafts use industry leading alloy material
● Oversized CV joints dramatically improved strength for high articulation angles
● Precision engineered cage and housing for reduced friction and a smooth range of motion
APPLICATIONS
Year Range | Make | Model | Sub Model | Position |
|---|---|---|---|---|
2011-2018 | Suzuki | LT-A750X KingQuad AXi 4x4 | Rear | |
2011-2018 | Suzuki | LT-A500 KingQuad AXi | Rear | |
2008-2009 | Suzuki | LT-A750X KingQuad AXi 4x4 | Rear | |
2007-2010 | Suzuki | LT-A450X KingQuad AXi 4x4 | Rear | |
2006-2007 | Suzuki | LT-A700X KingQuad 4x4 | Rear |
