Countryside Road

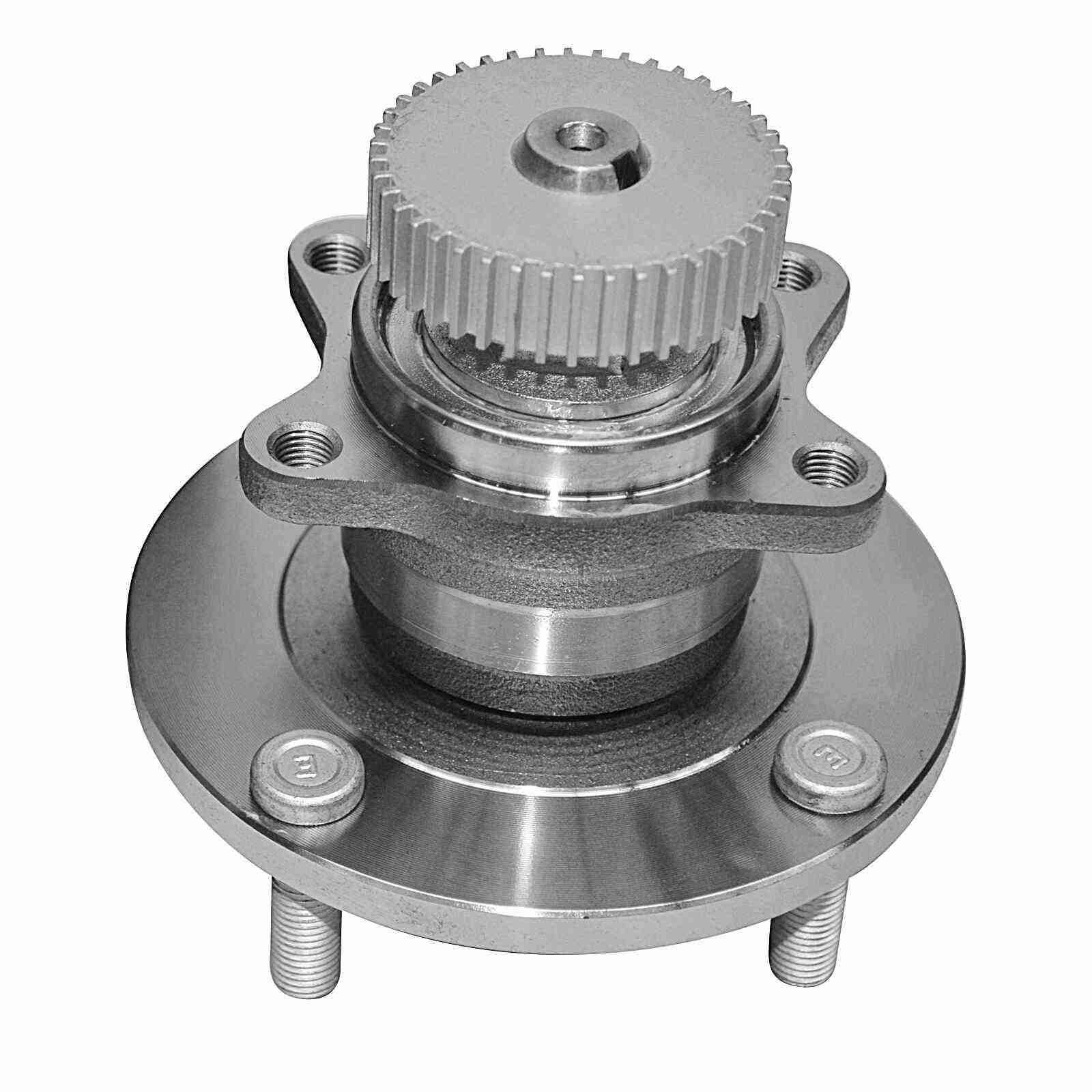

94-96 Mitsubishi Galant Wheel Bearing and Hub Assembly - Rear

Part Number:

513235

Product Type:

​

Hub Assemblies are engineered with Silent Ride Technology (SRT) to ensure a comfortable and quiet ride. Strict engineering tolerances in conjunction with the highest quality bearing components are integral to this superior design.

SPECIFICATIONS

ABS Tone Ring Tooth Quantity

43

Anti Lock Braking System Type

Tone Ring

Bearing Type

Ball

Bolt Thread Pitch

M12×1.5

Brake Pilot Diameter

89.9

Driven Type

Non-driven

Flange Bolts Included

No

Flange Included

Yes

Anti Lock Braking System

Yes

Bearing Generation

Gen 3(solid)

Bolt Circle Diameter

114.3

Bolts Included

No

California Proposition 65

Yes

Flange Bolt Hole Quantity

4

Flange Diameter

137.5

Flange Offset

59

FEATURES & BENEFITS

● Designed with raw steel material that meets or exceeds standards to produce a long-lasting service life.
● All hub assemblies go through a vacuum vulcanization process to enhance the structural integrity of the seal and rubber components.
● Ball bearings are spaced precisely to the appropriate clearance for smooth rotation and abrasion resistance.
● High quality rubber optimizes the seals performance and durability against high-temperatures and weathering.
● To ensure a smooth surface, free from defects, all bearing housings are manufactured with polyamides for added impact toughness and age resistance.

APPLICATIONS

Year Range
Make
Model
Sub Model
Position
1996-1996
Mitsubishi
Galant
ES, LS
Rear
1994-1995
Mitsubishi
Galant
ES, LS
Rear
1994-1994
Mitsubishi
Galant
GS
Rear
