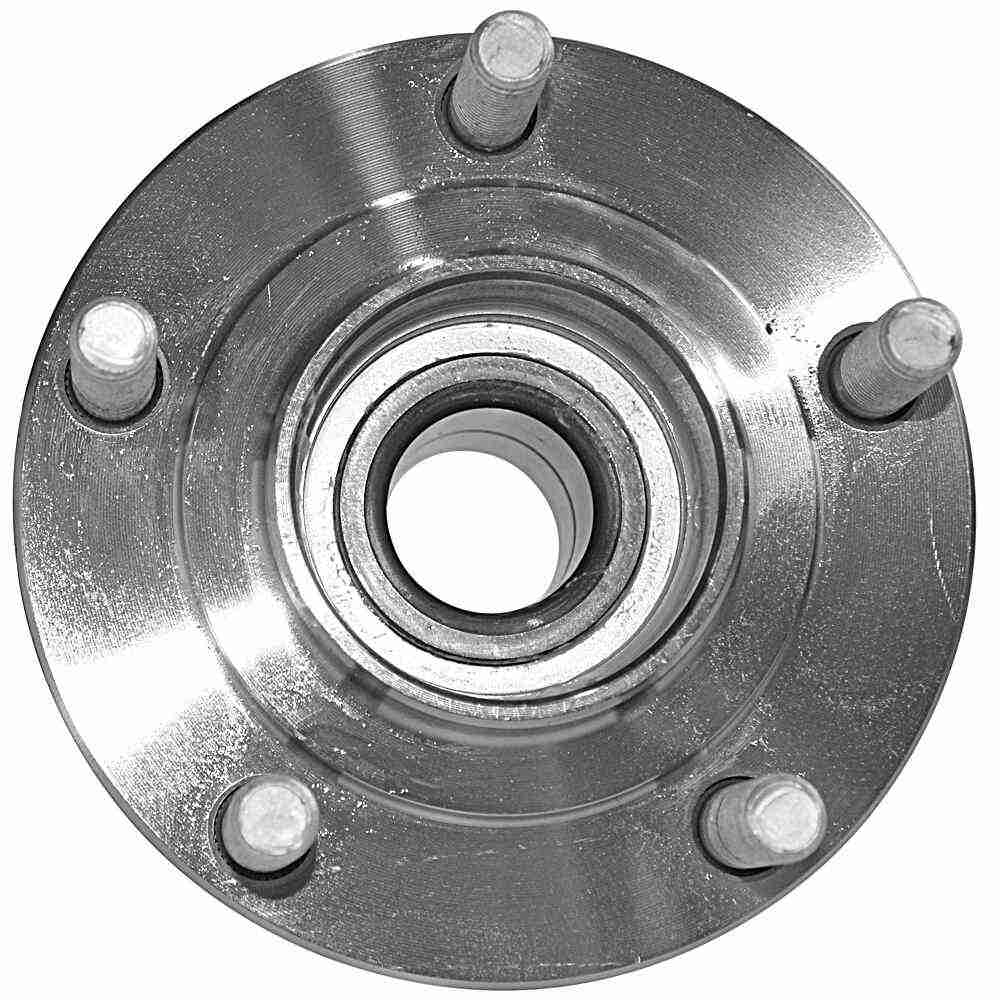

Mitsubishi (2.4 - FWD) Wheel Bearing and Hub Assembly - Rear
SPECIFICATIONS
ABS Tone Ring Tooth Quantity
43
Anti Lock Braking System Type
Tone Ring
Bearing Type
Ball
Bolt Thread Pitch
M12×1.5
Brake Pilot Diameter
90
Flange Bolts Included
No
Flange Included
Yes
Placement
Rear
Anti Lock Braking System
Yes
Bearing Generation
Gen 2
Bolt Circle Diameter
114.3
Bolts Included
No
California Proposition 65
Yes
Flange Diameter
137.5
Flange Offset
56.5
Prop 65 Yes/No
Yes
FEATURES & BENEFITS
● Designed with raw steel material that meets or exceeds standards to produce a long-lasting service life.
● All hub assemblies go through a vacuum vulcanization process to enhance the structural integrity of the seal and rubber components.
● Ball bearings are spaced precisely to the appropriate clearance for smooth rotation and abrasion resistance.
● High quality rubber optimizes the seals performance and durability against high-temperatures and weathering.
● To ensure a smooth surface, free from defects, all bearing housings are manufactured with polyamides for added impact toughness and age resistance.
APPLICATIONS
Year Range | Make | Model | Sub Model | Position |
---|---|---|---|---|
2006-2006 | Mitsubishi | Outlander | SE | Rear |
2005-2006 | Mitsubishi | Lancer | Ralliart | Rear |
2005-2006 | Mitsubishi | Outlander | LS, Limited | Rear |
2005-2005 | Mitsubishi | Outlander | XLS | Rear |
2004-2004 | Mitsubishi | Lancer | Sportback, Ralliart, Sportback Ralliart | Rear |
2004-2004 | Mitsubishi | Outlander | LS, XLS | Rear |
2003-2003 | Mitsubishi | Outlander | XLS, LS | Rear |
