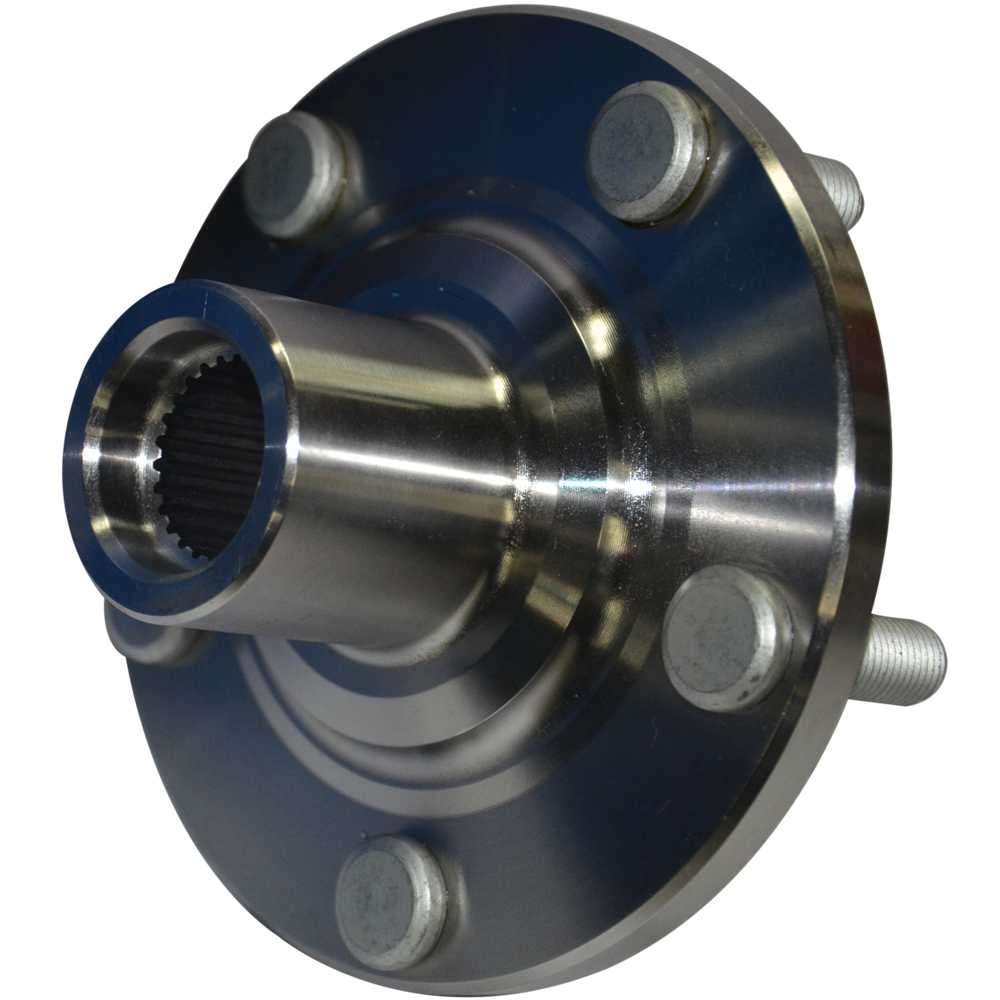

Toyota (2.4, 2.5, 3.0, 3.3, 3.5 - AWD) Wheel Hub - Front

Part Number:

690004

Product Type:

SPECIFICATIONS

Anti Lock Braking System

No

Bolt Circle Diameter

114.3

Bolts Included

No

California Proposition 65

Yes

Flange Bolts Included

No

Flange Included

Yes

Hub Pilot Diameter

45

Spline Quantity

26

Bearing Generation

Wheel Hub

Bolt Thread Pitch

M12×1.5

Brake Pilot Diameter

62

Driven Type

Driven

Flange Diameter

139

Flange Offset

42.5

Prop 65 Yes/No

Yes

Wheel Pilot Diameter

60

FEATURES & BENEFITS

● Designed with raw steel material that meets or exceeds standards to produce a long-lasting service life.
● All hub assemblies go through a vacuum vulcanization process to enhance the structural integrity of the seal and rubber components.
● Ball bearings are spaced precisely to the appropriate clearance for smooth rotation and abrasion resistance.
● High quality rubber optimizes the seals performance and durability against high-temperatures and weathering.
● To ensure a smooth surface, free from defects, all bearing housings are manufactured with polyamides for added impact toughness and age resistance.

APPLICATIONS

Year Range
Make
Model
Sub Model
Position
2012-2013
Toyota
Highlander
Front
2012-2017
Toyota
Camry
Front
2010-2011
Toyota
Highlander
Front
2008-2009
Toyota
Highlander
Front
2004-2007
Toyota
Highlander
Front
2004-2011
Toyota
Camry
Front
2004-2008
Toyota
Solara
Front
2001-2003
Toyota
Highlander
Front
2001-2007
Toyota
Highlander
Base
Front
