Countryside Road

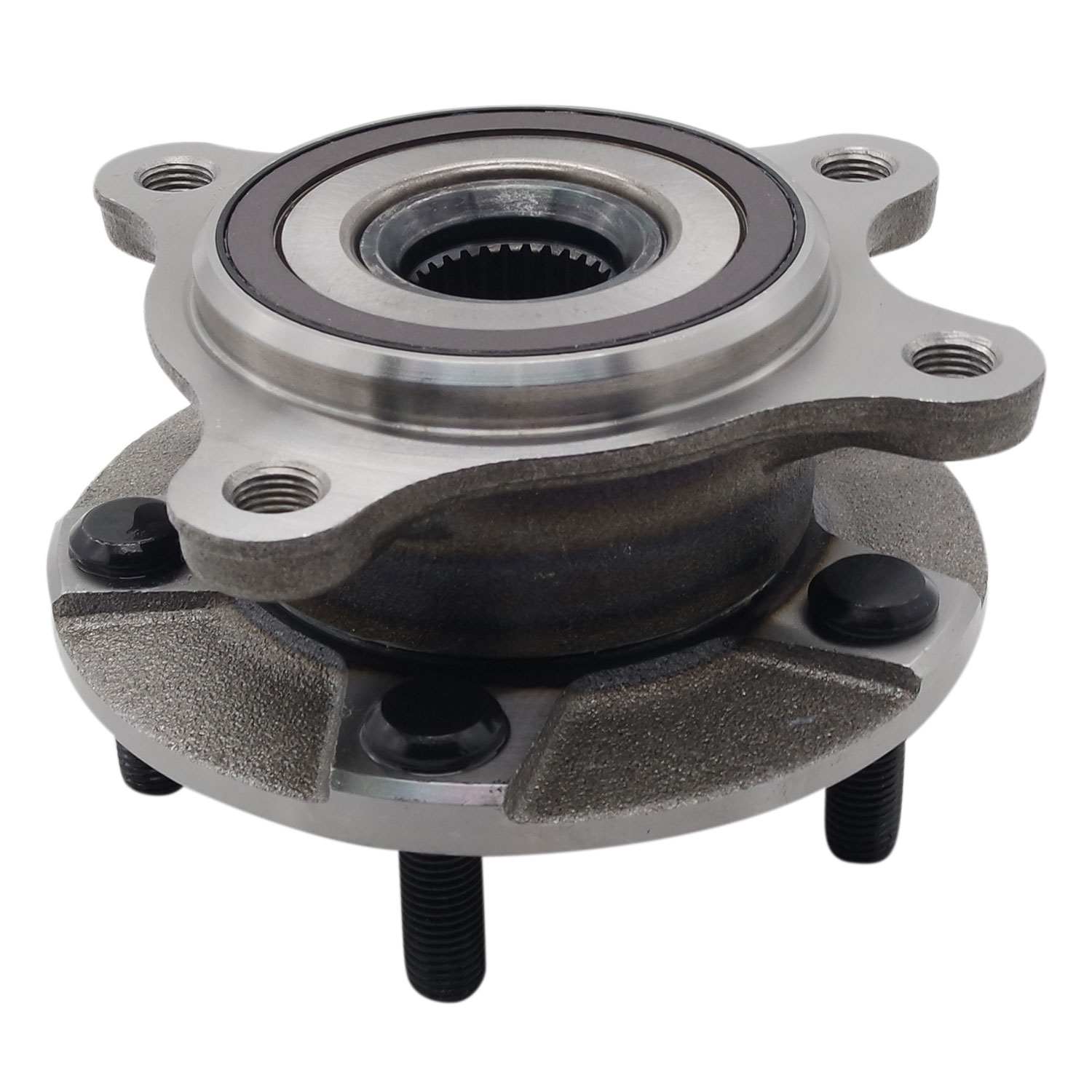

Lexus (3.5 - AWD) Wheel Bearing and Hub Assembly - Front Left

Part Number:

690025

Product Type:

SPECIFICATIONS

Anti Lock Braking System

Yes

Bearing Generation

Gen 3

Bolt Circle Diameter

114.3

Bolts Included

No

California Proposition 65

Yes

Flange Bolt Hole Quantity

4

Flange Diameter

140

Flange Offset

50

Anti Lock Braking System Type

Encoder

Bearing Type

Ball

Bolt Thread Pitch

M12×1.5

Brake Pilot Diameter

62

Driven Type

Driven

Flange Bolts Included

No

Flange Included

Yes

Hub Pilot Diameter

90

FEATURES & BENEFITS

● Designed with raw steel material that meets or exceeds standards to produce a long-lasting service life.
● All hub assemblies go through a vacuum vulcanization process to enhance the structural integrity of the seal and rubber components.
● Ball bearings are spaced precisely to the appropriate clearance for smooth rotation and abrasion resistance.
● High quality rubber optimizes the seals performance and durability against high-temperatures and weathering.
● To ensure a smooth surface, free from defects, all bearing housings are manufactured with polyamides for added impact toughness and age resistance.

APPLICATIONS

Year Range
Make
Model
Sub Model
Position
2016-2020
Lexus
IS300
Front Left
2016-2022
Lexus
RC300
Front Left
2015-2022
Lexus
RC350
Front Left
2011-2020
Lexus
IS350
Front Left
2007-2020
Lexus
GS350
Front Left
2006-2006
Lexus
GS300
Front Left
2006-2015
Lexus
IS250
Front Left
