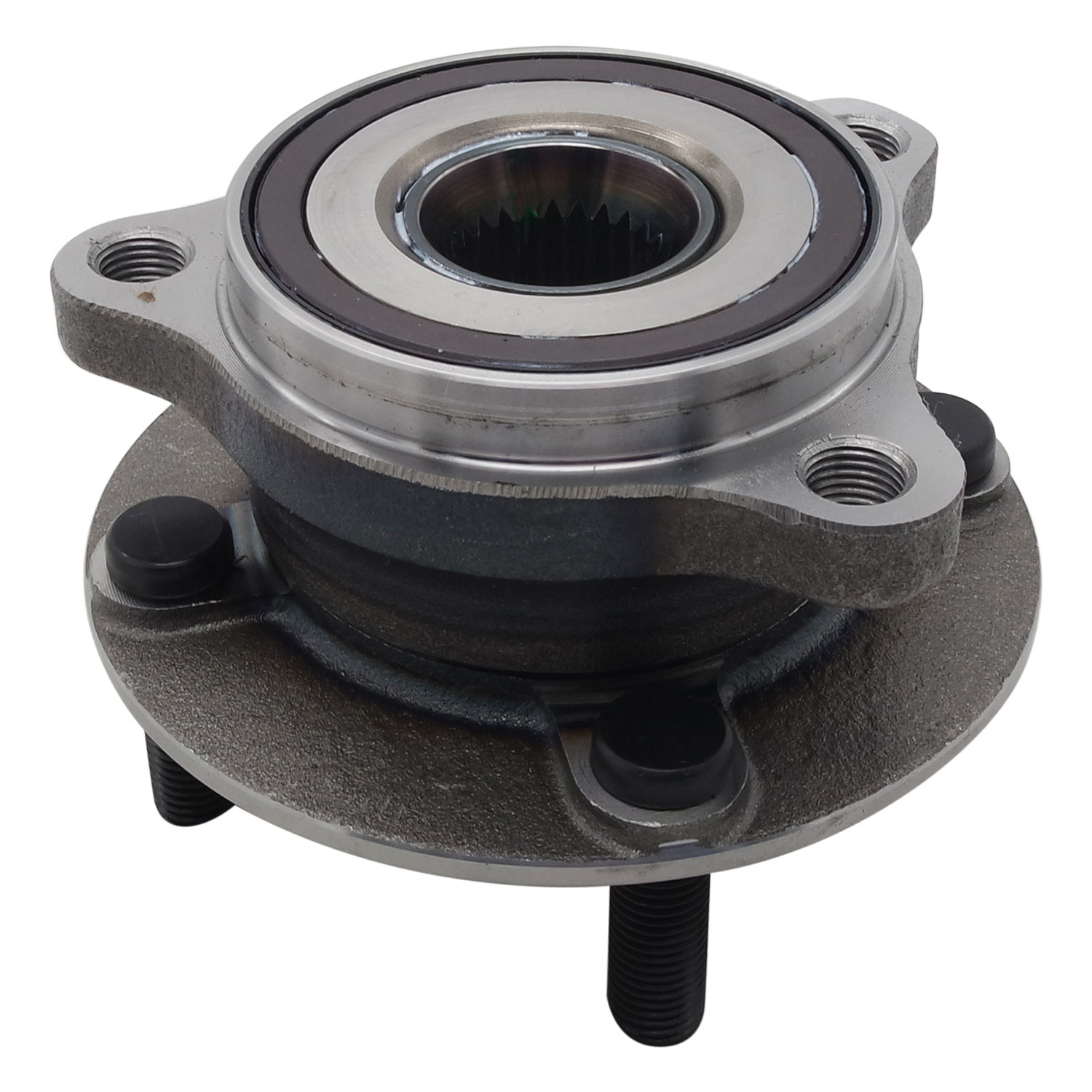

Scion, Toyota Wheel Bearing and Hub Assembly - Front
690040
SPECIFICATIONS:
Anti Lock Braking System
Yes
Anti Lock Braking System Type
Encoder
Bearing Generation
Gen 3
Bearing Type
Ball
Bolt Circle Diameter
100
Bolt Thread Pitch
M12x1.5
Bolts Included
No
Brake Pilot Diameter
55
California Proposition 65
Yes
Driven Type
Driven
Flange Bolt Hole Quantity
3
Flange Bolts Included
No
Flange Diameter
122
Flange Included
Yes
Flange Offset
42.6
DESCRIPTION
Hub Assemblies are engineered with Silent Ride Technology (SRT) to ensure a comfortable and quiet ride. Strict engineering tolerances in conjunction with the highest quality bearing components are integral to this superior design.
PRODUCT TYPE
Features and Benefits
● Designed with raw steel material that meets or exceeds standards to produce a long-lasting service life.
● All hub assemblies go through a vacuum vulcanization process to enhance the structural integrity of the seal and rubber components.
● Ball bearings are spaced precisely to the appropriate clearance for smooth rotation and abrasion resistance.
● High quality rubber optimizes the seals performance and durability against high-temperatures and weathering.
● To ensure a smooth surface, free from defects, all bearing housings are manufactured with polyamides for added impact toughness and age resistance.
Year Range | Make | Model | Sub Model | Position |
|---|---|---|---|---|
2019-2020 | Toyota | Yaris | Front | |
2017-2018 | Toyota | Yaris iA | Front | |
2016-2016 | Scion | iA | Front |
