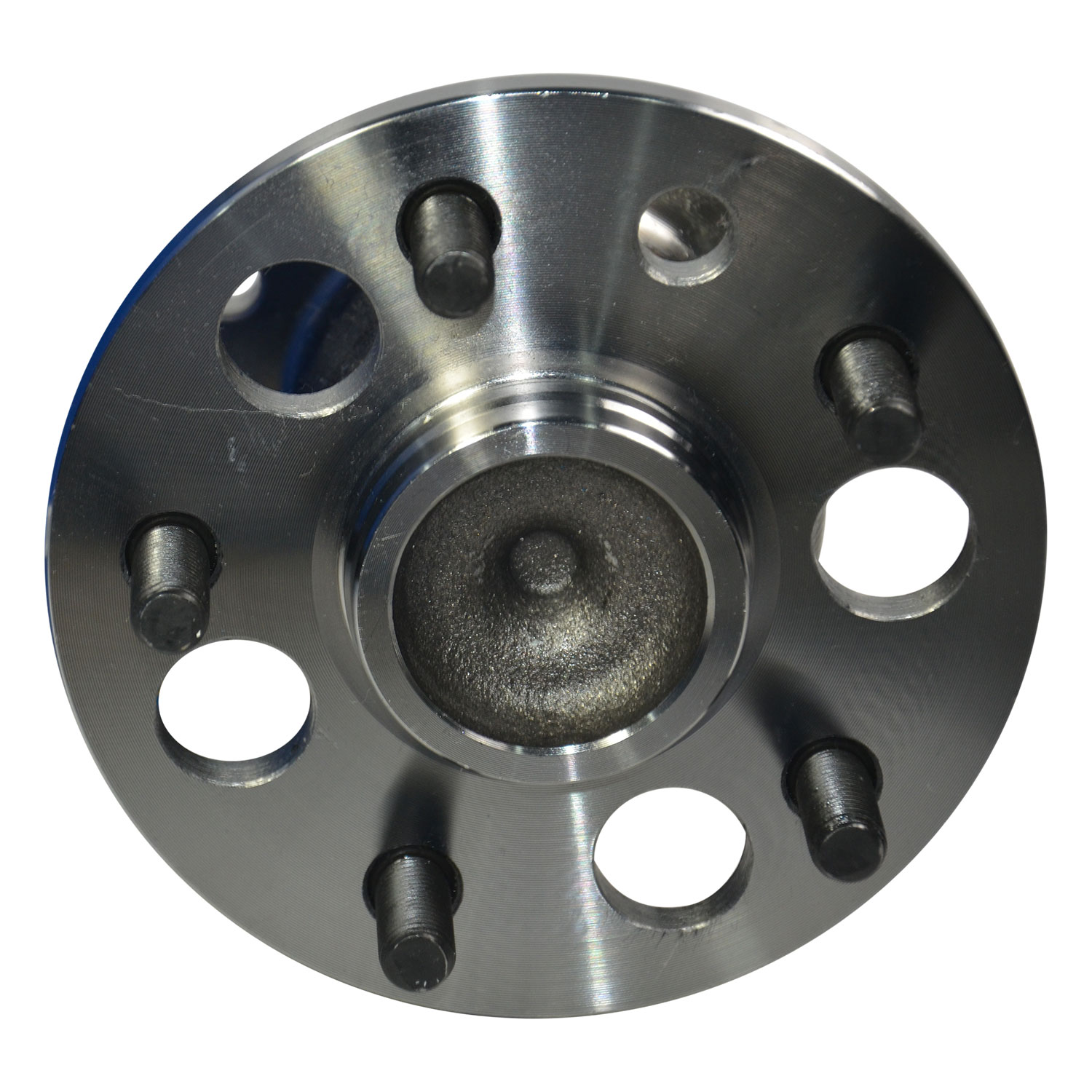

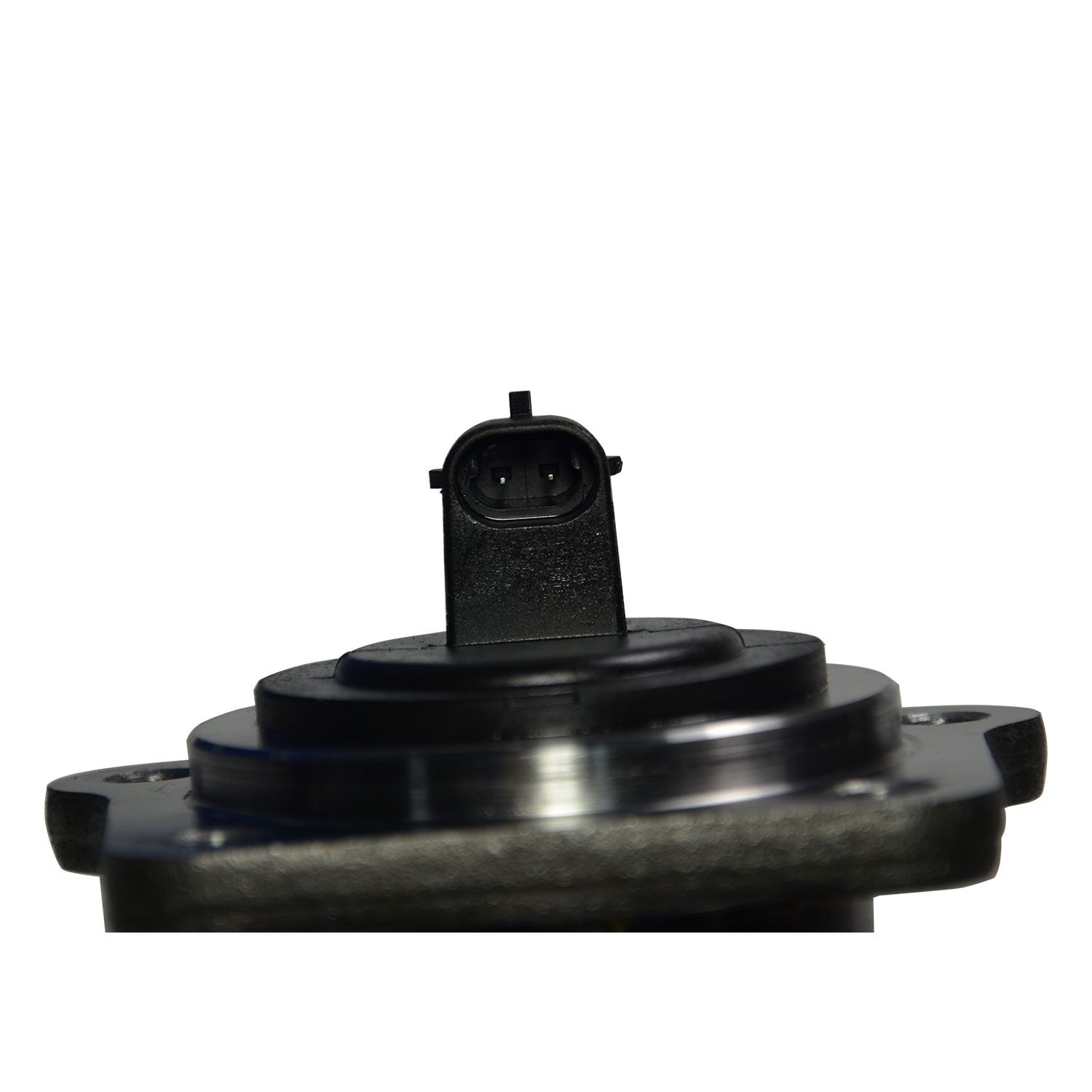

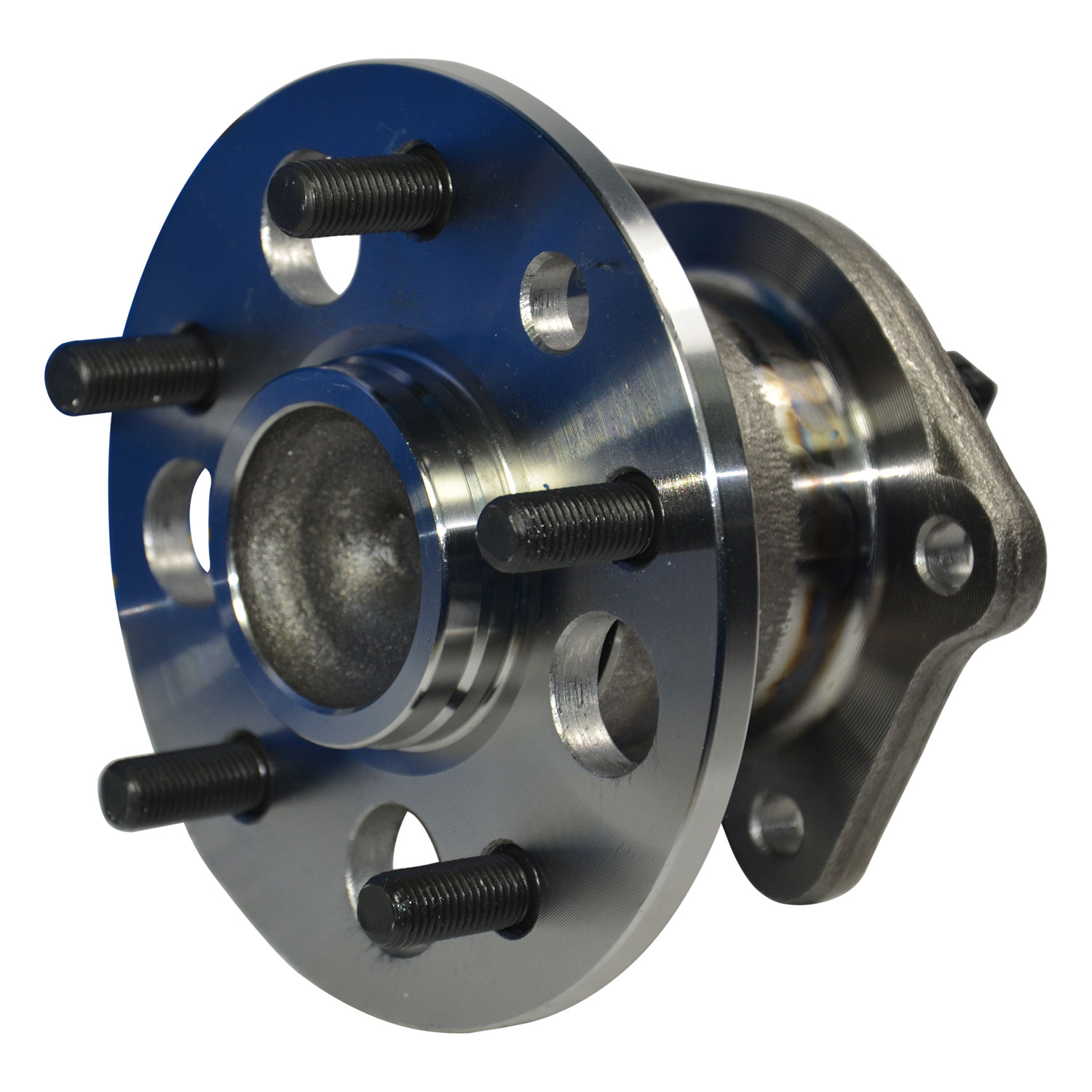

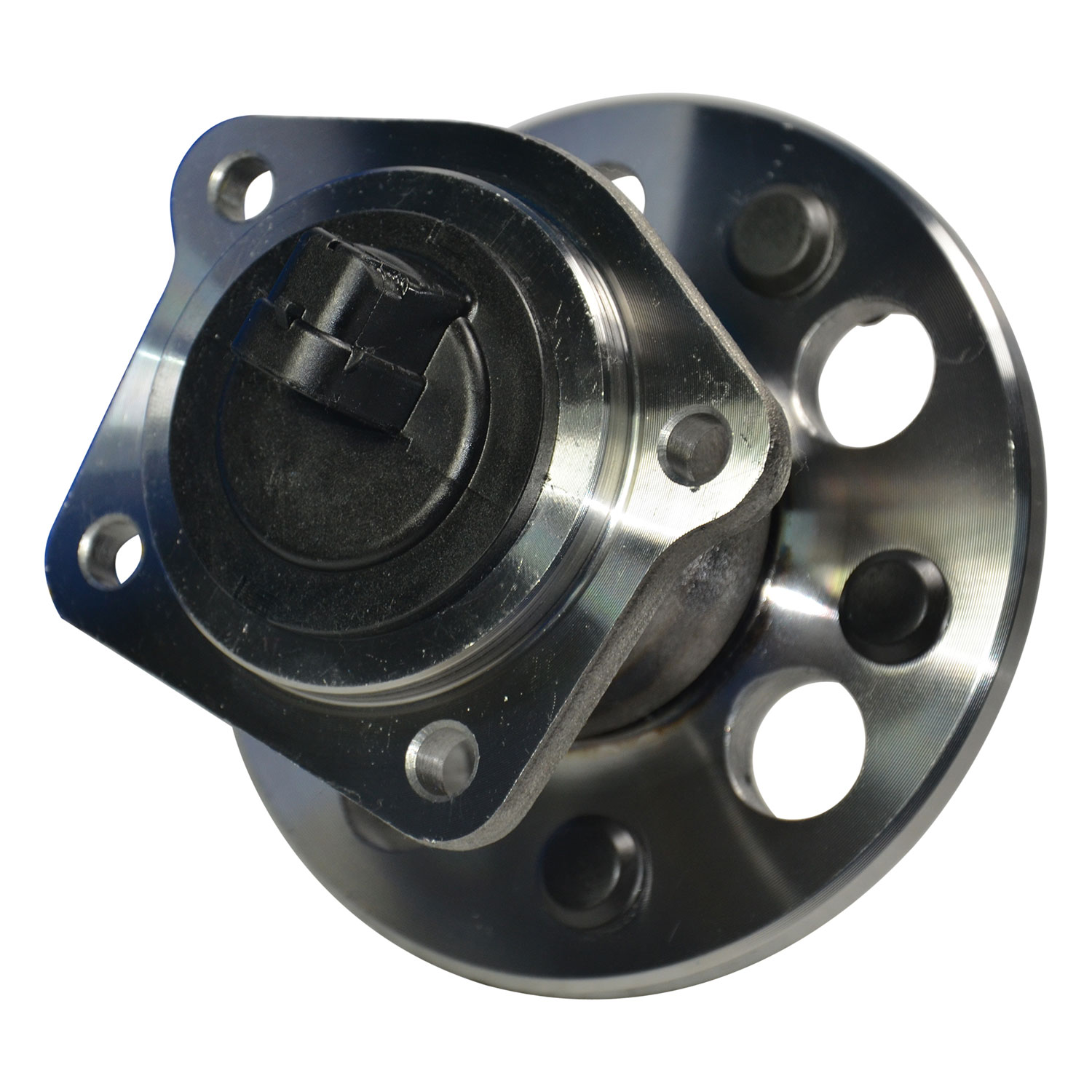

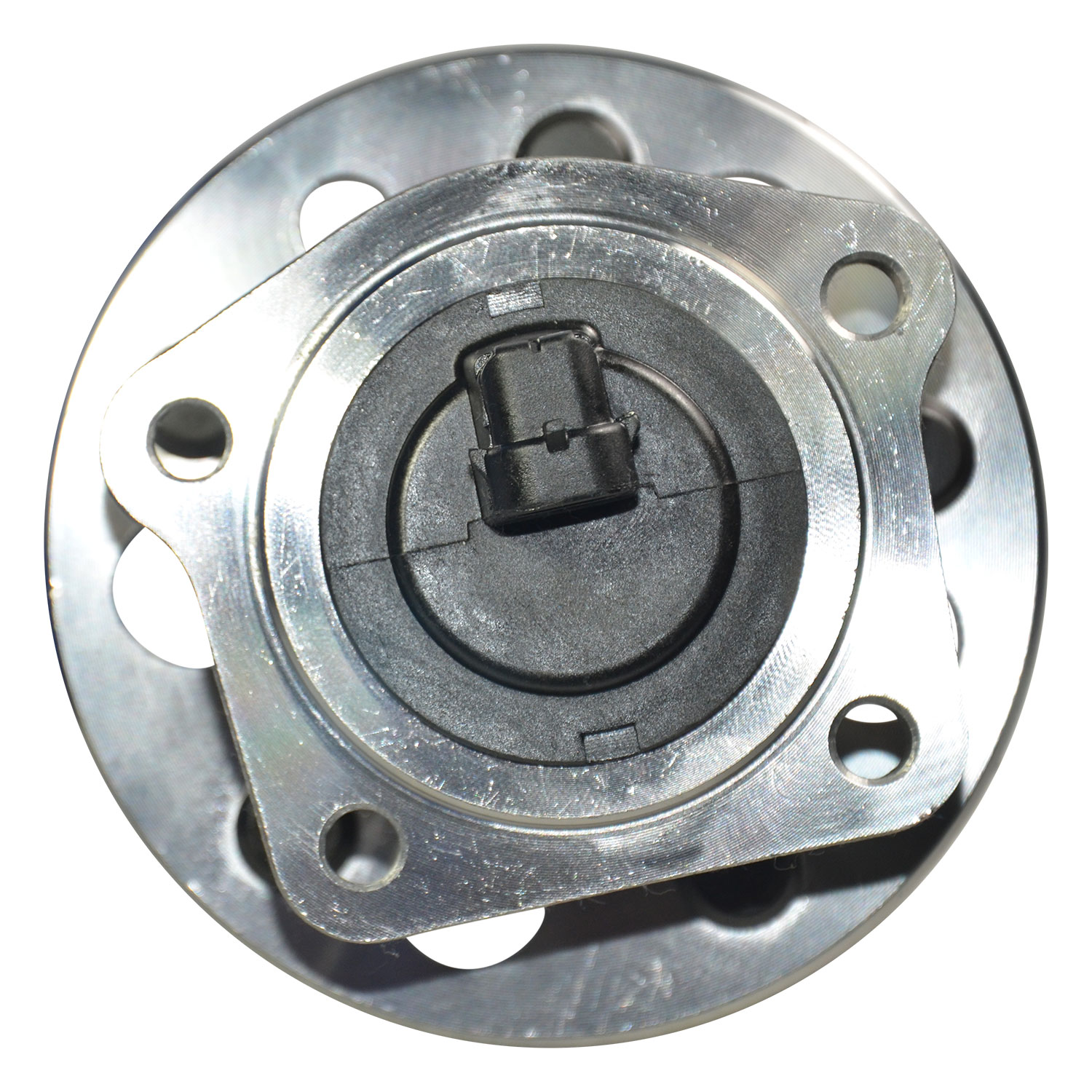

98-03 Toyota Sienna (3.0) Wheel Bearing and Hub Assembly - Rear
693041
SPECIFICATIONS:
Anti Lock Braking System
Yes
Anti Lock Braking System Type
Sensor
Bearing Generation
Gen 3(solid)
Bearing Type
Ball
Bolt Circle Diameter
114.3
Bolt Thread Pitch
M12×1.5
Bolts Included
No
Brake Pilot Diameter
61.9
California Proposition 65
Yes
Driven Type
Non-driven
Flange Bolt Hole Quantity
4
Flange Bolts Included
No
Flange Diameter
152.8
Flange Included
Yes
Flange Offset
78.6
DESCRIPTION
Hub Assemblies are engineered with Silent Ride Technology (SRT) to ensure a comfortable and quiet ride. Strict engineering tolerances in conjunction with the highest quality bearing components are integral to this superior design.
PRODUCT TYPE
Features and Benefits
● Designed with raw steel material that meets or exceeds standards to produce a long-lasting service life.
● All hub assemblies go through a vacuum vulcanization process to enhance the structural integrity of the seal and rubber components.
● Ball bearings are spaced precisely to the appropriate clearance for smooth rotation and abrasion resistance.
● High quality rubber optimizes the seals performance and durability against high-temperatures and weathering.
● To ensure a smooth surface, free from defects, all bearing housings are manufactured with polyamides for added impact toughness and age resistance.
Year Range | Make | Model | Sub Model | Position |
|---|---|---|---|---|
2003-2003 | Toyota | Sienna | CE, LE, XLE | Rear |
2001-2002 | Toyota | Sienna | XLE | Rear |
1999-1999 | Toyota | Sienna | XLE | Rear |
1998-2002 | Toyota | Sienna | CE, LE | Rear |
