Countryside Road

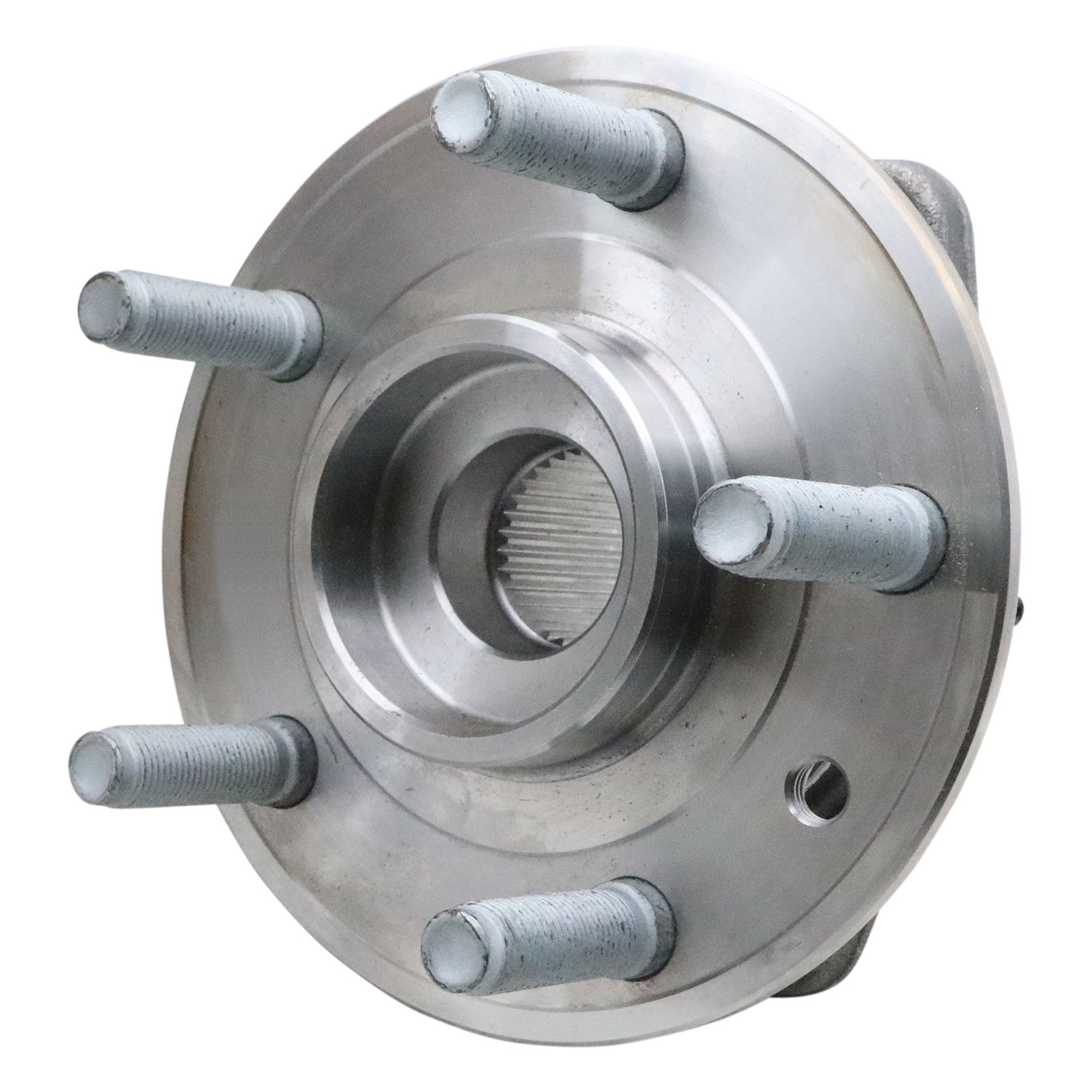

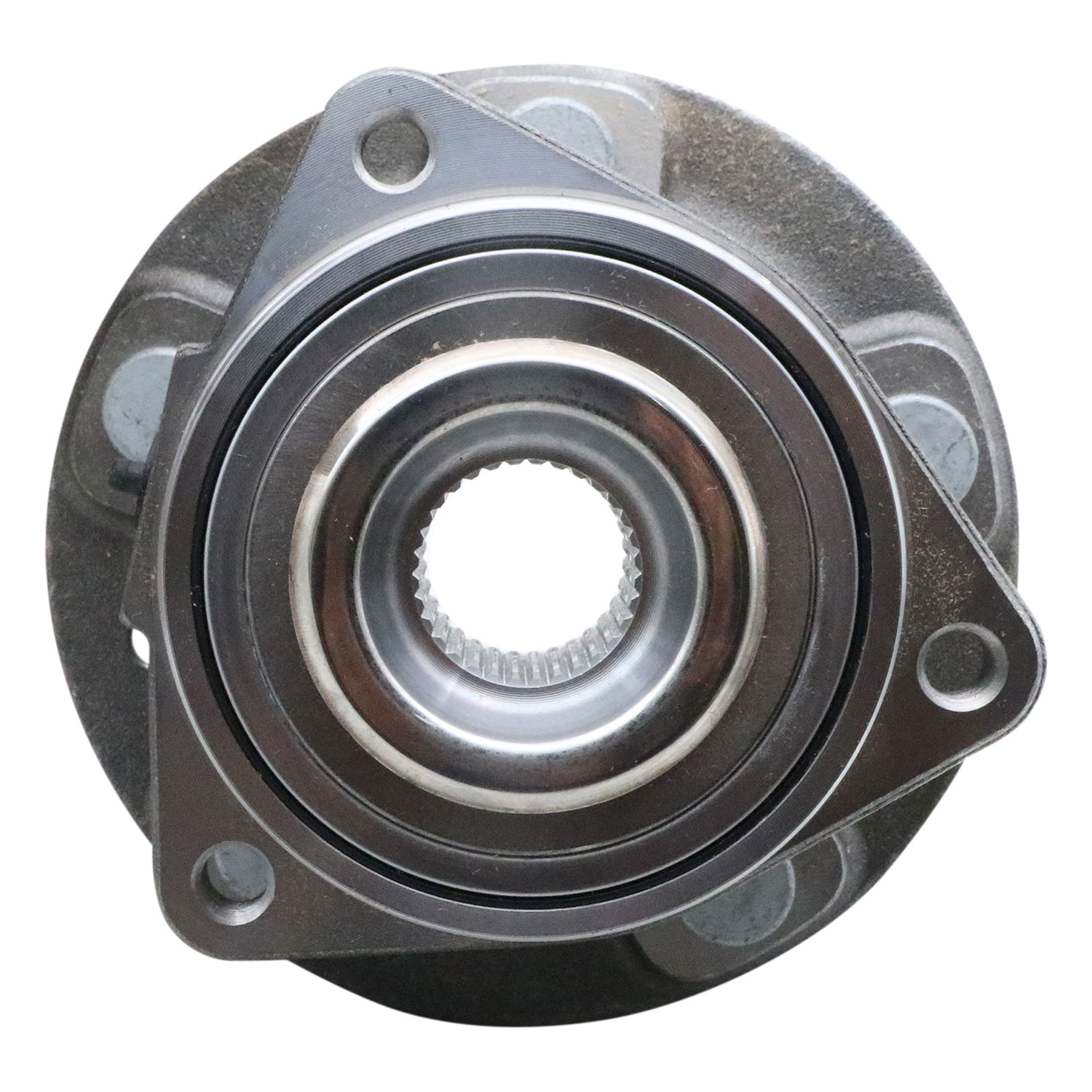

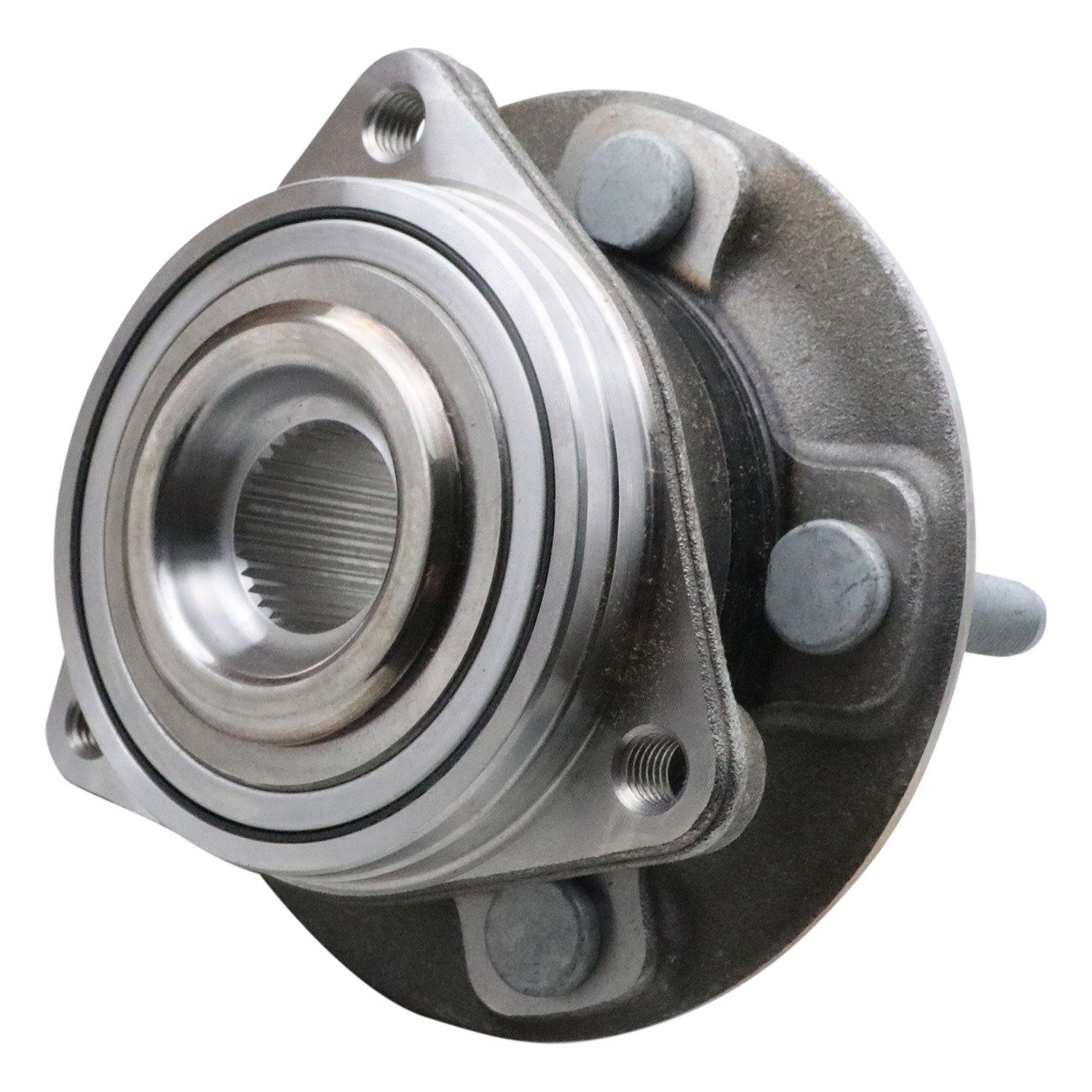

Jeep Wheel Bearing and Hub Assembly - Front

Part Number:

824423

Product Type:

SPECIFICATIONS

ABS Tone Ring Tooth Quantity

52

Anti Lock Braking System Type

Tone Ring

Bearing Type

Ball

Bolt Thread Pitch

M14×1.5

Brake Pilot Diameter

72

Driven Type

Driven

Flange Bolts Included

No

Flange Included

Yes

Anti Lock Braking System

Yes

Bearing Generation

Gen 3

Bolt Circle Diameter

127

Bolts Included

No

California Proposition 65

Yes

Flange Bolt Hole Quantity

3

Flange Diameter

161.5

Flange Offset

48.6

FEATURES & BENEFITS

● Designed with raw steel material that meets or exceeds standards to produce a long-lasting service life.
● All hub assemblies go through a vacuum vulcanization process to enhance the structural integrity of the seal and rubber components.
● Ball bearings are spaced precisely to the appropriate clearance for smooth rotation and abrasion resistance.
● High quality rubber optimizes the seals performance and durability against high-temperatures and weathering.
● To ensure a smooth surface, free from defects, all bearing housings are manufactured with polyamides for added impact toughness and age resistance.

APPLICATIONS

Year Range
Make
Model
Sub Model
Position
2020-2023
Jeep
Gladiator
Front
2018-2023
Jeep
Wrangler
Front
