Countryside Road

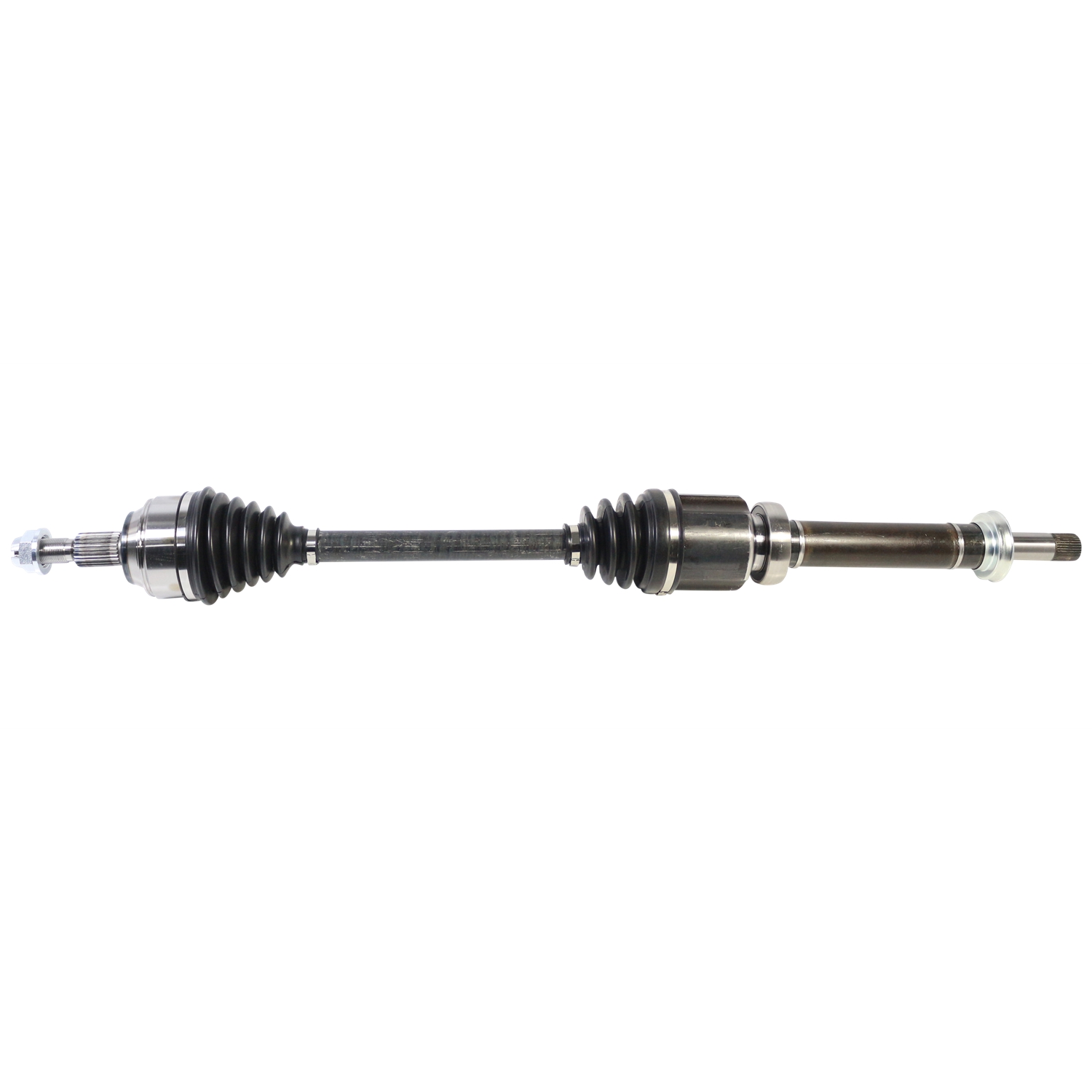

14-21 Ford Transit Connect (2.5) CV Axle Assembly - Front Right

Part Number:

NCV11222

Product Type:

CV Axle Assembly

SPECIFICATIONS

ABS Tone Ring Included

NO

Axle Nut Included

Yes

Axle Nut Socket Size

32

Axle Nut Type

Hex

California Proposition 65

Yes

Inboard Joint Type

Male

Outboard Joint Type

Conventional

Prop 65 Yes/No

Yes

ABS Tone Ring Tooth Quantity

-

Axle Nut Length

24.8

Axle Nut Thread Size

M22×1.5

Boot Material

Neoprene

Compressed Length

935

Inboard Spline Quantity

35

Outboard Spline Quantity

27

FEATURES & BENEFITS

● Extensive quality control and testing process to ensure a long-lasting performance
● Heat-treated components provide premium strength, increased tensile, and extended service life

APPLICATIONS

Year Range
Make
Model
Sub Model
Position
2021-2021
Ford
Transit Connect
Front Right
2014-2020
Ford
Transit Connect
Front Right
