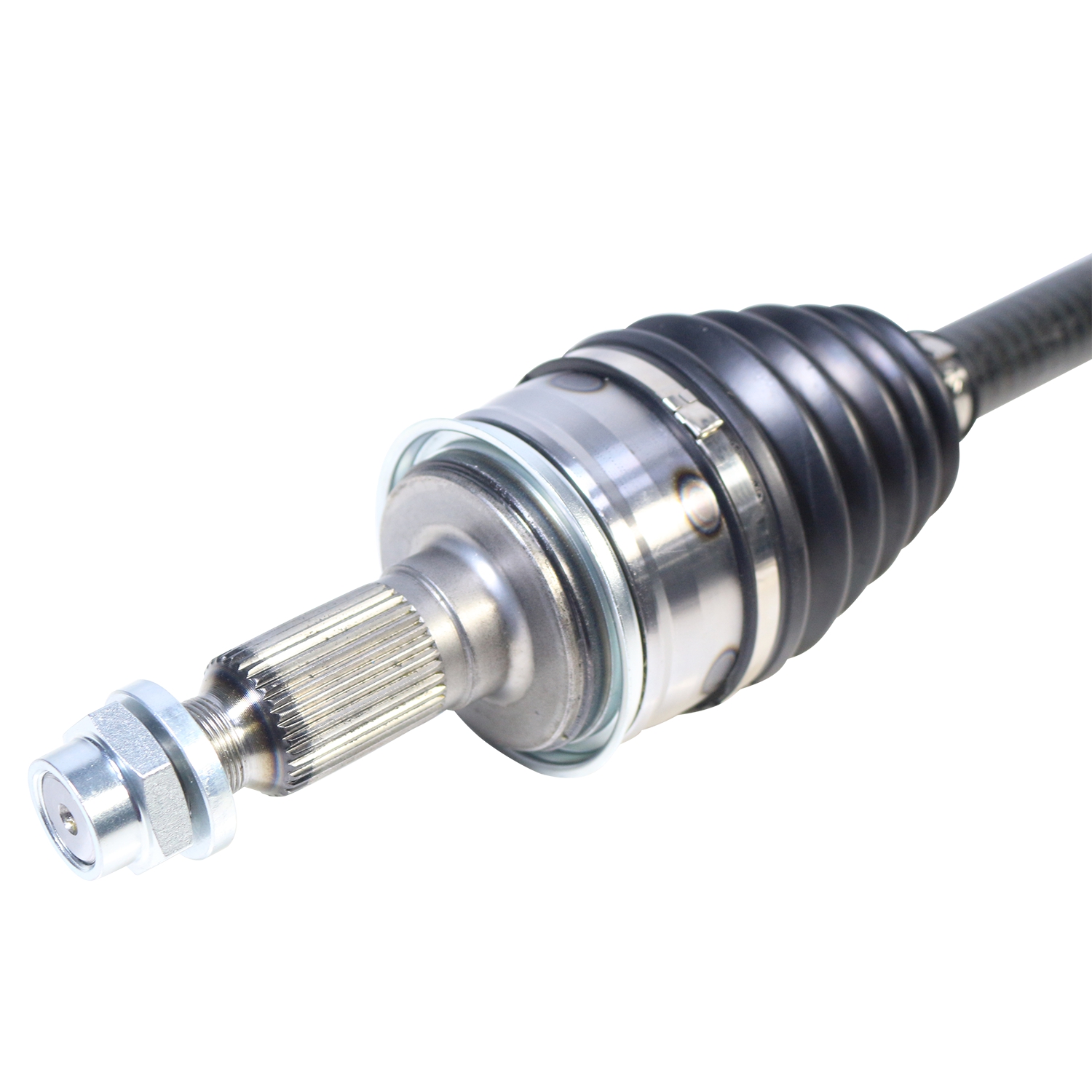

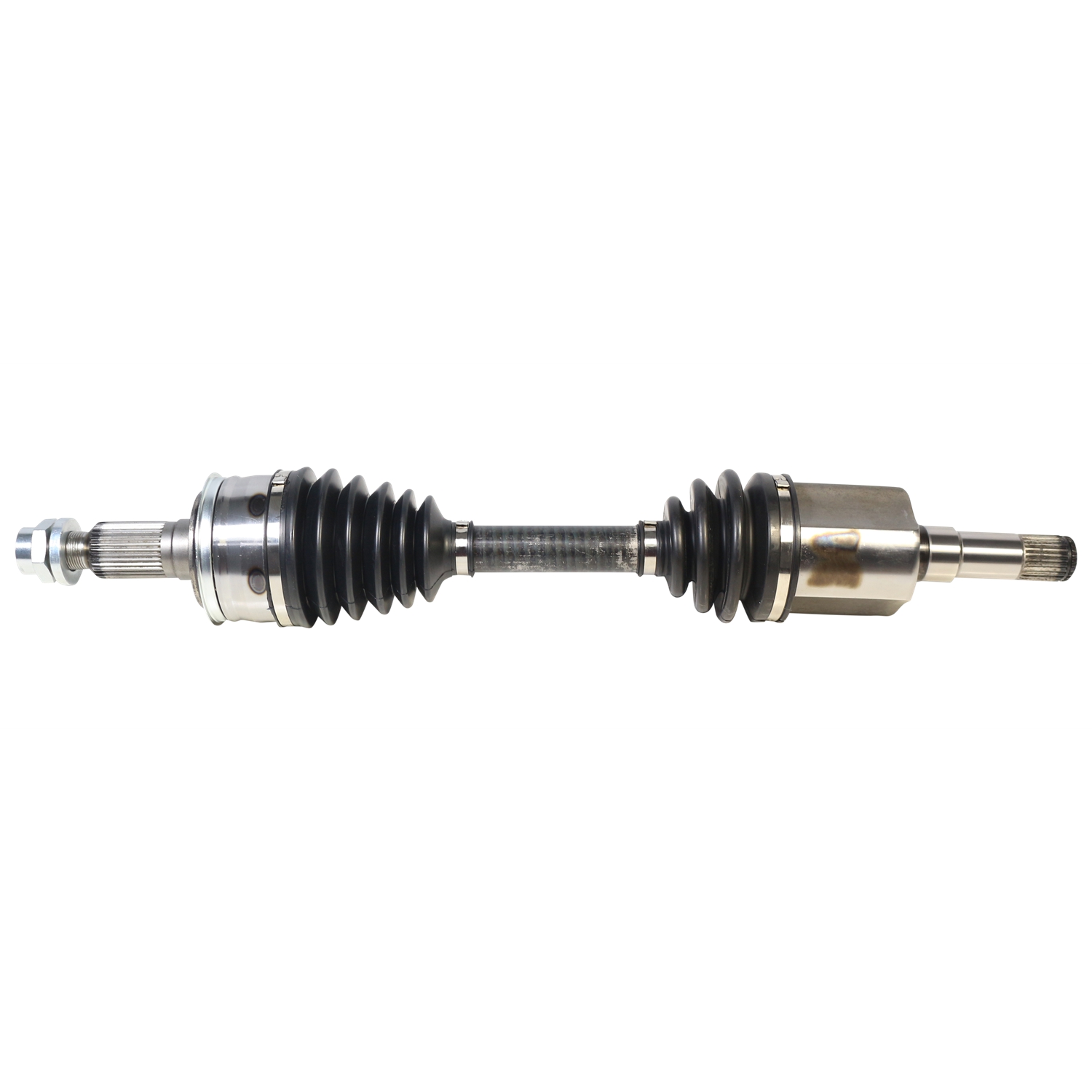

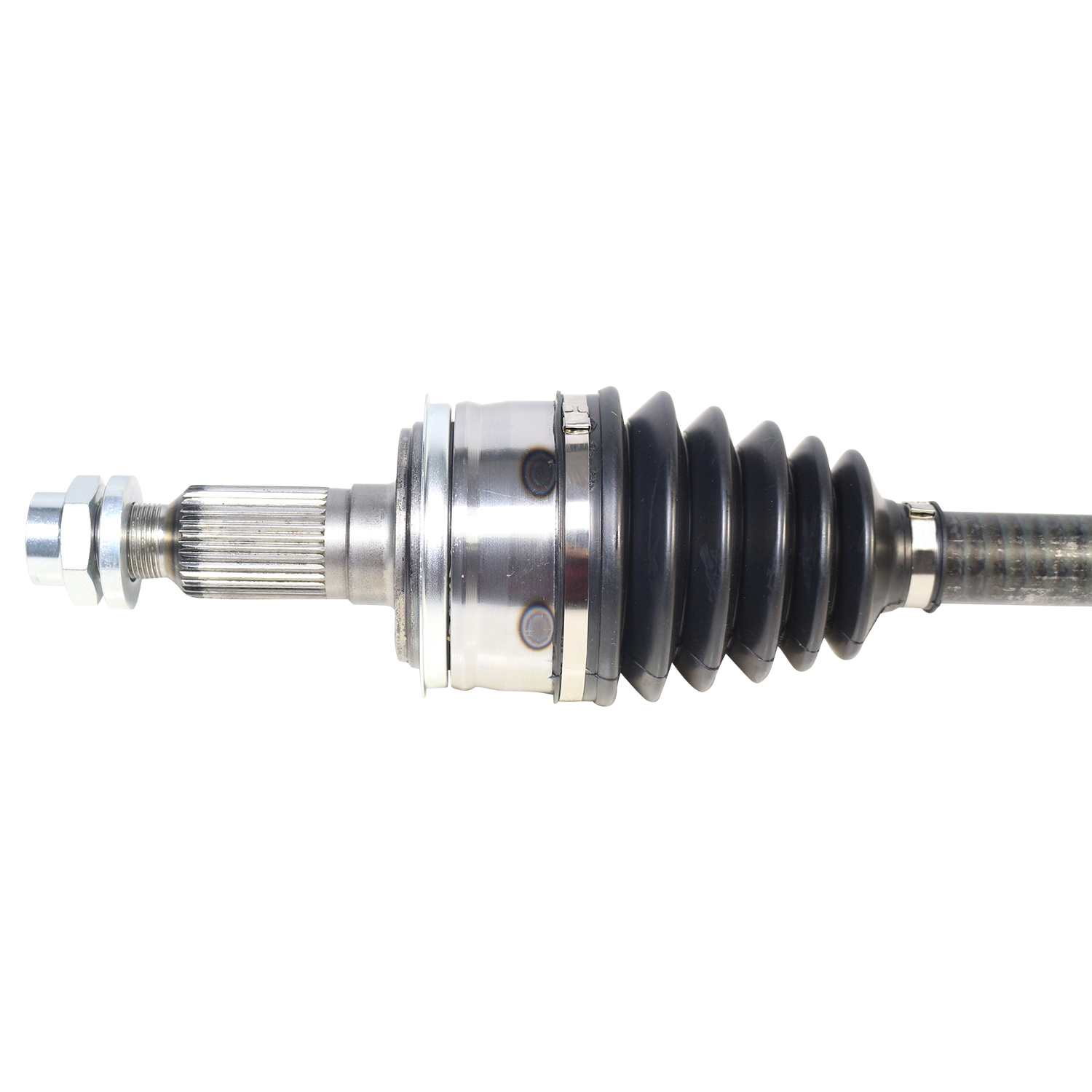

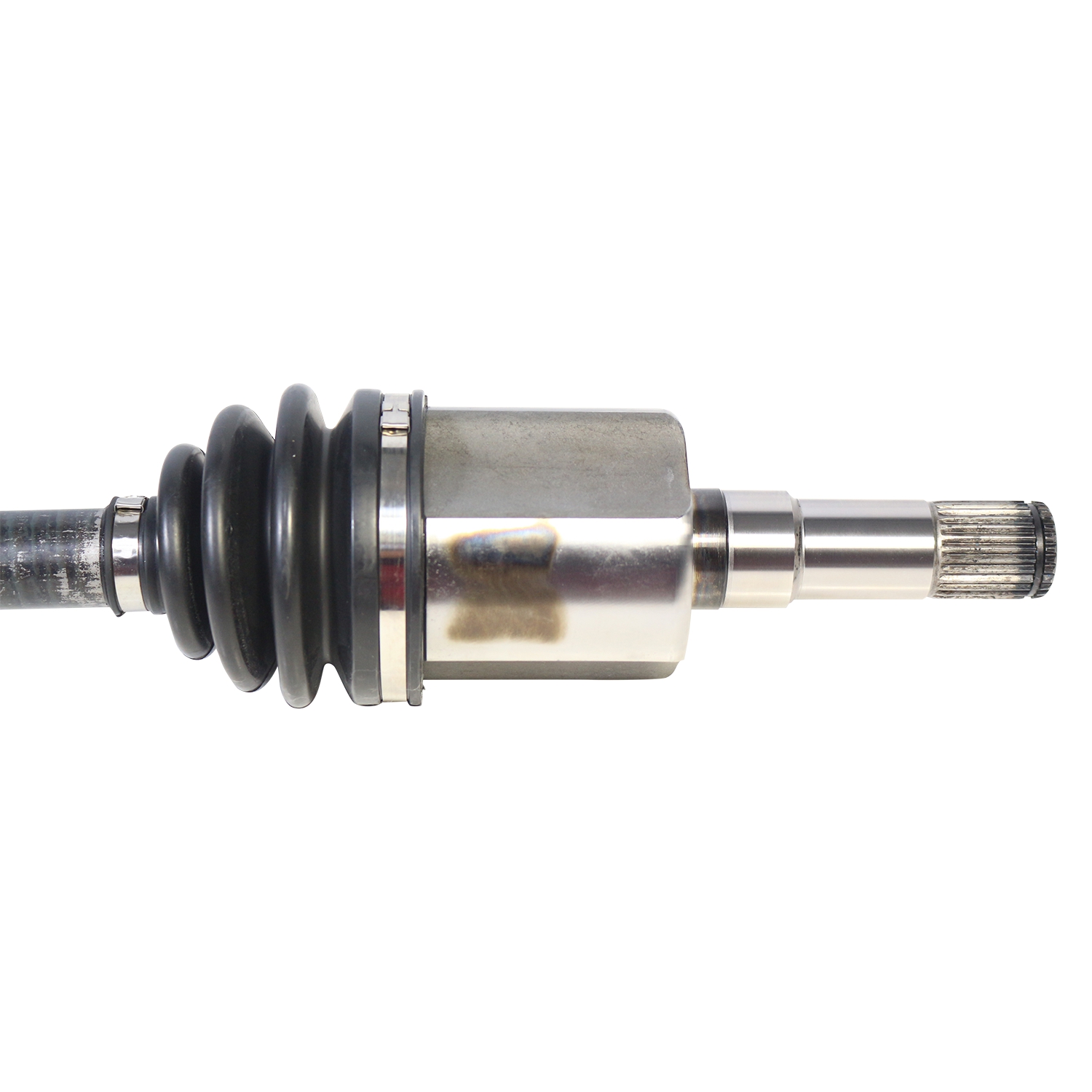

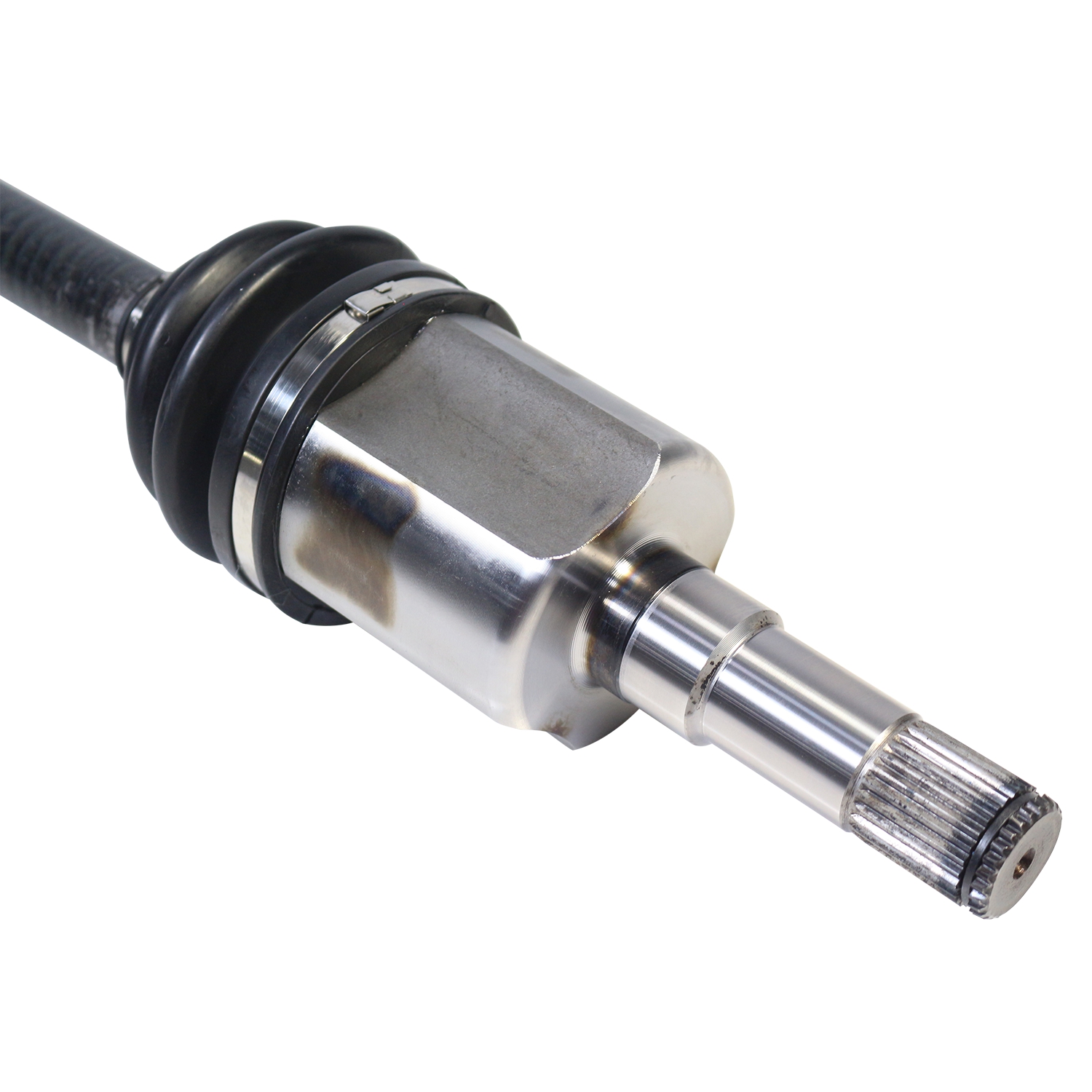

Buick, Cadillac (FWD) CV Axle Assembly - Front Right
SPECIFICATIONS
ABS Tone Ring Included
NO
Axle Nut Included
Yes
Axle Nut Socket Size
35.8
Axle Nut Type
Hex
California Proposition 65
Yes
Inboard Joint Type
Male
Outboard Joint Type
Conventional
Prop 65 Yes/No
Yes
ABS Tone Ring Tooth Quantity
-
Axle Nut Length
20.8
Axle Nut Thread Size
M24×1.5
Boot Material
Neoprene
Compressed Length
24.57
Inboard Spline Quantity
27
Outboard Spline Quantity
33
FEATURES & BENEFITS
● Extensive quality control and testing process to ensure a long-lasting performance
● Heat-treated components provide premium strength, increased tensile, and extended service life
APPLICATIONS
Year Range | Make | Model | Sub Model | Position |
|---|---|---|---|---|
2018-2019 | Cadillac | XTS | Livery, Base, Luxury, Platinum, Premium Luxury | Front Right |
2016-2017 | Buick | Regal | Sport Touring | Front Right |
2015-2017 | Cadillac | XTS | Livery | Front Right |
2013-2013 | Cadillac | XTS | Livery, Base, Luxury, Platinum, Premium | Front Right |
2012-2017 | Buick | Regal | Premium, Base, GS | Front Right |
2012-2015 | Buick | Regal | GS | Front Right |
2012-2013 | Buick | Regal | Premium | Front Right |
2011-2011 | Buick | Regal | CXL | Front Right |
