Countryside Road

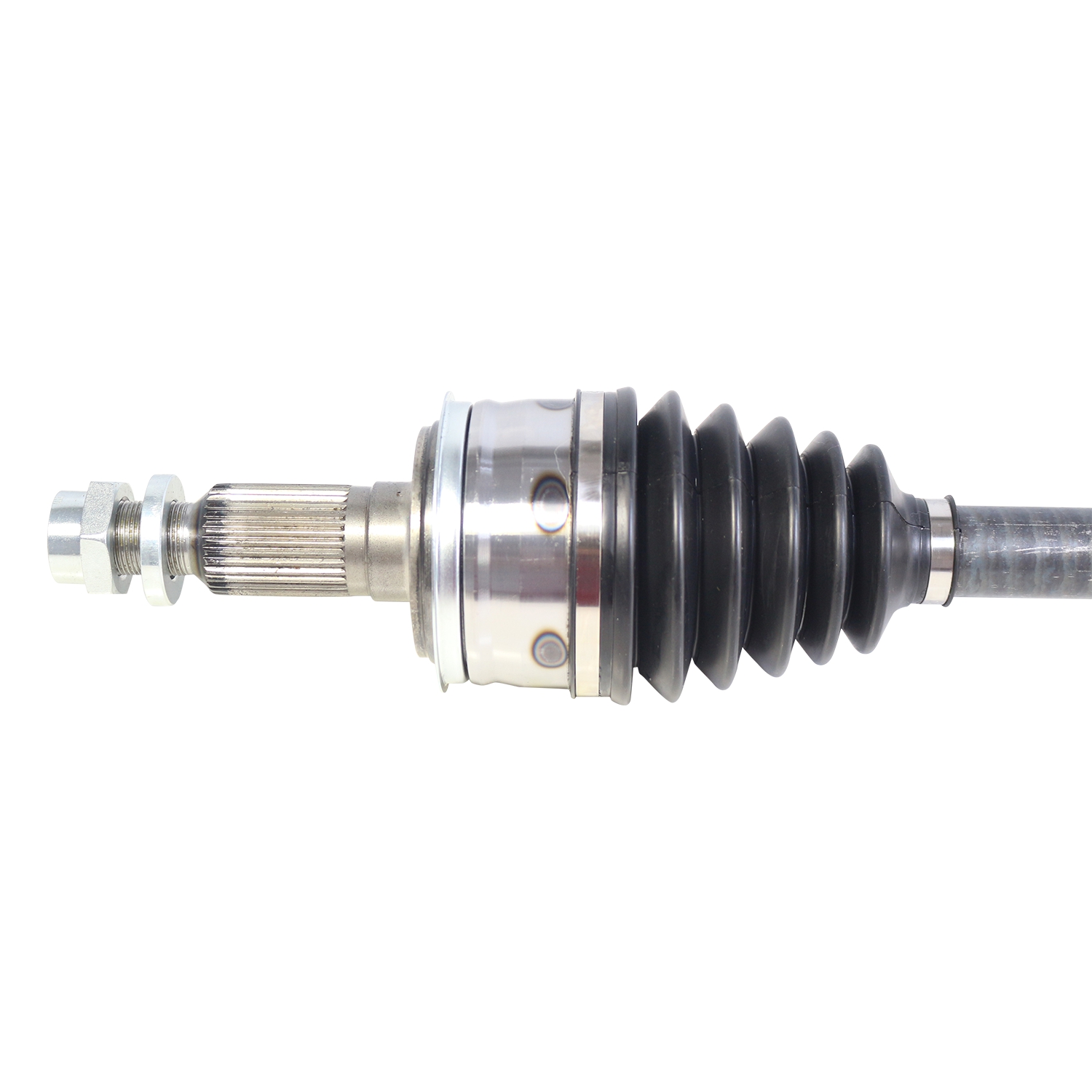

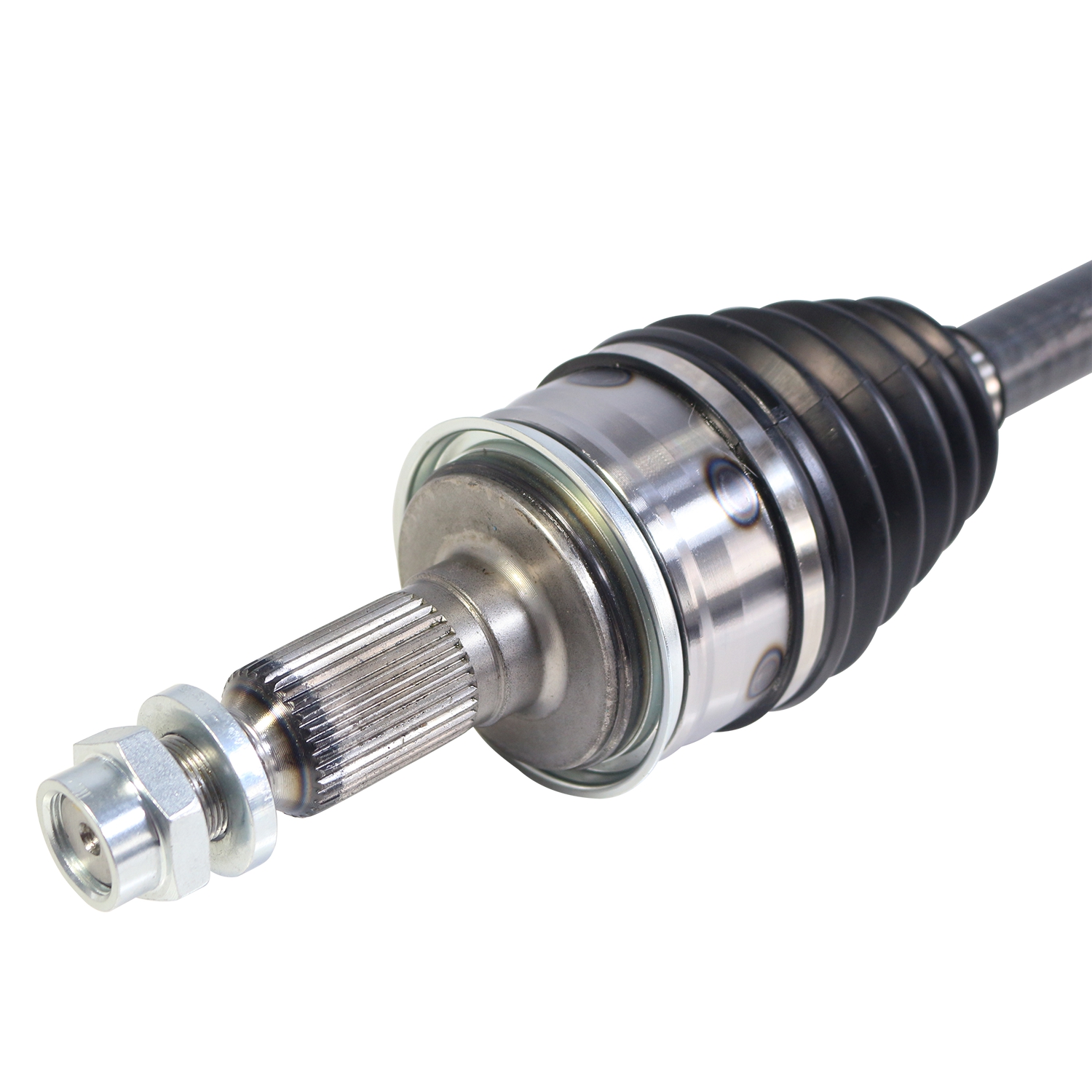

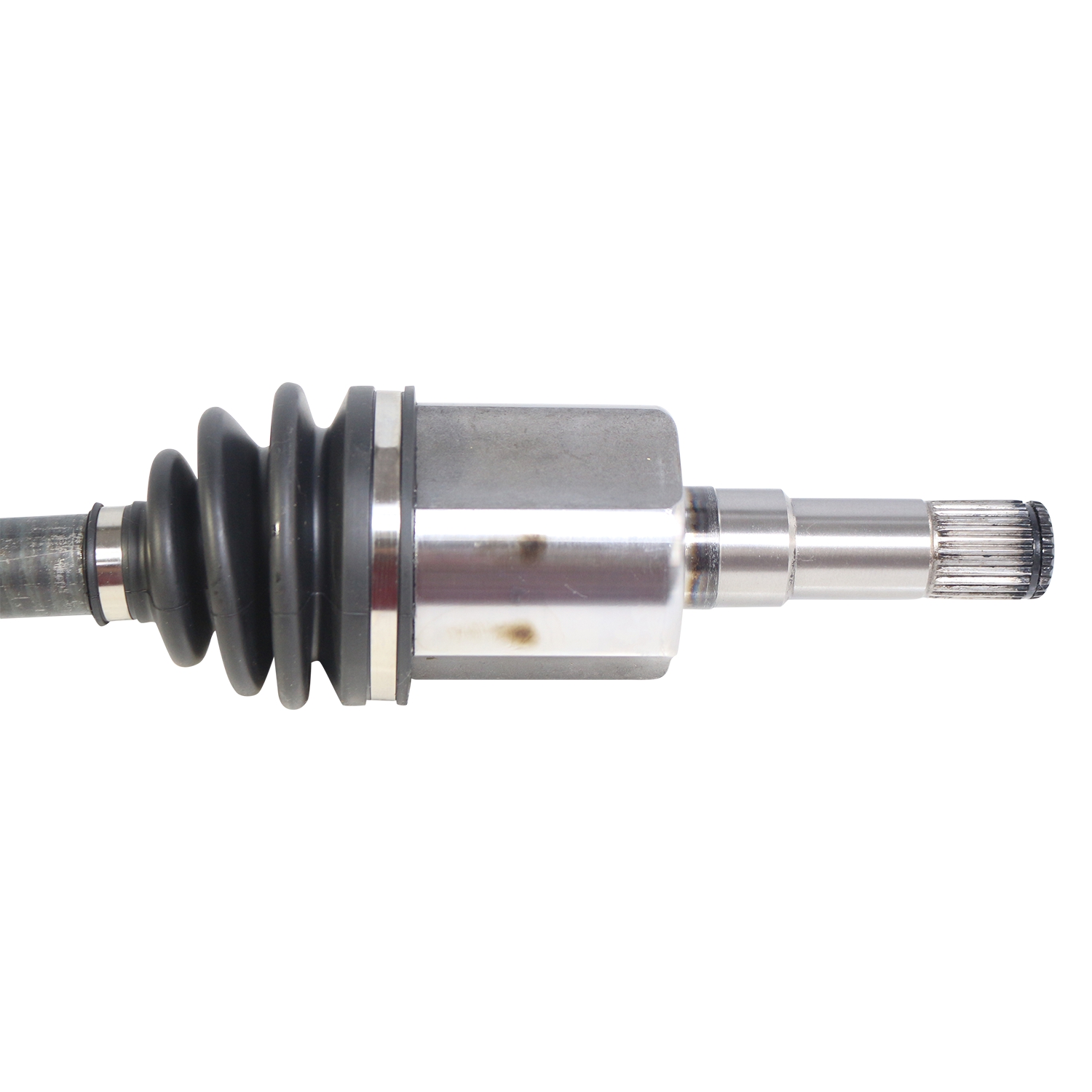

13-19 Cadillac XTS (FWD) CV Axle Assembly - Front Left

Part Number:

NCV17008

Product Type:

CV Axle Assembly

SPECIFICATIONS

ABS Tone Ring Included

NO

Axle Nut Included

Yes

Axle Nut Socket Size

35.8

Axle Nut Type

Hex

California Proposition 65

Yes

Inboard End Spline Quantity

27

Inboard Spline Quantity

27

Prop 65 Yes/No

Yes

ABS Tone Ring Tooth Quantity

-

Axle Nut Length

20.8

Axle Nut Thread Size

M24×1.5

Boot Material

Neoprene

Compressed Length

23.98

Inboard Joint Type

Male

Outboard Spline Quantity

33

FEATURES & BENEFITS

● Extensive quality control and testing process to ensure a long-lasting performance
● Heat-treated components provide premium strength, increased tensile, and extended service life

APPLICATIONS

Year Range
Make
Model
Sub Model
Position
2013-2019
Cadillac
XTS
Front Left
