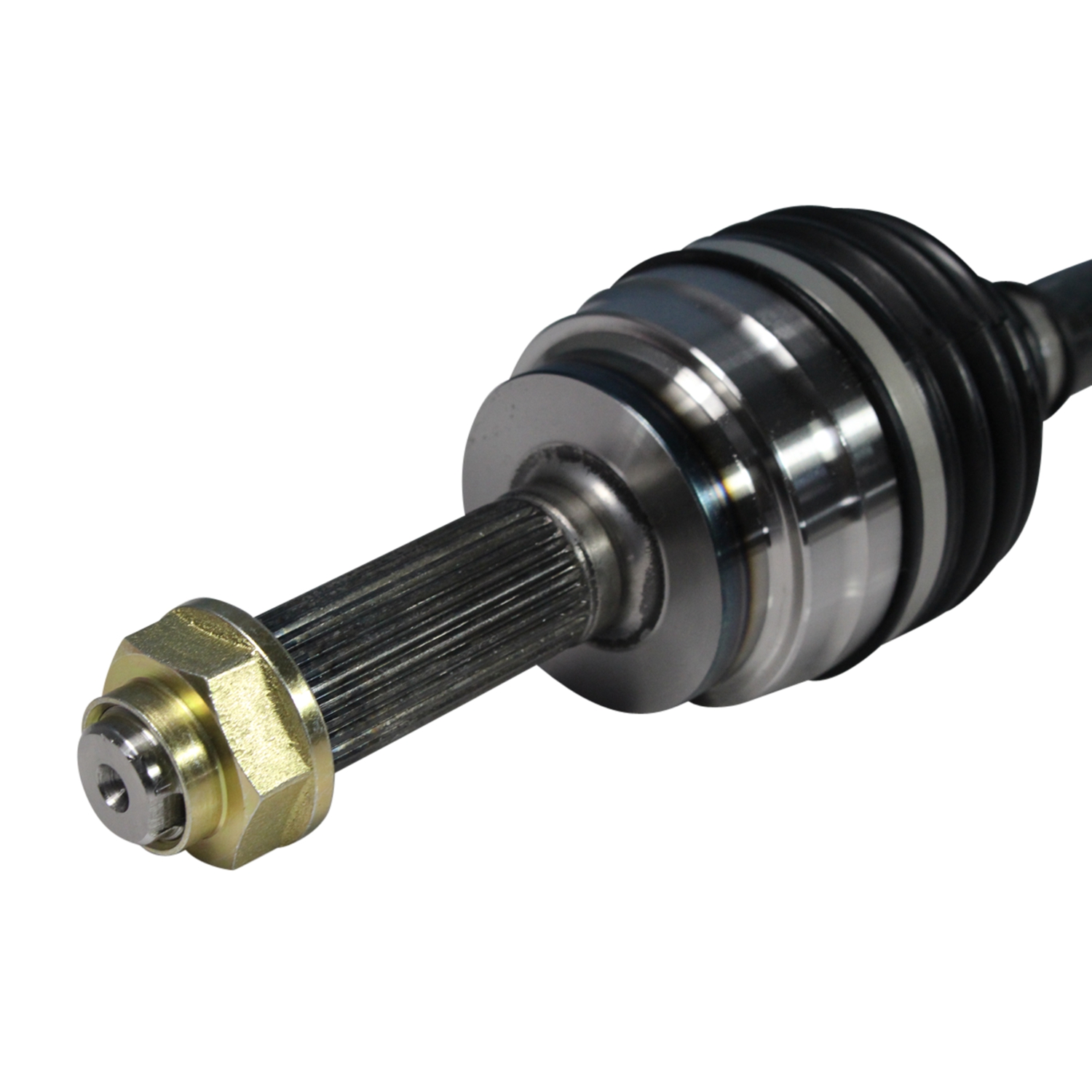

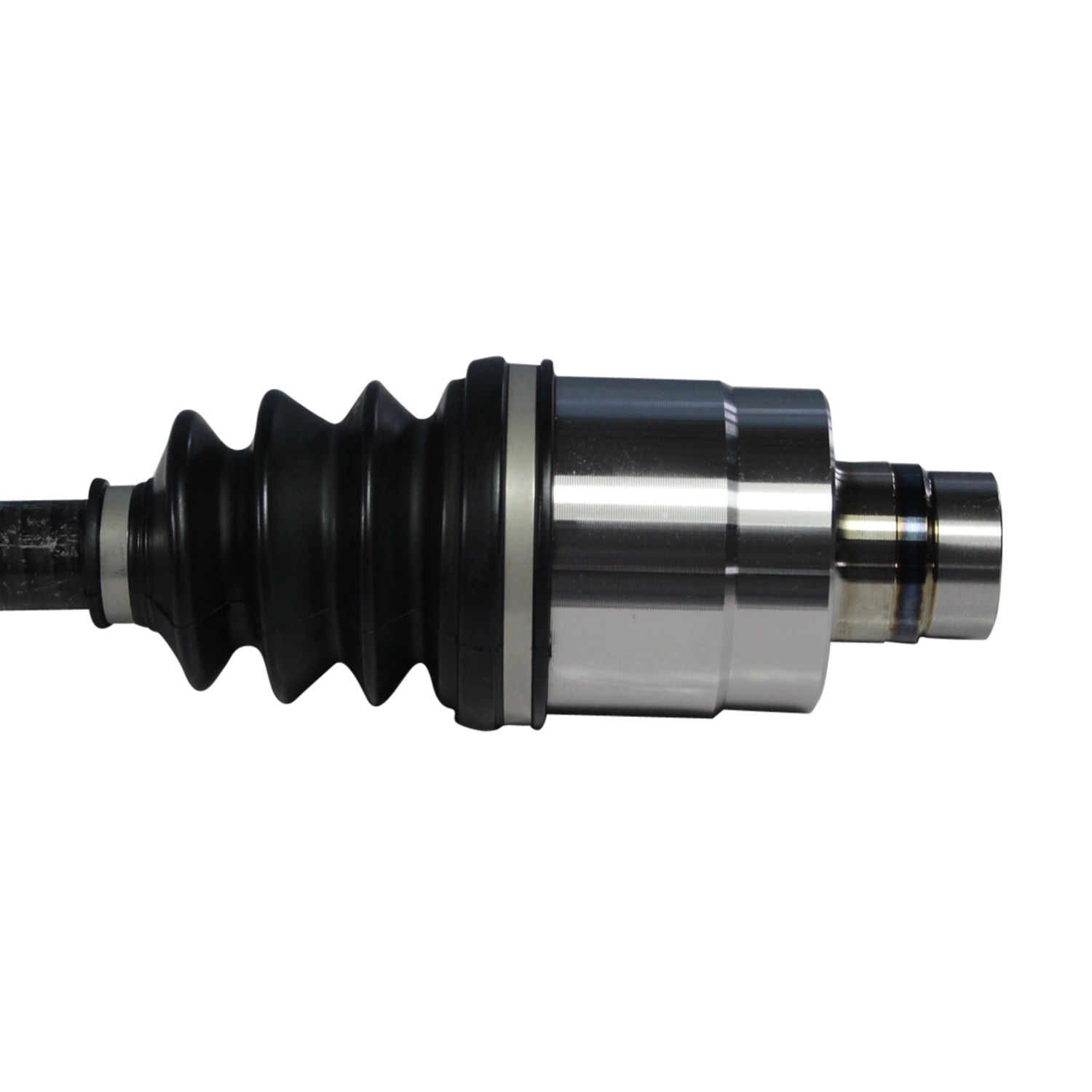

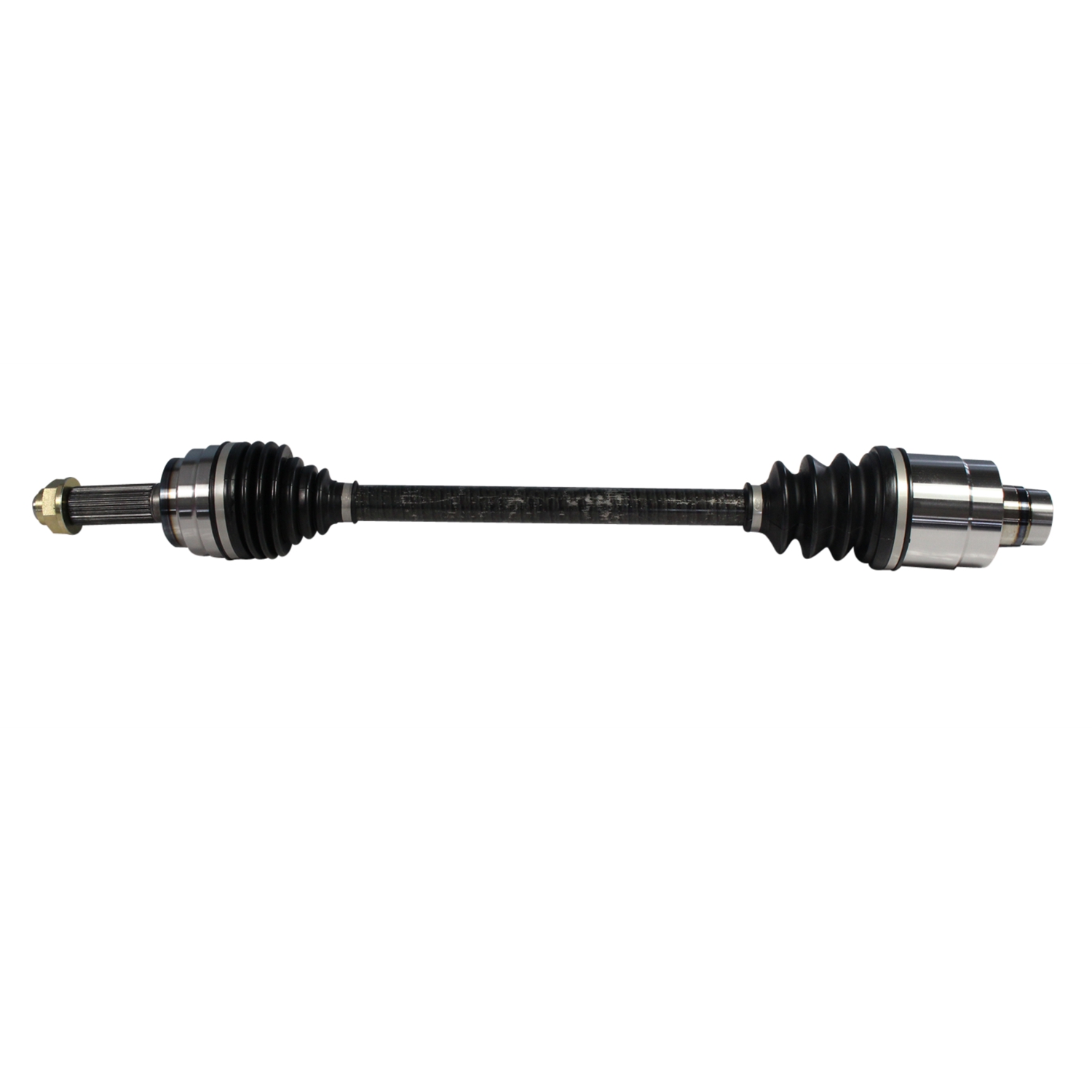

09-15 Honda Pilot CV Axle Assembly - Rear Left
SPECIFICATIONS
ABS Tone Ring Included
No
Axle Nut Length
23
Axle Nut Thread Size
M24×1.5
Boot Material
Neoprene

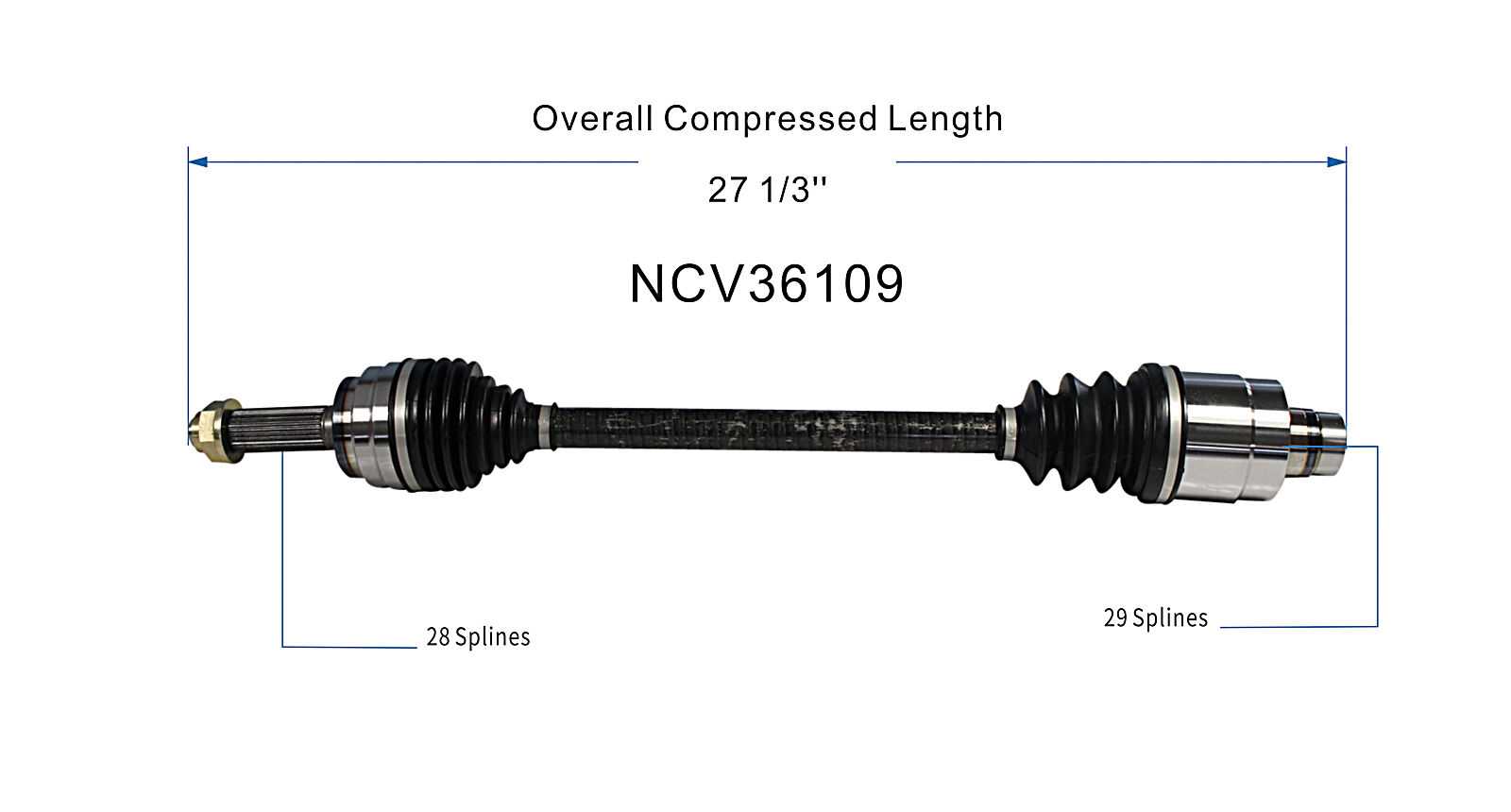

Compressed Length
27.32

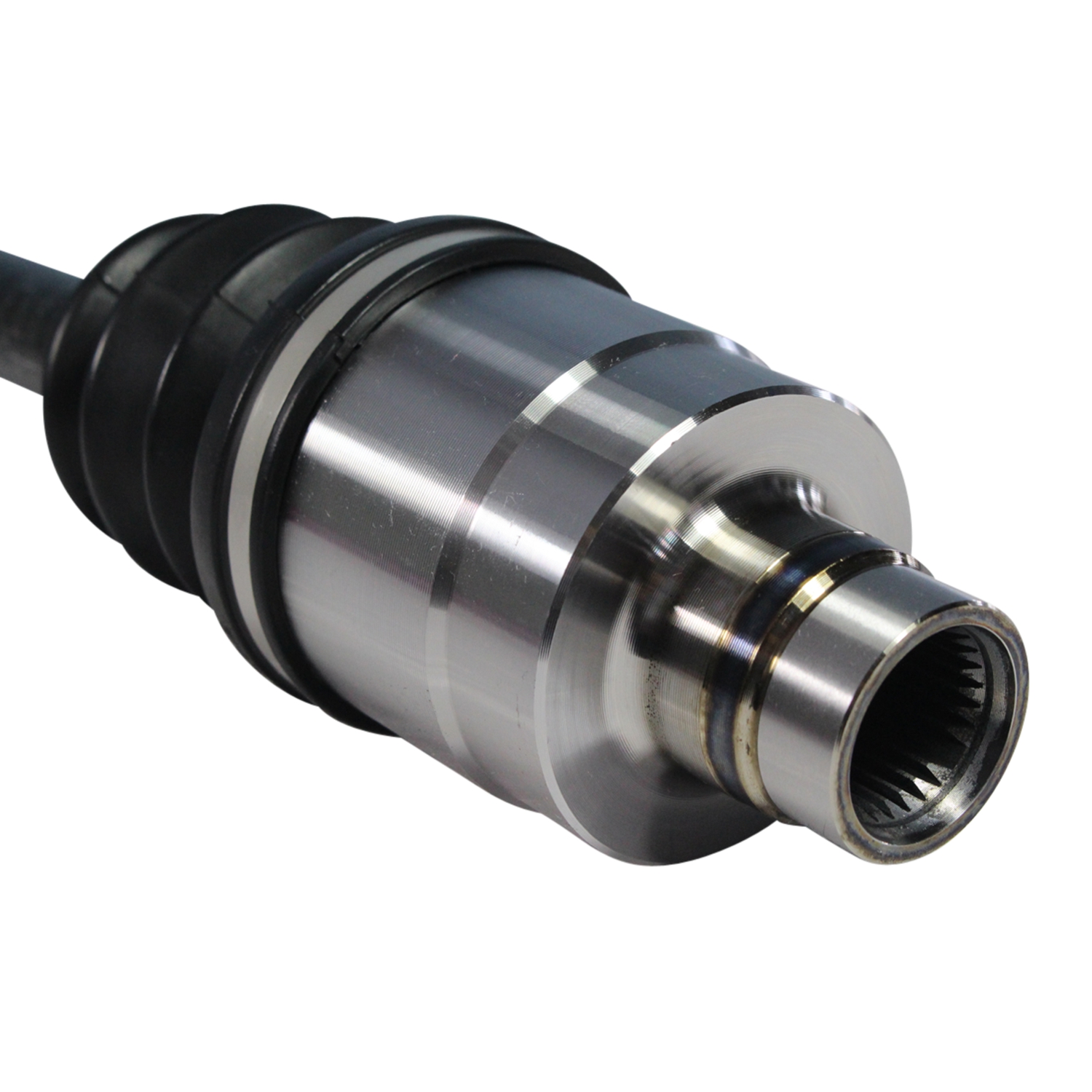

Inboard Joint Type
Female
Outboard Joint Type
Conventional
Placement
Rear Left
Axle Nut Included
Yes
Axle Nut Socket Size
36
Axle Nut Type
Hex
California Proposition 65
Yes
Extended Length
28.95
Inboard Spline Quantity
29
Outboard Spline Quantity
28
Prop 65 Yes/No
Yes
FEATURES & BENEFITS
APPLICATIONS
Year Range | Make | Model | Sub Model | Position |
|---|---|---|---|---|
2015-2015 | Honda | Pilot | EX-L, Touring, EX, LX | Rear Left |
2012-2014 | Honda | Pilot | Rear Left | |
2009-2011 | Honda | Pilot | EX-L, Touring, EX, LX | Rear Left |
