Countryside Road

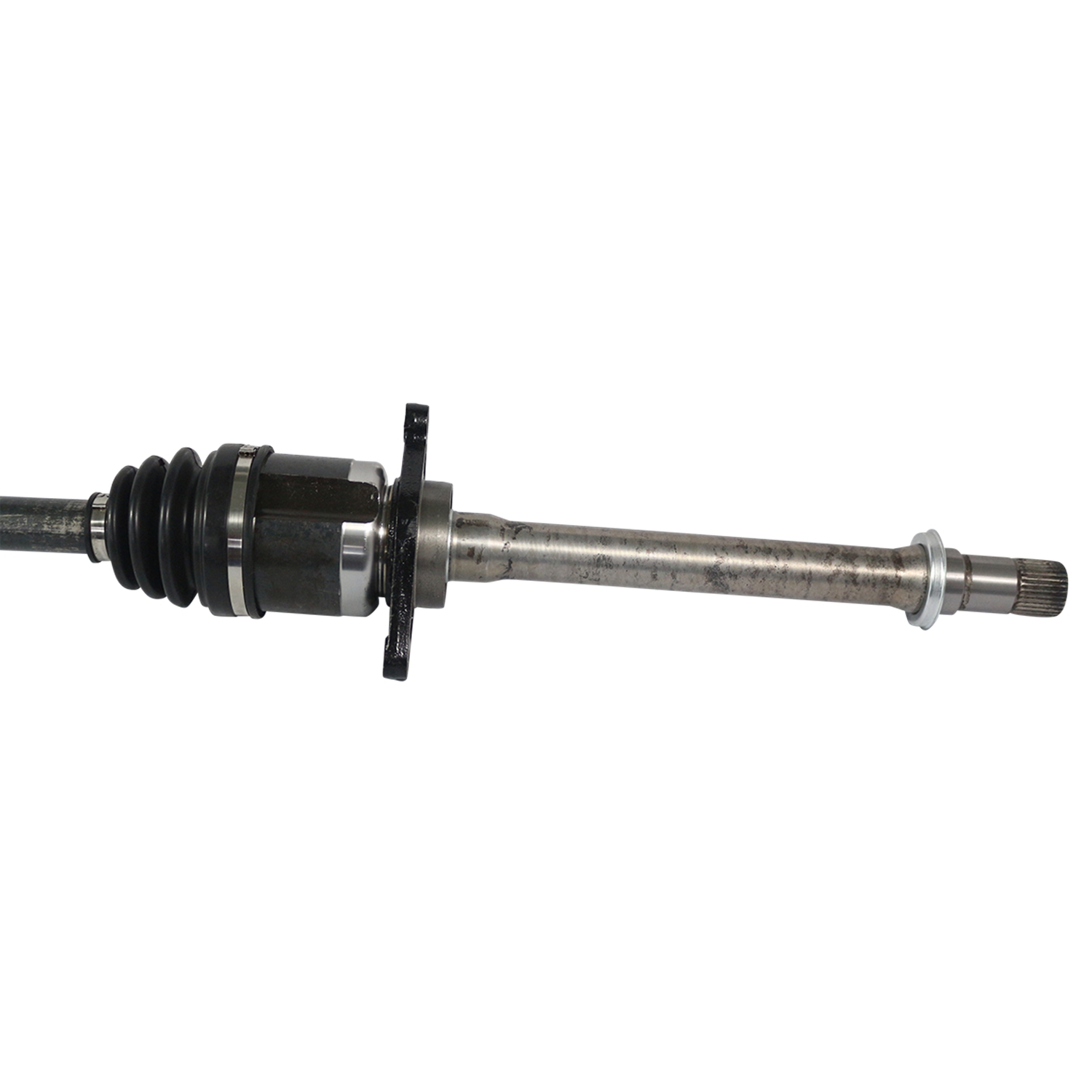

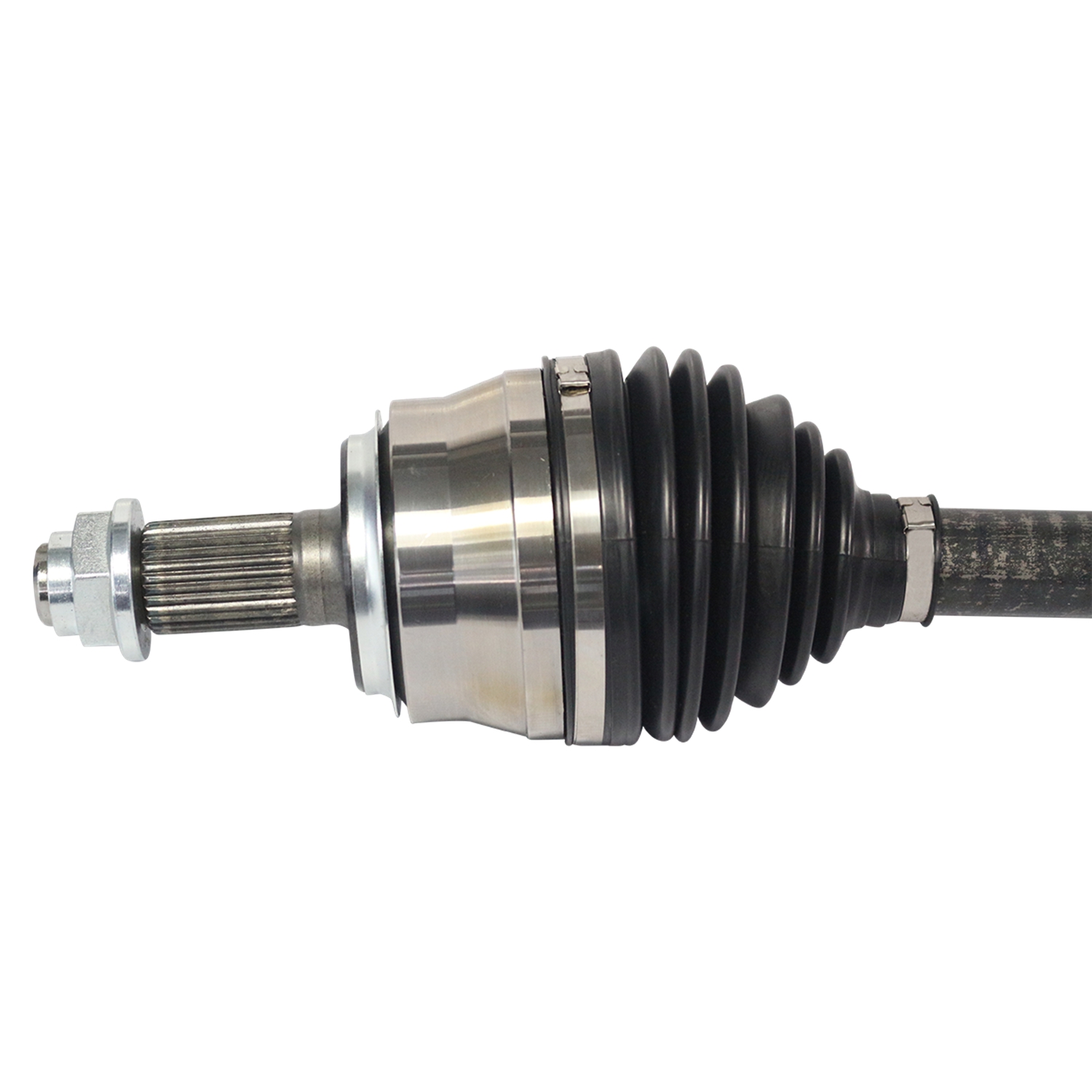

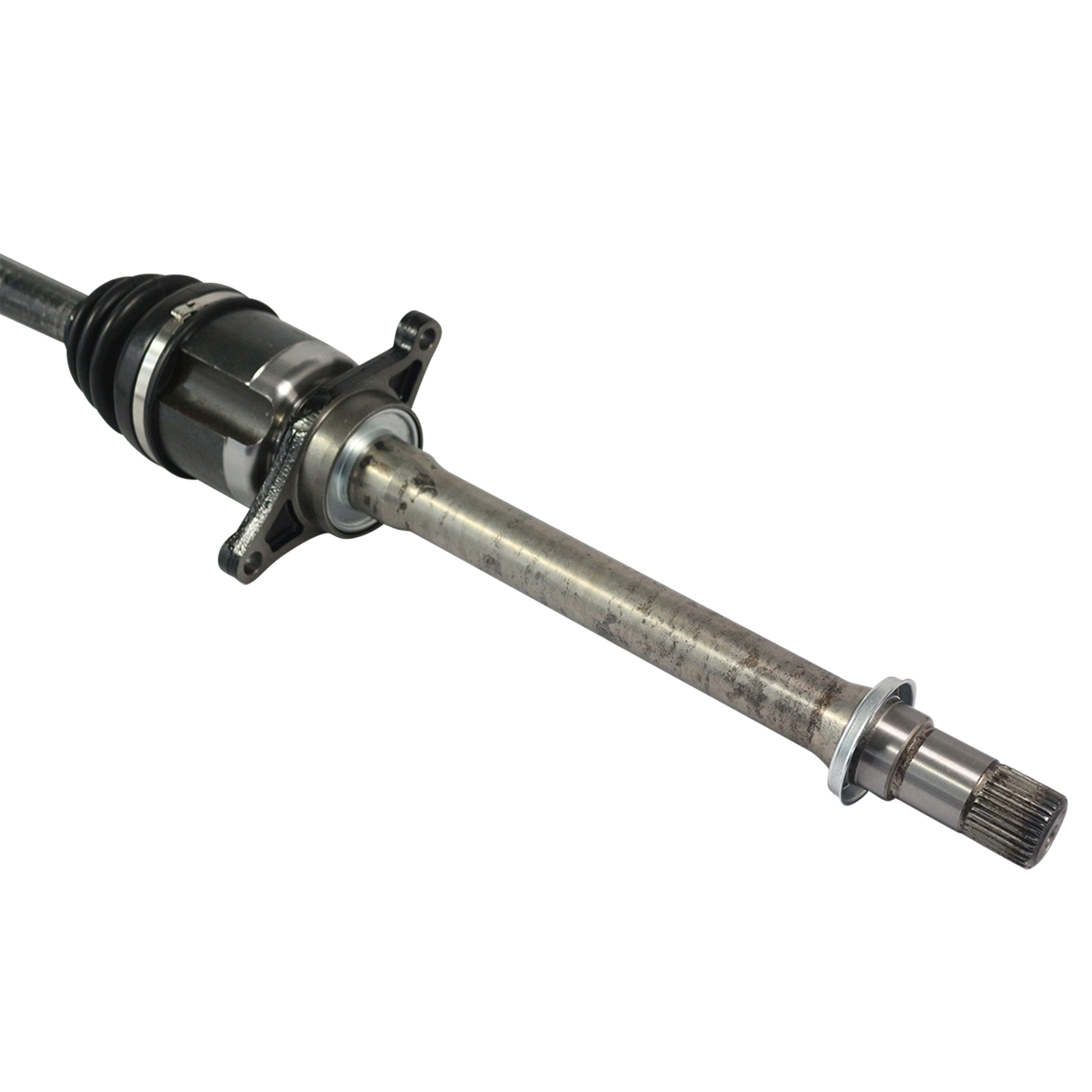

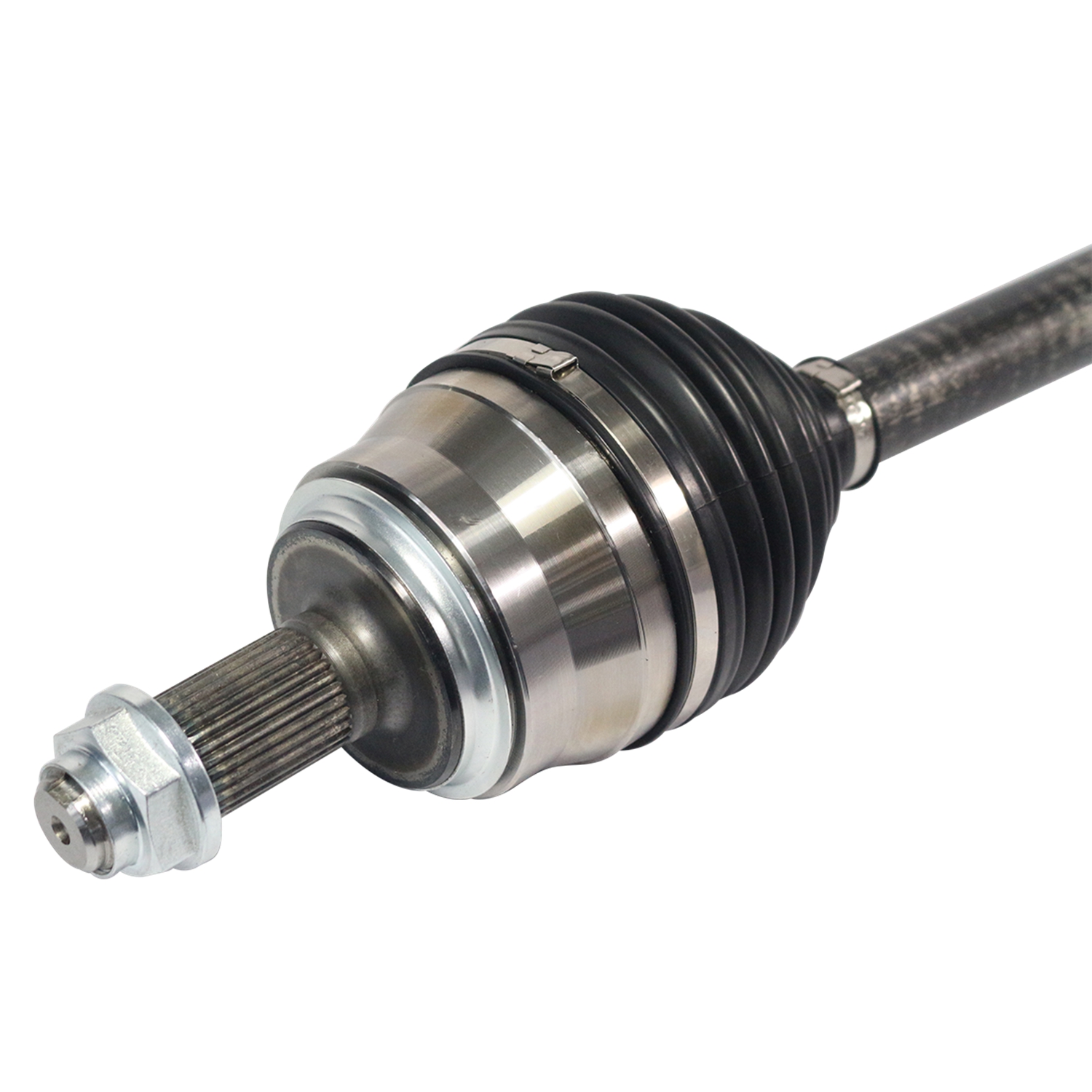

Acura, Honda CV Axle Assembly - Front Right

Part Number:

NCV36193

Product Type:

SPECIFICATIONS

ABS Tone Ring Included

No

Axle Nut Length

23

Axle Nut Thread Size

M26×1.5

Boot Material

Neoprene

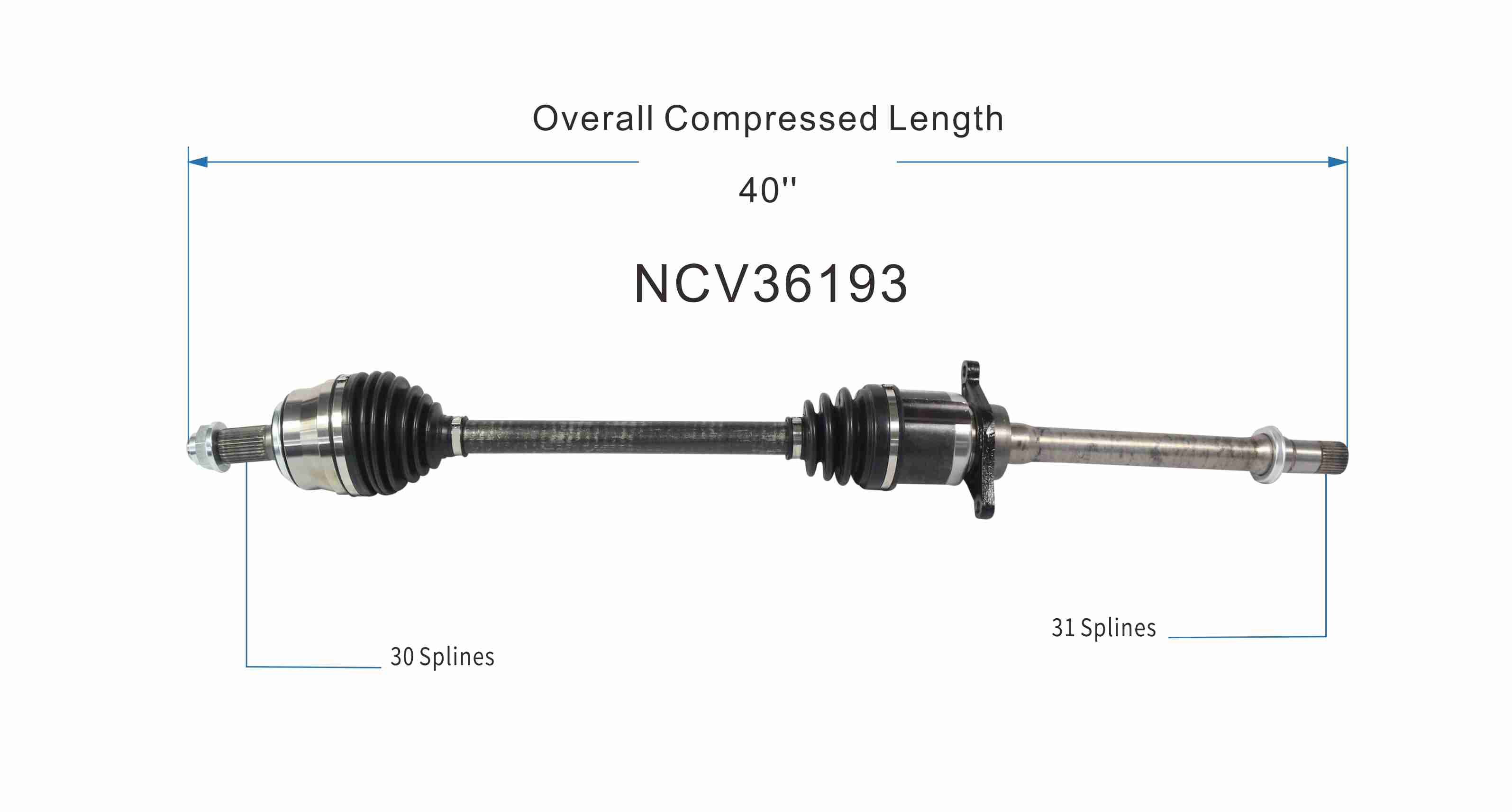

Compressed Length

40

Inboard Joint Type

Male

Outboard Joint Type

Conventional

Placement

Front Right

Axle Nut Included

Yes

Axle Nut Socket Size

36

Axle Nut Type

Hex

California Proposition 65

Yes

Extended Length

41.84

Inboard Spline Quantity

31

Outboard Spline Quantity

30

Prop 65 Yes/No

Yes

FEATURES & BENEFITS

APPLICATIONS

Year Range
Make
Model
Sub Model
Position
2016-2020
Honda
Pilot
Front Right
2014-2015
Acura
MDX
Front Right
