16-21 Hyundai Tucson (2.0 - AWD) CV Axle Assembly - Front Right
SPECIFICATIONS
ABS Tone Ring Included
Yes
Axle Nut Included
Yes
Axle Nut Socket Size
32
Axle Nut Type
Hex
California Proposition 65
Yes

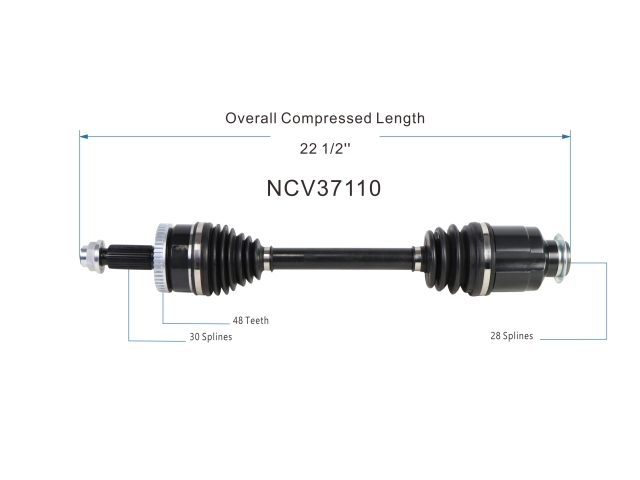

Extended Length
24.32
Inboard Spline Quantity
28
Outboard Spline Quantity
30
ABS Tone Ring Tooth Quantity
48
Axle Nut Length
23
Axle Nut Thread Size
M24×1.5
Boot Material
Neoprene
Compressed Length
571
Inboard Joint Type
Female
Outboard Joint Type
Conventional
Placement
Front Right
FEATURES & BENEFITS
APPLICATIONS
Year Range | Make | Model | Sub Model | Position |
|---|---|---|---|---|
2016-2021 | Hyundai | Tucson | Front Right |
