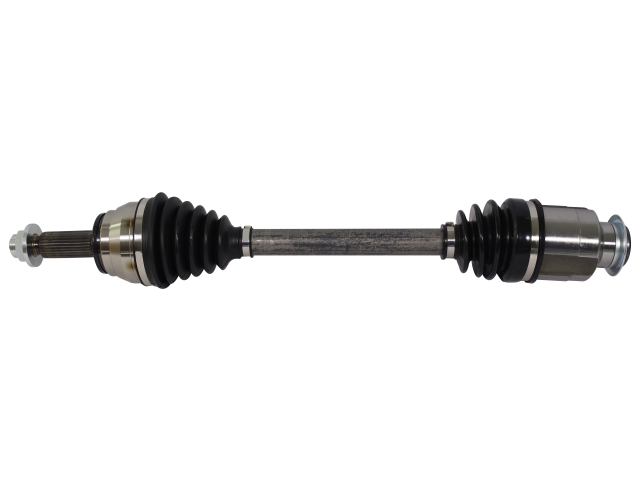

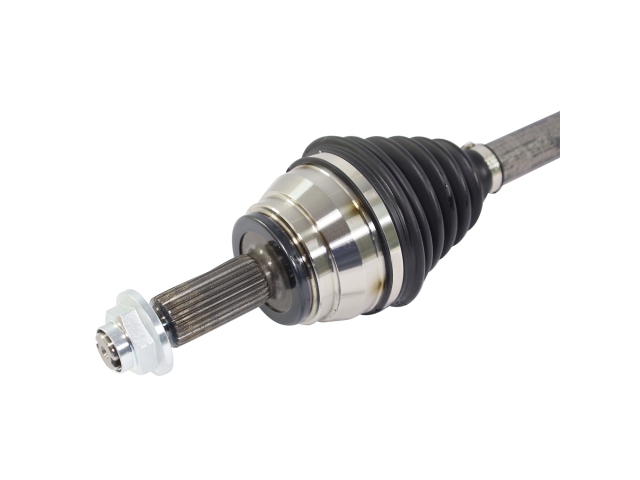

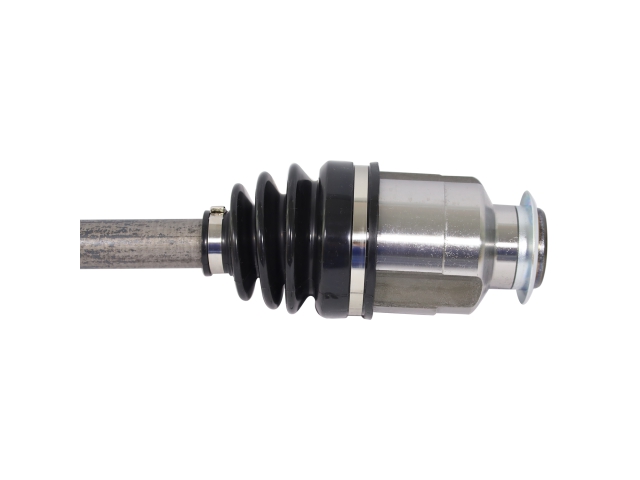

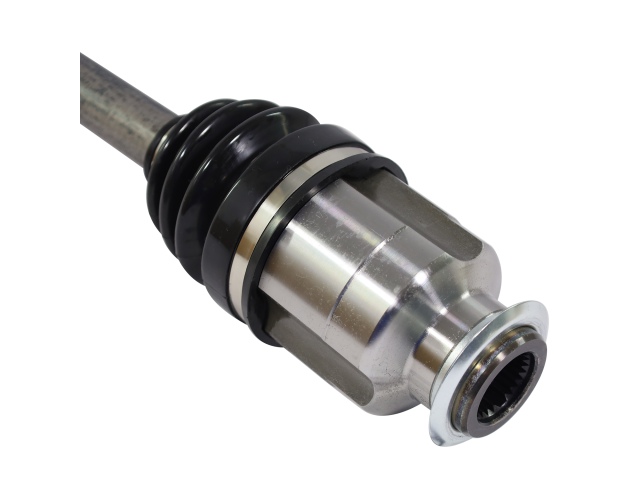

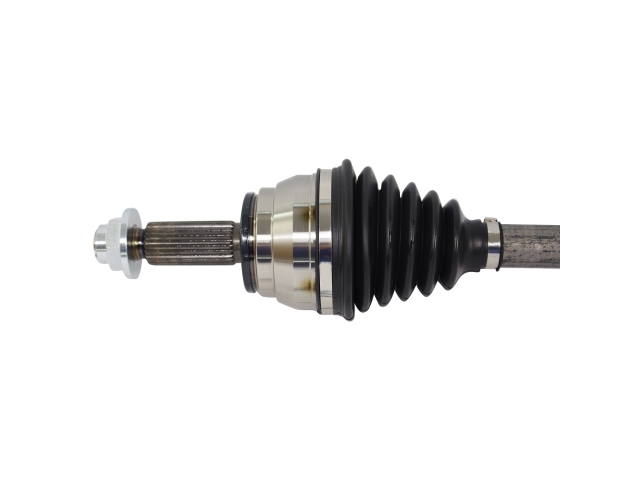

Hyundai, Kia (1.6 - AWD/FWD) CV Axle Assembly - Front Right
SPECIFICATIONS
ABS Tone Ring Included
No
Axle Nut Length
22
Axle Nut Thread Size
M22×1.5
Boot Material
Neoprene
Compressed Length
23.54
Inboard Joint Type
Male
Outboard Joint Type
Conventional
Placement
Front Right
Axle Nut Included
Yes
Axle Nut Socket Size
32
Axle Nut Type
Hex
California Proposition 65
Yes
Extended Length
25.30
Inboard Spline Quantity
28
Outboard Spline Quantity
27
Prop 65 Yes/No
Yes
FEATURES & BENEFITS
APPLICATIONS
Year Range | Make | Model | Sub Model | Position |
|---|---|---|---|---|
2021-2023 | Kia | Forte | GT Limited | Front Right |
2020-2023 | Kia | Forte | GT | Front Right |
2018-2021 | Hyundai | Kona | Front Right |
