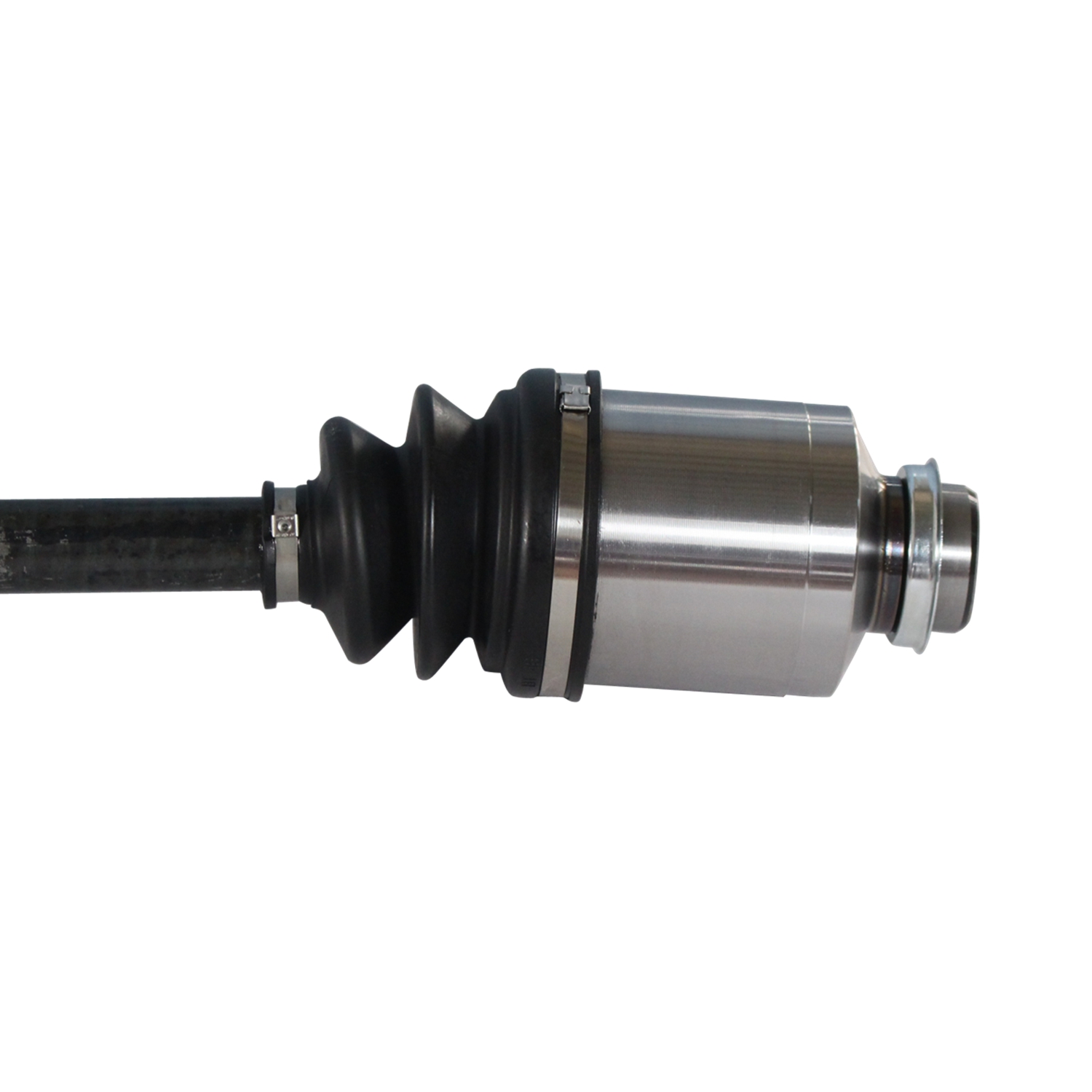

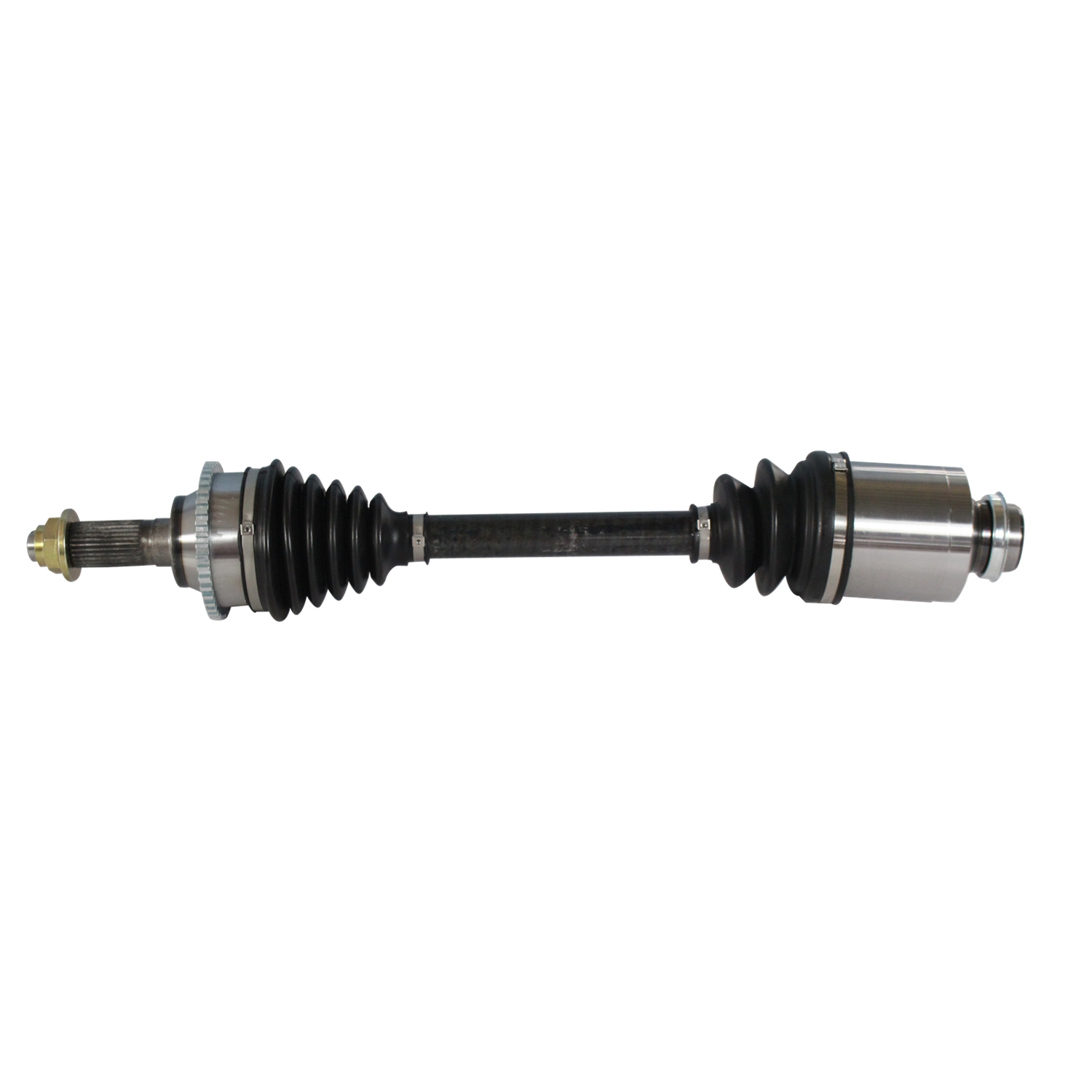

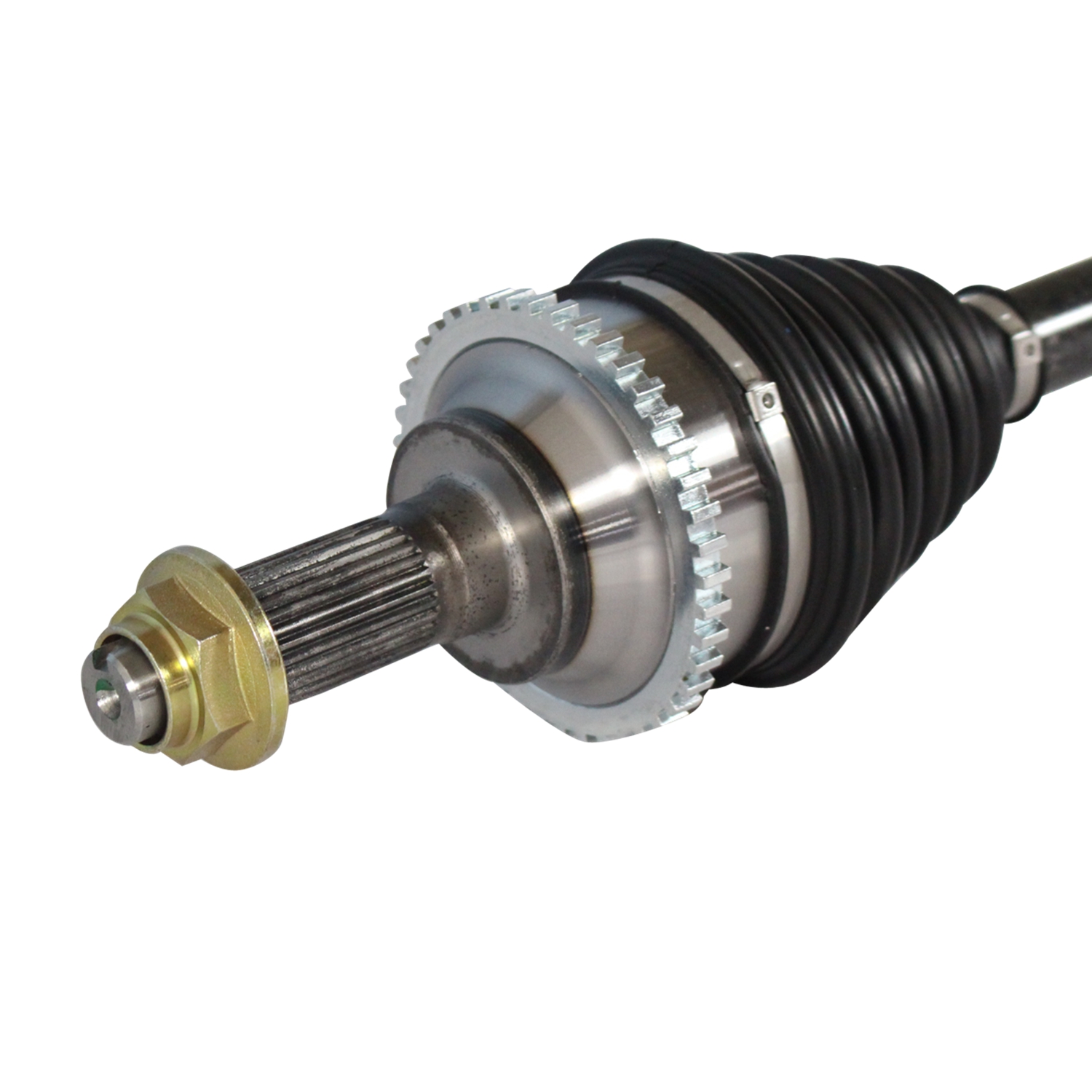

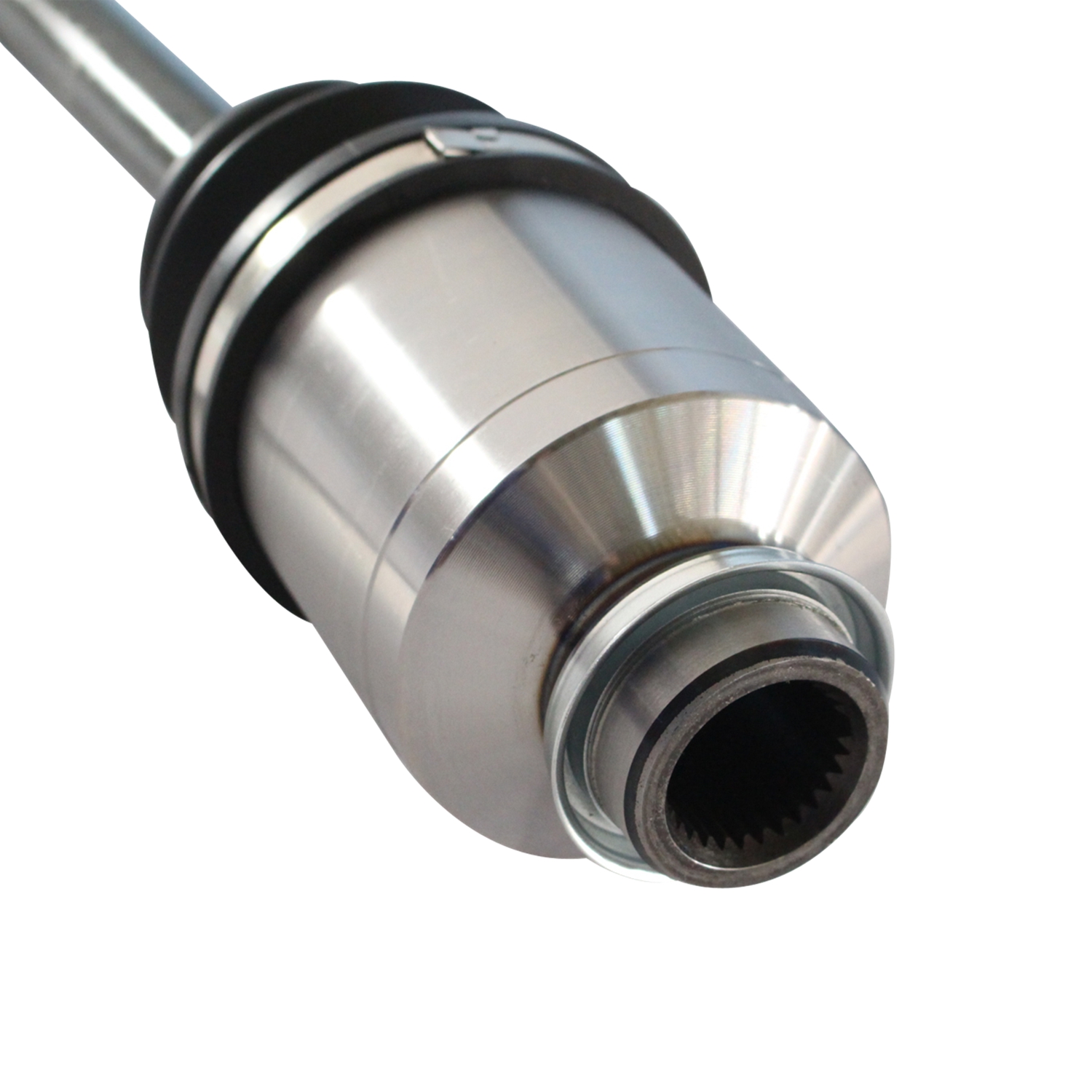

03-08 Mazda 6 S CV Axle Assembly - Front Right
SPECIFICATIONS
ABS Tone Ring Included
Yes
Axle Nut Included
Yes
Axle Nut Socket Size
32
Axle Nut Type
Hex
California Proposition 65
Yes

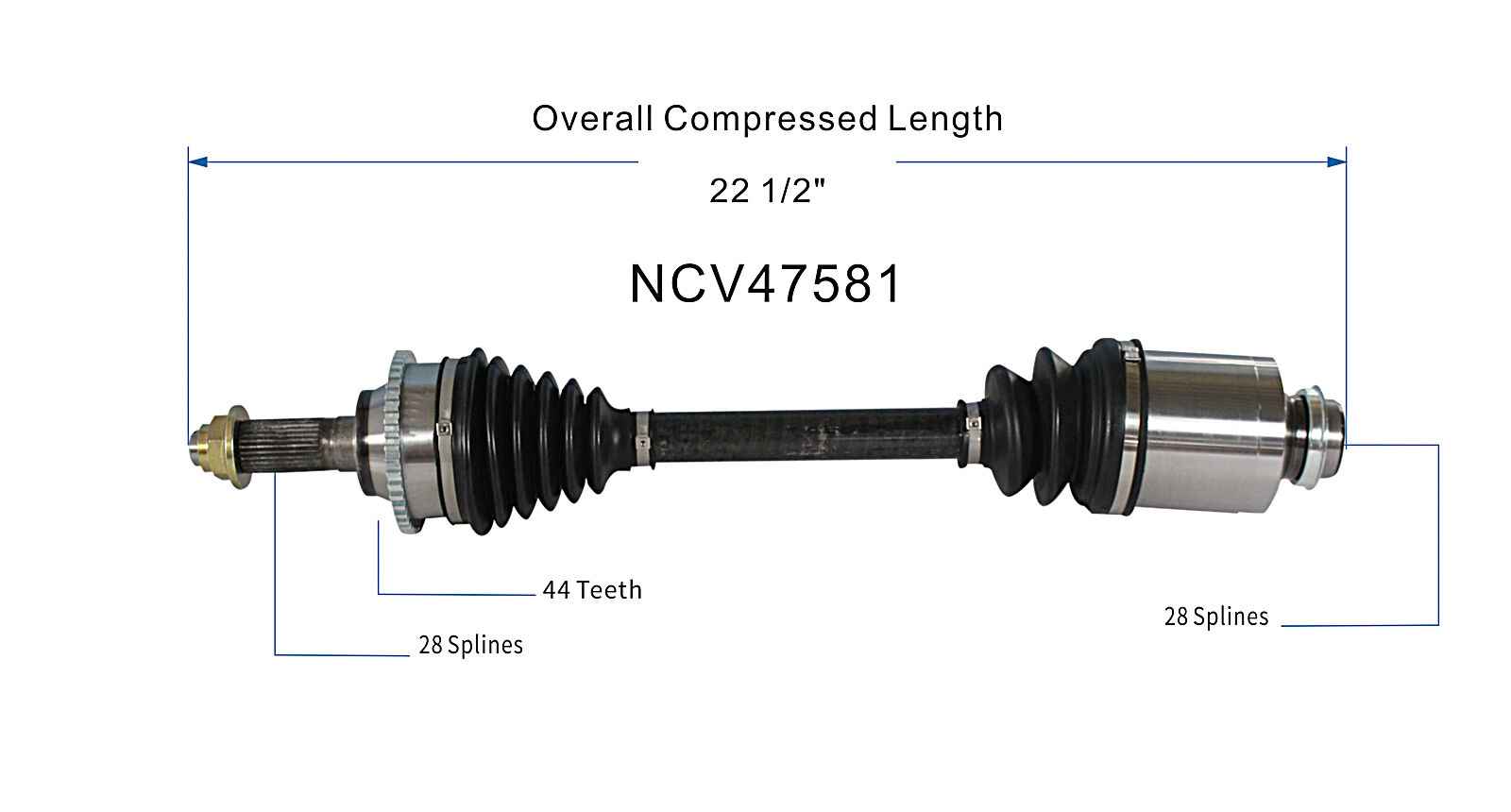

Extended Length
24.62
Inboard Spline Quantity
28
Outboard Spline Quantity
28
ABS Tone Ring Tooth Quantity
44
Axle Nut Length
21
Axle Nut Thread Size
M22×1.5
Boot Material
Neoprene
Compressed Length
22.52
Inboard Joint Type
Female
Outboard Joint Type
Conventional
Placement
Front Right
FEATURES & BENEFITS
APPLICATIONS
Year Range | Make | Model | Sub Model | Position |
|---|---|---|---|---|
2003-2008 | Mazda | 6 | S | Front Right |
