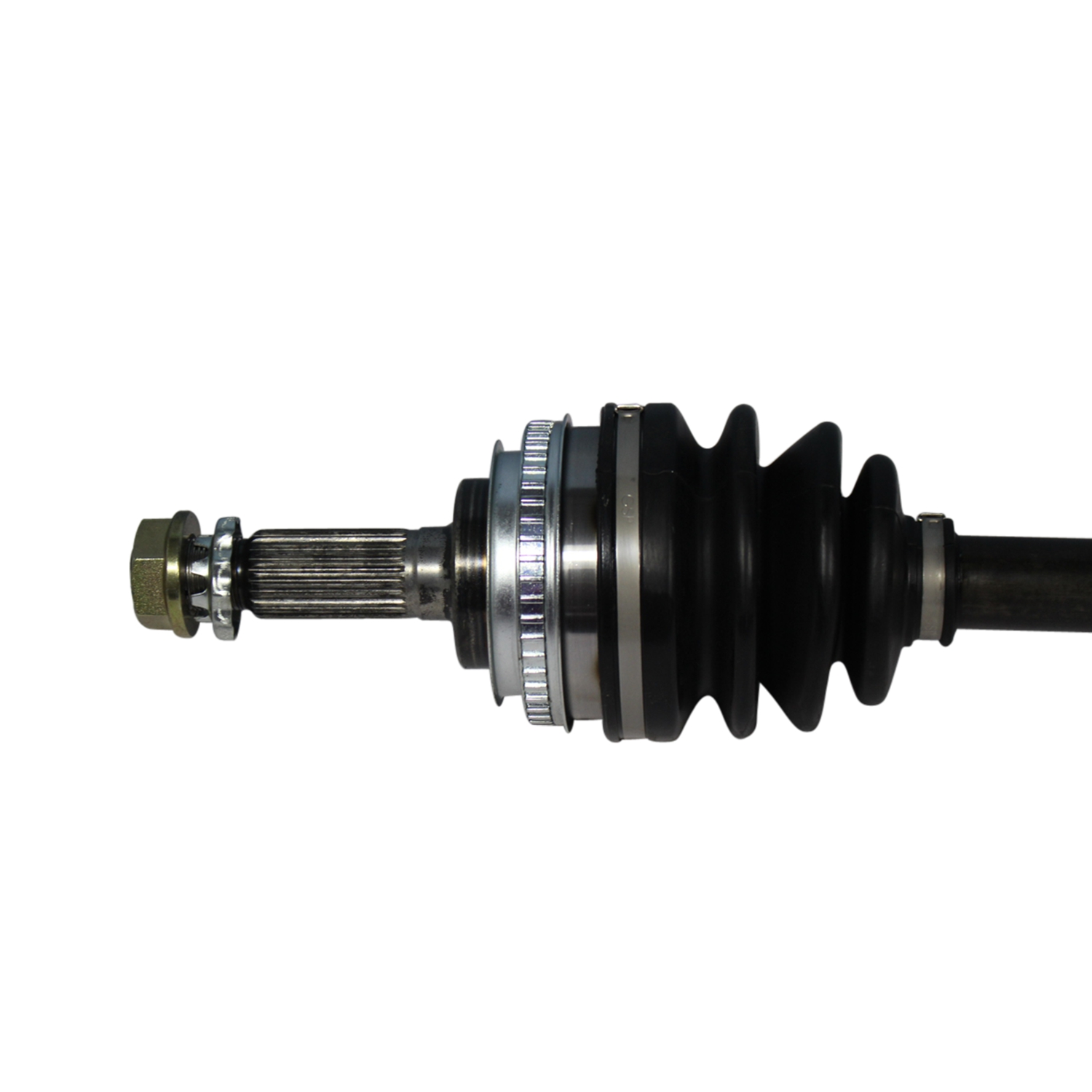

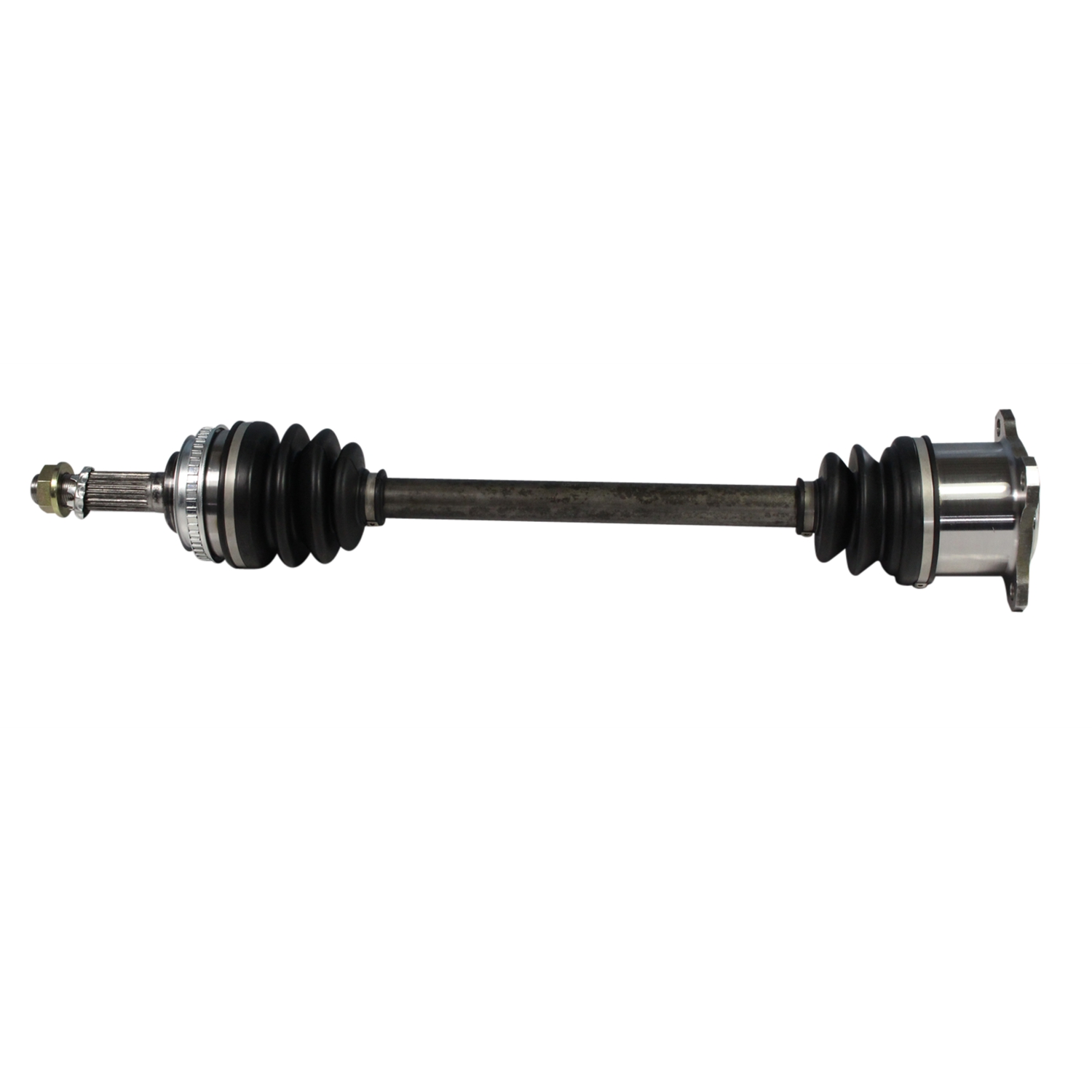

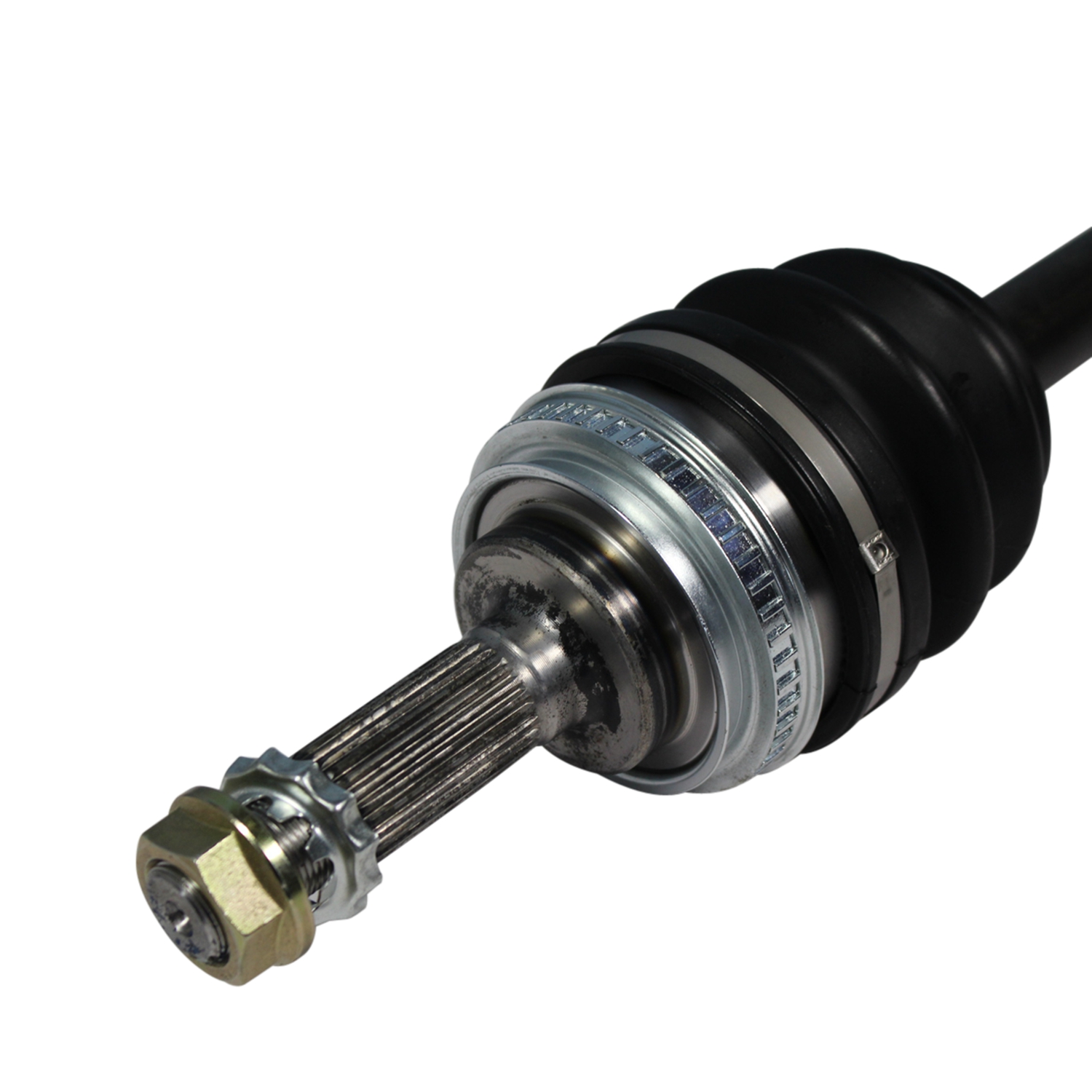

96-00 Toyota RAV4 (2.0) CV Axle Assembly - Rear Left

Part Number:

NCV69449

Product Type:

CV Axle Assembly

SPECIFICATIONS

ABS Tone Ring Included

Yes

Axle Nut Included

Yes

Axle Nut Socket Size

30

Axle Nut Type

Hex

California Proposition 65

Yes

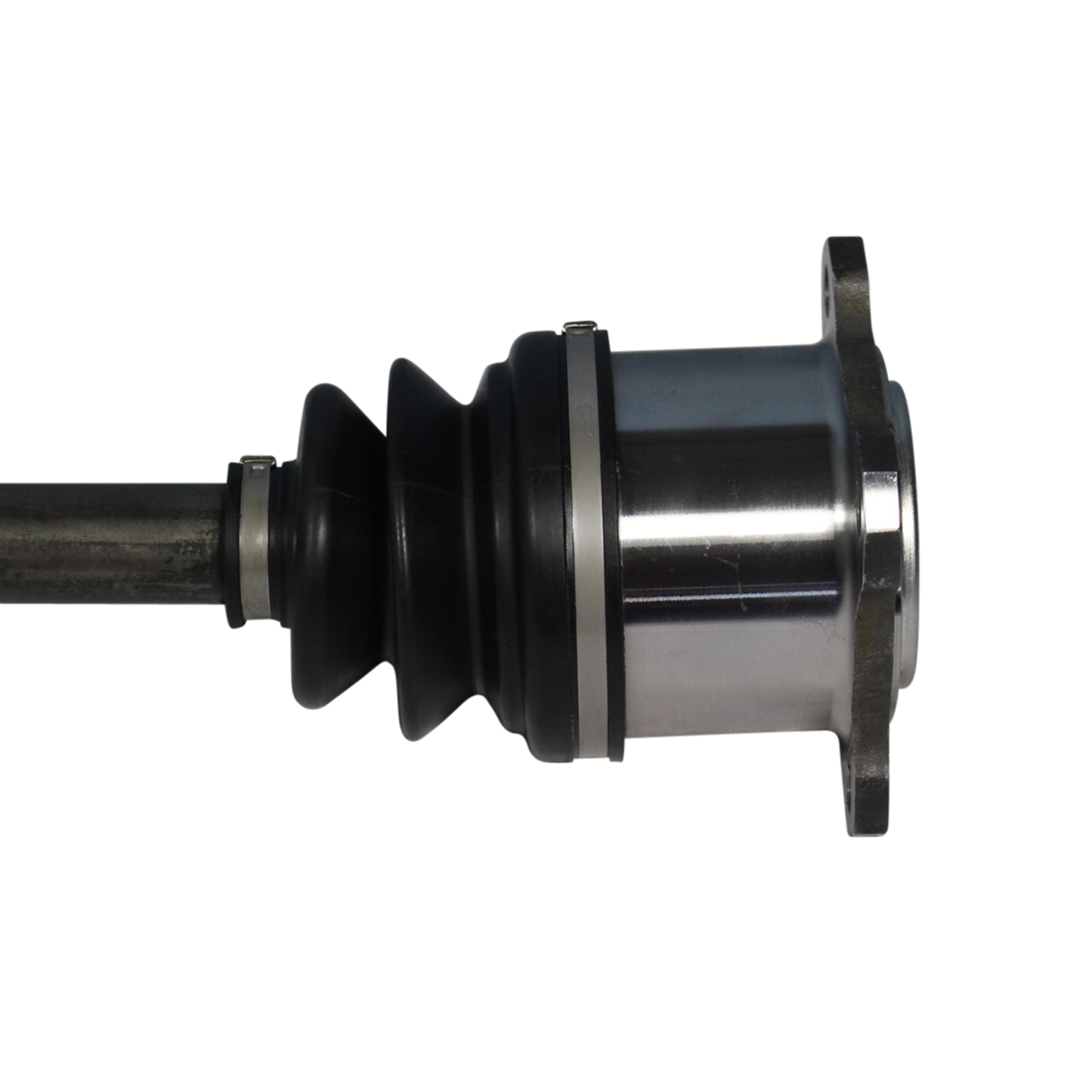

Inboard Joint Type

Flange

Outboard Spline Quantity

26

ABS Tone Ring Tooth Quantity

48

Axle Nut Length

15

Axle Nut Thread Size

M22×1.5

Boot Material

Neoprene

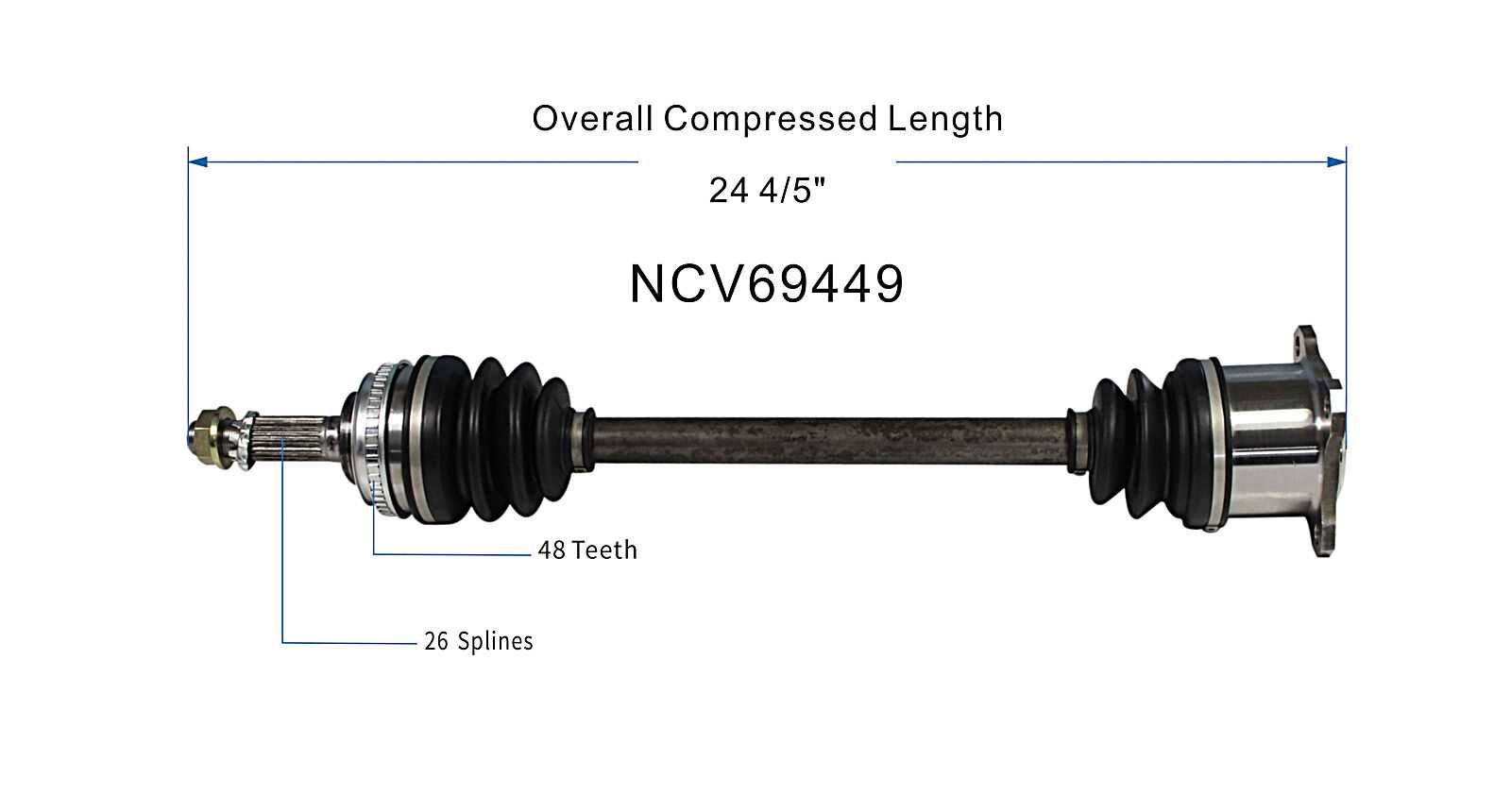

Compressed Length

24.8

Outboard Joint Type

Conventional

Prop 65 Yes/No

Yes

FEATURES & BENEFITS

● Extensive quality control and testing process to ensure a long-lasting performance
● Heat-treated components provide premium strength, increased tensile, and extended service life
● GSP Silent Ride Technology OE designed and manufactured CV joints to provide a quiet ride
● Premium grade neoprene boots provide protection against dirt and debris in driving conditions
● Specially formulated moly grease for optimal performance at high temperatures
● High-quality stainless-steel clamps for heavy duty strength and durability
● Spline rolled for precise durable fitment
● GSP CV Axles are covered with a limited lifetime warranty

APPLICATIONS

Year Range
Make
Model
Sub Model
Position
1998-2000
Toyota
RAV4
Rear Left
1996-1997
Toyota
RAV4
Rear Left
