Volkswagen (1.8) CV Axle Assembly - Front Right
SPECIFICATIONS
ABS Tone Ring Included
NO
Axle Nut Included
Yes
Axle Nut Socket Size
29.8
Axle Nut Type
Hex
California Proposition 65
Yes

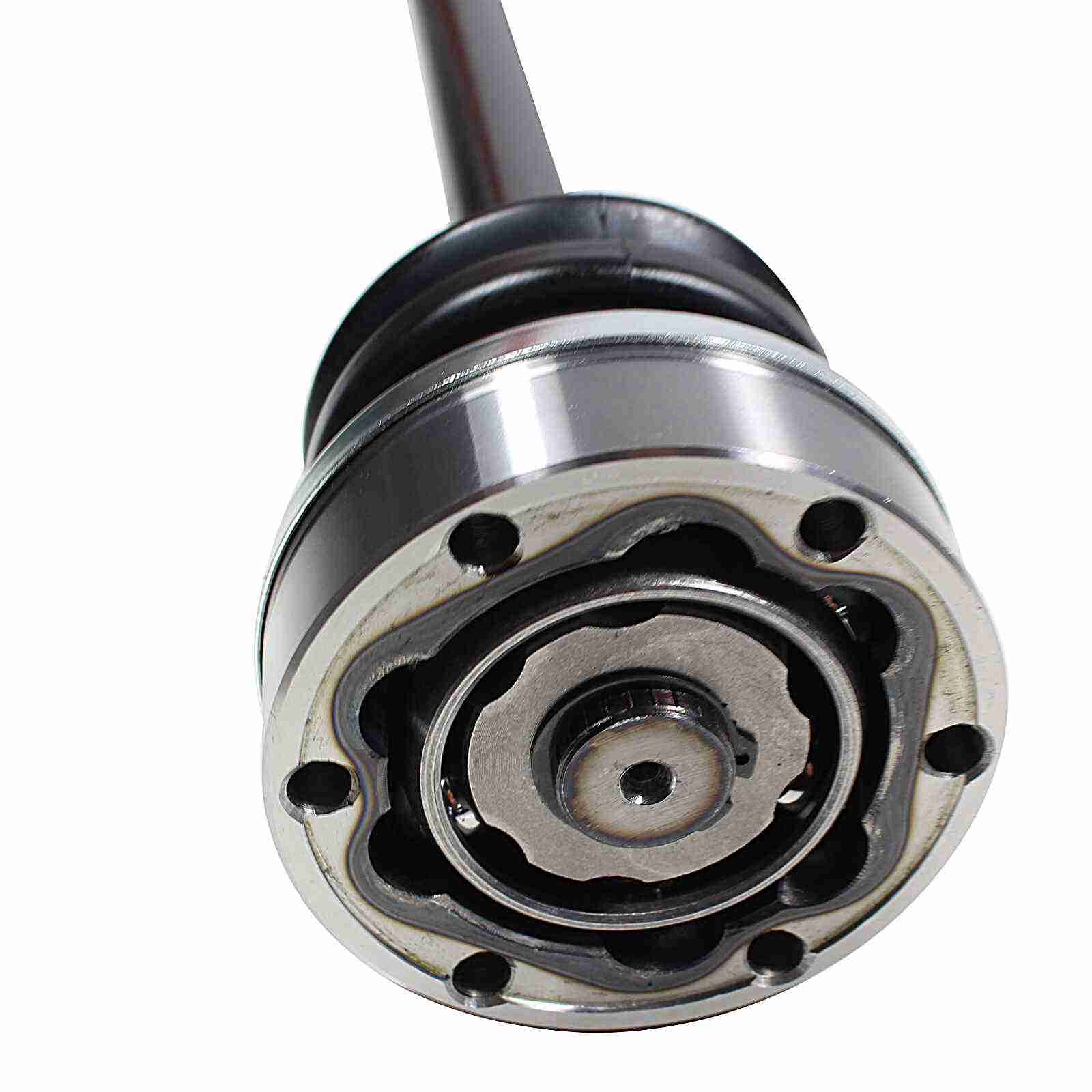

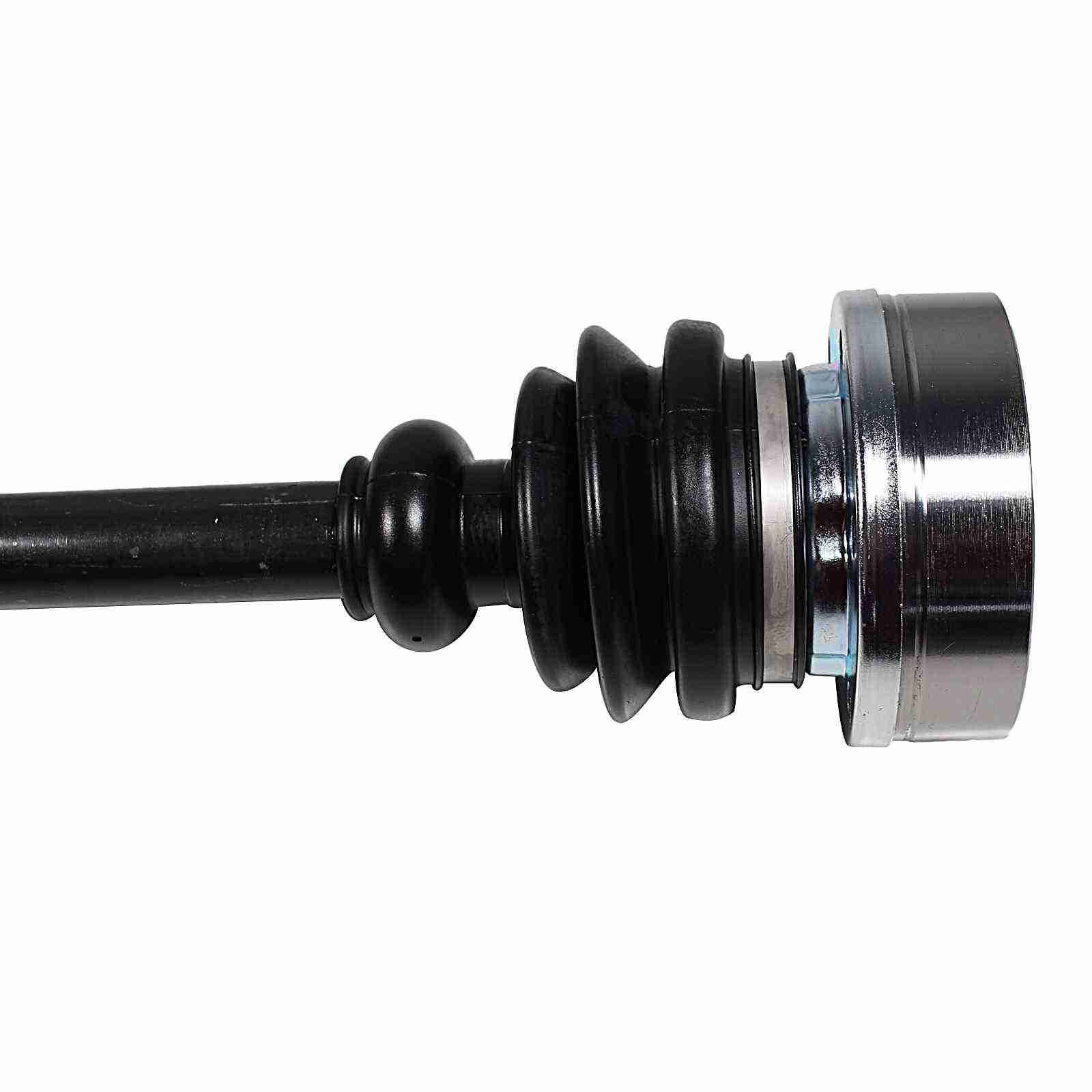

Inboard Joint Type
Flange

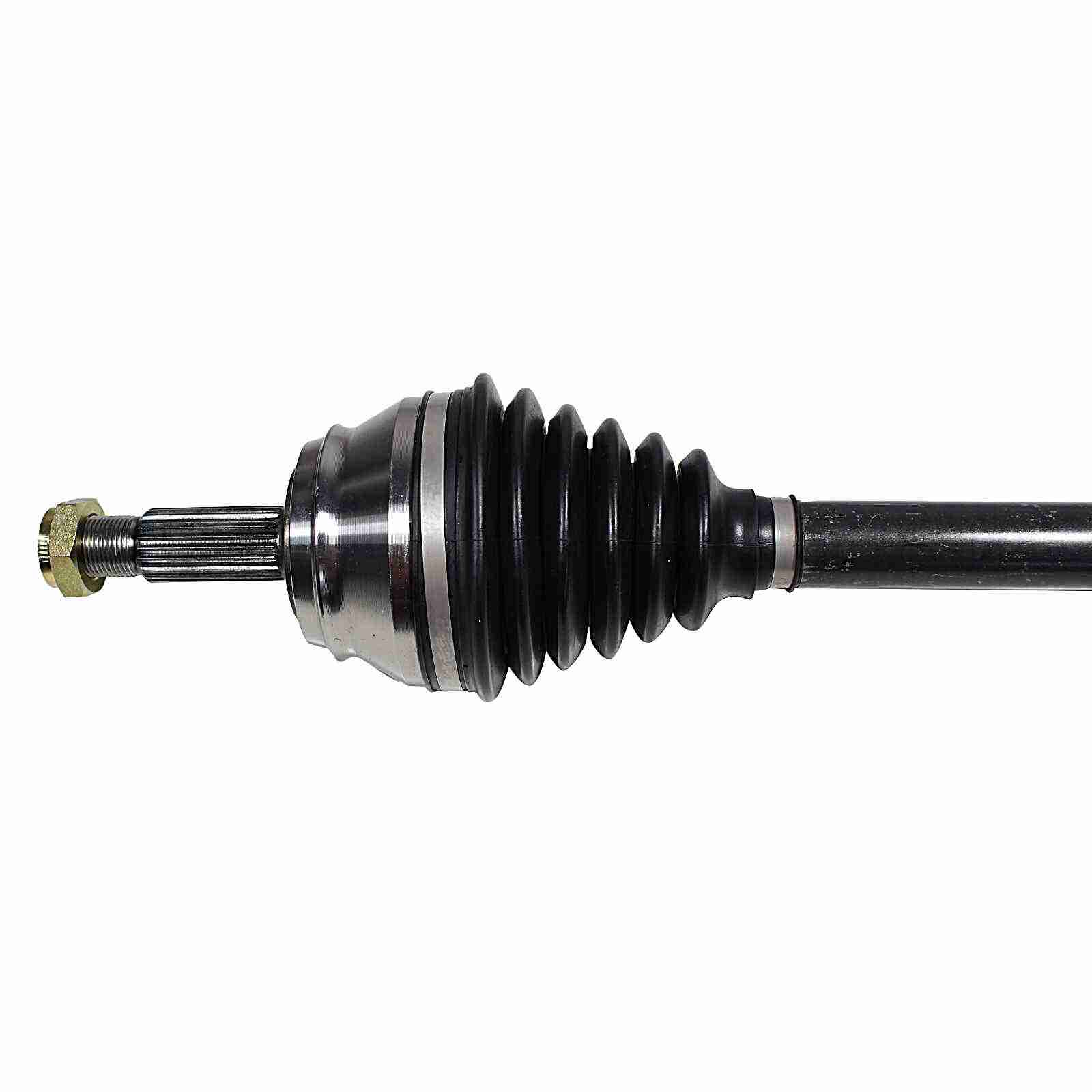

Outboard Joint Type
Conventional
Prop 65 Yes/No
Yes
ABS Tone Ring Tooth Quantity
-
Axle Nut Length
14
Axle Nut Thread Size
M20×1.5
Boot Material
Neoprene

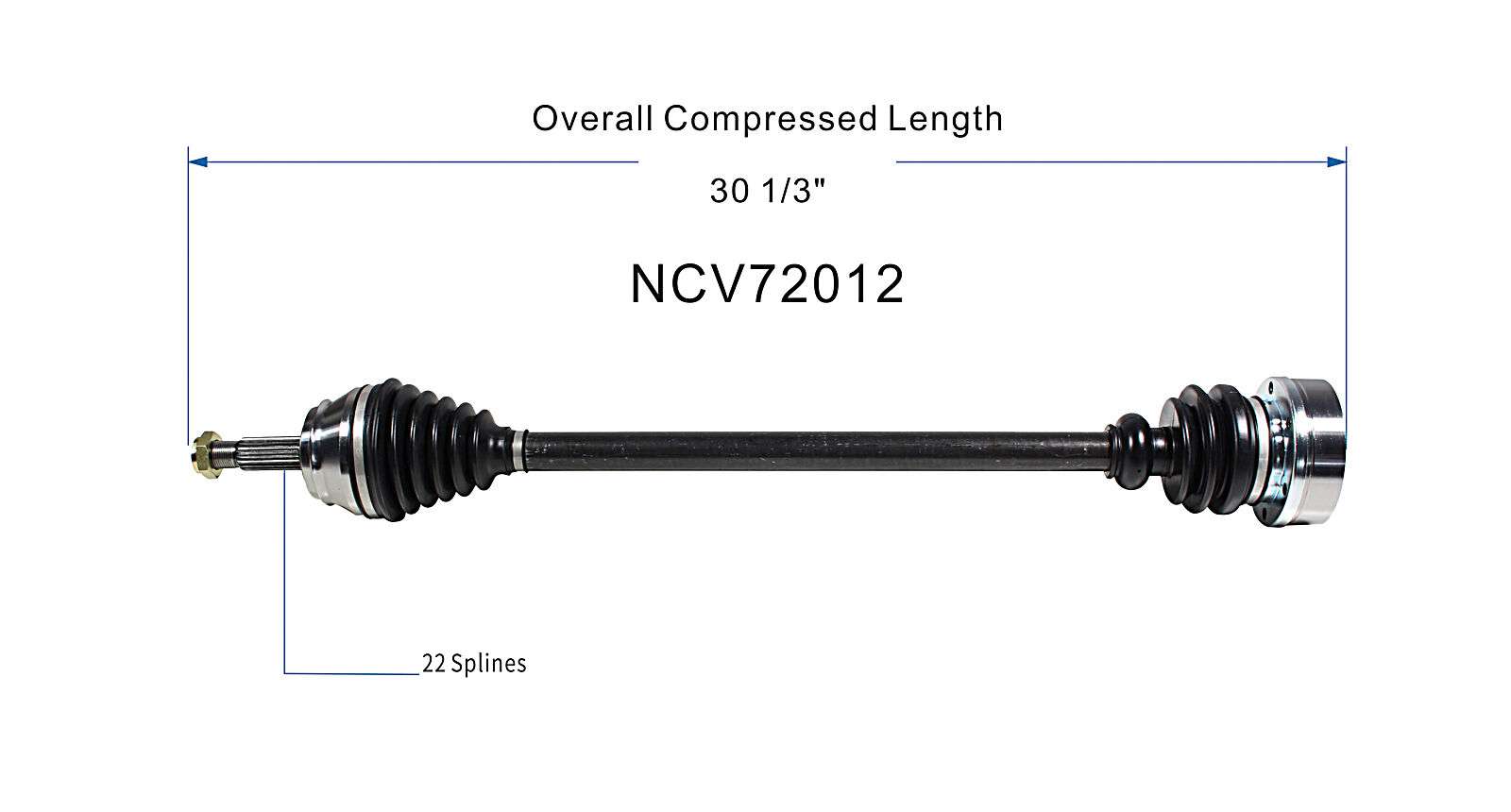

Compressed Length
30.31
Inboard Spline Quantity
-
Outboard Spline Quantity
22
FEATURES & BENEFITS
● Extensive quality control and testing process to ensure a long-lasting performance
● Heat-treated components provide premium strength, increased tensile, and extended service life
● GSP Silent Ride Technology OE designed and manufactured CV joints to provide a quiet ride
● Premium grade neoprene boots provide protection against dirt and debris in driving conditions
● Specially formulated moly grease for optimal performance at high temperatures
● High-quality stainless-steel clamps for heavy duty strength and durability
● Spline rolled for precise durable fitment
● GSP CV Axles are covered with a limited lifetime warranty
APPLICATIONS
Year Range | Make | Model | Sub Model | Position |
|---|---|---|---|---|
2004-2005 | Volkswagen | Derby | Front Right | |
2003-2003 | Volkswagen | Derby | MI | Front Right |
2002-2003 | Volkswagen | Derby | Trendline | Front Right |
1995-2001 | Volkswagen | Derby | Front Right | |
1992-1992 | Volkswagen | Jetta | GLI 16-Valve | Front Right |
1992-1992 | Volkswagen | Golf | CL | Front Right |
1991-1991 | Volkswagen | Jetta | GLI 16-Valve | Front Right |
1991-1991 | Volkswagen | Golf | Eclipse | Front Right |
1990-1991 | Volkswagen | Jetta | Basico | Front Right |
1990-1992 | Volkswagen | Jetta | GL, GLI Carat, Carat | Front Right |
1990-1990 | Volkswagen | Jetta | GLI 16-Valve | Front Right |
1990-1992 | Volkswagen | Golf | GTI 8-Valve, Basico, GTI 16-Valve | Front Right |
