Volvo CV Axle Assembly - Front Right
SPECIFICATIONS
ABS Tone Ring Included
Yes
Axle Nut Included
No
California Proposition 65
Yes

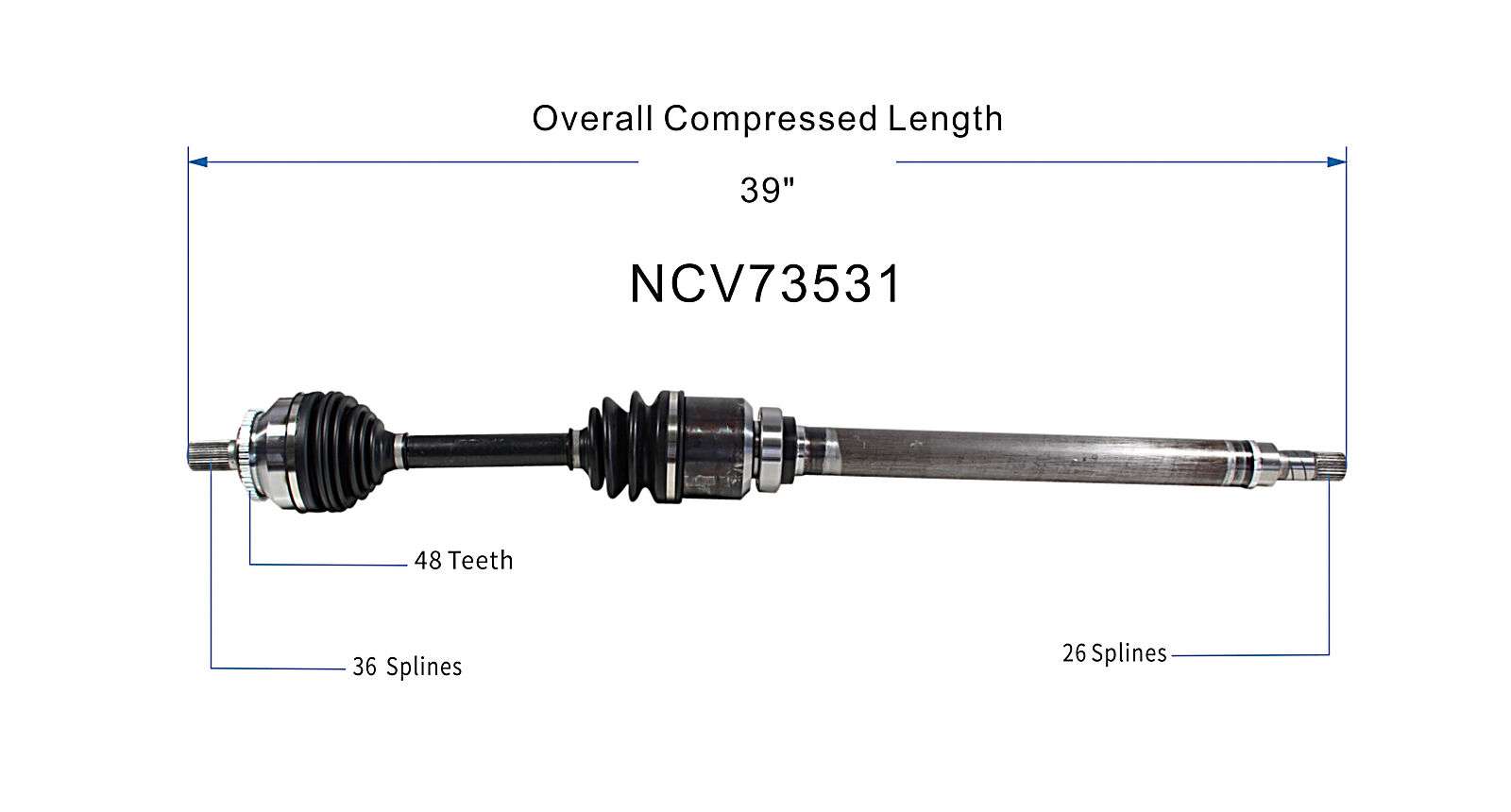

Extended Length
40.87
Inboard Spline Quantity
26
Outboard Spline Quantity
36
Prop 65 Yes/No
Yes
ABS Tone Ring Tooth Quantity
48
Boot Material
Neoprene
Compressed Length
993
Inboard Joint Type
Male
Outboard Joint Type
Conventional
Placement
Front Right
FEATURES & BENEFITS
APPLICATIONS
Year Range | Make | Model | Sub Model | Position |
|---|---|---|---|---|
2005-2007 | Volvo | S60 | T5 | Front Right |
2004-2007 | Volvo | S60 | R | Front Right |
2004-2007 | Volvo | V70 | R | Front Right |
2001-2004 | Volvo | V70 | T5 | Front Right |
2001-2008 | Volvo | S60 | T5 | Front Right |
