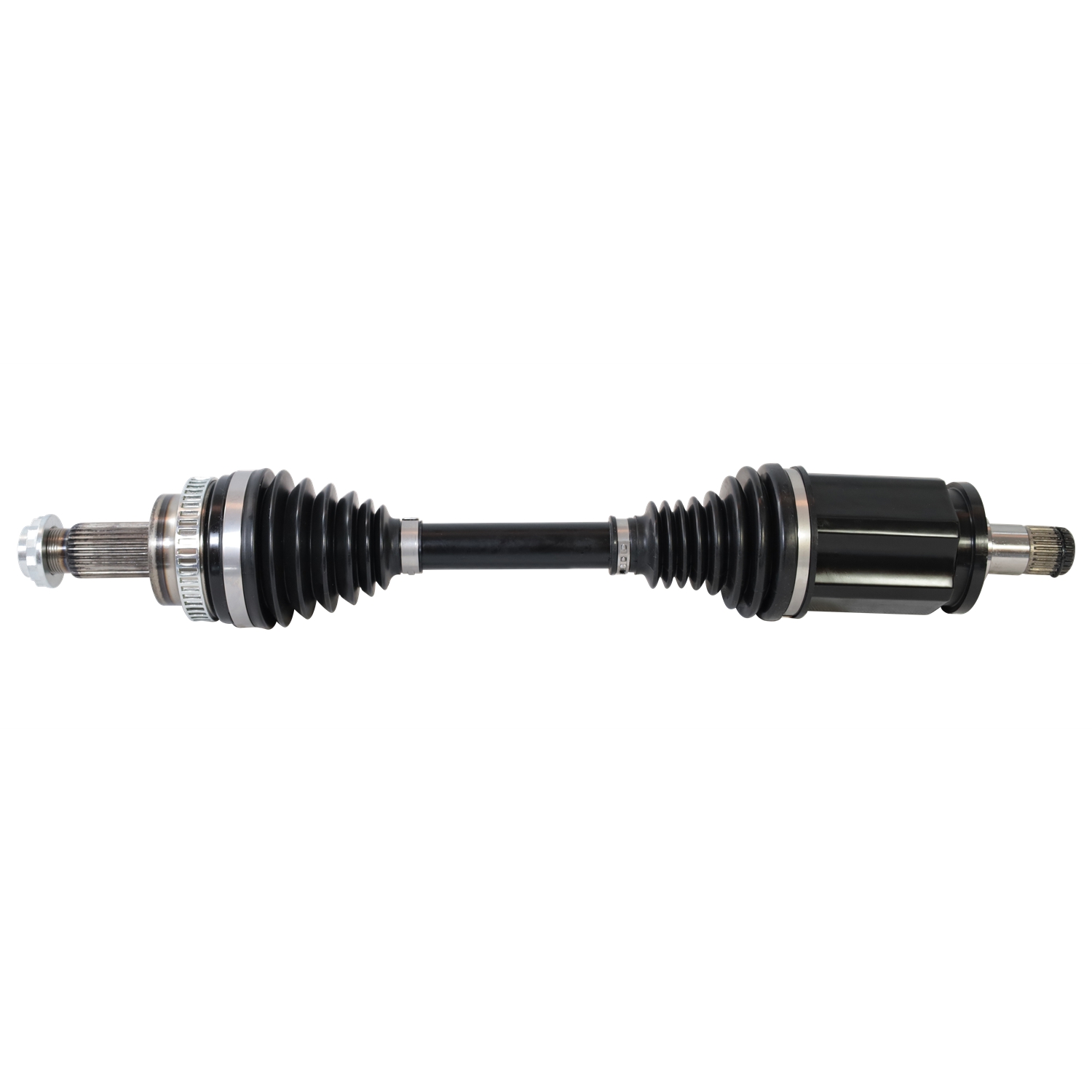

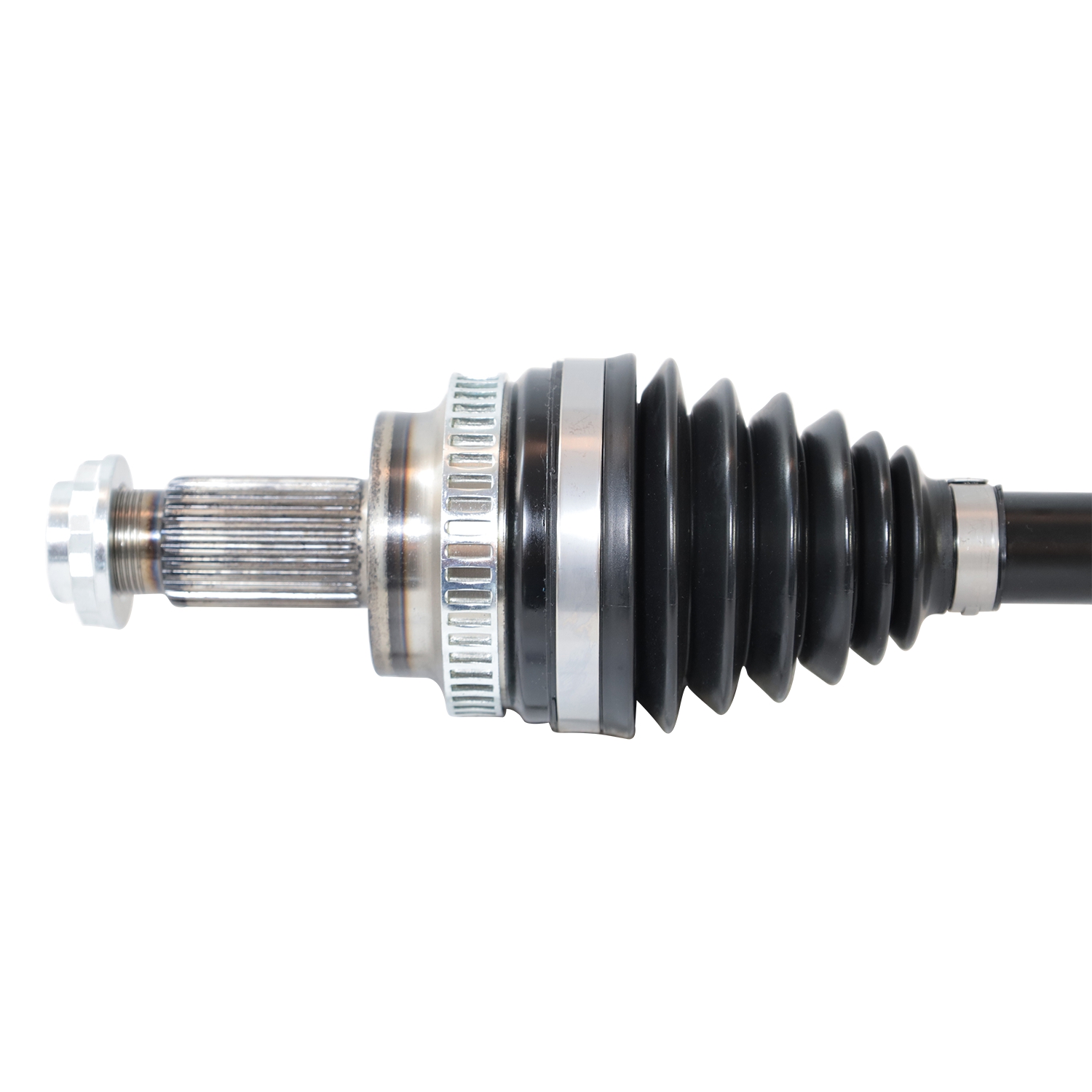

BMW (Coupe - 3.0) CV Axle Assembly - Front Left
Quality Driven CV Axles is what GSP is known for. Designed to deliver high quality performance and reliability, GSP CV Axles are manufactured to withstand the demands of daily driving conditions.
With GSP CV Axles, you can expect all axle components to be heat treated to the highest standards to provide premium strength, and extend service life. Each GSP CV Axle undergoes rigorous testing to meet or exceed OE specifications ensuring proper fit and optimal performance for your vehicle. With high-quality materials, advanced manufacturing techniques, and precise engineering, GSP CV Axles are the perfect replacement component and brand of choice amongst automotive professionals.
SPECIFICATIONS
ABS Tone Ring Included
Yes
Axle Nut Included
Yes
Axle Nut Socket Size
40.2
Axle Nut Type
Bihexagonal
California Proposition 65
Yes
Inboard Joint Type
Male
Outboard Joint Type
Conventional
Placement
Front Left
ABS Tone Ring Tooth Quantity
48
Axle Nut Length
16
Axle Nut Thread Size
M27×1.5
Boot Material
TPE(OBJ)/Neoprene(IBJ)
Compressed Length
571
Inboard Spline Quantity
27
Outboard Spline Quantity
30
Prop 65 Yes/No
Yes
FEATURES & BENEFITS
● High-Perf CV Boot prevents deformation, wear, swelling, and leakage for superior durability
● Premium Grease for improved lubrication resulting in a better service life
● OE style Inner and outer joint structures
● Friction welded intermediate shafts
● Premium coated center bar & inner/outer joint
● Designed for luxury late model applications
APPLICATIONS
Year Range | Make | Model | Sub Model | Position |
|---|---|---|---|---|
2013-2013 | BMW | 328i xDrive | Front Left | |
2013-2013 | BMW | 335i xDrive | Front Left | |
2011-2012 | BMW | 328i xDrive | Front Left | |
2009-2010 | BMW | 328i xDrive | Front Left | |
2009-2012 | BMW | 335i xDrive | Front Left | |
2007-2008 | BMW | 328xi | Front Left | |
2007-2008 | BMW | 335xi | Front Left | |
2006-2006 | BMW | 325xi | Front Left | |
2006-2006 | BMW | 330xi | Front Left |
