Countryside Road

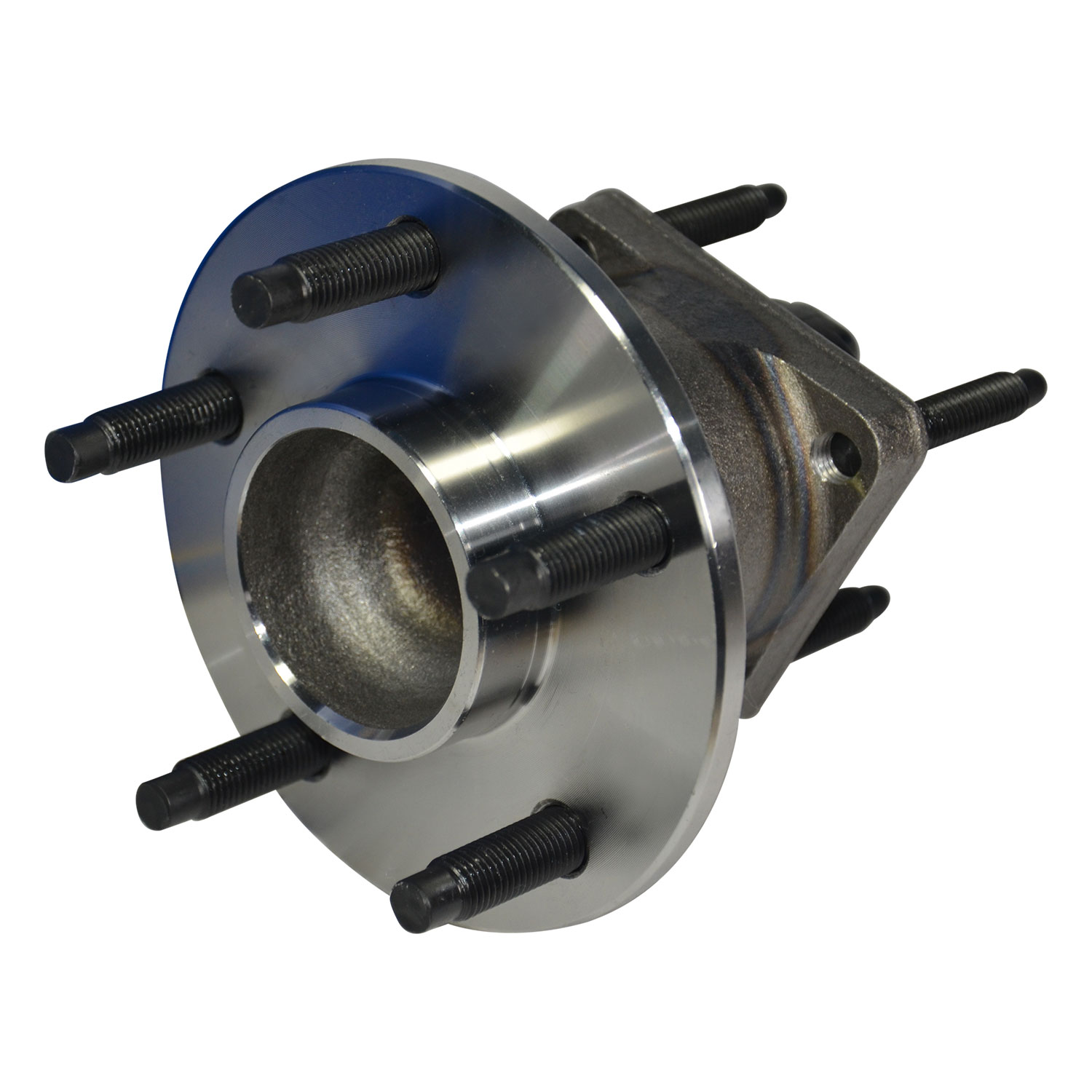

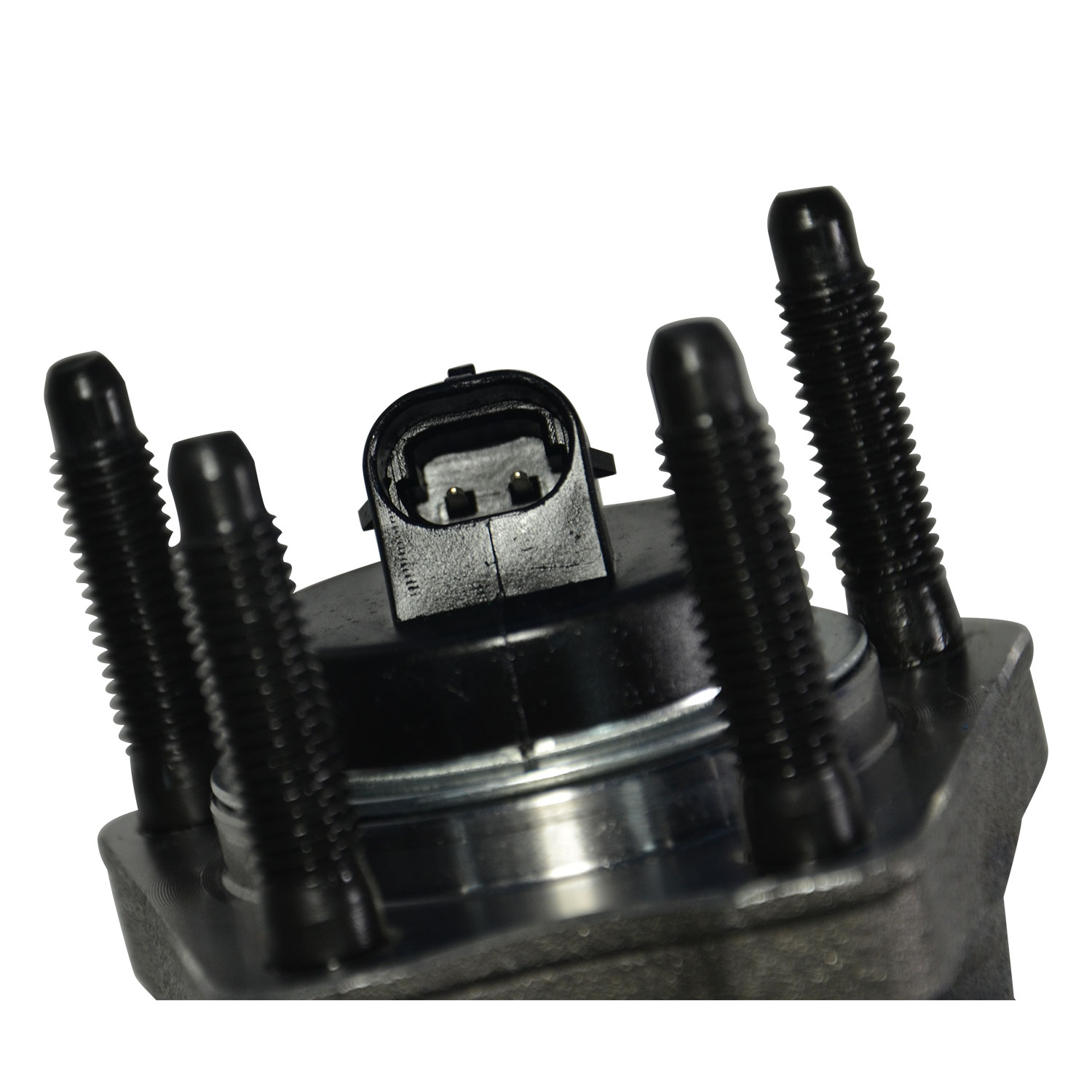

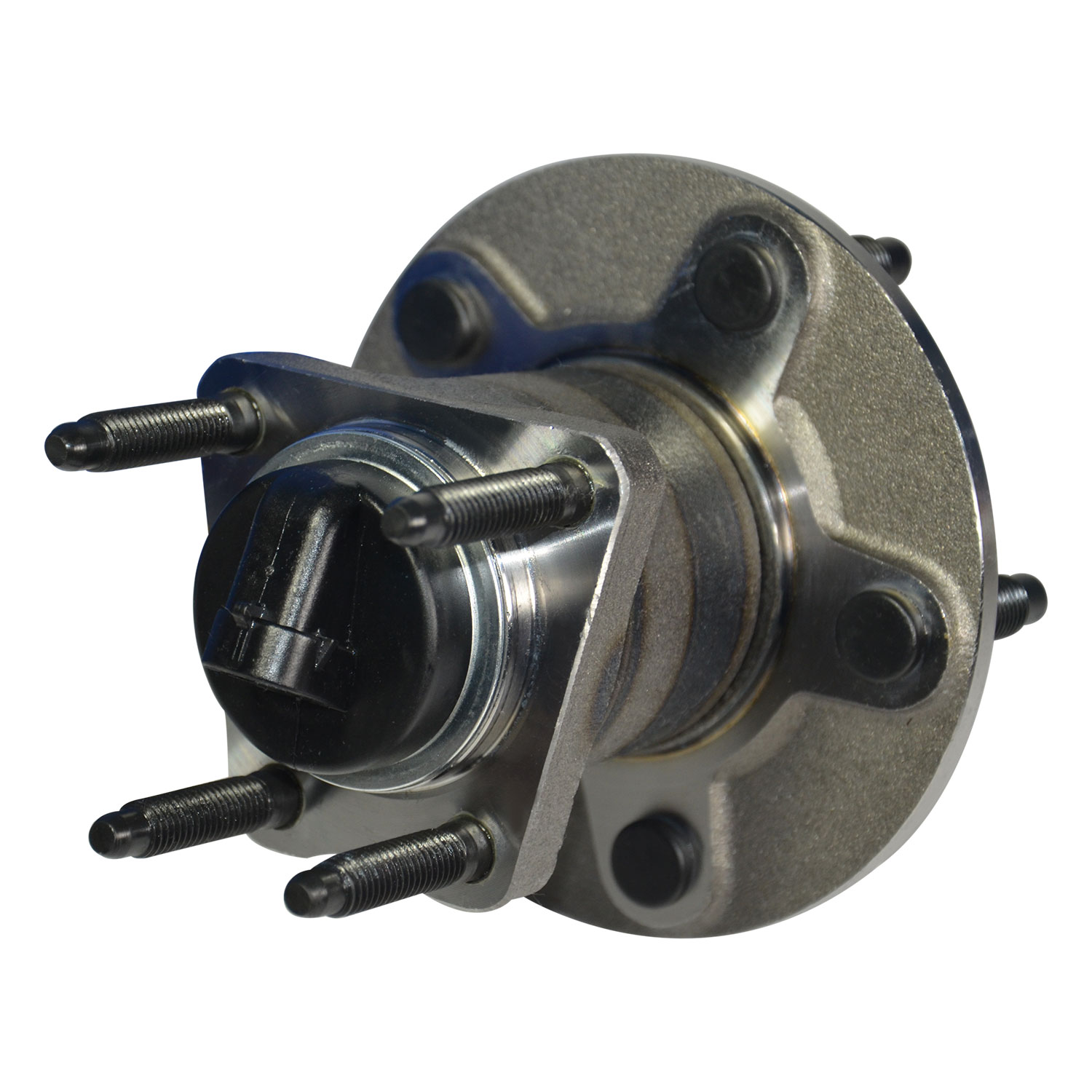

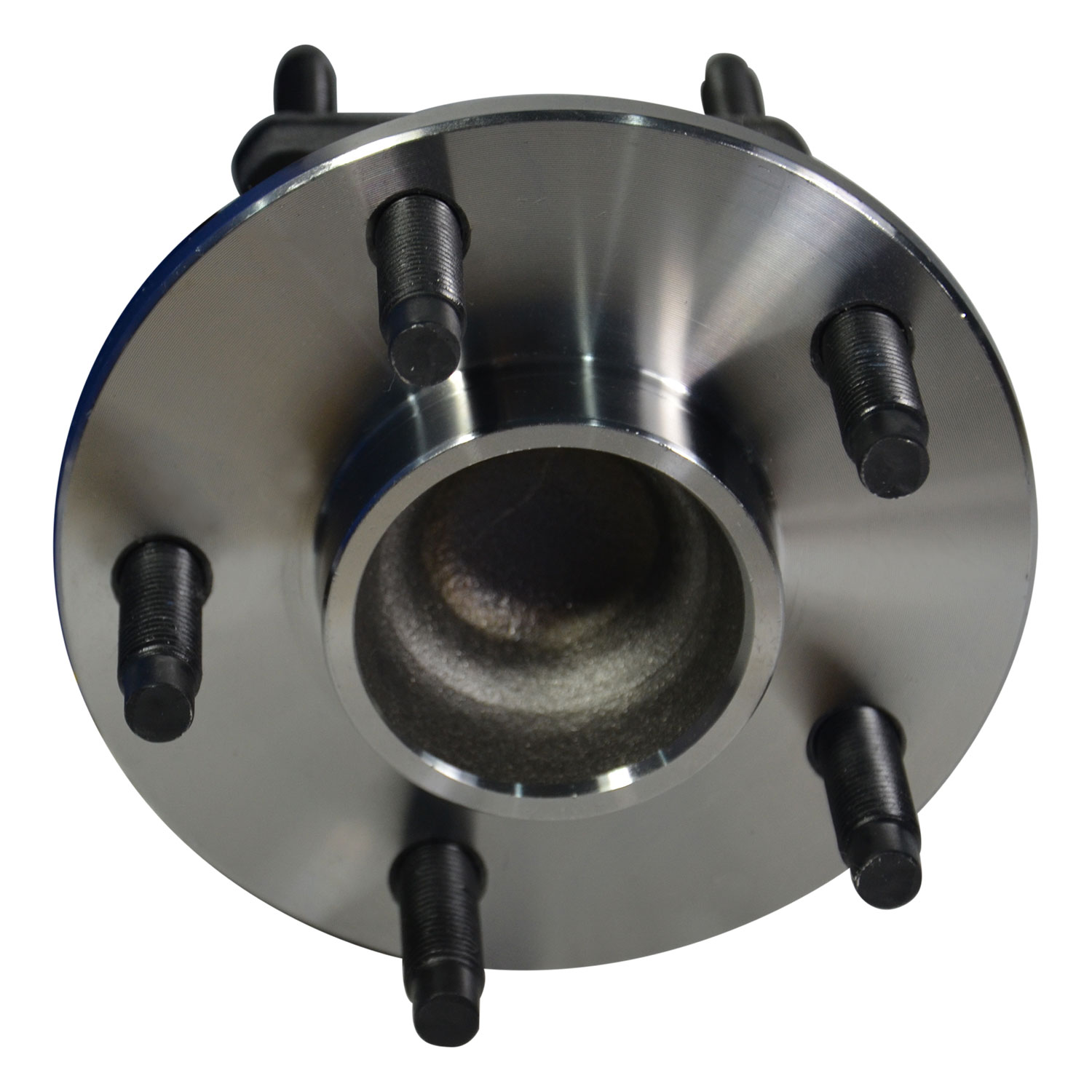

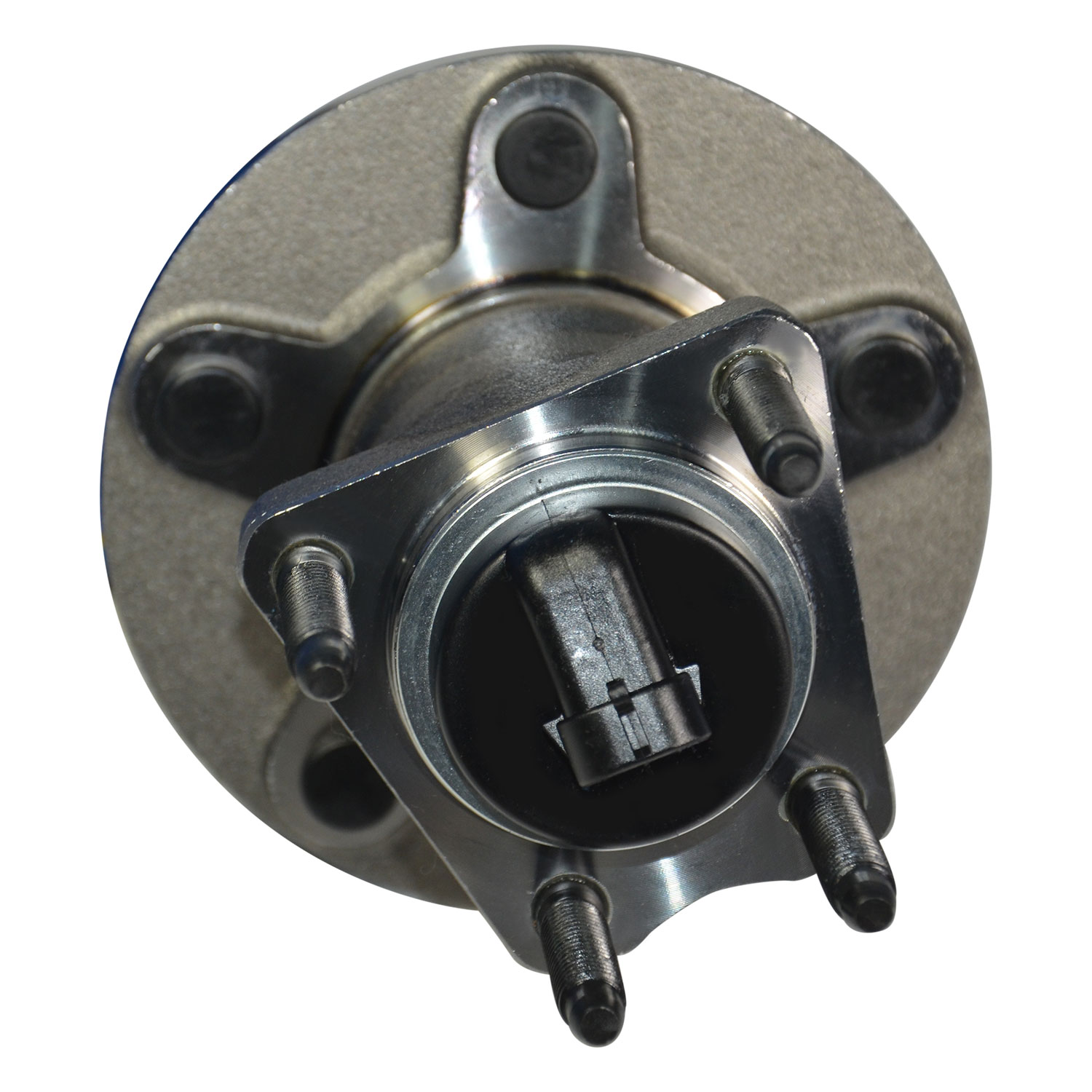

Chevrolet, Pontiac, Saturn Wheel Bearing and Hub Assembly - Rear

Part Number:

103285

Product Type:

Hub Assemblies are engineered with Silent Ride Technology (SRT) to ensure a comfortable and quiet ride. Strict engineering tolerances in conjunction with the highest quality bearing components are integral to this superior design.

SPECIFICATIONS

Anti Lock Braking System

Yes

Bearing Generation

Gen 3(solid)

Bolt Circle Diameter

110

Bolts Included

Yes

California Proposition 65

Yes

Flange Bolt Hole Quantity

4

Flange Diameter

140

Flange Offset

78.3

Anti Lock Braking System Type

Sensor

Bearing Type

Ball

Bolt Thread Pitch

M12×1.5

Brake Pilot Diameter

65.5

Driven Type

Non-driven

Flange Bolts Included

Yes

Flange Included

Yes

Hub Pilot Diameter

60

FEATURES & BENEFITS

● Designed with raw steel material that meets or exceeds standards to produce a long-lasting service life.
● All hub assemblies go through a vacuum vulcanization process to enhance the structural integrity of the seal and rubber components.
● Ball bearings are spaced precisely to the appropriate clearance for smooth rotation and abrasion resistance.
● High quality rubber optimizes the seals performance and durability against high-temperatures and weathering.
● To ensure a smooth surface, free from defects, all bearing housings are manufactured with polyamides for added impact toughness and age resistance.

APPLICATIONS

Year Range
Make
Model
Sub Model
Position
2009-2009
Chevrolet
HHR
SS Panel
Rear
2008-2009
Pontiac
G6
GXP
Rear
2008-2010
Chevrolet
HHR
SS
Rear
2008-2010
Chevrolet
Cobalt
SS
Rear
2007-2009
Saturn
Aura
Rear
2006-2007
Pontiac
G6
GTP
Rear
2006-2010
Pontiac
G6
GT
Rear
2006-2012
Chevrolet
Malibu
Rear
