Countryside Road

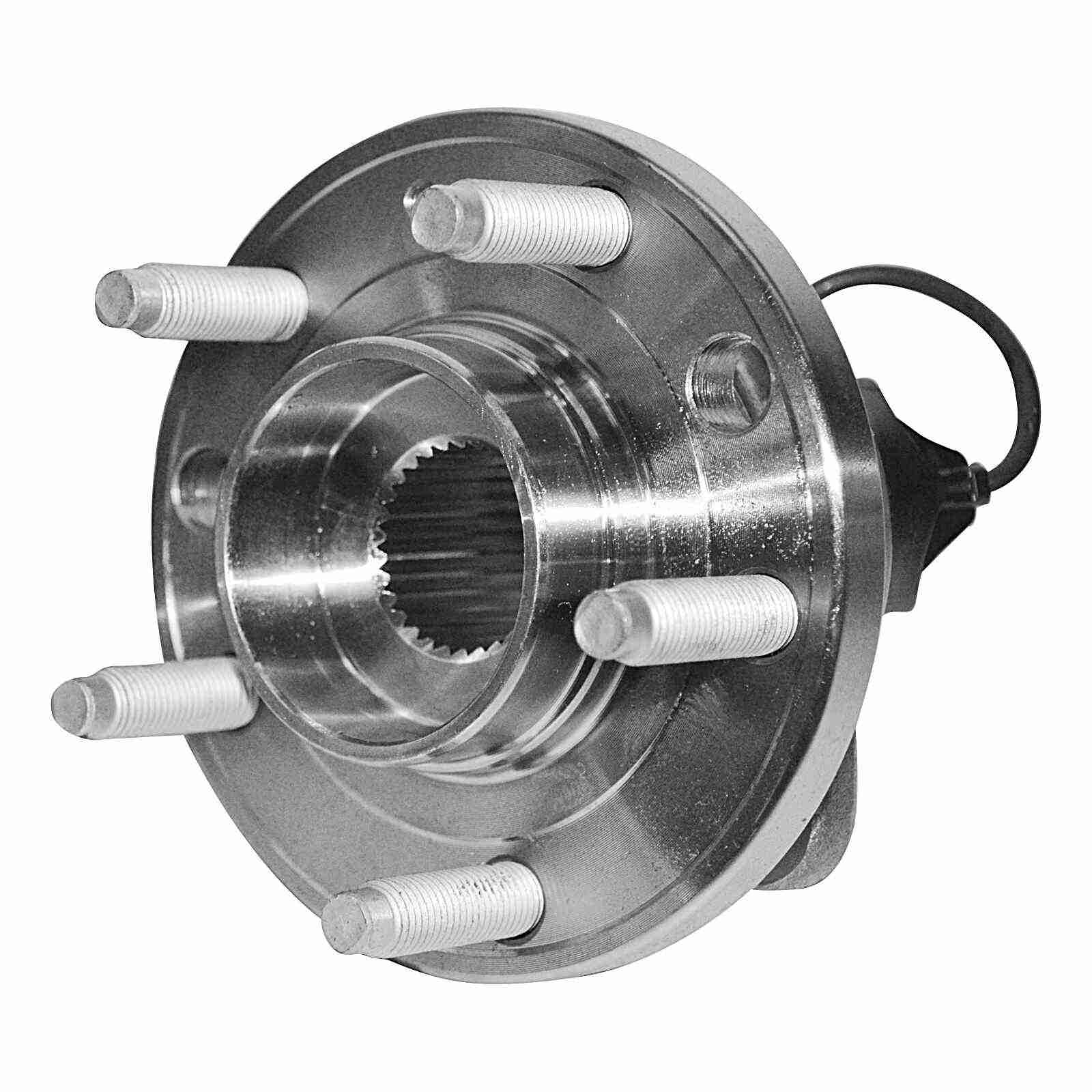

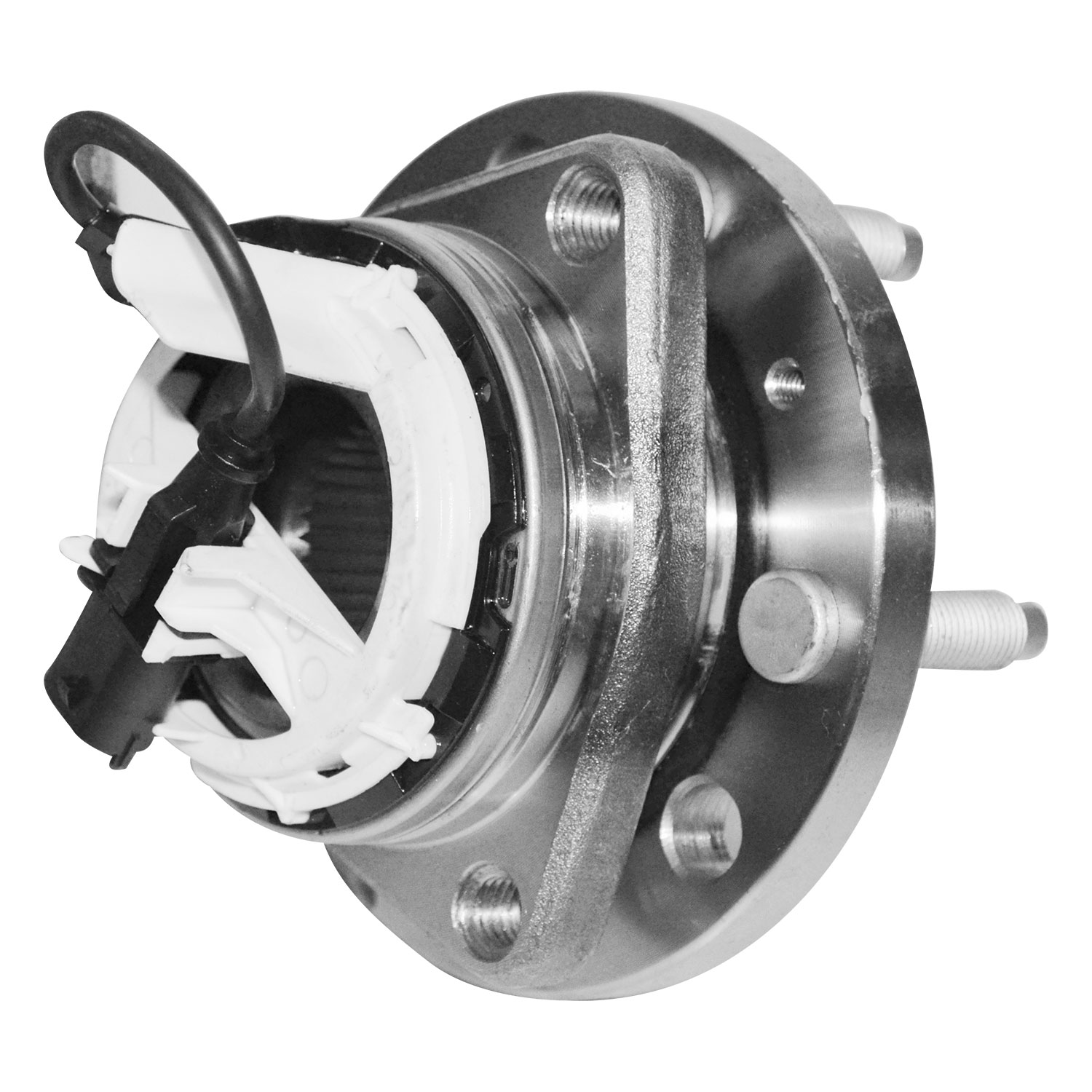

Pontiac, Saturn (2.0, 2.4) Wheel Bearing and Hub Assembly

Part Number:

104259

Product Type:

​

Hub Assemblies are engineered with Silent Ride Technology (SRT) to ensure a comfortable and quiet ride. Strict engineering tolerances in conjunction with the highest quality bearing components are integral to this superior design.

SPECIFICATIONS

Anti Lock Braking System

Yes

Bearing Generation

Gen 3

Bolt Circle Diameter

110

Bolts Included

No

California Proposition 65

Yes

Flange Bolt Hole Quantity

3

Flange Diameter

137

Flange Offset

39

Anti Lock Braking System Type

Cable

Bearing Type

Ball

Bolt Thread Pitch

M12×1.5

Brake Pilot Diameter

70

Driven Type

Driven

Flange Bolts Included

No

Flange Included

Yes

Hub Pilot Diameter

90

FEATURES & BENEFITS

● Designed with raw steel material that meets or exceeds standards to produce a long-lasting service life.
● All hub assemblies go through a vacuum vulcanization process to enhance the structural integrity of the seal and rubber components.
● Ball bearings are spaced precisely to the appropriate clearance for smooth rotation and abrasion resistance.
● High quality rubber optimizes the seals performance and durability against high-temperatures and weathering.
● To ensure a smooth surface, free from defects, all bearing housings are manufactured with polyamides for added impact toughness and age resistance.

APPLICATIONS

Year Range
Make
Model
Sub Model
Position
2009-2009
Pontiac
Solstice
Base
Front, Rear
2007-2009
Pontiac
Solstice
GXP
Front, Rear
2007-2010
Saturn
Sky
Red Line, Base
Front, Rear
2006-2008
Pontiac
Solstice
Base
Front, Rear
