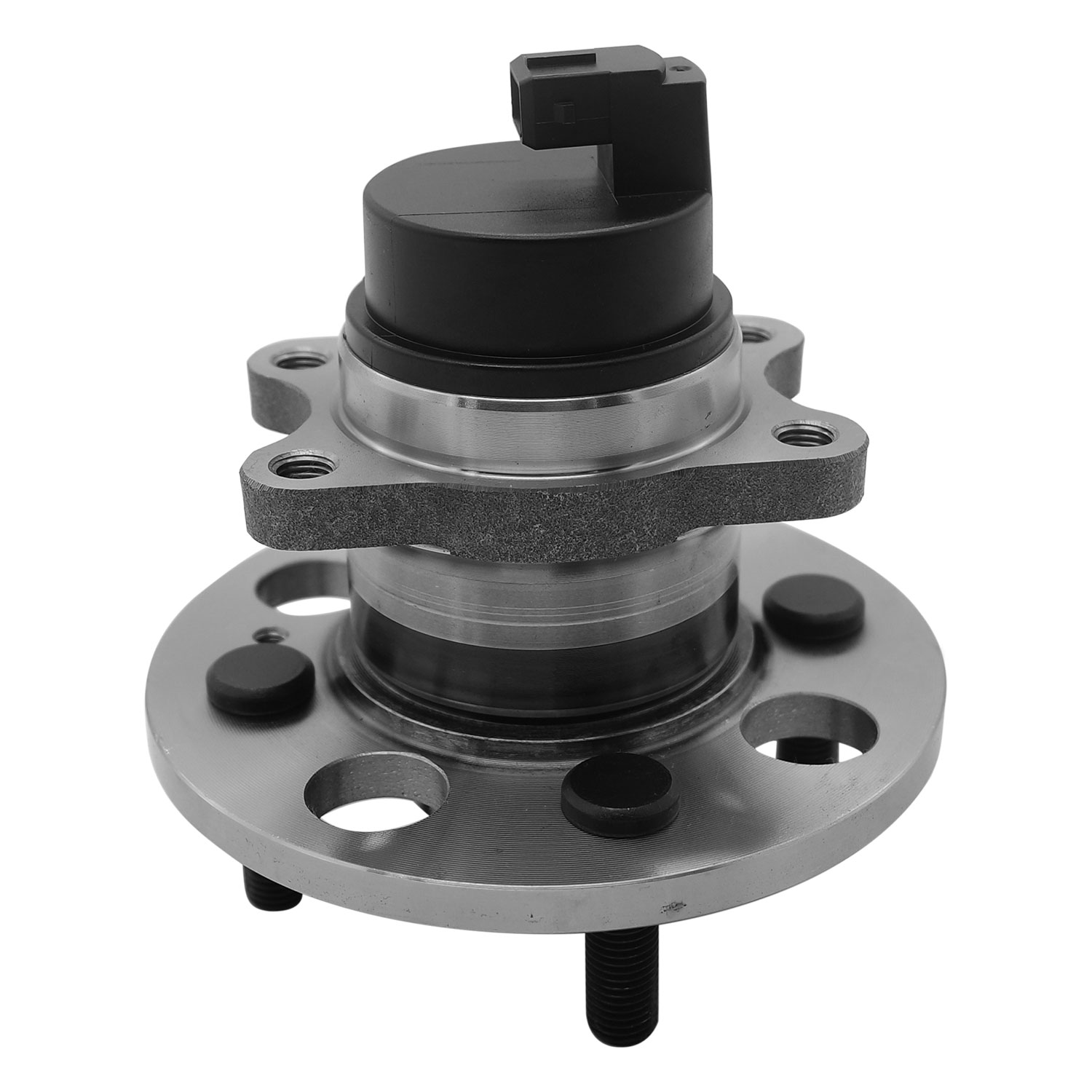

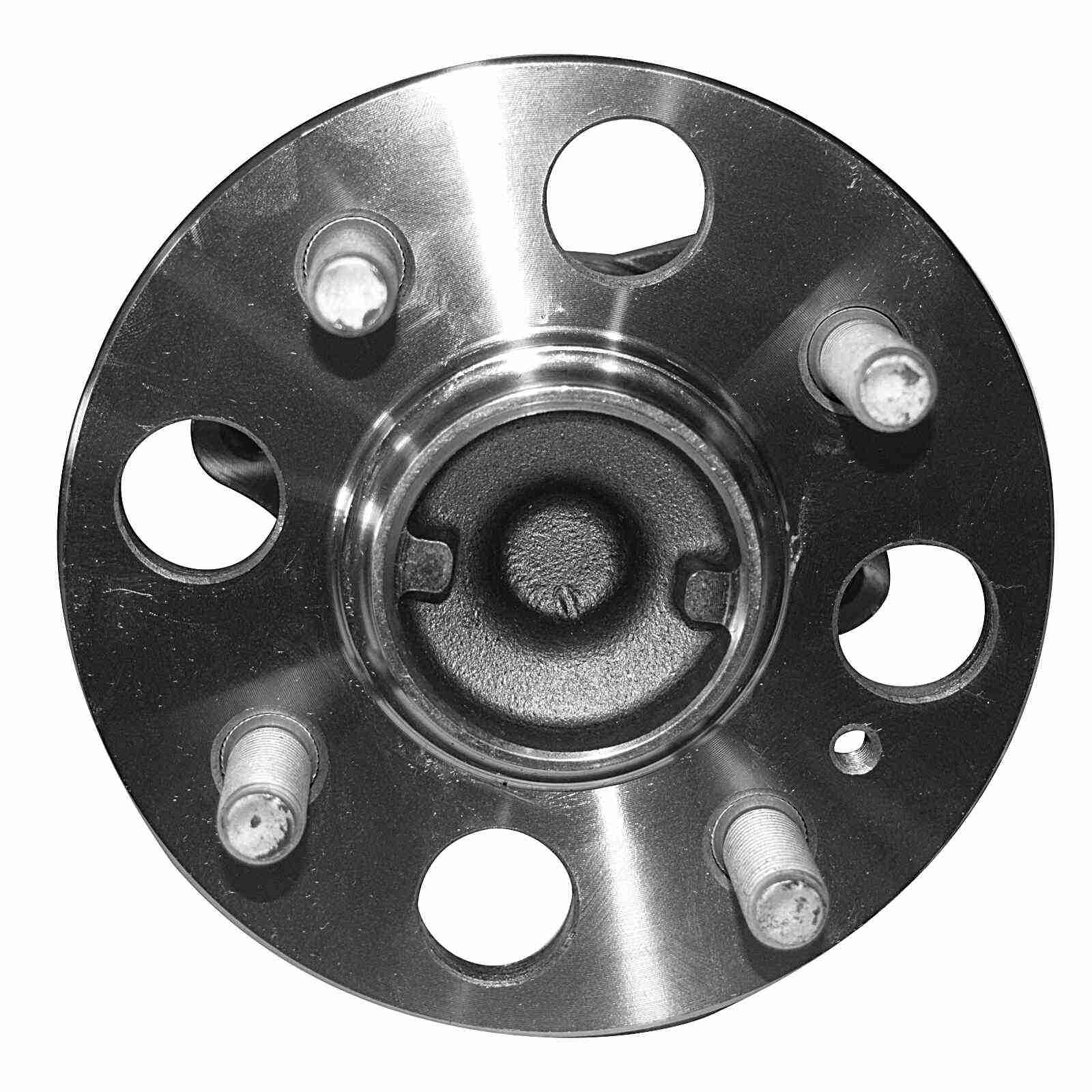

Hyundai, Kia Wheel Bearing and Hub Assembly - Rear
SPECIFICATIONS
Anti Lock Braking System
Yes
Bearing Generation
Gen 3(solid)
Bolt Circle Diameter
100
Bolts Included
No
California Proposition 65
Yes
Flange Bolt Hole Quantity
4
Flange Diameter
140
Flange Offset
58
Anti Lock Braking System Type
Sensor
Bearing Type
Ball
Bolt Thread Pitch
M12×1.5
Brake Pilot Diameter
62.5
Driven Type
Non-driven
Flange Bolts Included
No
Flange Included
Yes
Hub Pilot Diameter
67
FEATURES & BENEFITS
● Designed with raw steel material that meets or exceeds standards to produce a long-lasting service life.
● All hub assemblies go through a vacuum vulcanization process to enhance the structural integrity of the seal and rubber components.
● Ball bearings are spaced precisely to the appropriate clearance for smooth rotation and abrasion resistance.
● High quality rubber optimizes the seals performance and durability against high-temperatures and weathering.
● To ensure a smooth surface, free from defects, all bearing housings are manufactured with polyamides for added impact toughness and age resistance.
APPLICATIONS
Year Range | Make | Model | Sub Model | Position |
---|---|---|---|---|
2011-2011 | Hyundai | Accent | GL | Rear |
2010-2010 | Hyundai | Accent | Blue | Rear |
2008-2011 | Kia | Rio5 | LX | Rear |
2007-2011 | Kia | Rio | SX | Rear |
2007-2011 | Hyundai | Accent | SE, GS | Rear |
2006-2011 | Kia | Rio | LX, Base | Rear |
2006-2011 | Kia | Rio5 | SX | Rear |
2006-2011 | Hyundai | Accent | GLS | Rear |
