Countryside Road

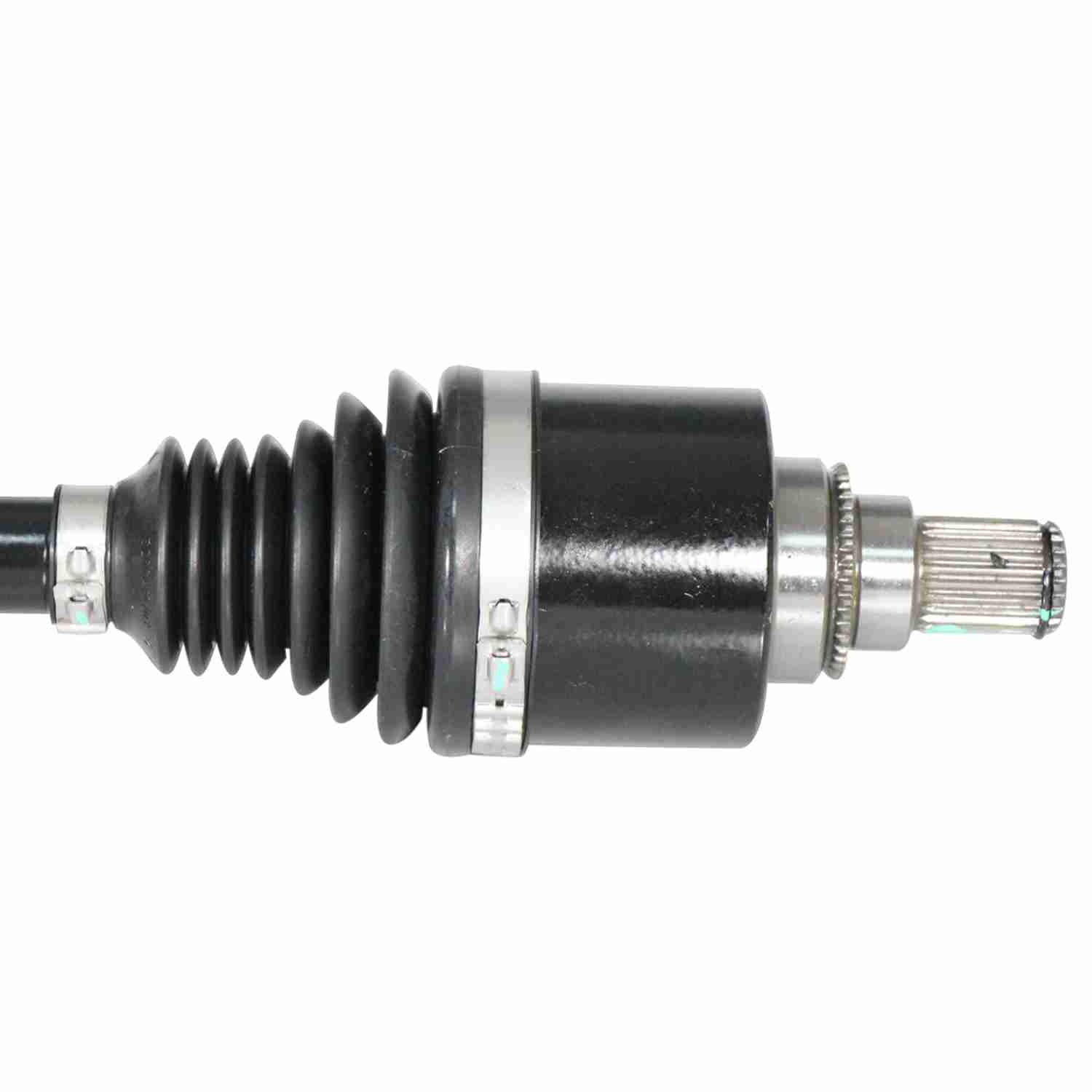

Arctic Cat CV Axle Assembly

Part Number:

4101004

Product Type:

CV Axle Assembly

SPECIFICATIONS

Axle Nut Included

Yes

Axle Nut Socket Size

30

Axle Nut Type

Castle Nut

California Proposition 65

Yes

Dynamic Damper Attached

No

Inboard Joint Type

BJ

Outboard Joint Type

BJ

Prop 65 Yes/No

Yes

Axle Nut Length

0.63

Axle Nut Thread Size

M22X1.5-6H

Boot Material

TPE

Compressed Length

22.01

Extended Length

23.54

Inboard Spline Quantity

24

Outboard Spline Quantity

27

Shaft Diameter

24.5

FEATURES & BENEFITS

● High performance Moly grease for optimal performance
● Premium grade neoprene & TPEE boots
● Heavy Duty Center Shafts use industry leading alloy material
● Oversized CV joints dramatically improved strength for high articulation angles
● Precision engineered cage and housing for reduced friction and a smooth range of motion

APPLICATIONS

Year Range
Make
Model
Sub Model
Position
2020-2020
Arctic Cat
Wildcat Trail XT
Front Left, Front Right
2020-2020
Arctic Cat
Wildcat Trail LTD
Front Left, Front Right
2016-2017
Arctic Cat
Wildcat Trail SE
Front Left, Front Right
2016-2017
Arctic Cat
Wildcat Trail Limited
Front Left, Front Right
2014-2017
Arctic Cat
Wildcat Trail XT
Front Left, Front Right
2014-2017
Arctic Cat
Wildcat Trail
Front Left, Front Right
