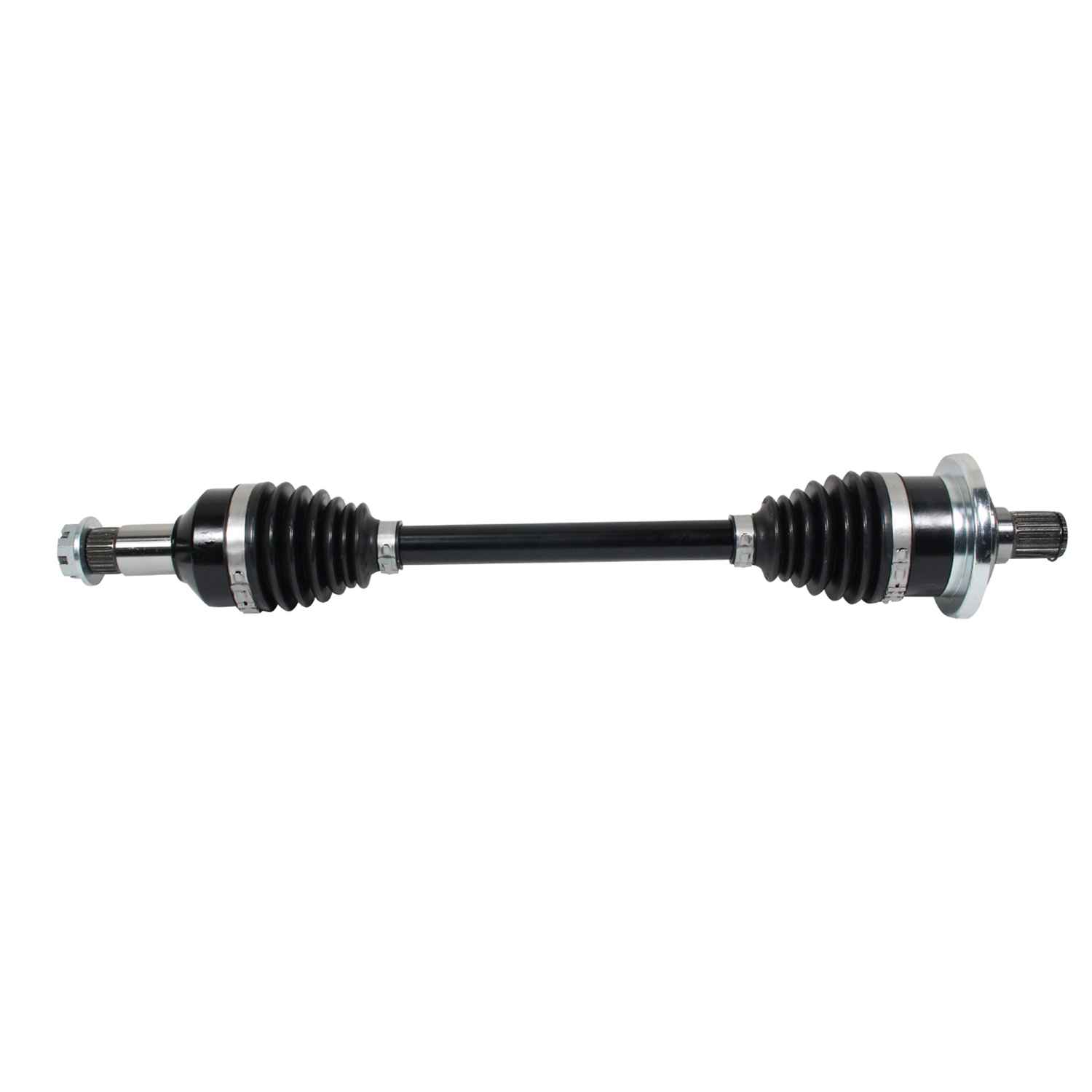

Arctic Cat CV Axle Assembly
SPECIFICATIONS
Axle Nut Included
Yes
Axle Nut Socket Size
30
Axle Nut Type
Castle Nut
California Proposition 65
Yes
Dynamic Damper Attached
No
Inboard Joint Type
DOJ
Outboard Joint Type
BJ
Prop 65 Yes/No
Yes
Axle Nut Length
0.63
Axle Nut Thread Size
M22X1.5-6H
Boot Material
TPE
Compressed Length
21.63
Extended Length
23.05
Inboard Spline Quantity
27
Outboard Spline Quantity
27
Shaft Diameter
23
FEATURES & BENEFITS
● High performance Moly grease for optimal performance
● Premium grade neoprene & TPEE boots
● Heavy Duty Center Shafts use industry leading alloy material
● Oversized CV joints dramatically improved strength for high articulation angles
● Precision engineered cage and housing for reduced friction and a smooth range of motion
APPLICATIONS
Year Range | Make | Model | Sub Model | Position |
|---|---|---|---|---|
2014-2015 | Arctic Cat | 400 | Rear Left, Rear Right | |
2013-2014 | Arctic Cat | 1000 XT | Rear Left, Rear Right | |
2013-2014 | Arctic Cat | 500 XT | Rear Left, Rear Right | |
2013-2014 | Arctic Cat | 550 XT | Rear Left, Rear Right | |
2013-2014 | Arctic Cat | 700 XT | Rear Left, Rear Right | |
2011-2011 | Arctic Cat | 550 4x4 Auto TRV | Rear Left, Rear Right | |
2011-2011 | Arctic Cat | 650 H1 4x4 Auto Mud Pro | Rear Left, Rear Right | |
2011-2011 | Arctic Cat | 700 | Rear Left, Rear Right | |
2010-2011 | Arctic Cat | 650 H1 4x4 Auto | Rear Left, Rear Right | |
2010-2011 | Arctic Cat | 700 EFI 4x4 Auto TRV Cruiser | Rear Left, Rear Right | |
2010-2011 | Arctic Cat | 1000 EFI H2 4x4 Auto Mud Pro | Rear Left, Rear Right | |
2010-2010 | Arctic Cat | 700 EFI H1 4x4 Auto | Rear Left, Rear Right | |
2010-2010 | Arctic Cat | 700 EFI H1 4x4 Auto LE | Rear Left, Rear Right | |
2010-2011 | Arctic Cat | 700 EFI H1 4x4 Auto Mud Pro | Rear Left, Rear Right | |
2010-2010 | Arctic Cat | 700 EFI H1 4x4 Auto TBX | Rear Left, Rear Right | |
2010-2011 | Arctic Cat | 700 EFI H1 4x4 Auto TRV | Rear Left, Rear Right | |
2010-2010 | Arctic Cat | 700 S | Rear Left, Rear Right | |
2009-2011 | Arctic Cat | 550 4x4 Auto | Rear Left, Rear Right | |
2008-2008 | Arctic Cat | 400 4x4 Auto | Rear Left, Rear Right | |
2008-2008 | Arctic Cat | 500 4x4 Auto TRV | Rear Left, Rear Right | |
2008-2008 | Arctic Cat | 500 4x4 Auto M4 | Rear Left, Rear Right | |
2008-2008 | Arctic Cat | 650 H1 4x4 Auto TRV | Rear Left, Rear Right | |
2008-2008 | Arctic Cat | 700 EFI 4x4 Auto M4 | Rear Left, Rear Right | |
2008-2008 | Arctic Cat | 700 EFI 4x4 Auto TRV Cruiser | Rear Left, Rear Right | |
2008-2008 | Arctic Cat | 700 EFI 4x4 Auto TRV LE | Rear Left, Rear Right | |
2008-2008 | Arctic Cat | 700 EFI H1 4x4 Auto SE | Rear Left, Rear Right | |
2007-2007 | Arctic Cat | 400 4x4 Auto TRV Plus | Rear Left, Rear Right | |
2007-2007 | Arctic Cat | 650 H1 4x4 Auto LE | Rear Left, Rear Right | |
2007-2007 | Arctic Cat | 650 H1 4x4 Auto TBX | Rear Left, Rear Right | |
2007-2007 | Arctic Cat | 650 H1 4x4 Auto TRV Plus | Rear Left, Rear Right | |
2007-2007 | Arctic Cat | 650 H1 4x4 Auto TRV Plus LE | Rear Left, Rear Right | |
2007-2008 | Arctic Cat | 700 Diesel | Rear Left, Rear Right | |
2007-2008 | Arctic Cat | 700 EFI 4x4 Auto | Rear Left, Rear Right | |
2007-2007 | Arctic Cat | 700 EFI 4x4 Auto LE | Rear Left, Rear Right | |
2006-2006 | Arctic Cat | 400 4x4 | Rear Left, Rear Right | |
2006-2006 | Arctic Cat | 400 4x4 Auto | Rear Left, Rear Right | |
2006-2006 | Arctic Cat | 400 4x4 Auto LE | Rear Left, Rear Right | |
2006-2006 | Arctic Cat | 400 4x4 Auto TBX | Rear Left, Rear Right | |
2006-2010 | Arctic Cat | 400 4x4 Auto TRV | Rear Left, Rear Right | |
2006-2006 | Arctic Cat | 400 4x4 Auto VP | Rear Left, Rear Right | |
2006-2006 | Arctic Cat | 400 4x4 VP | Rear Left, Rear Right | |
2006-2009 | Arctic Cat | 500 4x4 | Rear Left, Rear Right | |
2006-2009 | Arctic Cat | 500 4x4 Auto | Rear Left, Rear Right | |
2006-2006 | Arctic Cat | 500 4x4 Auto LE | Rear Left, Rear Right | |
2006-2006 | Arctic Cat | 500 4x4 Auto TBX | Rear Left, Rear Right | |
2006-2006 | Arctic Cat | 500 4x4 Auto TRV | Rear Left, Rear Right | |
2006-2006 | Arctic Cat | 650 H1 4x4 Auto SE | Rear Left, Rear Right | |
2006-2006 | Arctic Cat | 650 V-2 4x4 Auto LE/TS | Rear Left, Rear Right | |
2006-2006 | Arctic Cat | 700 EFI 4x4 Auto SE | Rear Left, Rear Right | |
2005-2008 | Arctic Cat | 650 H1 4x4 Auto | Rear Left, Rear Right | |
2005-2006 | Arctic Cat | 650 V-2 4x4 Auto | Rear Left, Rear Right |
