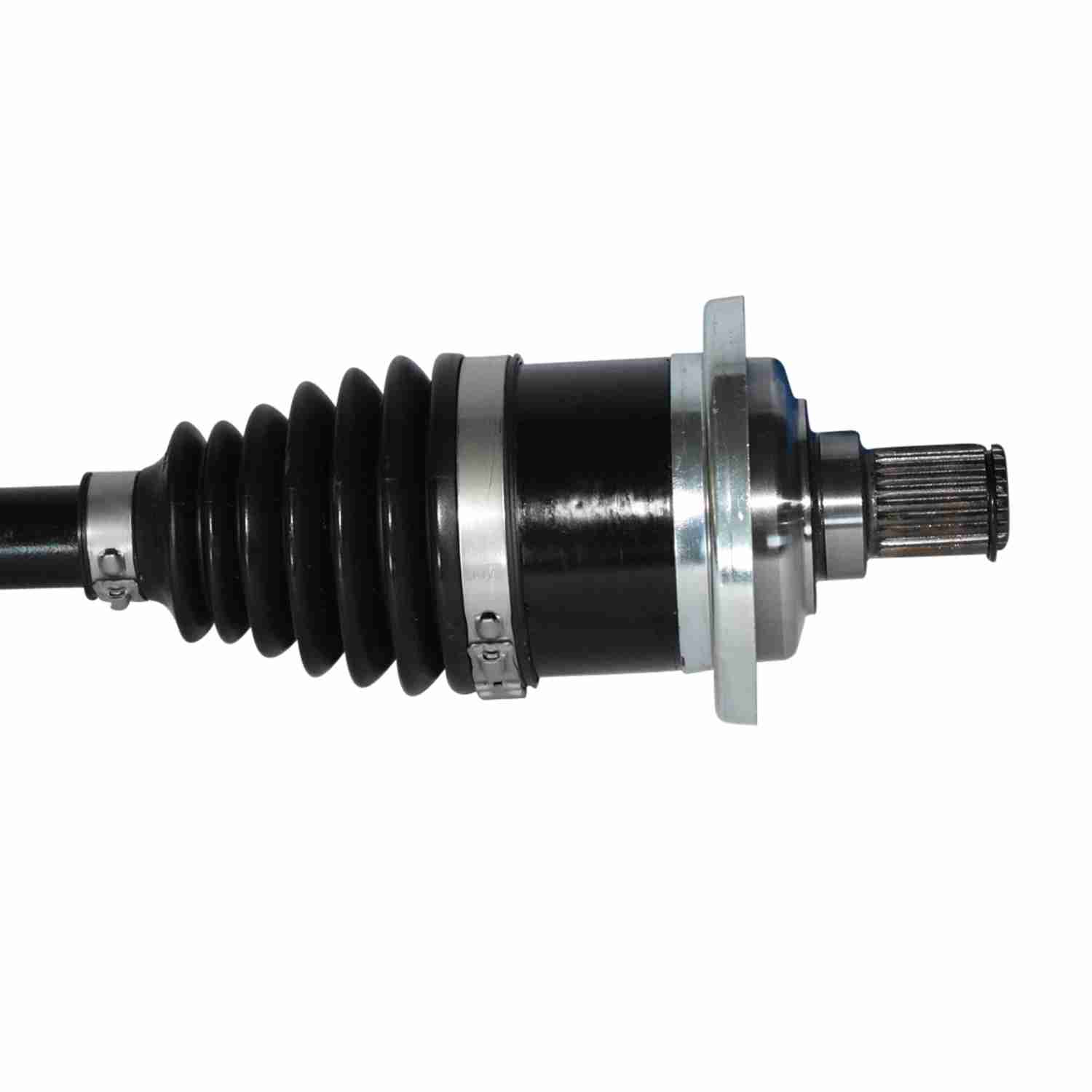

Arctic Cat CV Axle Assembly - Front Right
SPECIFICATIONS
Axle Nut Included
Yes
Axle Nut Socket Size
30
Axle Nut Type
Castle Nut
California Proposition 65
Yes
Dynamic Damper Attached
No
Inboard Joint Type
BJ
Outboard Joint Type
BJ
Prop 65 Yes/No
Yes
Axle Nut Length
0.63
Axle Nut Thread Size
M22X1.5-6H
Boot Material
TPE
Compressed Length
26.02
Extended Length
27.76
Inboard Spline Quantity
24
Outboard Spline Quantity
27
Shaft Diameter
23
FEATURES & BENEFITS
● High performance Moly grease for optimal performance
● Premium grade neoprene & TPEE boots
● Heavy Duty Center Shafts use industry leading alloy material
● Oversized CV joints dramatically improved strength for high articulation angles
● Precision engineered cage and housing for reduced friction and a smooth range of motion
APPLICATIONS
Year Range | Make | Model | Sub Model | Position |
|---|---|---|---|---|
2015-2015 | Arctic Cat | Prowler XT 700 | Front Right | |
2015-2015 | Arctic Cat | Prowler HDX 700 XT | Front Right | |
2014-2014 | Arctic Cat | Prowler XTX 700 | Front Right | |
2014-2014 | Arctic Cat | Prowler HDX 500 XT | Front Right | |
2014-2015 | Arctic Cat | Prowler XT 550 | Front Right | |
2014-2015 | Arctic Cat | Prowler HDX 500 | Front Right | |
2014-2014 | Arctic Cat | Prowler XTZ 1000 | Front Right | |
2014-2014 | Arctic Cat | Prowler HDX 700 Limited | Front Right | |
2014-2014 | Arctic Cat | Prowler HDX 500 Limited | Front Right | |
2012-2013 | Arctic Cat | Prowler XTZ 1000i | Front Right | |
2012-2013 | Arctic Cat | Prowler HDX 700i | Front Right | |
2012-2013 | Arctic Cat | Prowler XTX 700i | Front Right | |
2012-2013 | Arctic Cat | Prowler XT 550i | Front Right | |
2011-2011 | Arctic Cat | Prowler HDX 700 | Front Right | |
2010-2011 | Arctic Cat | Prowler XTX 700 | Front Right | |
2010-2011 | Arctic Cat | Prowler XT 550 | Front Right | |
2010-2011 | Arctic Cat | Prowler XTZ 1000 | Front Right | |
2009-2009 | Arctic Cat | Prowler XT 650 H1 | Front Right | |
2009-2009 | Arctic Cat | Prowler 550 | Front Right | |
2009-2009 | Arctic Cat | Prowler XT 700 | Front Right | |
2009-2011 | Arctic Cat | Prowler XTX 700 H1 EFI | Front Right | |
2009-2011 | Arctic Cat | Prowler XTZ 1000 H2 EFI | Front Right | |
2009-2009 | Arctic Cat | Prowler XTZ 1000 Baja | Front Right | |
2008-2008 | Arctic Cat | Prowler XT 650 4x4 Auto | Front Right | |
2008-2008 | Arctic Cat | Prowler 650 4x4 Auto | Front Right | |
2008-2008 | Arctic Cat | Prowler XT 650 4x4 Auto M4 | Front Right | |
2008-2009 | Arctic Cat | Prowler XTX 700 LE | Front Right | |
2006-2007 | Arctic Cat | Prowler XT 650 H1 | Front Right | |
2006-2007 | Arctic Cat | Prowler 650 H1 | Front Right |
