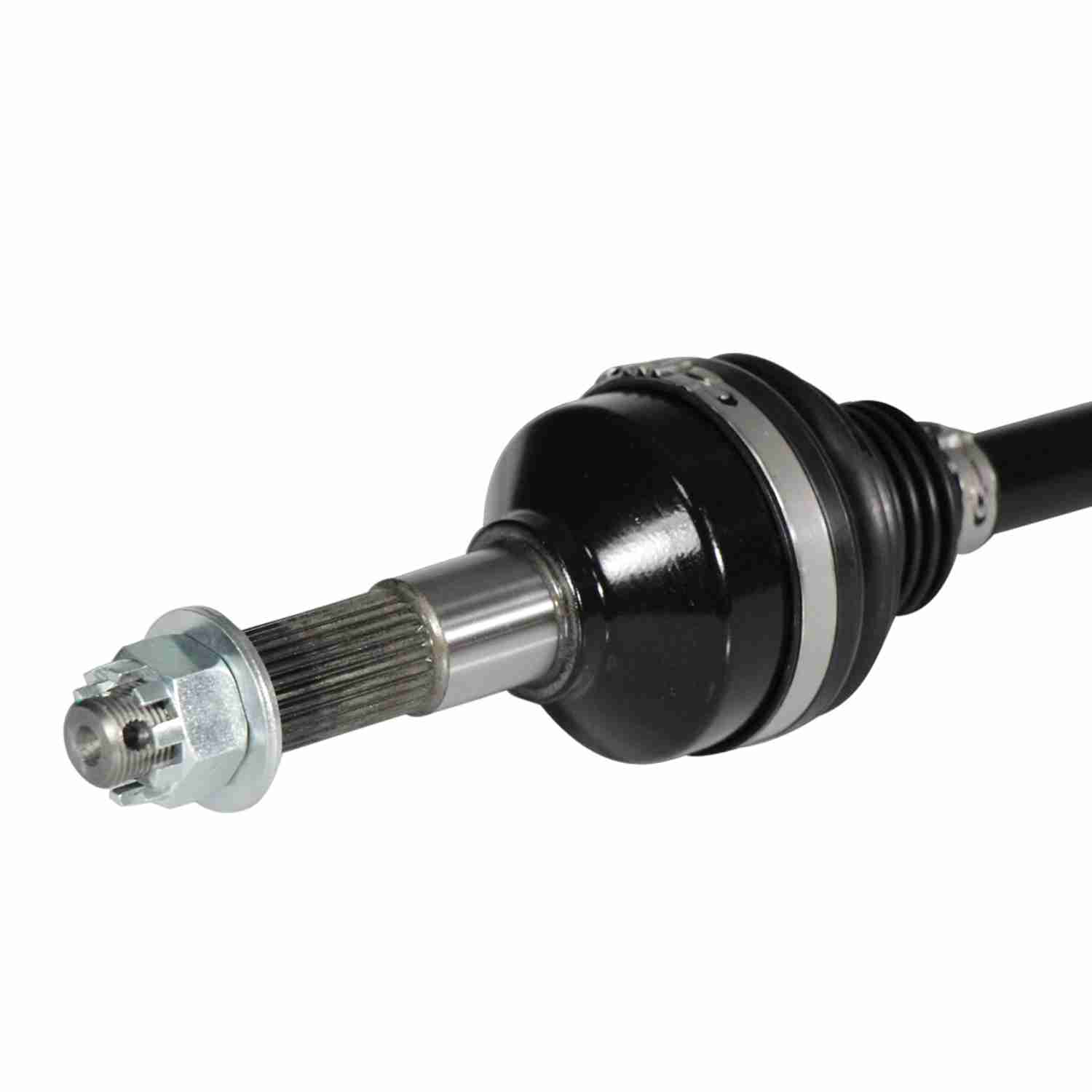

Kawasaki CV Axle Assembly - Front

Part Number:

4105020

Product Type:

CV Axle Assembly

GSP's ATV/UTV CV Axles are built to take a beating! Cad Designed and engineered to exceed manufactures specifications. This is a heavy duty product.

SPECIFICATIONS

Axle Nut Included

Yes

Axle Nut Socket Size

30

Axle Nut Type

Castle Nut

California Proposition 65

Yes

Dynamic Damper Attached

No

Inboard Joint Type

DOJ

Outboard Joint Type

BJ

Prop 65 Yes/No

Yes

Axle Nut Length

0.85

Axle Nut Thread Size

M20X1.5-6H

Boot Material

TPE

Compressed Length

29.82

Extended Length

30.93

Inboard Spline Quantity

26

Outboard Spline Quantity

26

Shaft Diameter

24.5

FEATURES & BENEFITS

● High performance Moly grease for optimal performance
● Premium grade neoprene & TPEE boots
● Heavy Duty Center Shafts use industry leading alloy material
● Oversized CV joints dramatically improved strength for high articulation angles
● Precision engineered cage and housing for reduced friction and a smooth range of motion

APPLICATIONS

Year Range
Make
Model
Sub Model
Position
2016-2020
Kawasaki
KAF1000 Mule PRO-DXT EPS Diesel
Front
2015-2020
Kawasaki
KAF820 Mule PRO-FXT
Front
