Countryside Road

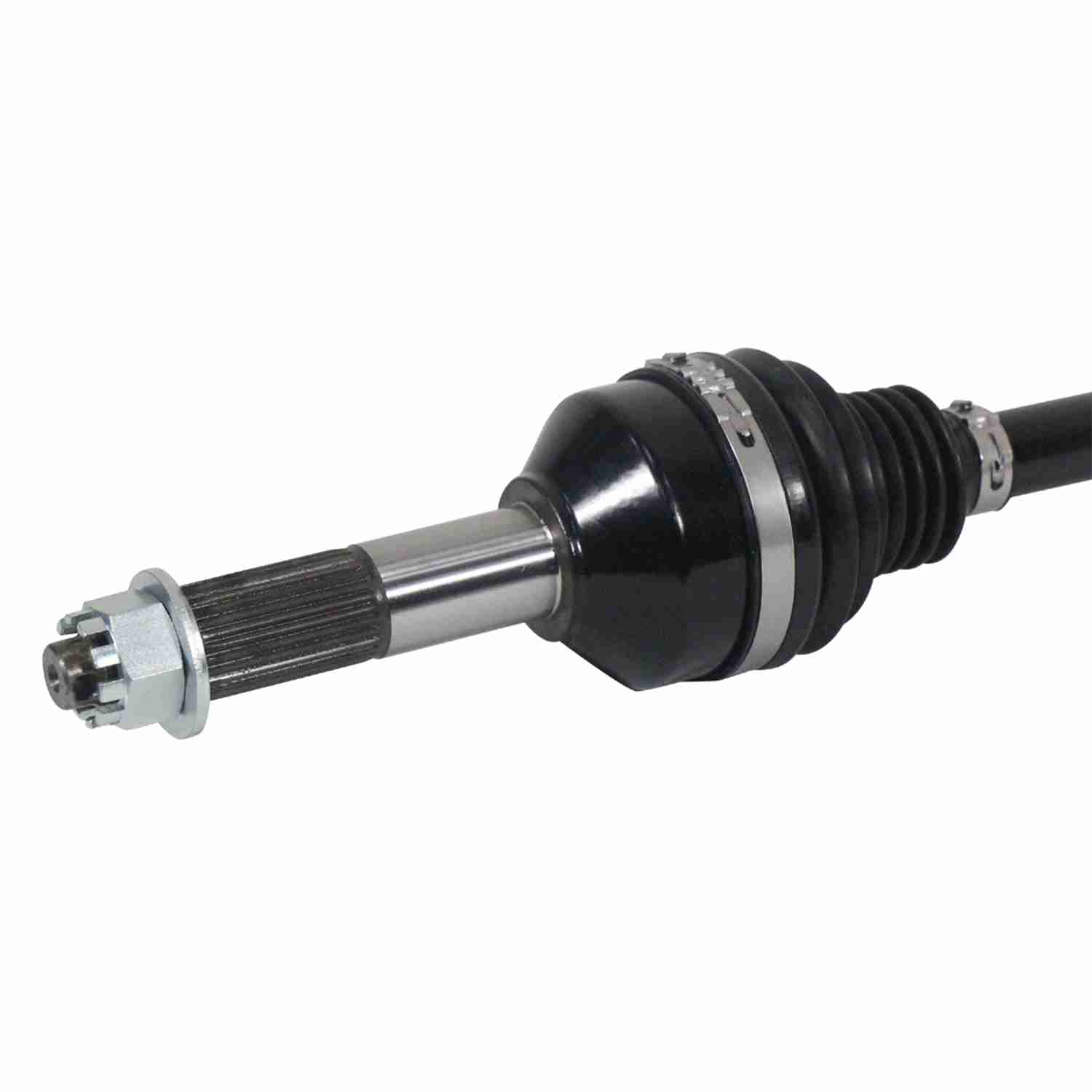

Kawasaki CV Axle Assembly

Part Number:

4105023

Product Type:

CV Axle Assembly

SPECIFICATIONS

Axle Nut Included

Yes

Axle Nut Socket Size

30

Axle Nut Type

Castle Nut

California Proposition 65

Yes

Dynamic Damper Attached

No

Inboard Joint Type

DOJ

Outboard Joint Type

BJ

Prop 65 Yes/No

Yes

Axle Nut Length

0.85

Axle Nut Thread Size

M20X1.5-6H

Boot Material

TPE

Compressed Length

26.44

Extended Length

27.74

Inboard Spline Quantity

29

Outboard Spline Quantity

29

Shaft Diameter

24.5

FEATURES & BENEFITS

● High performance Moly grease for optimal performance
● Premium grade neoprene & TPEE boots
● Heavy Duty Center Shafts use industry leading alloy material
● Oversized CV joints dramatically improved strength for high articulation angles
● Precision engineered cage and housing for reduced friction and a smooth range of motion

APPLICATIONS

Year Range
Make
Model
Sub Model
Position
2016-2020
Kawasaki
KRT800 Teryx4
Rear Left, Rear Right
2016-2016
Kawasaki
KRT800 Teryx4 Camo
Rear Left, Rear Right
2016-2016
Kawasaki
KRT800 Teryx4 LE
Rear Left, Rear Right
2016-2020
Kawasaki
KRF800 Teryx
Rear Left, Rear Right
2016-2016
Kawasaki
KRF800 Teryx Camo
Rear Left, Rear Right
2016-2016
Kawasaki
KRF800 Teryx LE
Rear Left, Rear Right
