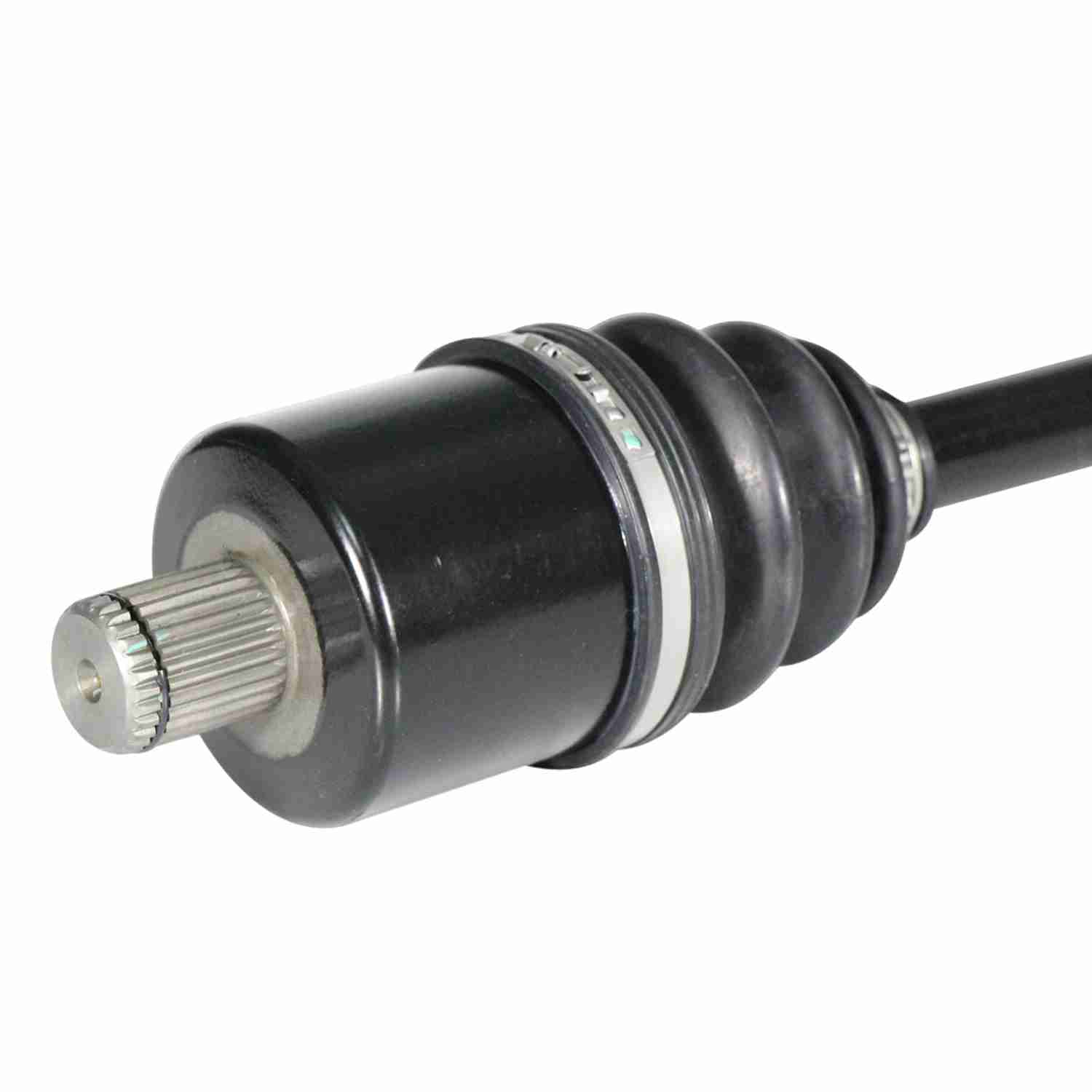

Polaris CV Axle Assembly
SPECIFICATIONS
Axle Nut Included
Yes
Axle Nut Socket Size
30
Axle Nut Type
Castle Nut
California Proposition 65
Yes
Dynamic Damper Attached
No
Inboard Joint Type
DOJ
Outboard Joint Type
BJ
Prop 65 Yes/No
Yes
Axle Nut Length
0.51
Axle Nut Thread Size
M18X1.5-6H
Boot Material
CR
Compressed Length
25.39
Extended Length
27.05
Inboard Spline Quantity
28
Outboard Spline Quantity
26
Shaft Diameter
24.5
FEATURES & BENEFITS
● High performance Moly grease for optimal performance
● Premium grade neoprene & TPEE boots
● Heavy Duty Center Shafts use industry leading alloy material
● Oversized CV joints dramatically improved strength for high articulation angles
● Precision engineered cage and housing for reduced friction and a smooth range of motion
APPLICATIONS
Year Range | Make | Model | Sub Model | Position |
|---|---|---|---|---|
2014-2014 | Polaris | Ranger 800 EPS Mid-Size LE | Rear Left, Rear Right | |
2013-2013 | Polaris | Ranger 500 Crew LE | Rear Left, Rear Right | |
2013-2014 | Polaris | Ranger 800 EFI Mid-Size | Rear Left, Rear Right | |
2013-2013 | Polaris | Ranger 800 EFI Mid-Size LE | Rear Left, Rear Right | |
2012-2012 | Polaris | Ranger 500 Crew Turbo Silver LE | Rear Left, Rear Right | |
2012-2013 | Polaris | Ranger 500 EFI | Rear Left, Rear Right | |
2012-2013 | Polaris | Ranger 500 EFI LE | Rear Left, Rear Right | |
2012-2012 | Polaris | Ranger EV LSV | Rear Left, Rear Right | |
2011-2013 | Polaris | Ranger 500 Crew | Rear Left, Rear Right | |
2010-2014 | Polaris | Ranger 4x4 400 | Rear Left, Rear Right | |
2010-2018 | Polaris | Ranger EV | Rear Left, Rear Right |
