Countryside Road

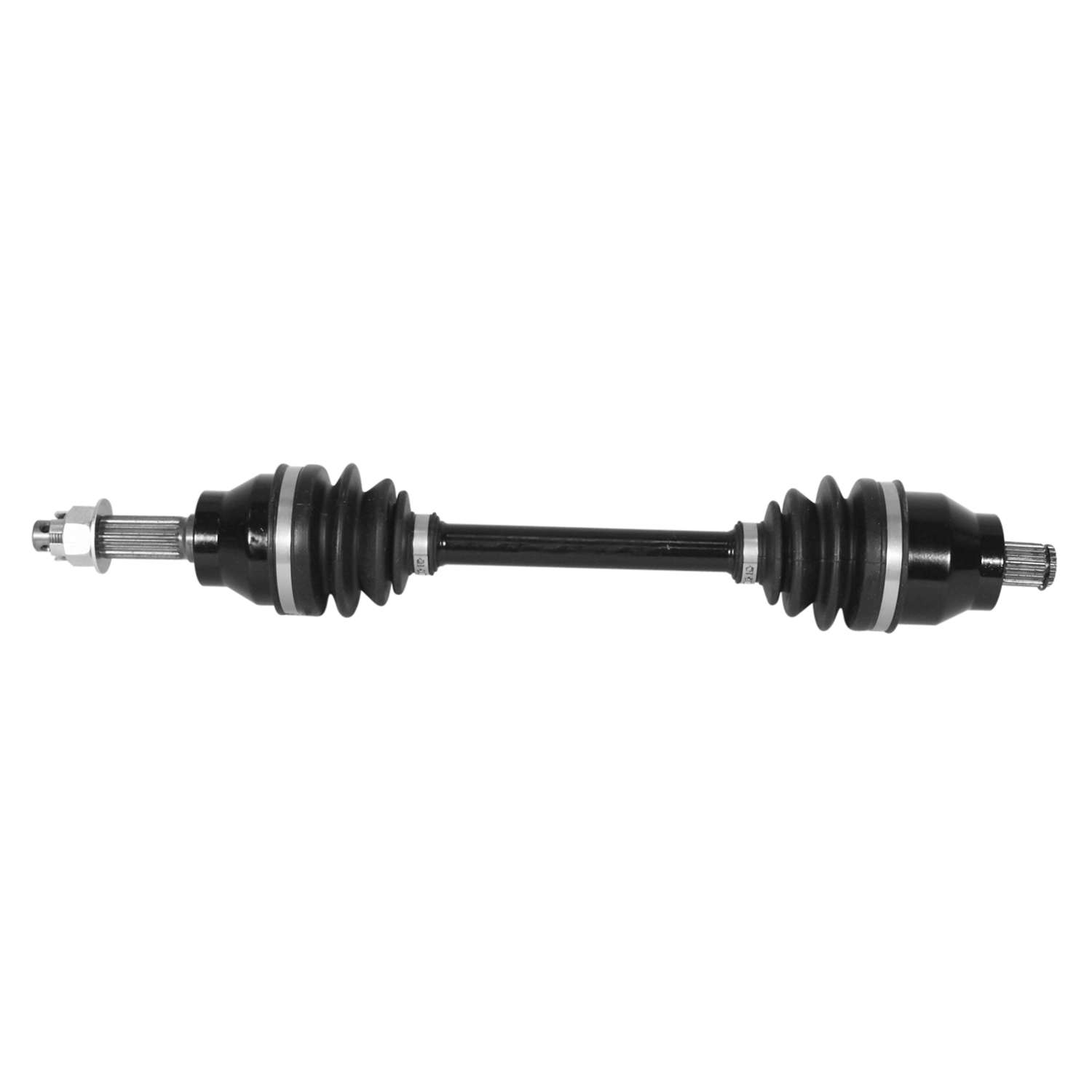

Polaris CV Axle Assembly - Rear

Part Number:

4107040

Product Type:

CV Axle Assembly

GSP's ATV/UTV CV Axles are built to take a beating! Cad Designed and engineered to exceed manufactures specifications. This is a heavy duty product.

SPECIFICATIONS

Axle Nut Included

Yes

Axle Nut Socket Size

27

Axle Nut Type

Castle Nut

California Proposition 65

Yes

Dynamic Damper Attached

No

Inboard Joint Type

BJ

Outboard Joint Type

BJ

Prop 65 Yes/No

Yes

Axle Nut Length

0.83

Axle Nut Thread Size

M18X1.5-6H

Boot Material

CR

Compressed Length

19.53

Extended Length

20.2

Inboard Spline Quantity

20

Outboard Spline Quantity

20

Shaft Diameter

20.5

FEATURES & BENEFITS

● High performance Moly grease for optimal performance
● Premium grade neoprene & TPEE boots
● Heavy Duty Center Shafts use industry leading alloy material
● Oversized CV joints dramatically improved strength for high articulation angles
● Precision engineered cage and housing for reduced friction and a smooth range of motion

APPLICATIONS

Year Range
Make
Model
Sub Model
Position
2008-2010
Polaris
Sportsman 400 HO
Rear
2008-2010
Polaris
Sportsman 300
Rear
2006-2007
Polaris
Hawkeye 4x4
Rear
2006-2008
Polaris
Hawkeye 2x4
Rear
