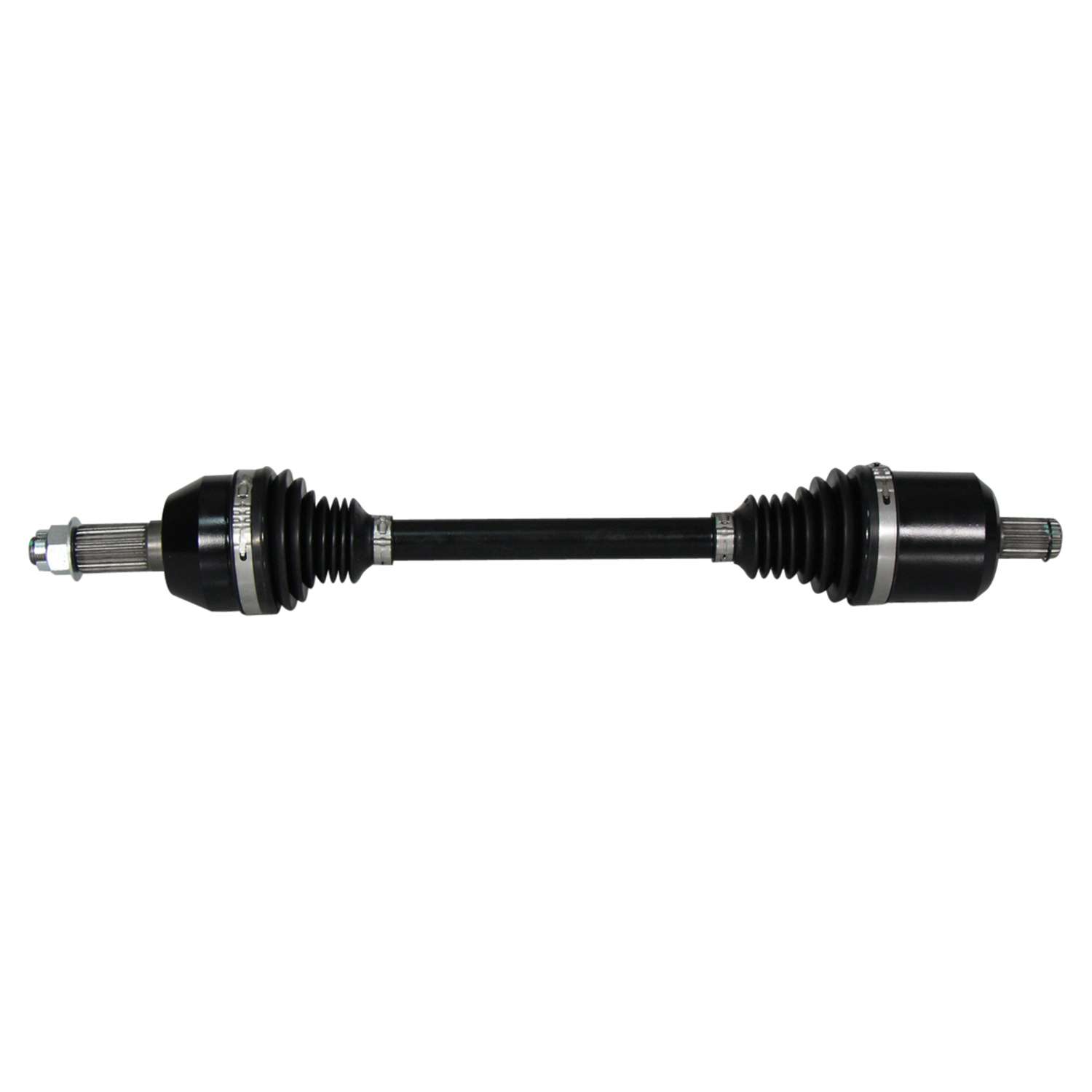

Polaris CV Axle Assembly - Front
SPECIFICATIONS
Axle Nut Included
Yes
Axle Nut Socket Size
27
Axle Nut Type
Castle Nut
California Proposition 65
Yes
Dynamic Damper Attached
No
Inboard Joint Type
DOJ
Outboard Joint Type
BJ
Prop 65 Yes/No
Yes
Axle Nut Length
0.83
Axle Nut Thread Size
M18X1.5-6H
Boot Material
TPE
Compressed Length
21.97
Extended Length
23.82
Inboard Spline Quantity
22
Outboard Spline Quantity
26
Shaft Diameter
24.5
FEATURES & BENEFITS
● High performance Moly grease for optimal performance
● Premium grade neoprene & TPEE boots
● Heavy Duty Center Shafts use industry leading alloy material
● Oversized CV joints dramatically improved strength for high articulation angles
● Precision engineered cage and housing for reduced friction and a smooth range of motion
APPLICATIONS
Year Range | Make | Model | Sub Model | Position |
|---|---|---|---|---|
2018-2019 | Polaris | RZR 900 | Front | |
2017-2017 | Polaris | RZR 900 EPS | Front | |
2016-2016 | Polaris | RZR 900 EPS XC Edition | Front | |
2015-2017 | Polaris | RZR 900 | Front | |
2015-2016 | Polaris | RZR 900 EPS Trail | Front | |
2015-2015 | Polaris | RZR 900 XC Edition | Front |
