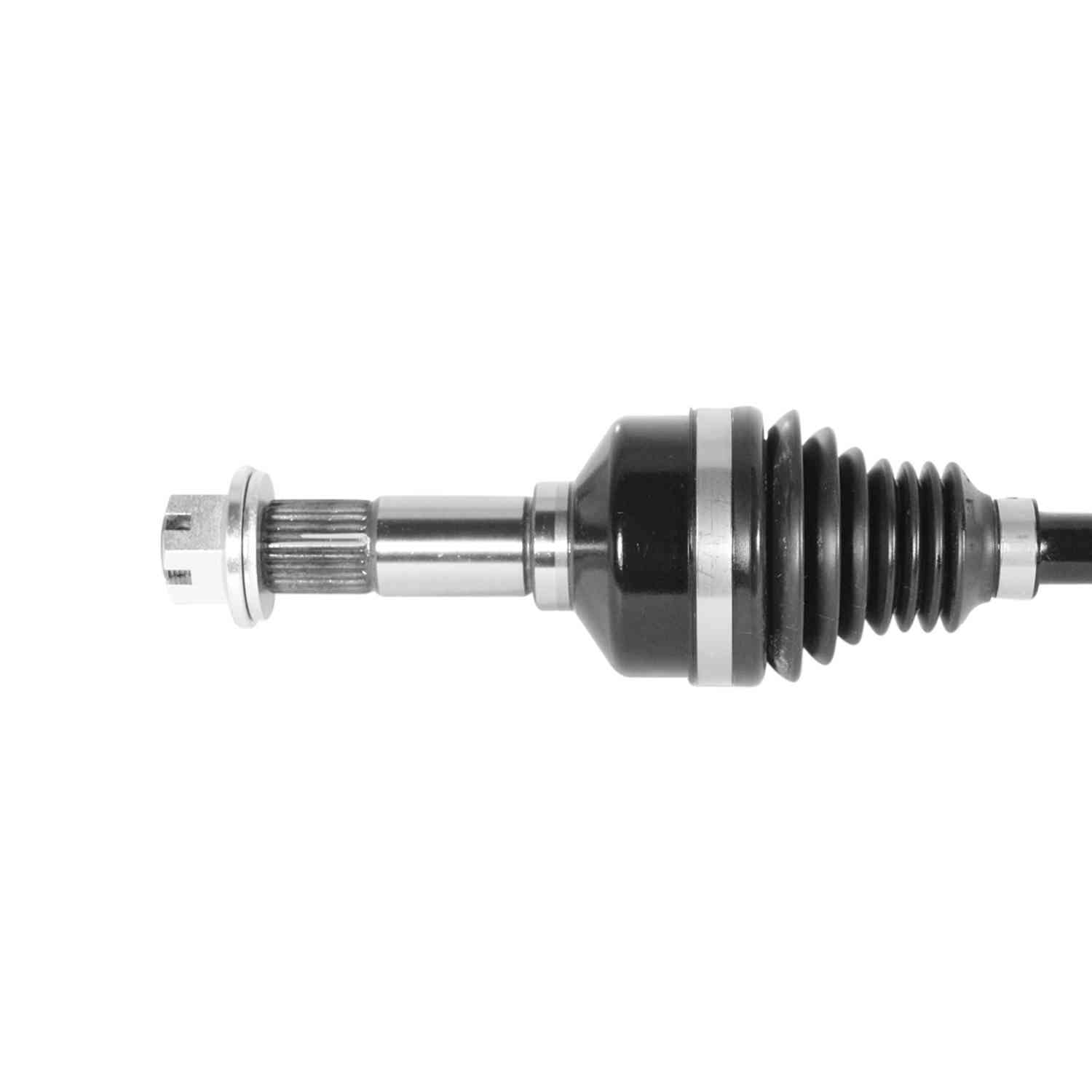

Yamaha CV Axle Assembly
SPECIFICATIONS
Axle Nut Included
Yes
Axle Nut Socket Size
32
Axle Nut Type
Castle Nut
California Proposition 65
Yes
Dynamic Damper Attached
No
Inboard Joint Type
DOJ
Outboard Joint Type
BJ
Prop 65 Yes/No
Yes
Axle Nut Length
0.93
Axle Nut Thread Size
M24X1.5-6H
Boot Material
TPE
Compressed Length
28.98
Extended Length
30.87
Inboard Spline Quantity
27
Outboard Spline Quantity
27
Shaft Diameter
21
FEATURES & BENEFITS
● High performance Moly grease for optimal performance
● Premium grade neoprene & TPEE boots
● Heavy Duty Center Shafts use industry leading alloy material
● Oversized CV joints dramatically improved strength for high articulation angles
● Precision engineered cage and housing for reduced friction and a smooth range of motion
APPLICATIONS
Year Range | Make | Model | Sub Model | Position |
|---|---|---|---|---|
2020-2023 | Yamaha | YXZ1000R SS XT-R | Rear Left, Rear Right | |
2017-2023 | Yamaha | YXZ1000R SS | Rear Left, Rear Right | |
2017-2021 | Yamaha | YXZ1000R SS SE | Rear Left, Rear Right | |
2016-2023 | Yamaha | YXZ1000R | Rear Left, Rear Right | |
2016-2021 | Yamaha | YXZ1000R SE | Rear Left, Rear Right |
