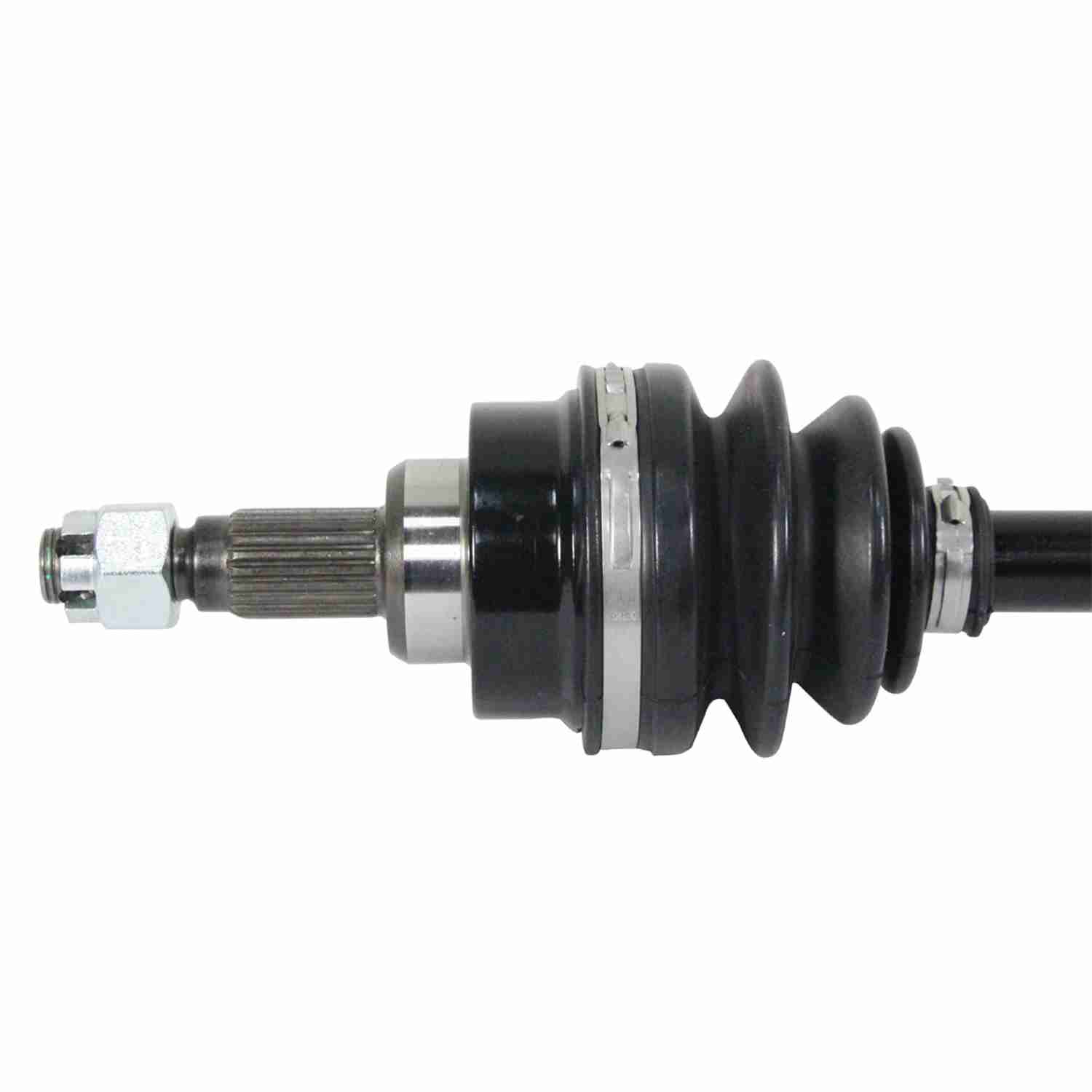

Honda CV Axle Assembly
SPECIFICATIONS
Axle Nut Included
Yes
Axle Nut Socket Size
24
Axle Nut Type
Castle Nut
California Proposition 65
Yes
Dynamic Damper Attached
No
Inboard Joint Type
DOJ
Outboard Joint Type
BJ
Placement
Front Left
Axle Nut Length
0.83
Axle Nut Thread Size
M16X1.5-7H
Boot Material
CR
Compressed Length
18.07
Extended Length
19.49
Inboard Spline Quantity
20
Outboard Spline Quantity
21
Prop 65 Yes/No
Yes
FEATURES & BENEFITS
● High performance Moly grease for optimal performance
● Premium grade neoprene & TPEE boots
● Heavy Duty Center Shafts use industry leading alloy material
● Oversized CV joints dramatically improved strength for high articulation angles
● Precision engineered cage and housing for reduced friction and a smooth range of motion
APPLICATIONS
Year Range | Make | Model | Sub Model | Position |
|---|---|---|---|---|
2000-2005 | Honda | TRX350FE FourTrax Rancher 4x4 ES | Front Left, Front Right | |
2000-2000 | Honda | TRX350FM FourTrax Rancher 4X4 | Front Left, Front Right | |
2000-2000 | Honda | TRX350TE FourTrax Rancher ES | Front Left, Front Right | |
2000-2000 | Honda | TRX350TM FourTrax Rancher | Front Left, Front Right |
