Countryside Road

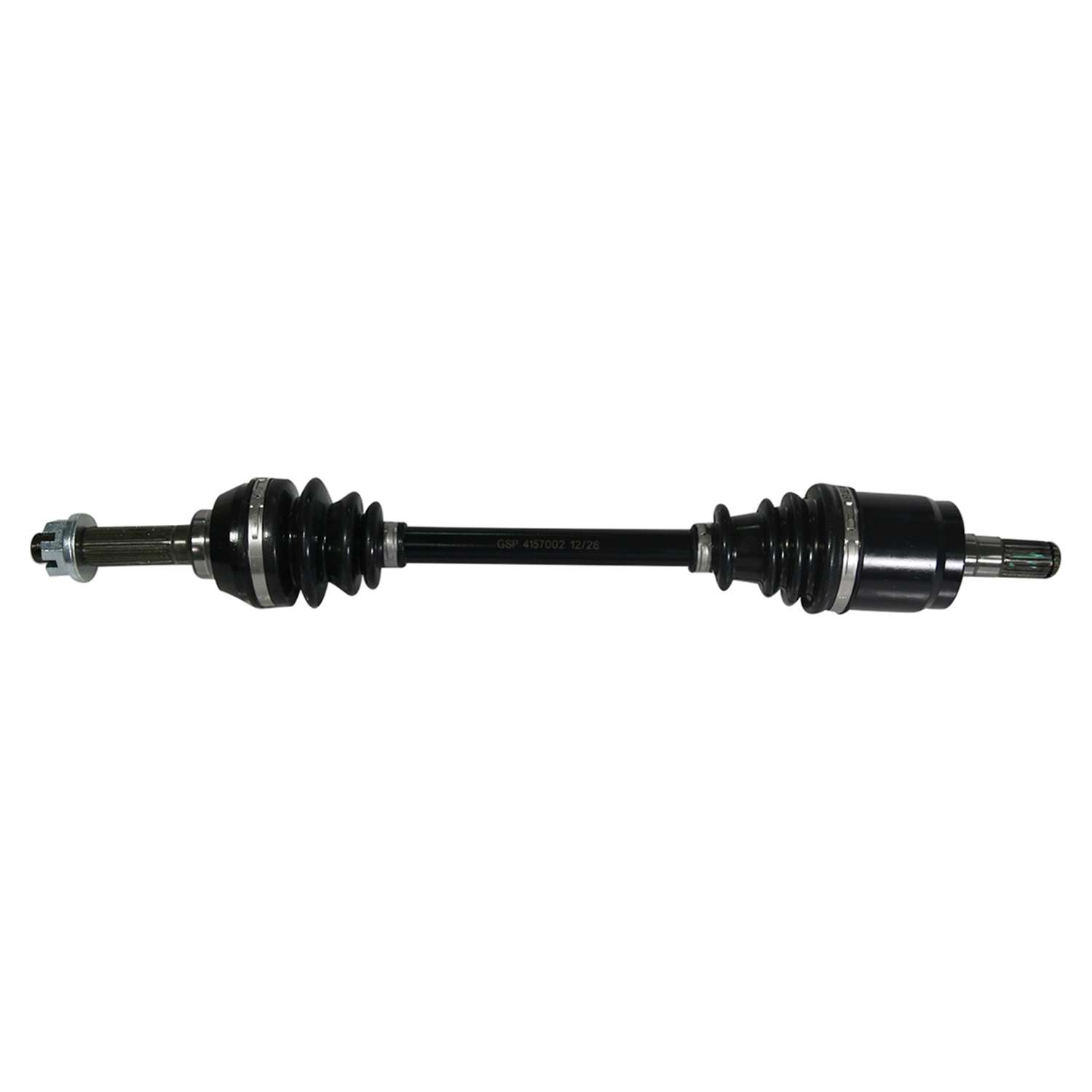

Suzuki CV Axle Assembly - Front Right

Part Number:

4157002

Product Type:

CV Axle Assembly

GSP's ATV/UTV CV Axles are built to take a beating! Cad Designed and engineered to exceed manufactures specifications. This is a heavy duty product.

SPECIFICATIONS

Axle Nut Included

Yes

Axle Nut Socket Size

30

Axle Nut Type

Castle Nut

California Proposition 65

Yes

Dynamic Damper Attached

No

Inboard Joint Type

DOJ

Outboard Joint Type

BJ

Prop 65 Yes/No

Yes

Axle Nut Length

0.71

Axle Nut Thread Size

M18X1.5-6H

Boot Material

CR

Compressed Length

20.47

Extended Length

21.99

Inboard Spline Quantity

20

Outboard Spline Quantity

20

Shaft Diameter

20

FEATURES & BENEFITS

● High performance Moly grease for optimal performance
● Premium grade neoprene & TPEE boots
● Heavy Duty Center Shafts use industry leading alloy material
● Oversized CV joints dramatically improved strength for high articulation angles
● Precision engineered cage and housing for reduced friction and a smooth range of motion

APPLICATIONS

Year Range
Make
Model
Sub Model
Position
2011-2018
Suzuki
LT-A400F KingQuad ASi
Front Right
2011-2018
Suzuki
LT-F400F KingQuad FSi
Front Right
2008-2010
Suzuki
LT-A400F KingQuad AS
Front Right
2008-2010
Suzuki
LT-F400F KingQuad FS
Front Right
2005-2007
Suzuki
LT-F400F Eiger 4x4
Front Right
2005-2007
Suzuki
LT-A400 Eiger 2x4 Auto
Front Right
2005-2007
Suzuki
LT-A400F Eiger 4x4 Auto
Front Right

VIDEO
