Countryside Road

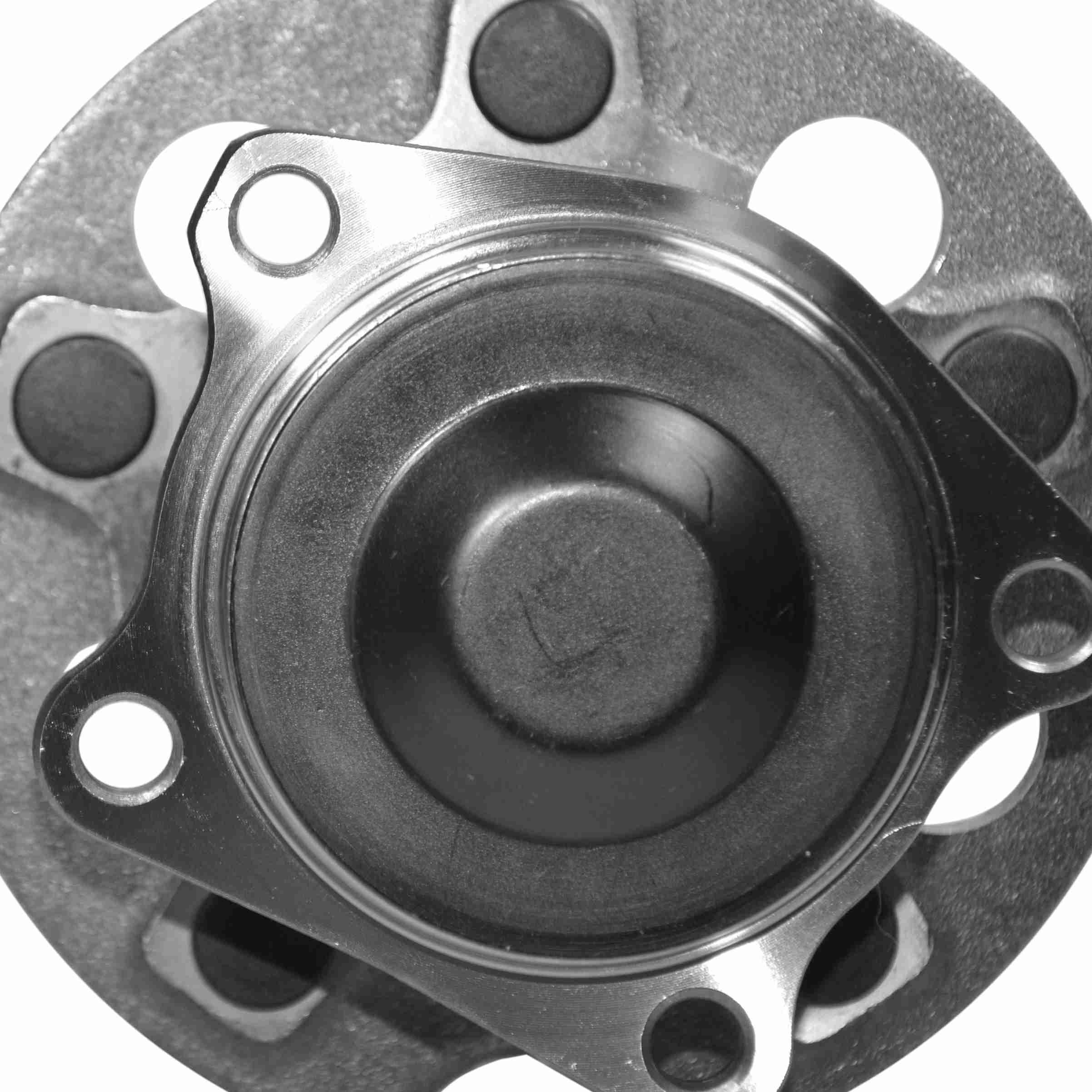

96-03 Toyota RAV4 Base (2.0 - FWD) Wheel Bearing and Hub Assembly - Rear Right

Part Number:

693213

Product Type:

SPECIFICATIONS

ABS Tone Ring Tooth Quantity

-

Anti Lock Braking System Type

-

Bearing Type

Ball

Bolt Thread Pitch

M12×1.5

Brake Pilot Diameter

62

Driven Type

Non-driven

Flange Bolts Included

No

Flange Included

Yes

Anti Lock Braking System

No

Bearing Generation

Gen 3(solid)

Bolt Circle Diameter

114.3

Bolts Included

No

California Proposition 65

Yes

Flange Bolt Hole Quantity

4

Flange Diameter

152

Flange Offset

69

FEATURES & BENEFITS

● Designed with raw steel material that meets or exceeds standards to produce a long-lasting service life.
● All hub assemblies go through a vacuum vulcanization process to enhance the structural integrity of the seal and rubber components.
● Ball bearings are spaced precisely to the appropriate clearance for smooth rotation and abrasion resistance.
● High quality rubber optimizes the seals performance and durability against high-temperatures and weathering.
● To ensure a smooth surface, free from defects, all bearing housings are manufactured with polyamides for added impact toughness and age resistance.

APPLICATIONS

Year Range
Make
Model
Sub Model
Position
1996-2003
Toyota
RAV4
Base
Rear Right
