Countryside Road

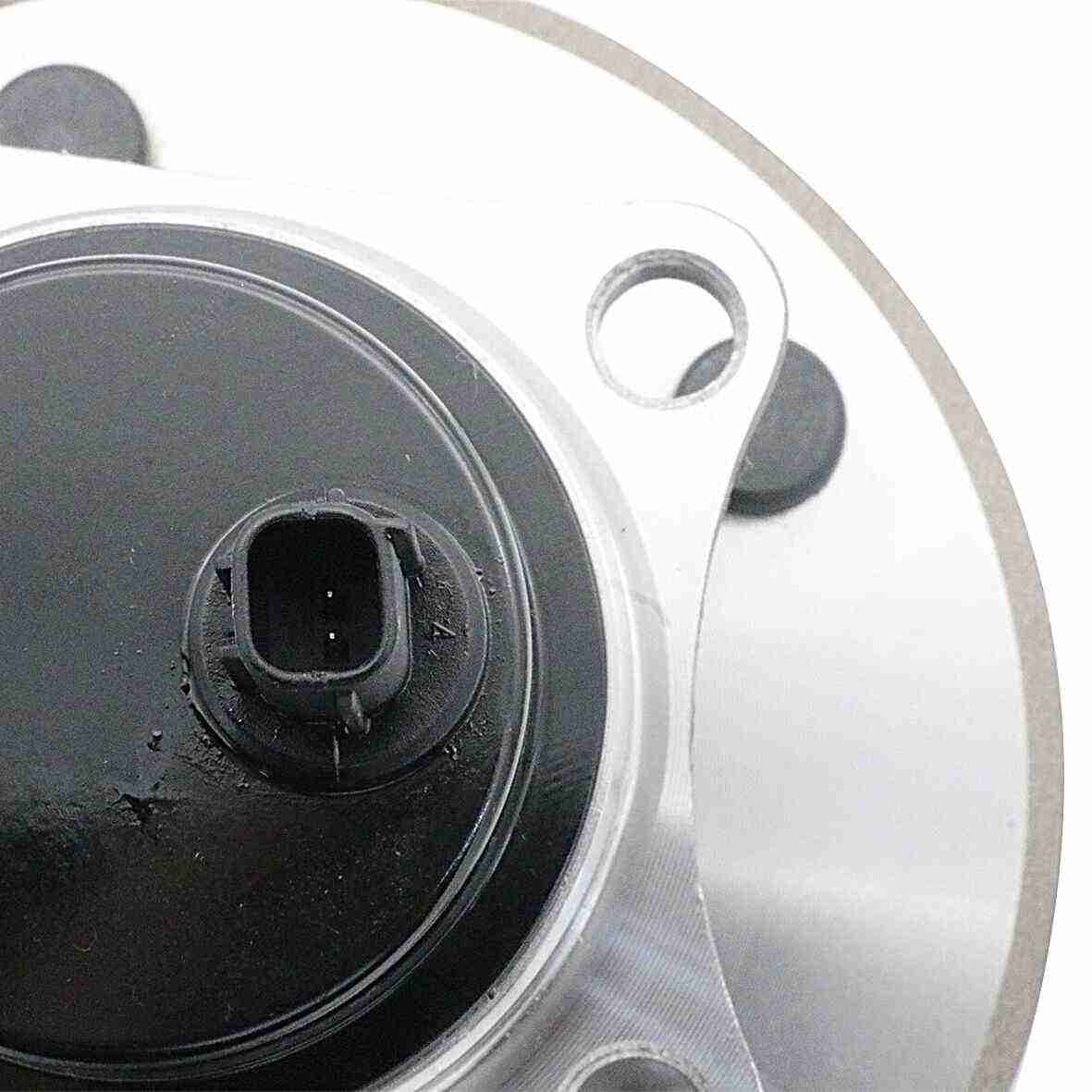

09-13 Toyota Matrix (2.4 - FWD) Wheel Bearing and Hub Assembly - Rear

Part Number:

693405

Product Type:

SPECIFICATIONS

Anti Lock Braking System

Yes

Bearing Generation

Gen 3(solid)

Bolt Circle Diameter

114.3

Bolts Included

No

California Proposition 65

Yes

Flange Bolt Hole Quantity

4

Flange Diameter

152

Flange Offset

60

Anti Lock Braking System Type

Sensor

Bearing Type

Ball

Bolt Thread Pitch

M12×1.5

Brake Pilot Diameter

62

Driven Type

Non-driven

Flange Bolts Included

No

Flange Included

Yes

Hub Pilot Diameter

73.9

FEATURES & BENEFITS

● Designed with raw steel material that meets or exceeds standards to produce a long-lasting service life.
● All hub assemblies go through a vacuum vulcanization process to enhance the structural integrity of the seal and rubber components.
● Ball bearings are spaced precisely to the appropriate clearance for smooth rotation and abrasion resistance.
● High quality rubber optimizes the seals performance and durability against high-temperatures and weathering.
● To ensure a smooth surface, free from defects, all bearing housings are manufactured with polyamides for added impact toughness and age resistance.

APPLICATIONS

Year Range
Make
Model
Sub Model
Position
2009-2013
Toyota
Matrix
Rear
