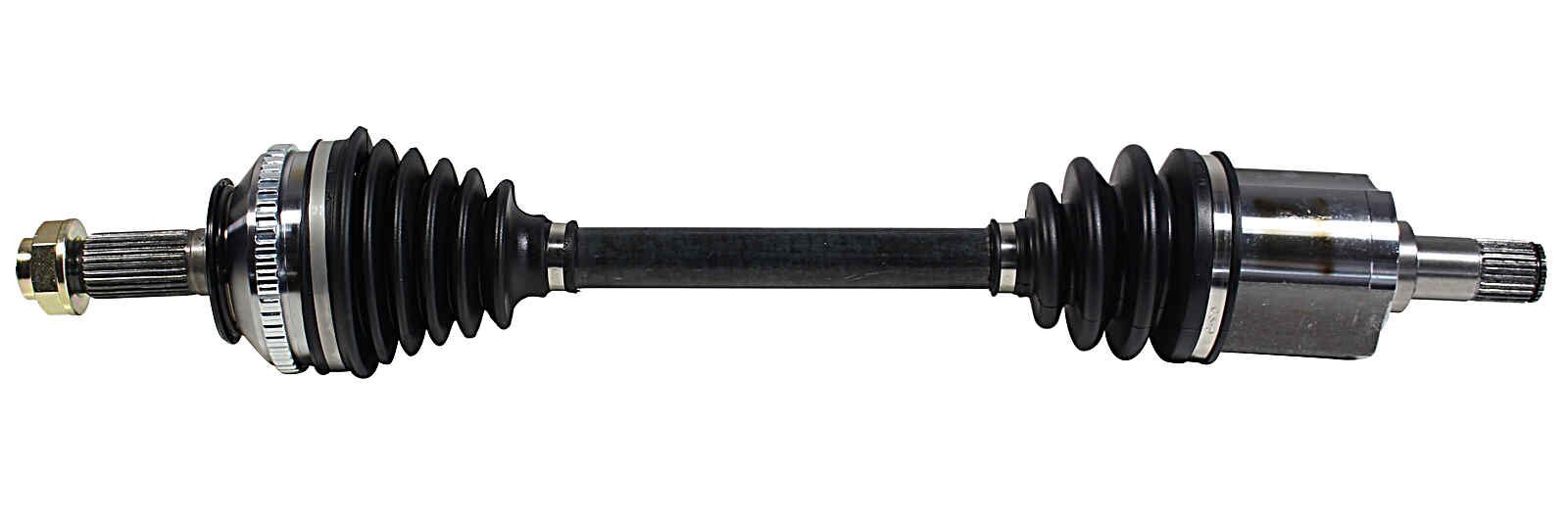

Acura, Honda (2.2, 2.3) CV Axle Assembly - Front Right

Part Number:

NCV36508

Product Type:

CV Axle Assembly

Quality Driven CV Axles is what GSP is known for. Designed to deliver high quality performance and reliability, GSP CV Axles are manufactured to withstand the demands of daily driving conditions.
With GSP CV Axles, you can expect all axle components to be heat treated to the highest standards to provide premium strength, and extend service life. Each GSP CV Axle undergoes rigorous testing to meet or exceed OE specifications ensuring proper fit and optimal performance for your vehicle. With high-quality materials, advanced manufacturing techniques, and precise engineering, GSP CV Axles are the perfect replacement component and brand of choice amongst automotive professionals.

SPECIFICATIONS

ABS Tone Ring Included

Yes

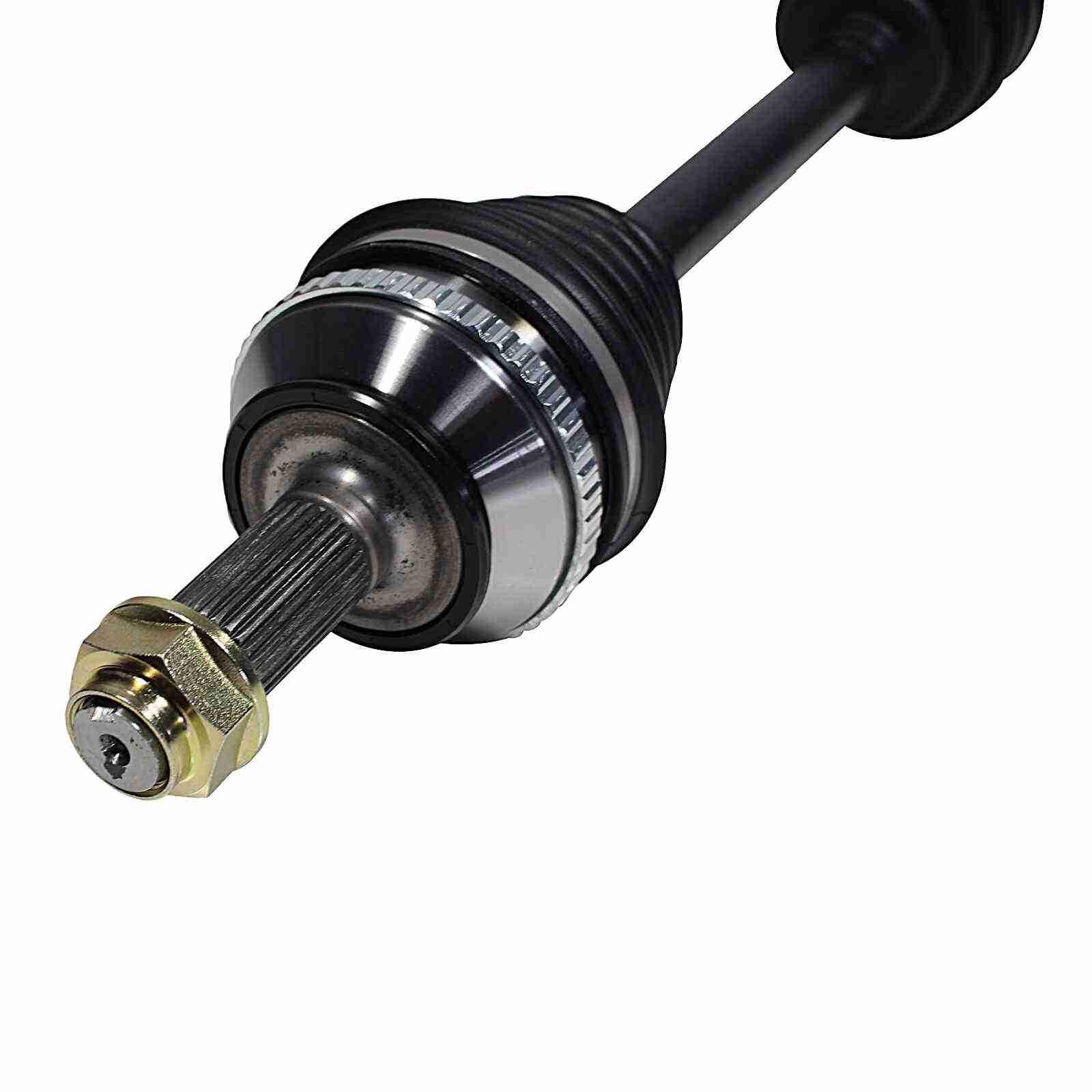

Axle Nut Included

Yes

Axle Nut Socket Size

36

Axle Nut Type

Hex

California Proposition 65

Yes

Extended Length

26.40

Inboard Spline Quantity

27

Outboard Spline Quantity

28

ABS Tone Ring Tooth Quantity

50

Axle Nut Length

23

Axle Nut Thread Size

M24×1.5

Boot Material

Neoprene

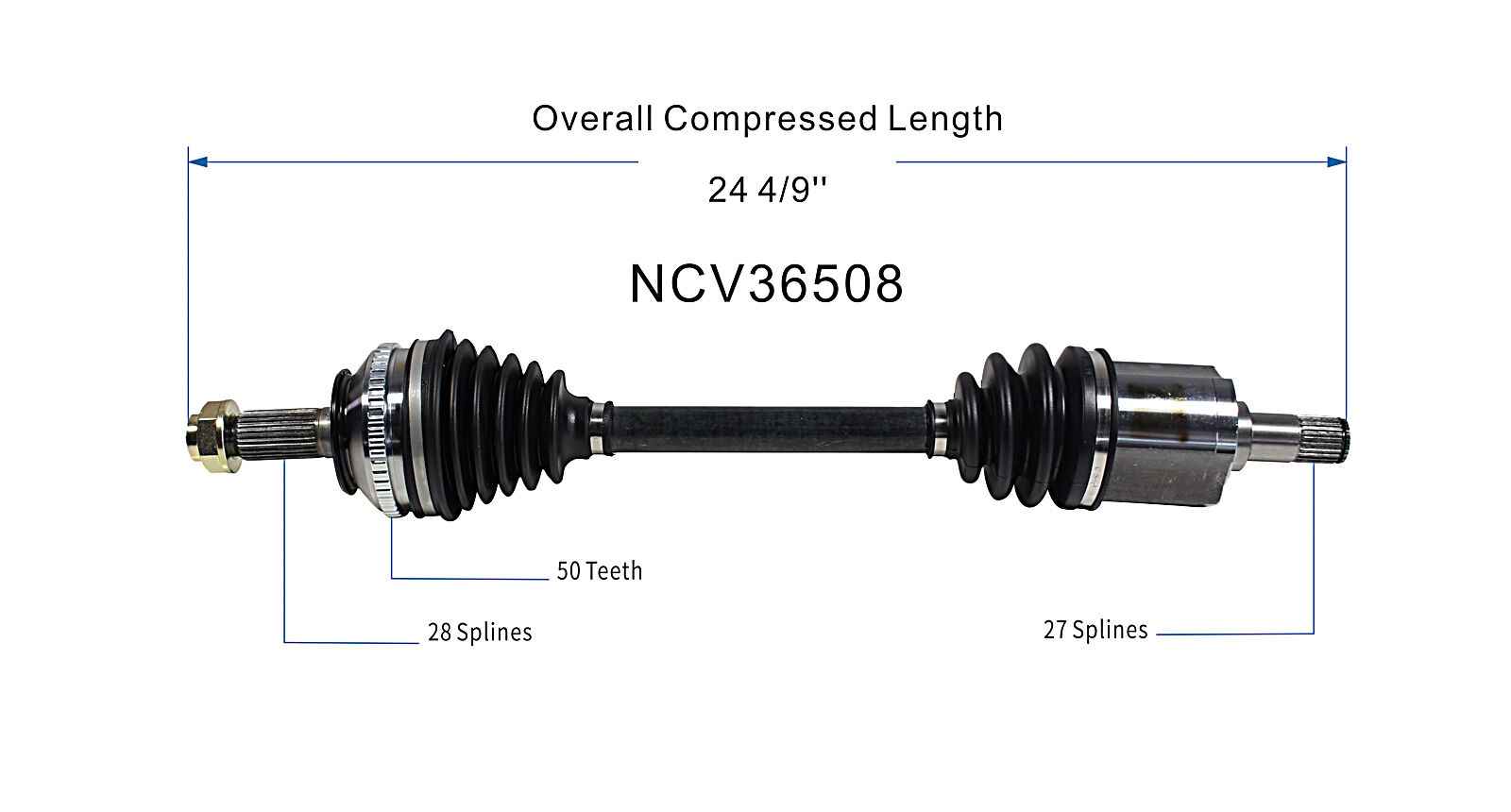

Compressed Length

24.45

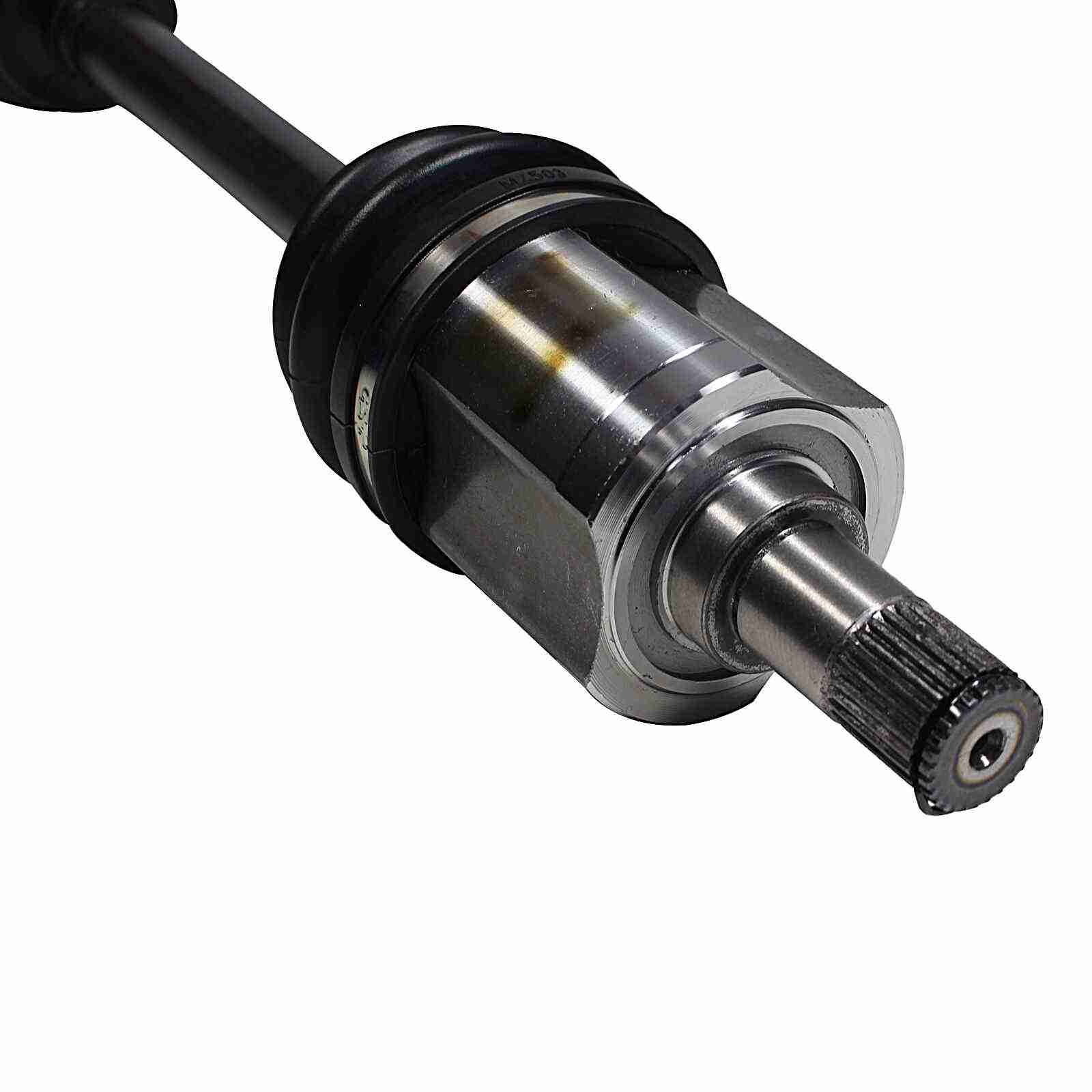

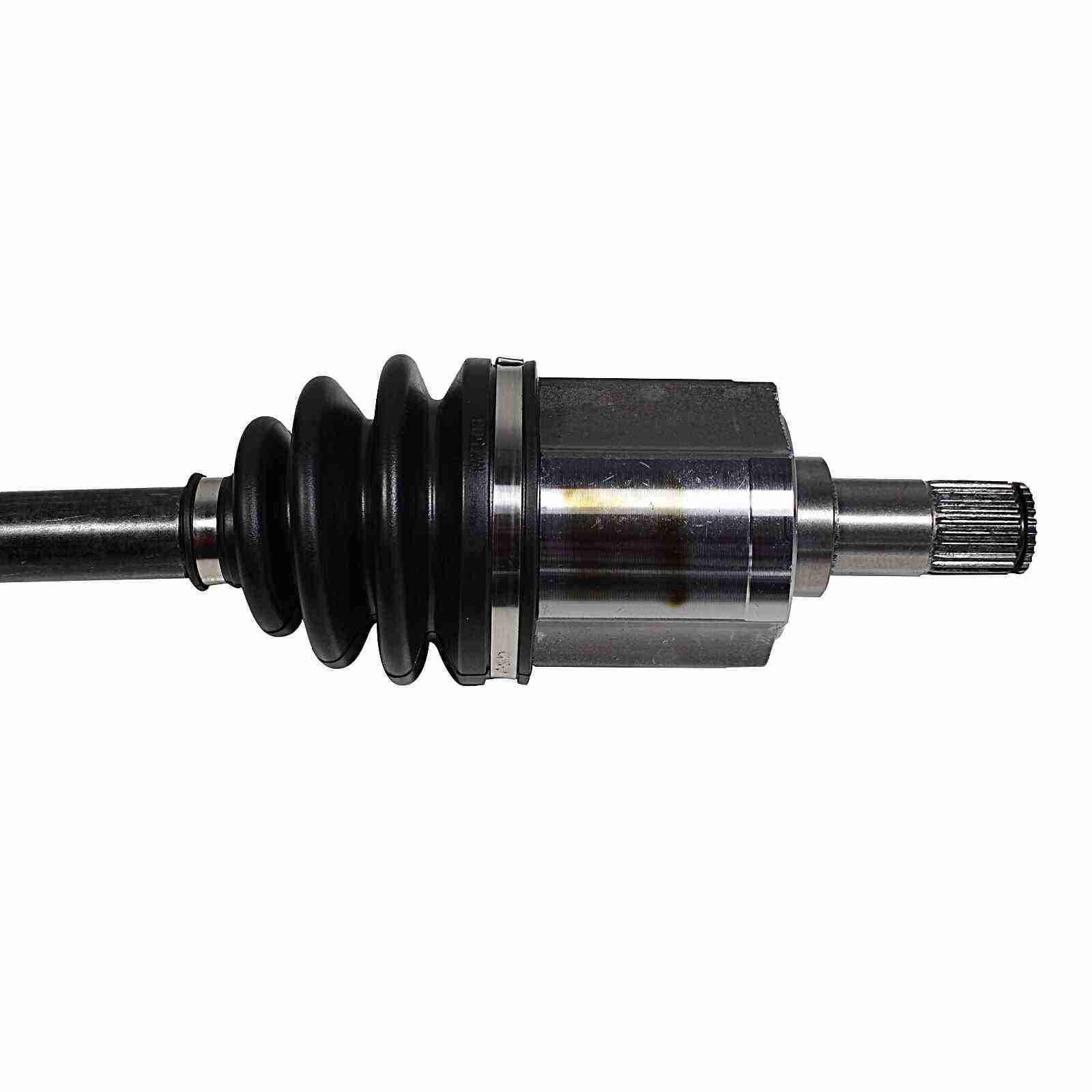

Inboard Joint Type

Male

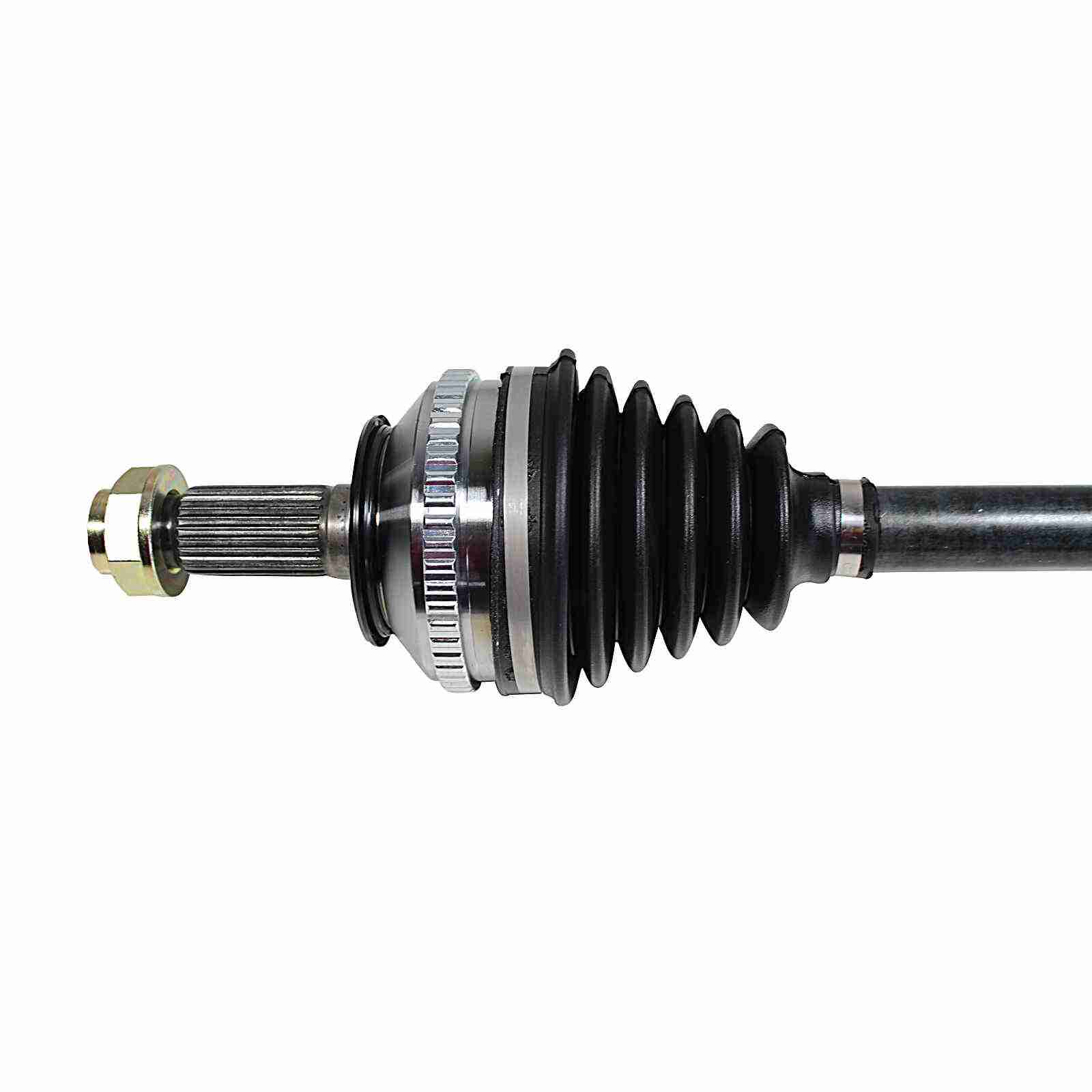

Outboard Joint Type

Conventional

Placement

Front Right

FEATURES & BENEFITS

● GSP CV Axles are covered with by a limited lifetime warranty
● GSP's Silent Ride Technology implemented to ensure a smooth and quite ride
● Heat-treated components provide premium strength and extended service life
● High-quality stainless-steel band clamps for improved strength and durability
● Premium grade neoprene boots provide protection against dirt and debris in driving conditions
● Specially formulated moly grease for optimal performance
● Spline rolled for precise durable fitment
● Anti-Rust coating applied to center bar and joints

APPLICATIONS

Year Range
Make
Model
Sub Model
Position
1998-1998
Acura
CL
Front Right
1997-1997
Honda
Accord
SE
Front Right
1997-1997
Acura
CL
Front Right
1996-1997
Honda
Accord
EX-R, Value Package
Front Right
1996-1996
Honda
Accord
25th Anniversary Edition
Front Right
1994-1997
Honda
Accord
LX, EX, DX
Front Right
1990-1991
Honda
Prelude
2.0 Si, Si, Si 4WS
Front Right
1990-1990
Honda
Prelude
2.0 S
Front Right
