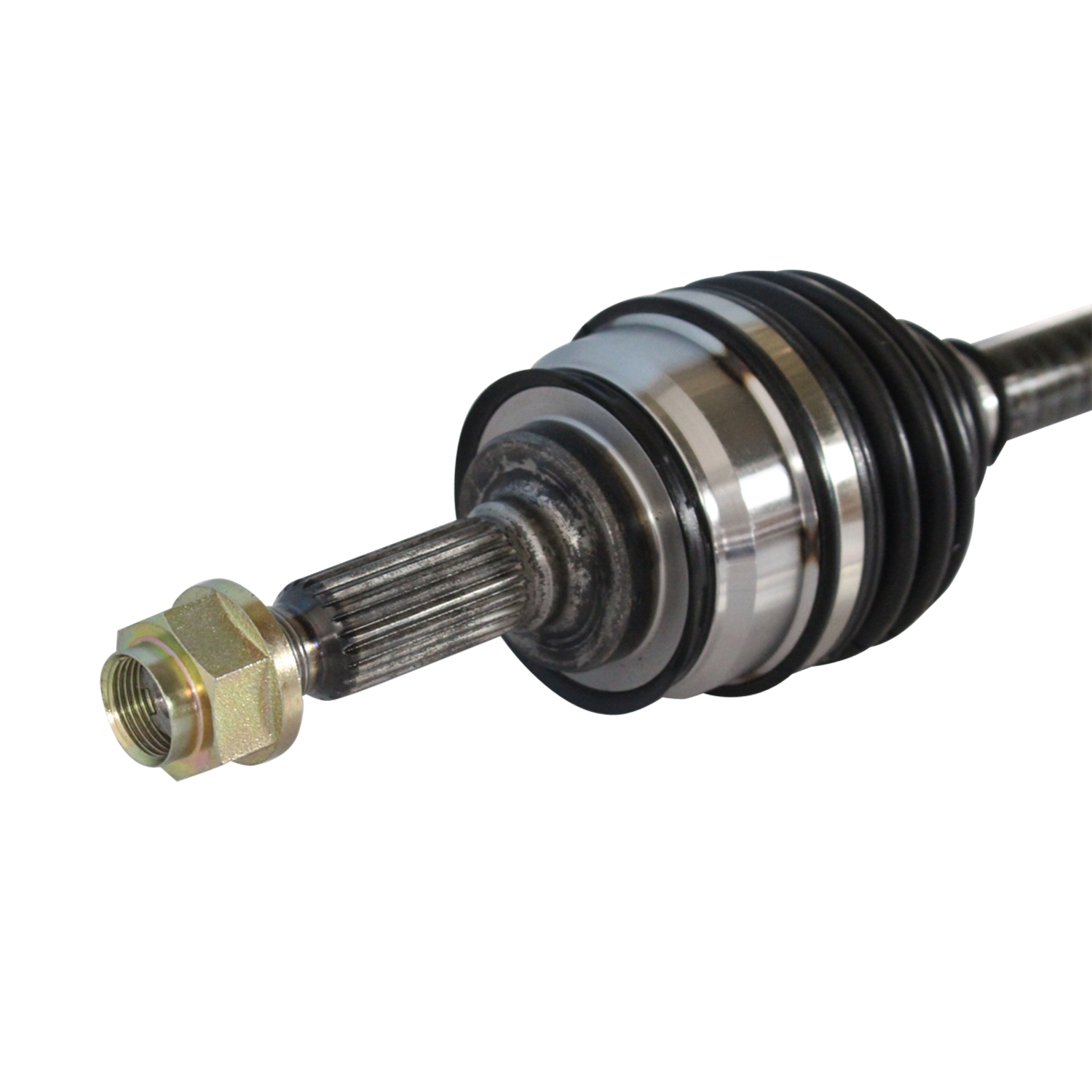

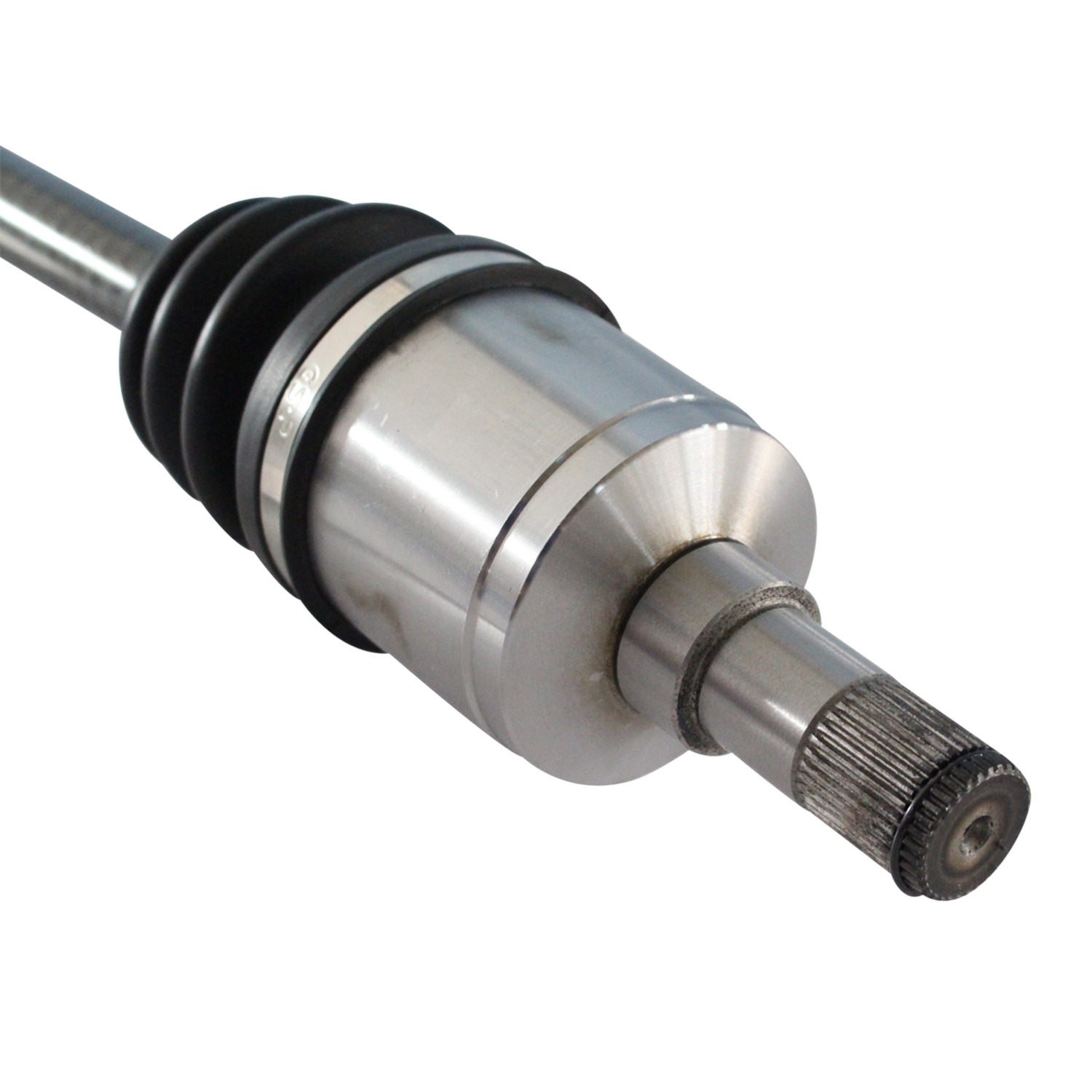

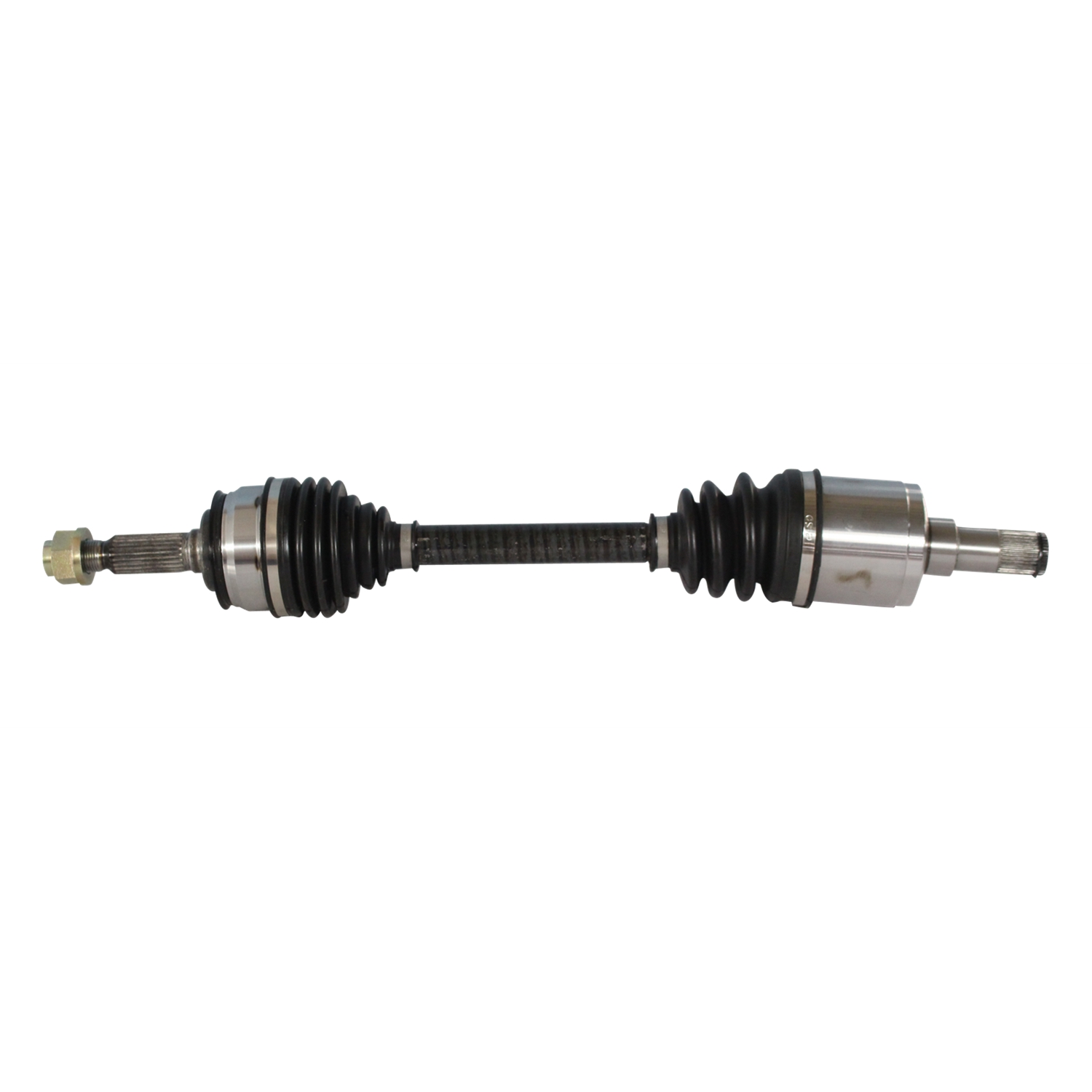

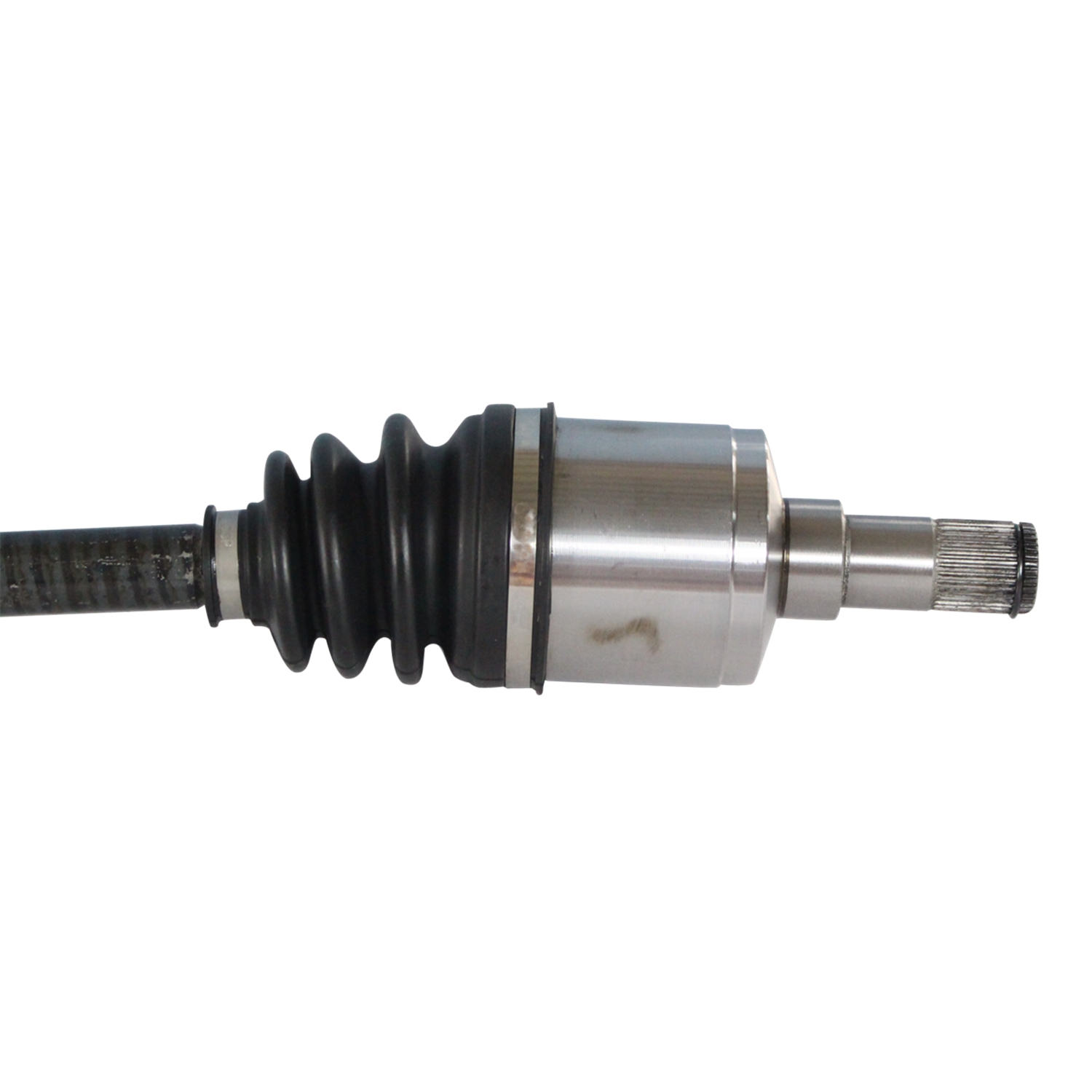

Chevrolet, Isuzu CV Axle Assembly - Front Left
SPECIFICATIONS
ABS Tone Ring Included
No
Axle Nut Length
25
Axle Nut Thread Size
M20×1.5
Boot Material
Neoprene
Compressed Length
565
Inboard Spline Quantity
34
Outboard Spline Quantity
22
Axle Nut Included
Yes
Axle Nut Socket Size
30
Axle Nut Type
Hex
California Proposition 65
Yes
Inboard Joint Type
Male
Outboard Joint Type
Conventional
Prop 65 Yes/No
Yes
FEATURES & BENEFITS
● Extensive quality control and testing process to ensure a long-lasting performance
● Heat-treated components provide premium strength, increased tensile, and extended service life
● GSP Silent Ride Technology OE designed and manufactured CV joints to provide a quiet ride
● Premium grade neoprene boots provide protection against dirt and debris in driving conditions
● Specially formulated moly grease for optimal performance at high temperatures
● High-quality stainless-steel clamps for heavy duty strength and durability
● Spline rolled for precise durable fitment
● GSP CV Axles are covered with a limited lifetime warranty
APPLICATIONS
Year Range | Make | Model | Sub Model | Position |
|---|---|---|---|---|
1987-1989 | Isuzu | I-Mark | Front Left | |
1987-1988 | Chevrolet | Spectrum | Front Left | |
1985-1986 | Isuzu | I-Mark | Front Left | |
1985-1986 | Chevrolet | Spectrum | Front Left |
