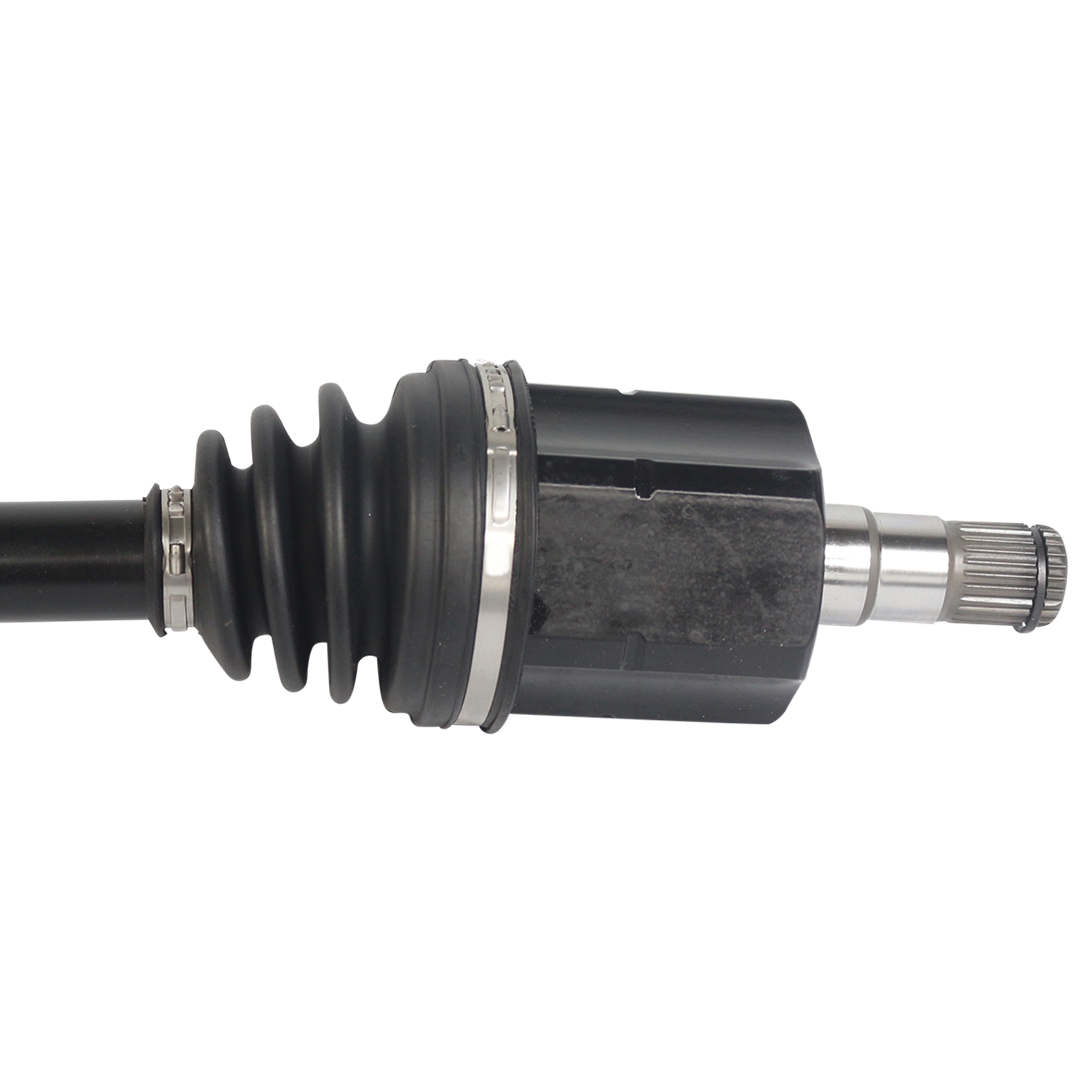

Volkswagen (1.8, 2.0, 2.5 - FWD) CV Axle Assembly - Front Left
SPECIFICATIONS
ABS Tone Ring Included
NO
Axle Nut Included
NO
Axle Nut Socket Size
-
Axle Nut Type
-
California Proposition 65
Yes
Inboard Joint Type
Male
Outboard Joint Type
Conventional
Prop 65 Yes/No
Yes
ABS Tone Ring Tooth Quantity
-
Axle Nut Length
-
Axle Nut Thread Size
-
Boot Material
TPE(OBJ)/Neoprene(IBJ)
Compressed Length
583
Inboard Spline Quantity
26
Outboard Spline Quantity
36
FEATURES & BENEFITS
● High-Perf CV Boot prevents deformation, wear, swelling, and leakage for superior durability
● Premium Grease for improved lubrication resulting in a better service life
● OE style Inner and outer joint structures
● Friction welded intermediate shafts
● Premium coated center bar & inner/outer joint
● Designed for luxury late model applications
APPLICATIONS
Year Range | Make | Model | Sub Model | Position |
---|---|---|---|---|
2015-2019 | Volkswagen | Golf SportWagen | Front Left | |
2015-2018 | Volkswagen | Golf | Front Left | |
2014-2018 | Volkswagen | Jetta | Front Left | |
2010-2014 | Volkswagen | Golf | Front Left | |
2009-2009 | Volkswagen | CC | Front Left | |
2006-2009 | Volkswagen | Passat | Front Left | |
2006-2009 | Volkswagen | Rabbit | Front Left | |
2005-2018 | Volkswagen | Jetta | Front Left |
