Countryside Road

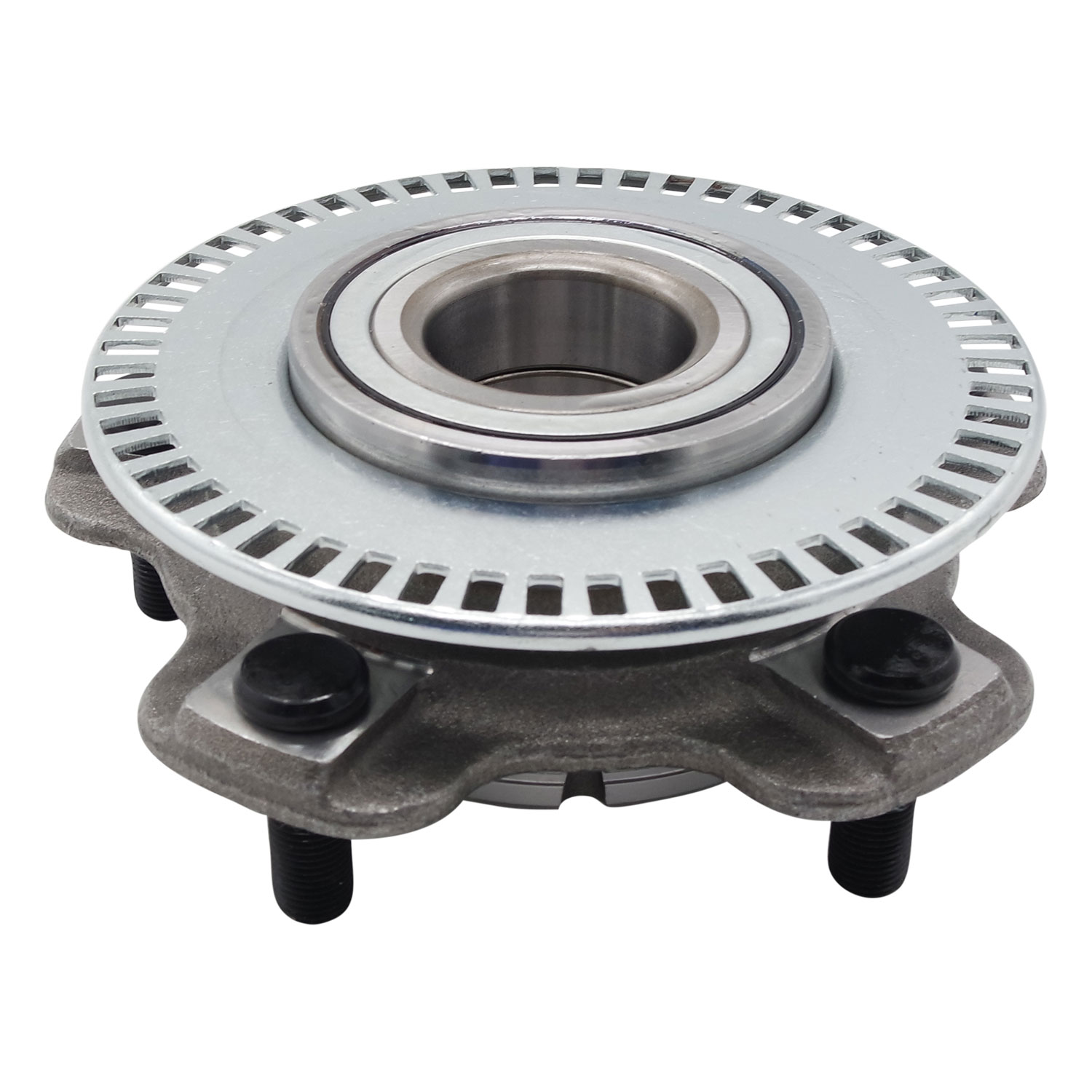

Chevrolet, Suzuki (1.6, 2.0) Wheel Bearing and Hub Assembly - Front

Part Number:

104193

Product Type:

​

Hub Assemblies are engineered with Silent Ride Technology (SRT) to ensure a comfortable and quiet ride. Strict engineering tolerances in conjunction with the highest quality bearing components are integral to this superior design.

SPECIFICATIONS

ABS Tone Ring Tooth Quantity

53

Anti Lock Braking System Type

Tone Ring

Bearing Type

Ball

Bolt Thread Pitch

M12×1.25

Brake Pilot Diameter

108.2

Flange Bolts Included

No

Flange Included

Yes

Hub Pilot Diameter

108.2

Anti Lock Braking System

Yes

Bearing Generation

Gen 2

Bolt Circle Diameter

139.7

Bolts Included

No

California Proposition 65

Yes

Flange Diameter

169.5

Flange Offset

37

Prop 65 Yes/No

Yes

FEATURES & BENEFITS

● Designed with raw steel material that meets or exceeds standards to produce a long-lasting service life.
● All hub assemblies go through a vacuum vulcanization process to enhance the structural integrity of the seal and rubber components.
● Ball bearings are spaced precisely to the appropriate clearance for smooth rotation and abrasion resistance.
● High quality rubber optimizes the seals performance and durability against high-temperatures and weathering.
● To ensure a smooth surface, free from defects, all bearing housings are manufactured with polyamides for added impact toughness and age resistance.

APPLICATIONS

Year Range
Make
Model
Sub Model
Position
2006-2006
Suzuki
XL-7
Base, Premium
Front
2004-2005
Suzuki
XL-7
LX, EX
Front
2004-2005
Suzuki
Grand Vitara
LX, EX
Front
2004-2004
Suzuki
Vitara
LX
Front
2003-2003
Suzuki
Grand Vitara
Base
Front
2003-2003
Suzuki
XL-7
Touring
Front
2003-2003
Suzuki
Vitara
Base
Front
2002-2002
Suzuki
Grand Vitara
JLS, JLX
Front
2002-2002
Suzuki
Vitara
JLS, JLX
Front
2002-2003
Suzuki
XL-7
Limited
Front
2002-2002
Suzuki
XL-7
Plus, Base, Touring
Front
2001-2001
Suzuki
Vitara
JLX, JLS, JX, JS
Front
2001-2003
Chevrolet
Tracker
LT, ZR2, Base
Front
2001-2001
Suzuki
Grand Vitara
JLX Plus, JLS Plus SE, XL-7 Limited, JLX Plus SE, JLS Plus, XL-7 Touring
Front
2001-2002
Suzuki
Grand Vitara
Limited
Front
