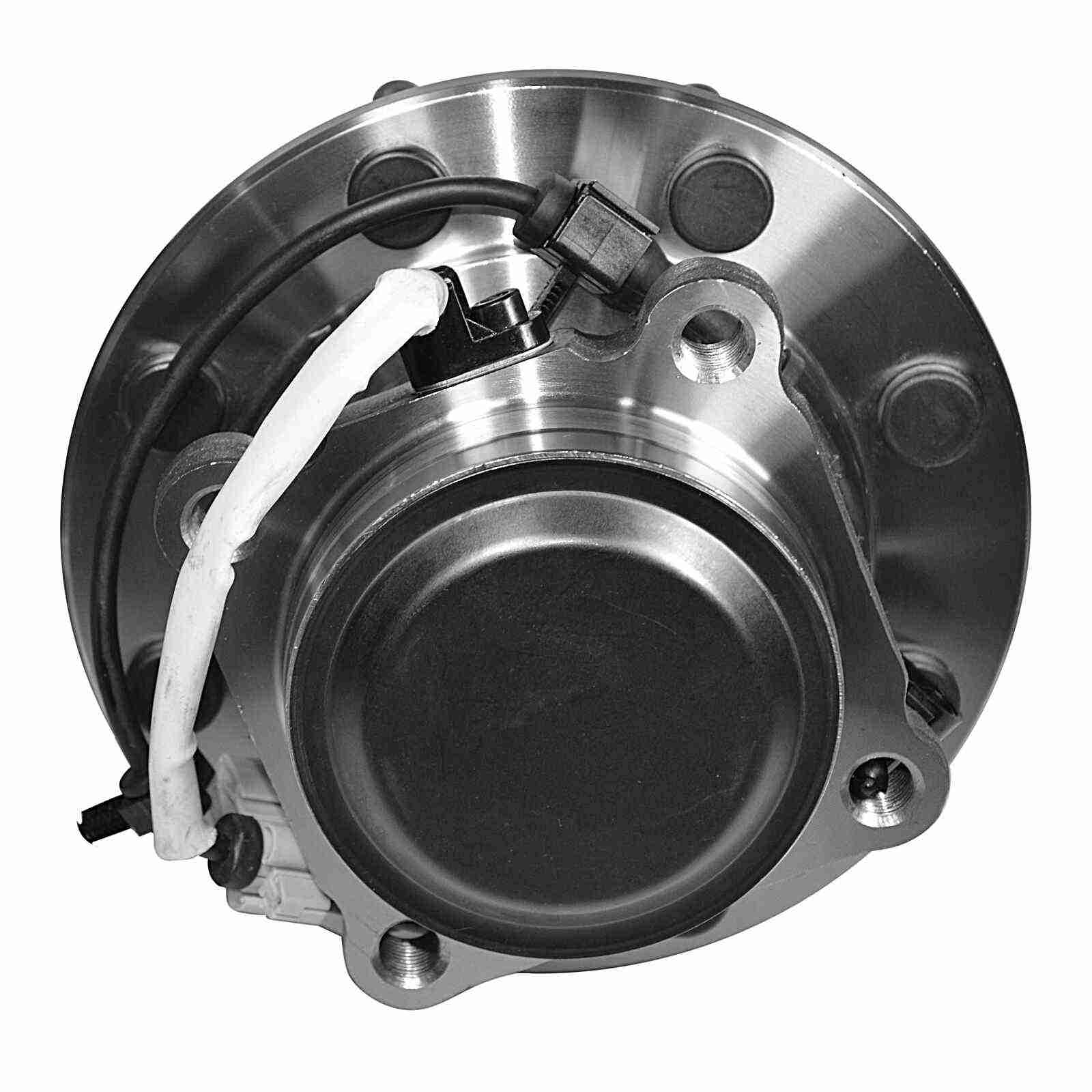

Chevrolet, GMC Wheel Bearing and Hub Assembly - Front
SPECIFICATIONS
ABS Tone Ring Tooth Quantity
55
Anti Lock Braking System Type
Cable
Bearing Type
Taper
Bolt Thread Pitch
M14×1.5
Brake Pilot Diameter
117.8
Driven Type
Non-driven
Flange Bolts Included
No
Flange Included
Yes
Anti Lock Braking System
Yes
Bearing Generation
Gen 3(solid)
Bolt Circle Diameter
165
Bolts Included
No
California Proposition 65
Yes
Flange Bolt Hole Quantity
4
Flange Diameter
199.5
Flange Offset
65.1
FEATURES & BENEFITS
● Designed with raw steel material that meets or exceeds standards to produce a long-lasting service life.
● All hub assemblies go through a vacuum vulcanization process to enhance the structural integrity of the seal and rubber components.
● Ball bearings are spaced precisely to the appropriate clearance for smooth rotation and abrasion resistance.
● High quality rubber optimizes the seals performance and durability against high-temperatures and weathering.
● To ensure a smooth surface, free from defects, all bearing housings are manufactured with polyamides for added impact toughness and age resistance.
APPLICATIONS
Year Range | Make | Model | Sub Model | Position |
---|---|---|---|---|
2017-2017 | Chevrolet | Express 2500 | Front | |
2015-2017 | GMC | Savana 3500 | Front | |
2013-2017 | Chevrolet | Express 3500 | Front | |
2012-2012 | GMC | Savana 3500 | LT, LS | Front |
2011-2012 | Chevrolet | Express 3500 | LT, LS | Front |
2006-2016 | Chevrolet | Express 2500 | Front | |
2006-2010 | Chevrolet | Express 3500 | LT, LS | Front |
2006-2016 | GMC | Savana 2500 | Front | |
2006-2011 | GMC | Savana 3500 | LT, LS | Front |
2003-2005 | Chevrolet | Express 2500 | Front | |
2003-2005 | GMC | Savana 2500 | Front |
